Akozon 35W 3A CC CV Boost/Step Up/Down Converter DC-DC 5V-30V to 0.5V-30V Power Converter

• -boost function: The boost/ module can boost or step down to maintain a stable output voltage. It is small in size, high in power, high in efficiency and stable in performance.

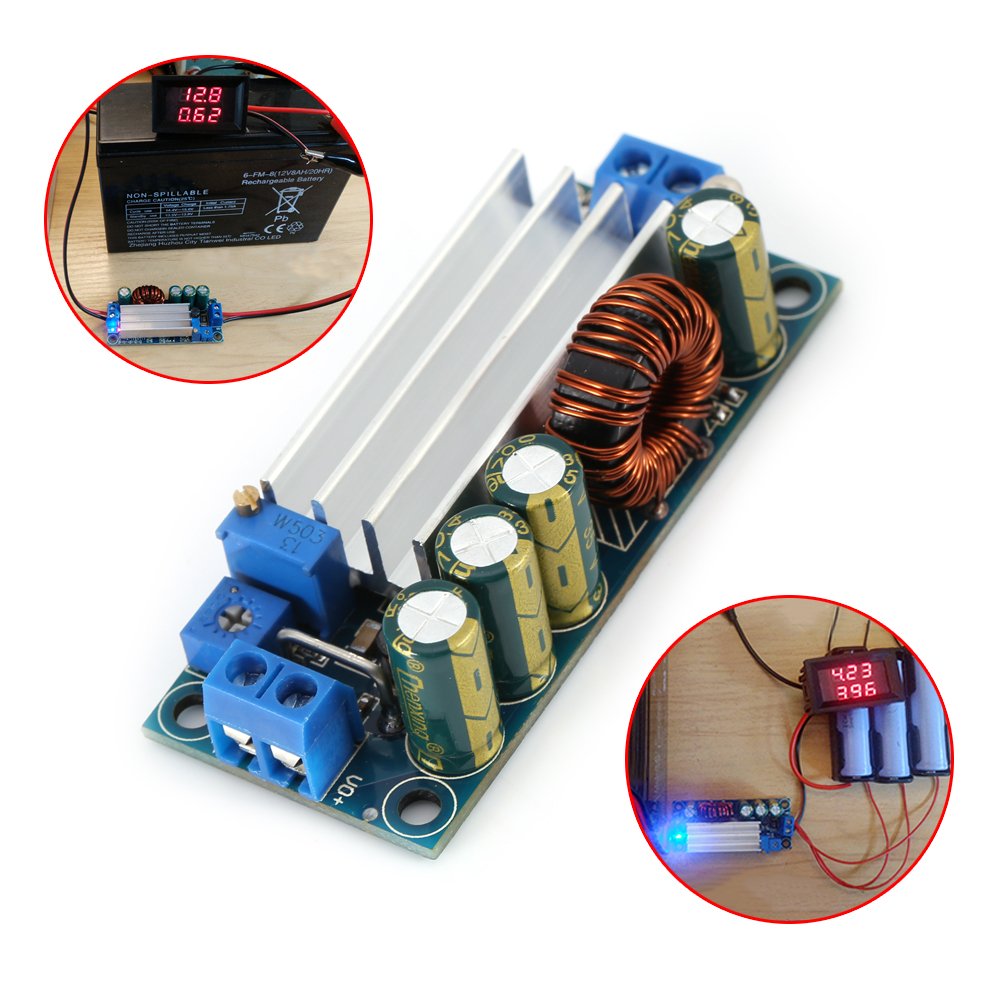

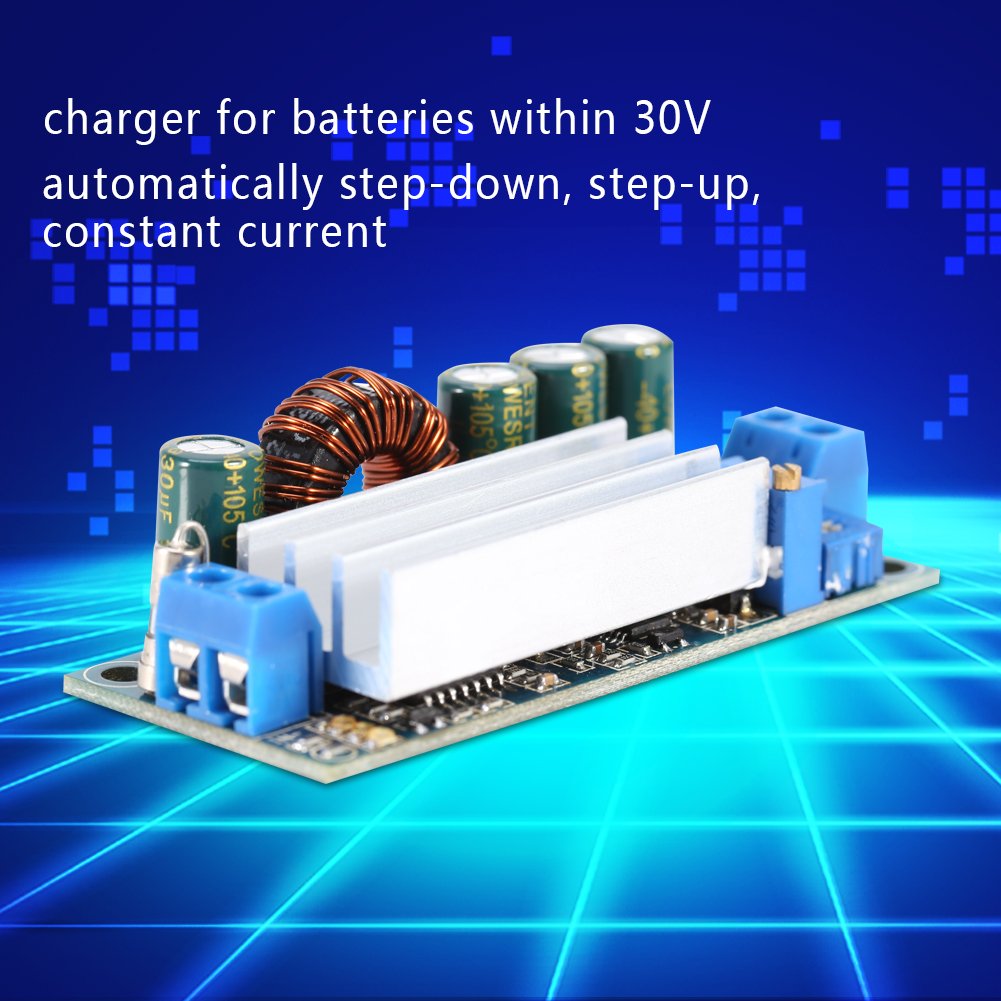

• Boost application: Input 5V to 30V, can charge battery, lithium battery, AA rechargeable battery, or used to adjust the brightness of constant current LED.
• LED light indication: Red&blue light on when constant current charging, blue light on only when constant voltage charging, blue&green light on when almost fully charged, green light on only when fully charged.
• Protective function: The power -boost module supports 10A input overcurrent protection, input undervoltage protection and high efficiency MOS input anti-reverse protection.

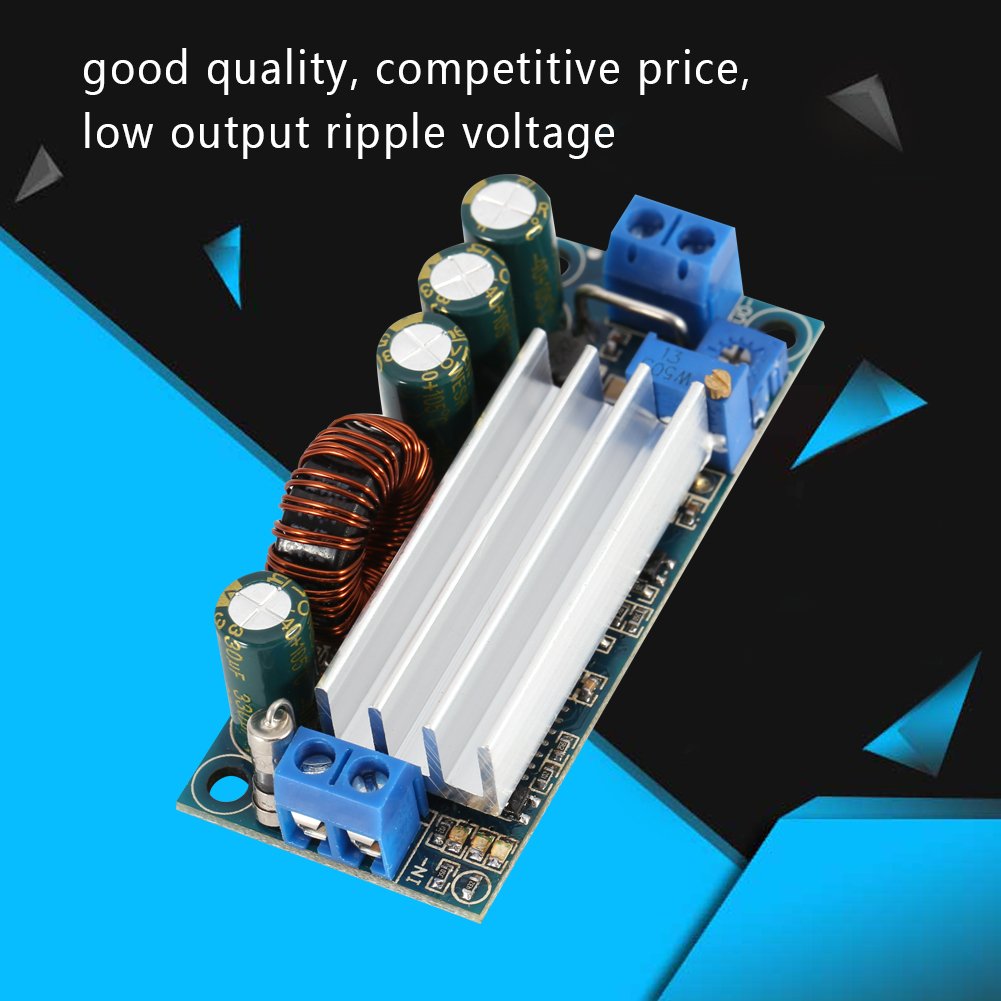

• application: The function is realized by the step-down circuit structure, and the output ripple voltage is quite low. For example, when the output is 12V 3A, it is 20mV, which is very suitable for power supply for speakers, audio amplifiers, artificial circuits, etc.

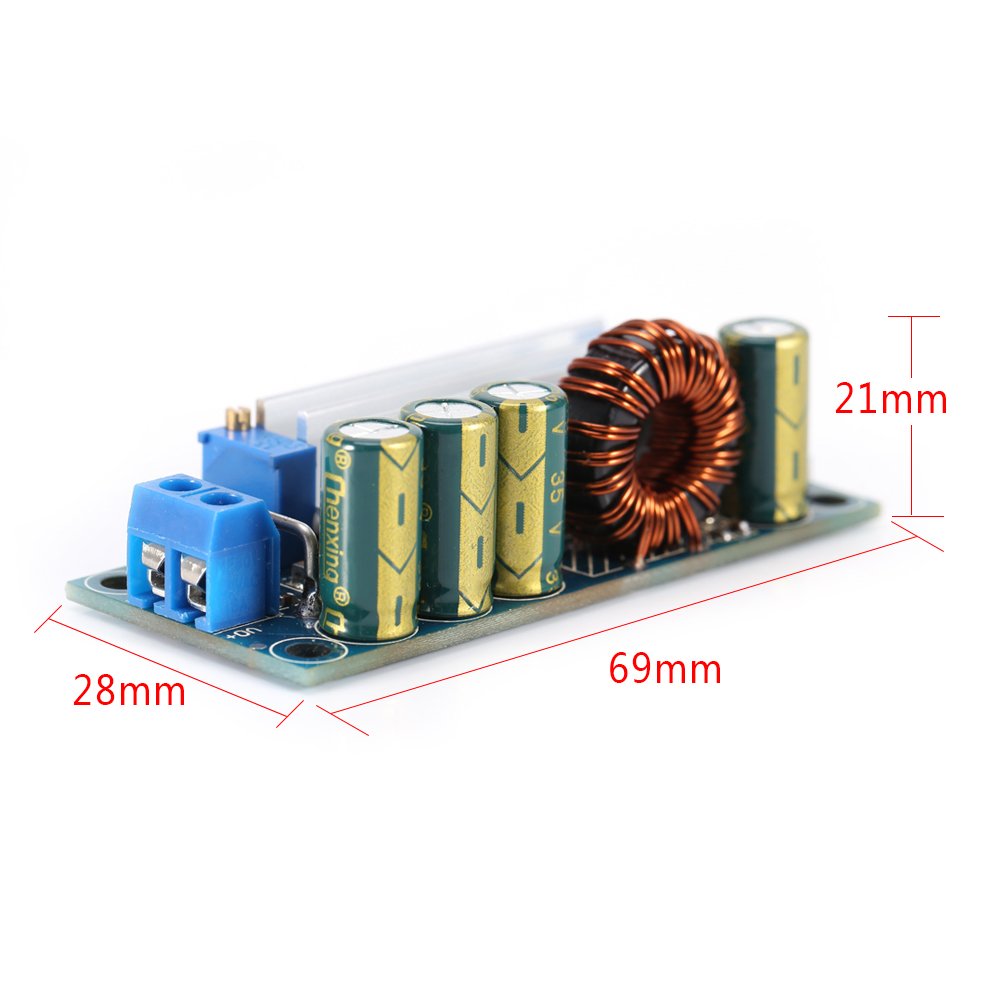

Features: This boost/ module can step up or step down voltage and maintain a stable output voltage. It supports input over-current protection, input under-voltage protection and MOS input anti-reverse protection. It has quite low output ripple voltage, for example, 20mV when output is 12V 3A, which is great for powering speaker, audio amplifier, artificial circuit, etc. Input 5V to 30V and it can charge storage battery, lithium battery, AA rechargeable battery, or adjust constant current LED brightness. Red&blue light on when constant current charging, blue light on only when constant voltage charging, blue&green light on when almost fully charged, green light on only when fully charged. Specifications: Input Voltage: 5V~30V Output Voltage: 0.5V~30V Output Current: 3A (or 4A if enhance heat dissipation) Output Power: 35W (or 60W if enhance heat dissipation) Output Ripple Voltage: 20mV (at 12V 3A output) Conversion Efficiency: 87~91%(step up); 87~89%(step down) Input Over-current Protection: 10A Input Anti-reverse Protection: High efficiency MOS Input Under-voltage Protection: Yes Output Over-current Protection: Yes Frequency: 180kHz Size: 69*28*21mm / 2.71*1.1*0.82" Package Includes: 1 x Module
