Voltage Converter Module,DC5-30V to 1.25-30V Boost Voltage Regulator Module, power converter module,Automatic Step Up/Down Converter,Over Current, Short Circuit, Over Temperature

• REGULATED POWER CONVERTER MODULE : - This is a non-isolated DC regulated power converter module with long service life.High power and stable output, it converts 5-30VDC to 1.25-30VDC.
• HIGH QUALITY :- High quality components ensures high conversion efficiency, up to 93%.Designed with two heat sinks for better heat dissipation.It supports over current, short circuit, over temperature
• SPECIFICATION : - ❶Input Voltage: DC5-30V❷Input Current: 8A, (MAX) 10A, (within 6A for long-term work)❸Output Voltage: 1.25-30V continuously adjustable❹Output Current: 10A (MAX) (long-term natural cooling within 5A, please reduce rated value when output high voltage), enhance heat dissipation or reduce rated value when module temperature is over 65℃❺Constant Current Output Range: 0.2-10A
• FEATURE :- Voltage Converter Module DC 5-30V to 1.25-30V,Automatic Step Up/Down Converter,Boost/ Voltage Regulator,Regulated Converter Module,Over Current, Short Circuit, Over Temperature

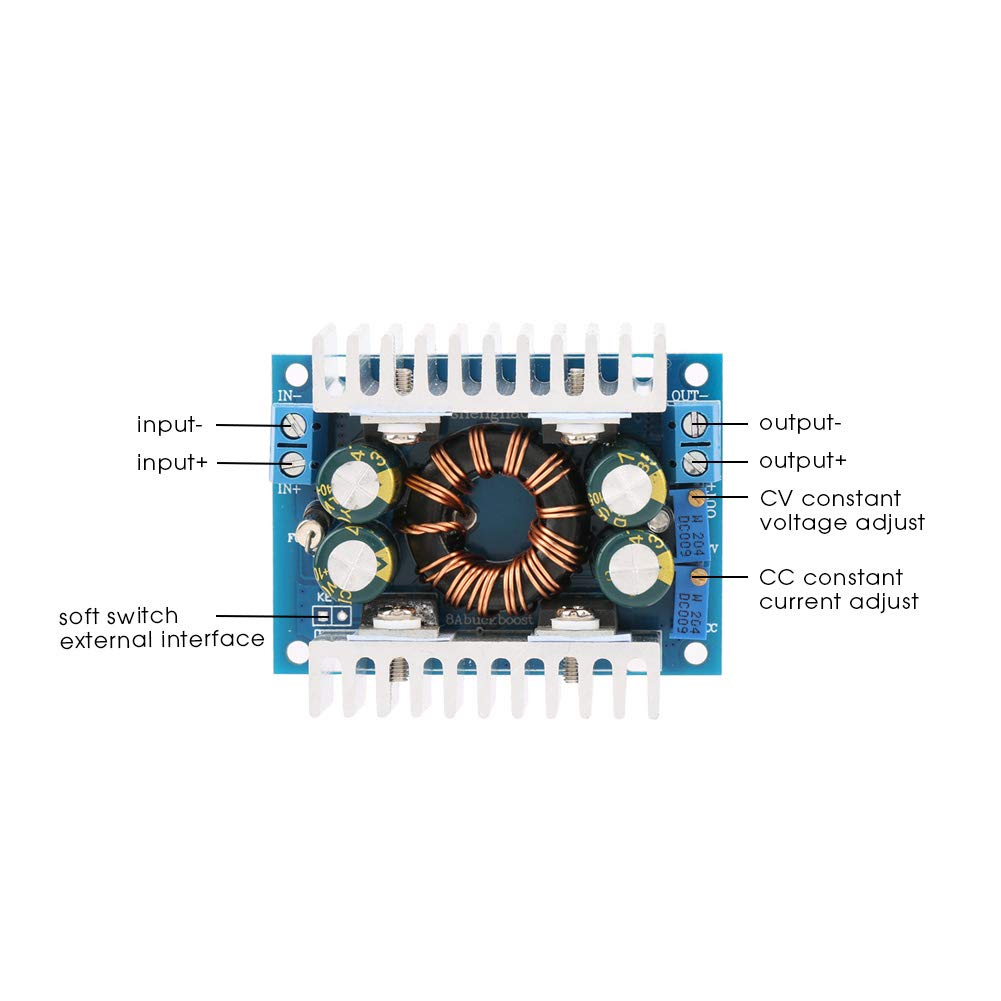

• NOTE : -If reverse input is required, connect a diode in series with the input. Wiring method: terminal output, (input is IN, output is OUT)

Specification: Type: Non-isolated synchronous rectification automatically step up/down module Input Voltage: DC5-30V Input Current: 8A, (MAX) 10A, (within 6A for long-term work) Quiescent Current: 4mA (there will be deviation when working voltage is different) Output Voltage: 1.25-30V continuously adjustable Output Current: 10A (MAX) (long-term natural cooling within 5A, please reduce rated value when output high voltage), enhance heat dissipation or reduce rated value when module temperature is over 65℃ Constant Current Output Range: 0.2-10A Operating Temperature: -40℃ to +85℃ Frequency: 150KHz Conversion Efficiency: Typical 91%, maximum 93% Over Current Yes Short Circuit Yes (current limiting protection) Over Temperature Yes (automatic reduce output voltage) Reverse Input No, please connect to a diode in series at input if needed Output Back Yes, do not need to add the diode when used for charging. Wiring Method: Terminal block output, (IN is input, OUT is output) Weight: 70g / 2.5oz (approx.) Package list: 1 * Module Current Adjustment: 1, Adjust the CV potentiometer, set the output voltage according to the load requirements. 2, Rotate counterclockwise CC potentiometer about 30 circles, (i.e. the output current is set to minimum), connected to the LED, set CC potentiometer to required current. If you use the module for battery charging, connect to output after battery is fully discharged. Adjust CC to required current. Because if the more energy is left in battery, the less charging current will be. Please do not use short circuit to adjust current.
