Bluetooth 5.0 Audio Receiver Module Board for Stereo Wireless Sound - PCB Circuit DIY Kit Digital Power Amplifier (VHM-314) - Hayatec

• Hayatec Bluetooth 5.0 Audio Receiver Decode Module. Universal Micro USB 5V power supply. Also supports: 3.7-5V battery power
• Support configuration: A2DP/AVCTP/AVDTP/HFP USB powered:
• LED indicator Bluetooth mode long blue light; 3.5mm stereo audio interface Standard 3.5mm interface, output stereo sound source, plug in headphones, connect amplifiers and other devices.
• he three solder joints reserve output, and the user can perform
• VHM-314 / vhm 3-14 V2.0 Bluetooth 5.0 Audio Receiver Lossless Decoder Wireless Stereo Music Module

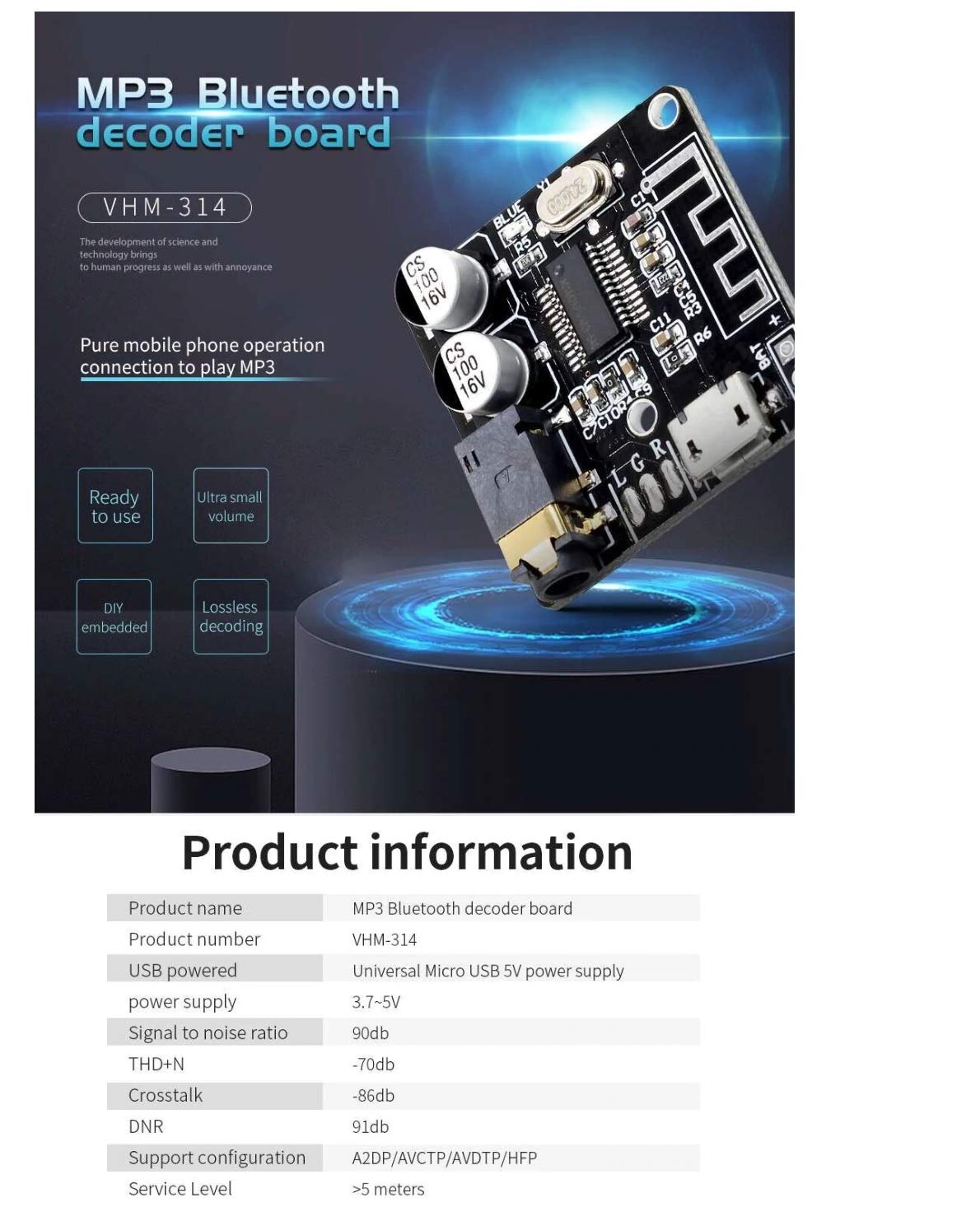

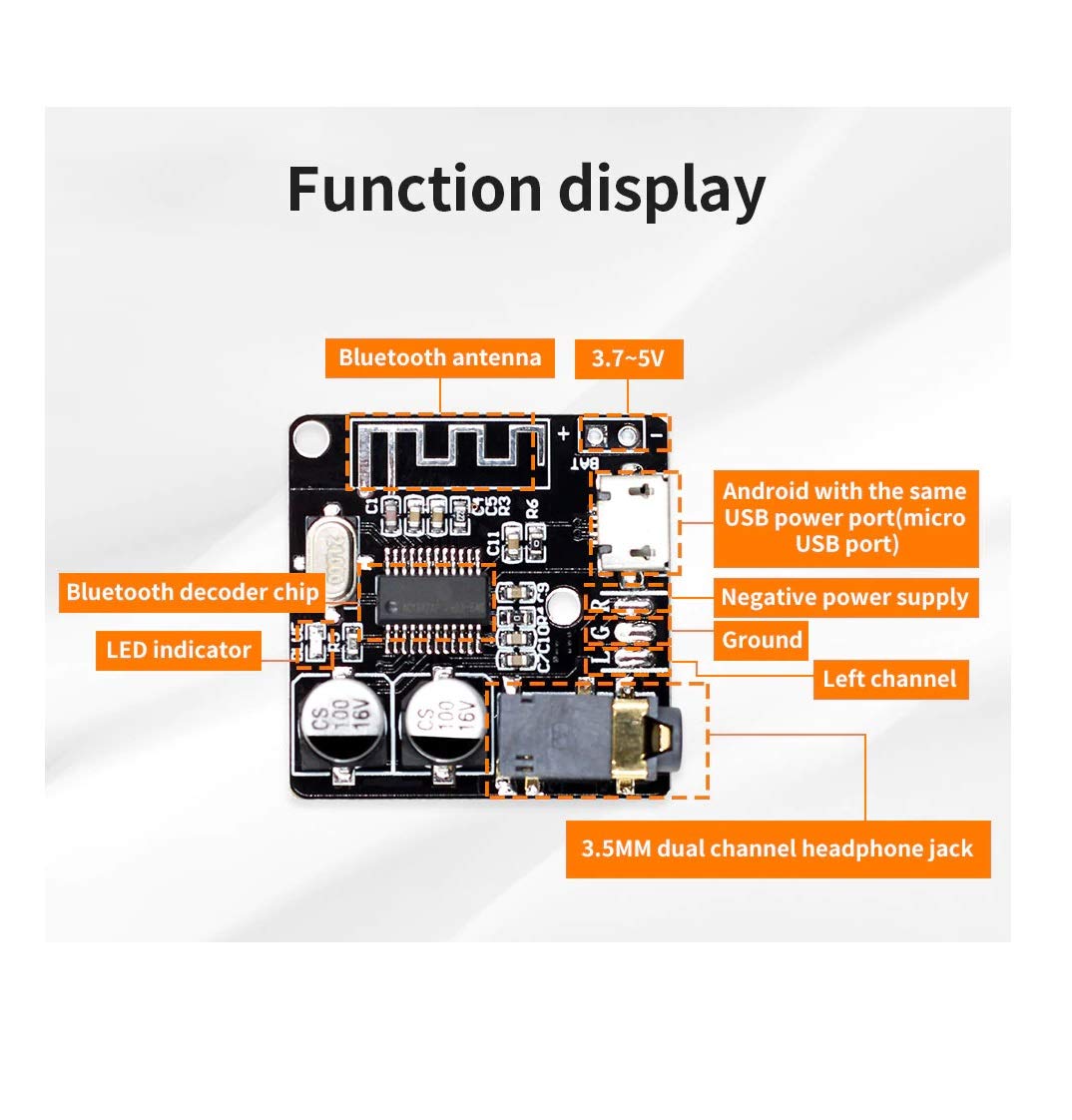

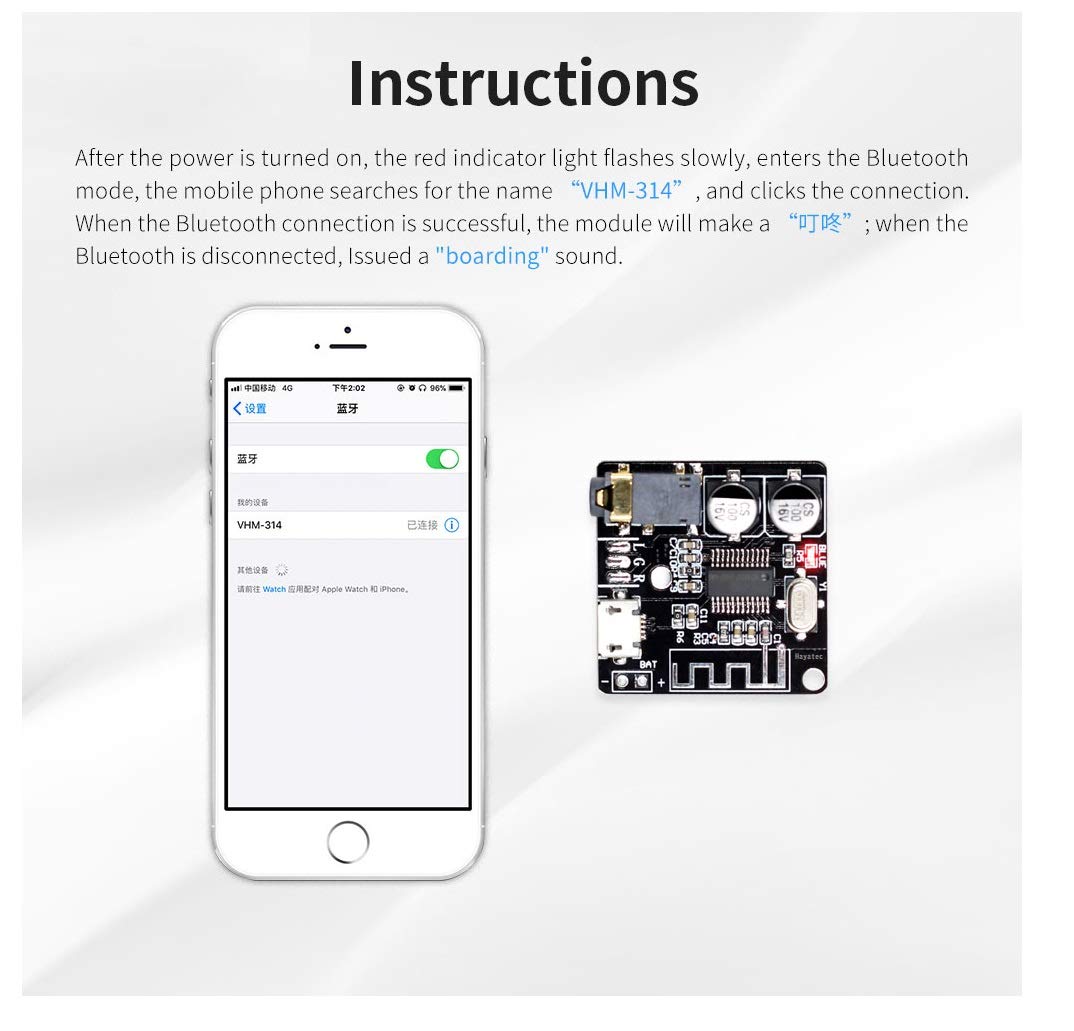

Bluetooth 5.0 Audio Receiver Decoder Wireless Stereo Music Module - VHM-314 Power Supply 3.7-5V SNR 90dB THD+N -70dB Crosstalk -86dB DNR 91dB Support Profile A2DP/AVCTP/AVDTP/AVRCP/HFP LOS >15m Instructions: After the power is turned on, the blue indicator lights up and enters the Bluetooth mode; the English "The Bluetooth device is ready to pair" is displayed, indicating that the Bluetooth mode is entered and waiting for pairing; the name searched by the mobile phone Bluetooth is the device name of the decoding board. Click on the connection, the decoder board prompts "The Bluetooth device is connected successfully", indicating that the decoder board and the mobile phone are connected successfully, you can play music. Interface Details: USB powered Universal Micro USB 5V power supply 3.7-5V Supply Pad External 3.7-5V lithium battery power conversion LED indicator Bluetooth mode long blue light 3.5mm stereo audio interface Standard 3.5mm interface, output stereo sound source, plug in headphones, connect amplifiers and other devices Package Contents: 1 xVHM-314 Bluetooth 5.0 Module HAYATEC is UK registered Trademark
