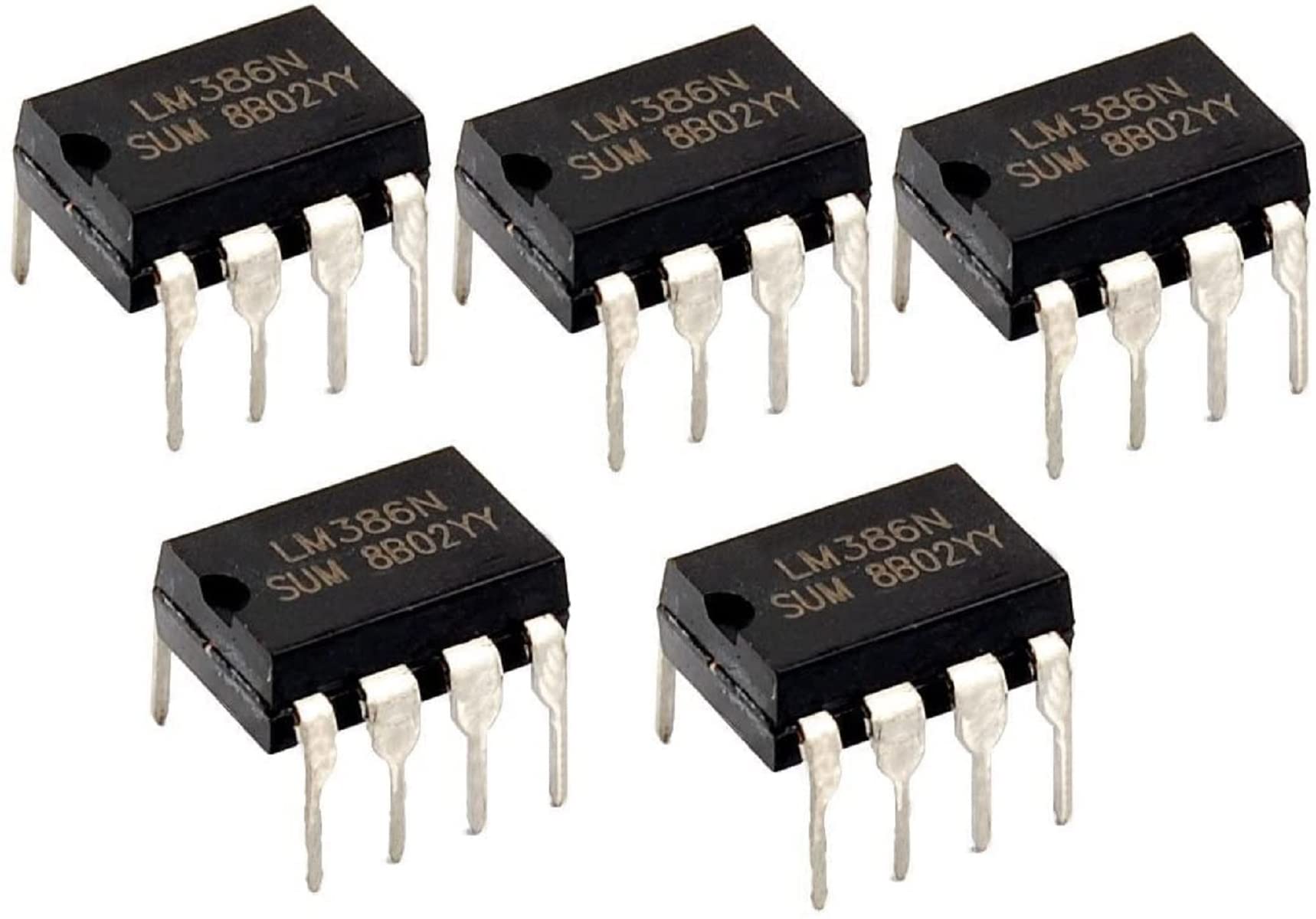

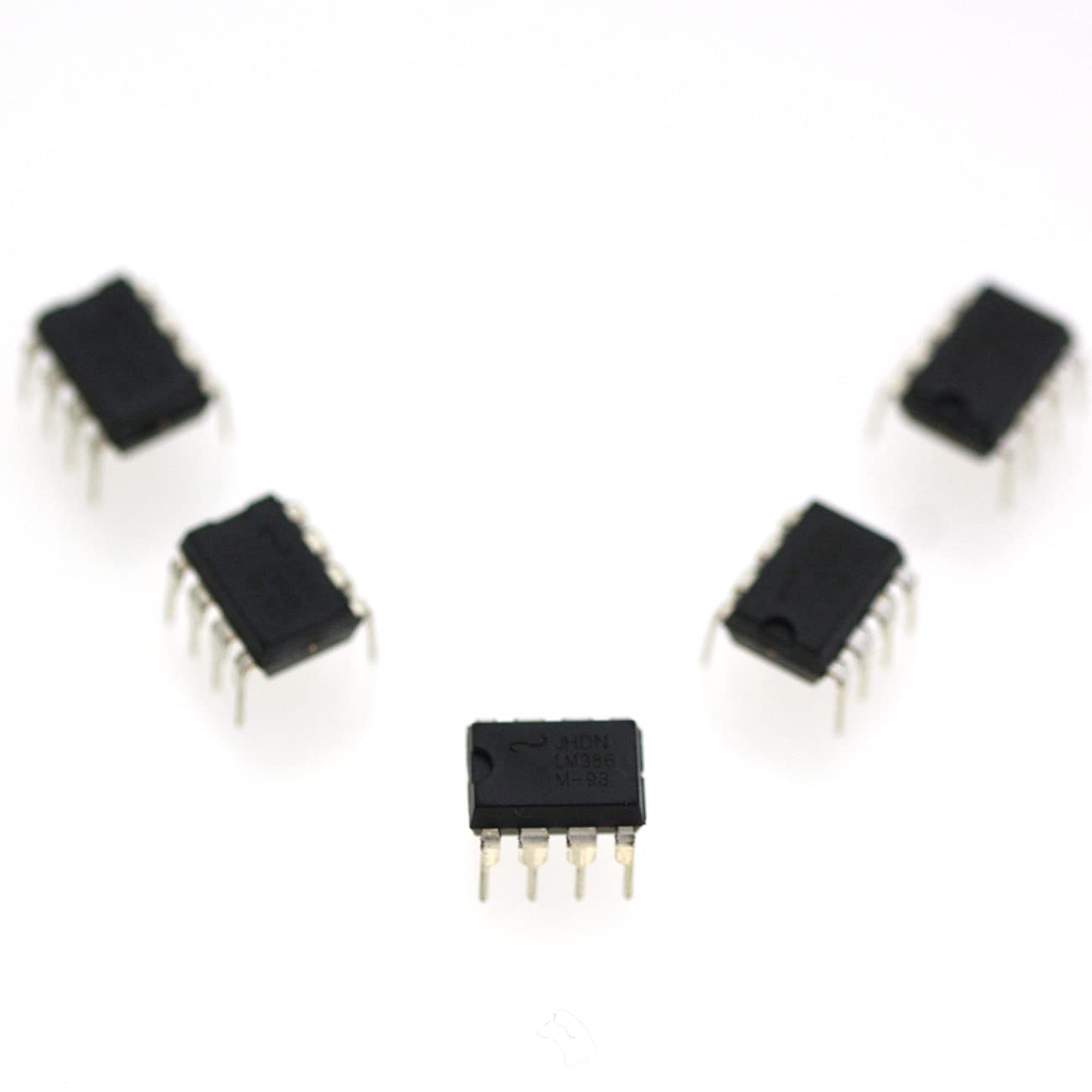

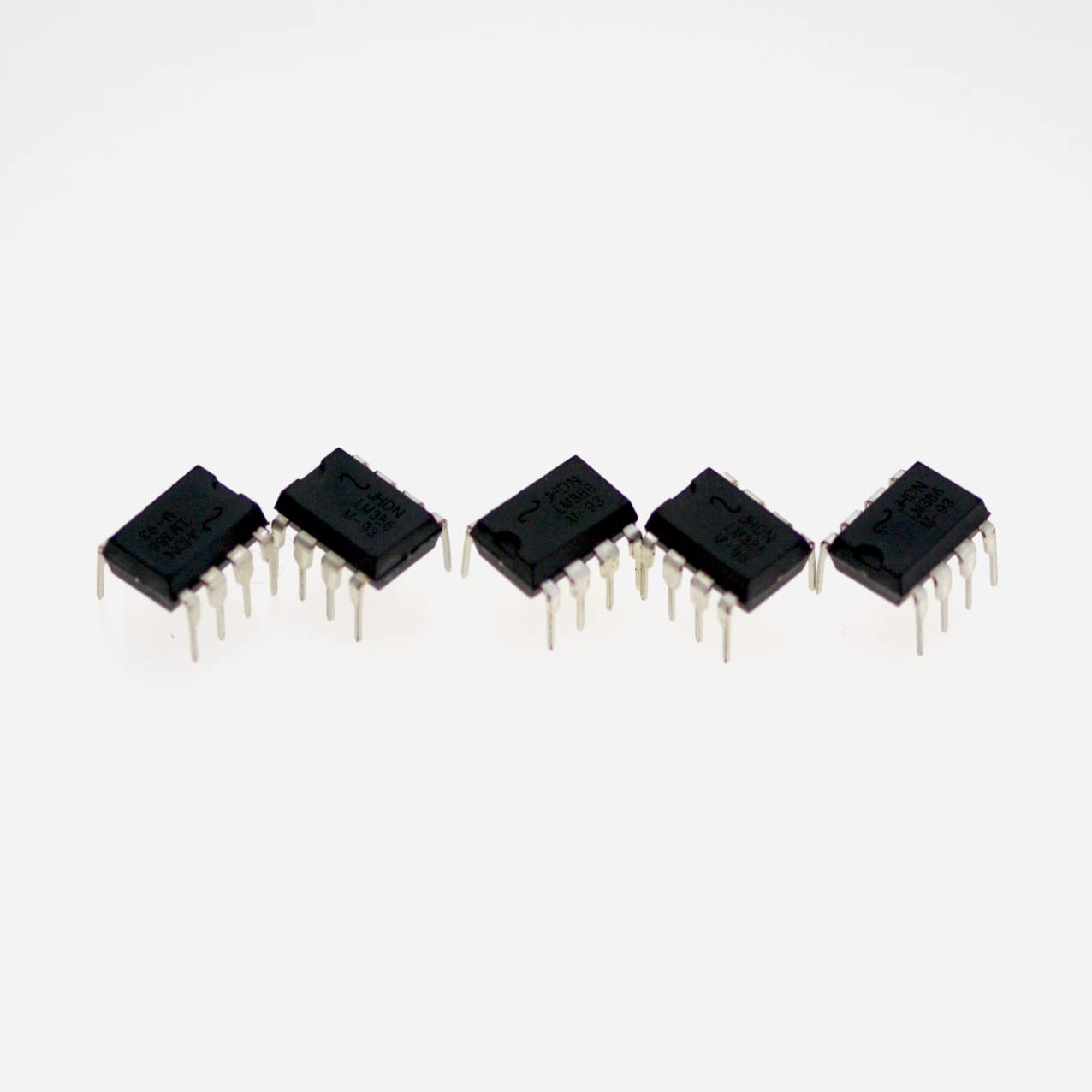

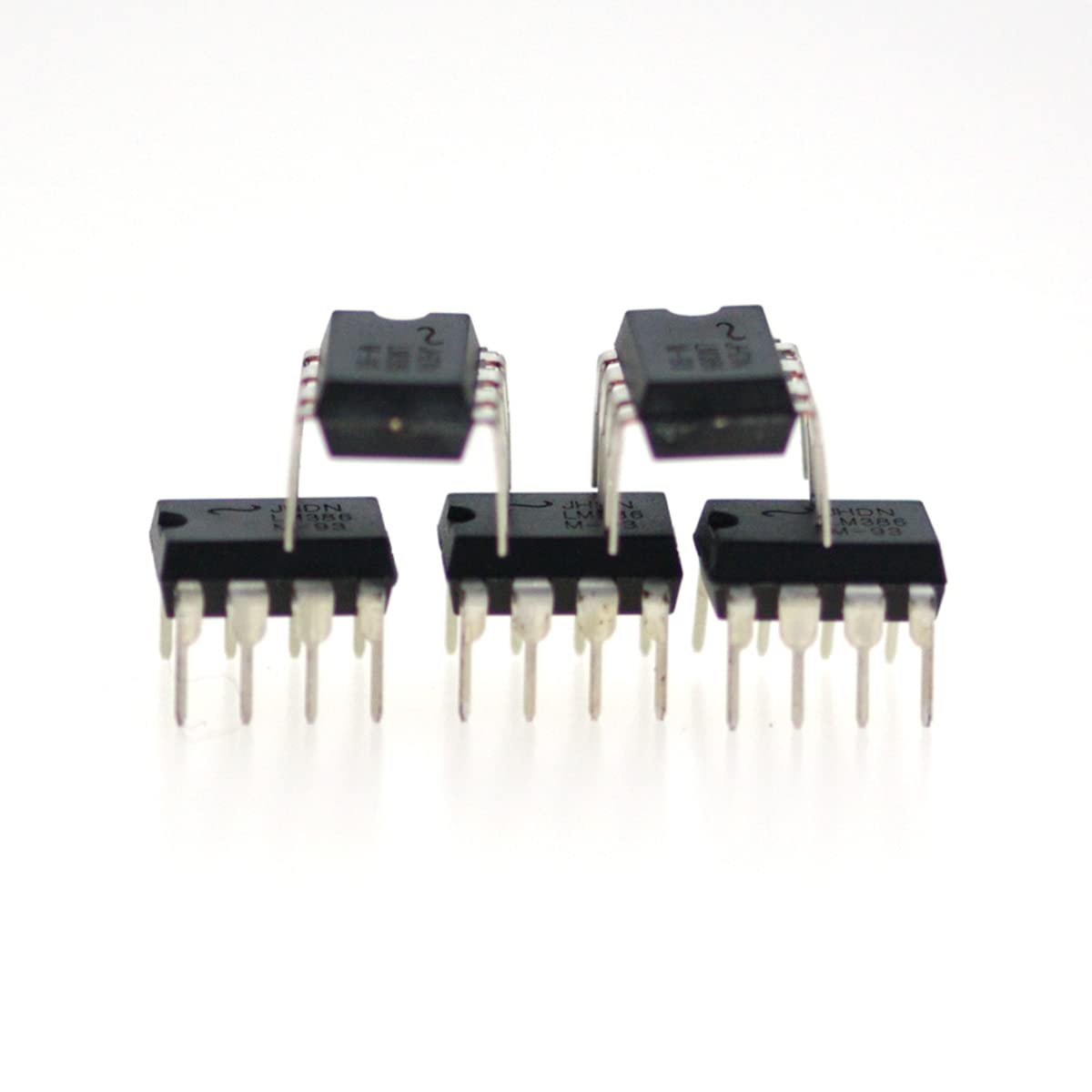

FamilyMall LM386N 1W 8-DIP IC Audio Power Amplifier, Package of 5

• Audio Power Amplifier 1W 8-DIP IC
• Model: LM386N
• Pin pitch: 2.5 mm / 0.098 inches
• Pin length: 5.8 mm / 0.228 inches
• Row to row distance (approx): 8 mm / 0.315 inches

Product description: The LM386 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value up to 200. The inputs are ground referenced while the output is auto-matically biased to one half the supply voltage. The quiescent power drain is only 24 milliwatts when operating from a 6 volt supply, making the LM386 ideal for battery operation. Applications: AM-FM radio amplifiers; Portable tape player amplifiers; Intercoms; TV sound systems; Line drivers; Ultrasonic drivers; Small servo drivers; Power converters. Pins quantity: 8. Wide supply voltage range: 4 V and plusmn; 12 V or 5 V and plusmn; 18 V; low quiescent current drain: 4 mA; power: 1 W. Voltage gains: 20 to 200; overall Size (each): 9.3 x 8.6 x 7.2 mm / 0.37 x 0.34 x 0.28 inches (L x W x H); Material: plastic, metal. Black, Silver Tone; Package contents: 5 x Audio Power Amplifier 1W 8-DIP IC
