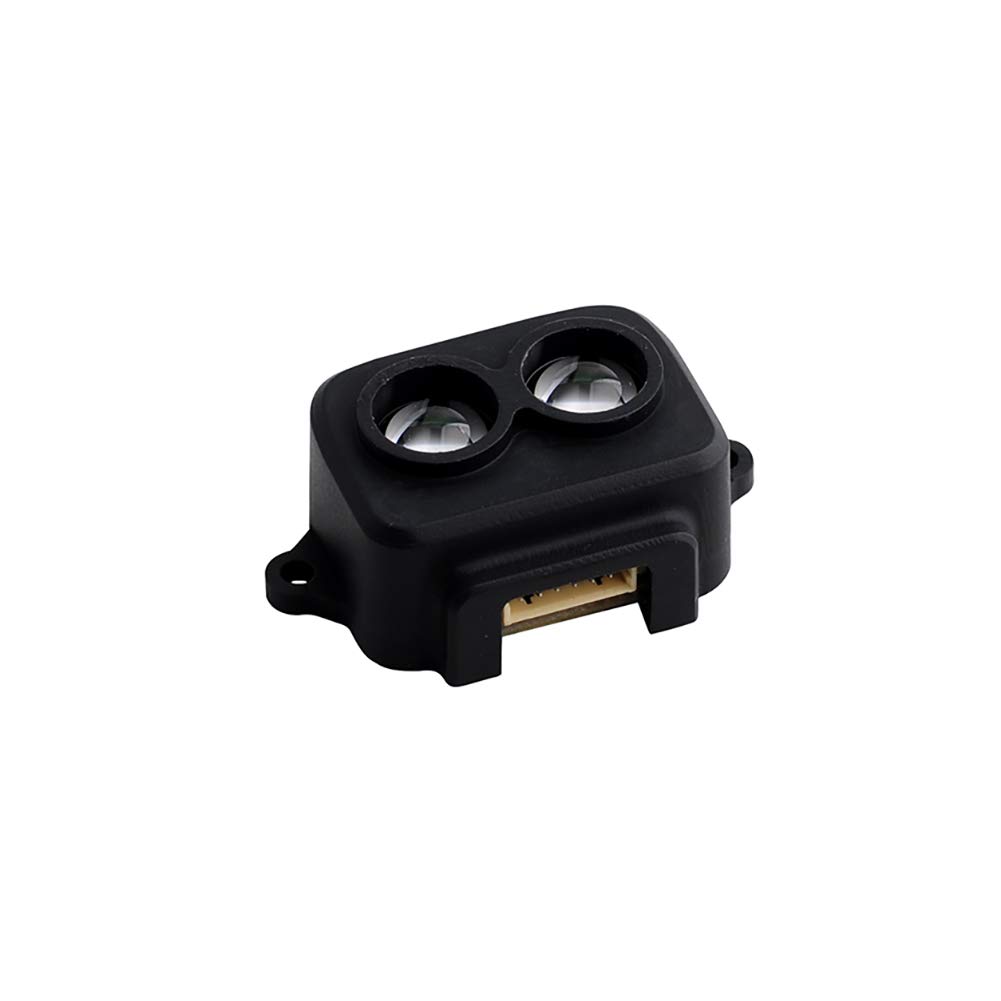

Benewake TF-Luna LiDAR Module Range Finder Sensor Single-Point Micro Ranging Module 5V UART IIC 0.2m~8m Measurement, for Arduino Pixhawk Pedestrian Vehicle Detection

• ▶ TF-Luna work with Arduino: http://gofile.me/6Jtt7/Vs2sRPNp6
• ▶ Operating range: 0.2m~8m, Communication interface: UART/IIC
• ▶ The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.
• ▶ Applications: Traffic Monitoring, Obstacle detection, Level measurement, Smart device, Security and obstacle avoidance, Drone altitude holding and terrain following, Machine control and safety sensors, Distance measuring instrument
• ▶ What you will get: 1PCS TF-Luna LiDAR Module

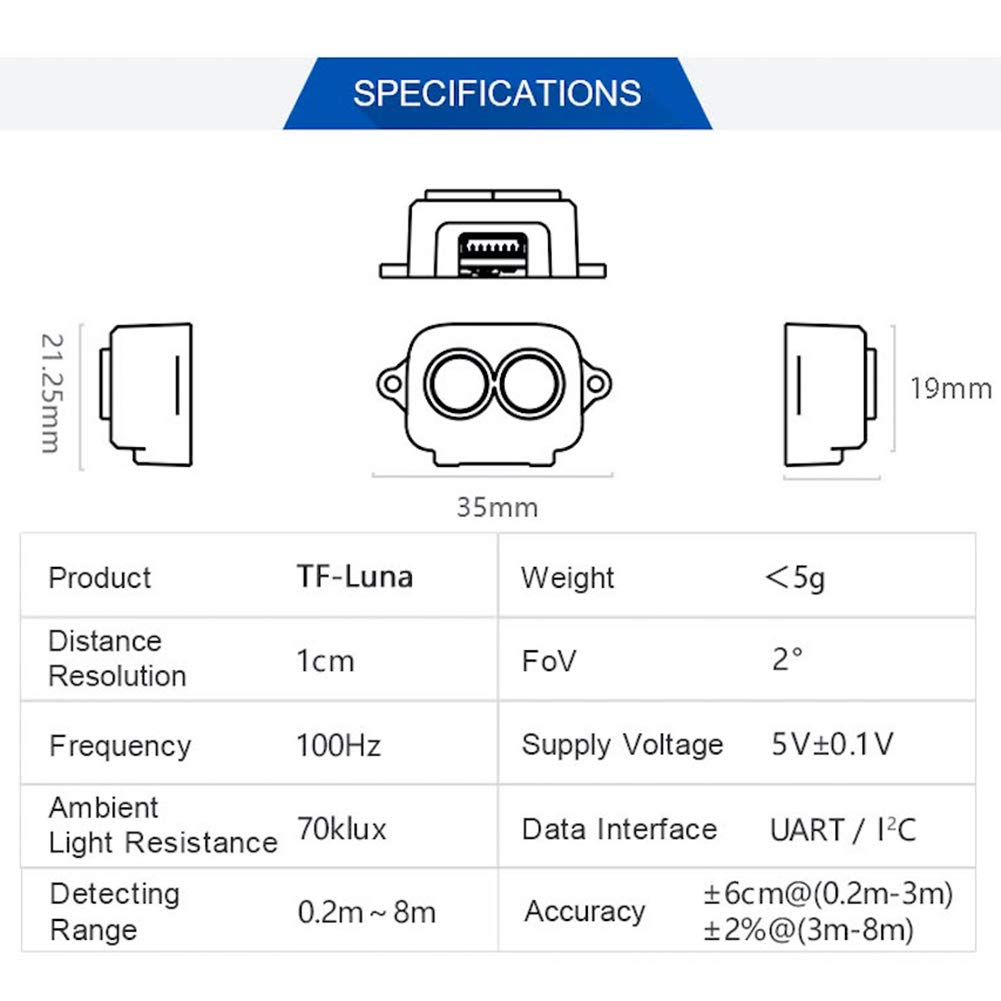

Description: Operating range: 0.2m~8m1 Accuracy: ±6cm@(0.2-3m), ±2%@(3m-8m) Measurement unit:cm Range resolution: 1cm FOV: 2°3 Frame rate: 1~250Hz( adjustable )4 Supply voltage: 5V±0.1V Average current: ≤70mA Peak current: 150mA Average power: 350mW Communication level: LVTTL(3.3V) Communication interface: UART/IIC Default baud rate: 115200 Data bit: 8 Stop bit: 1 Parity check: None Light source:VCSEL Wavelength:850nm Operating temperature : -20°C~75°C Certification:CE,FCC,ROHS Fall detection/Anti-Fall In the process of moving, the robot may encounter the situation that the road surface has downward steps or the ground sag. If the robot can't sense them and take action, it risks falling. Drones Obstacle Avoidance and Altitude Hold Mode Drones equipped Benewake LiDAR, can achieve tasks of attitude hold and obstacle avoidance in the application such as patrolling, security, agriculture, and delivery. Smart Trash 1. TF-Luna is installed on the side of the Trash. When the people come close trash, The TF-Luna trigger sound system to broadcast garbage classification rules and so on.2. TF-Luna is installed in the garbage can to measure the full state or empty state. Smart Home Smart Dressing Mirror Penetrated Internet of things take more science and technology into lives, Benewake LiDAR can detect distance of person to mirror thus mirror could be switched to realize change between mirror and advertisement. Elevator Advertisement Projection Switch Triggering Ads projector in elevator. Turn on/off the projector when the elevator door closes/opens to optimize the efficiency. Package Includes: 1 X TF-Luna LiDAR Module
