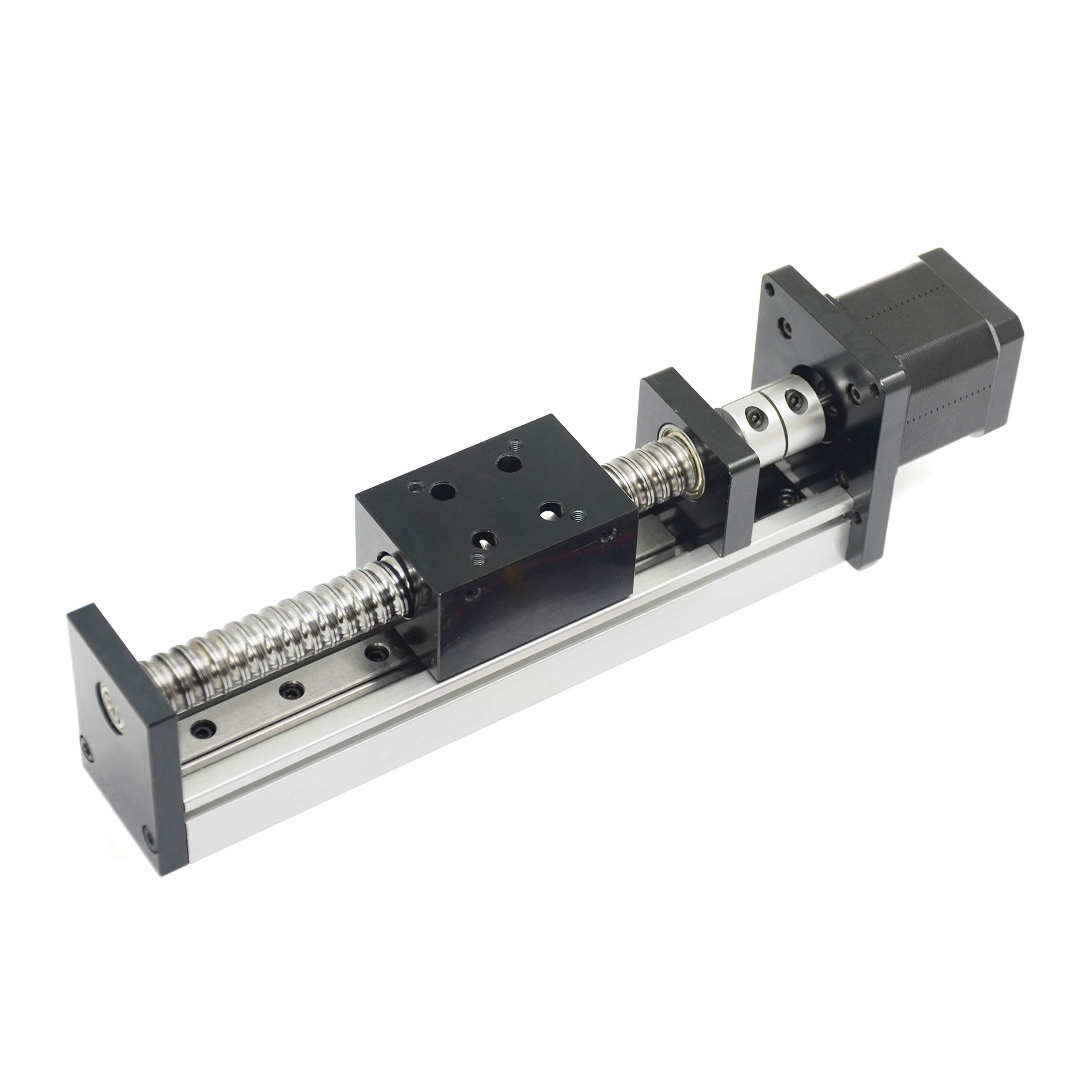

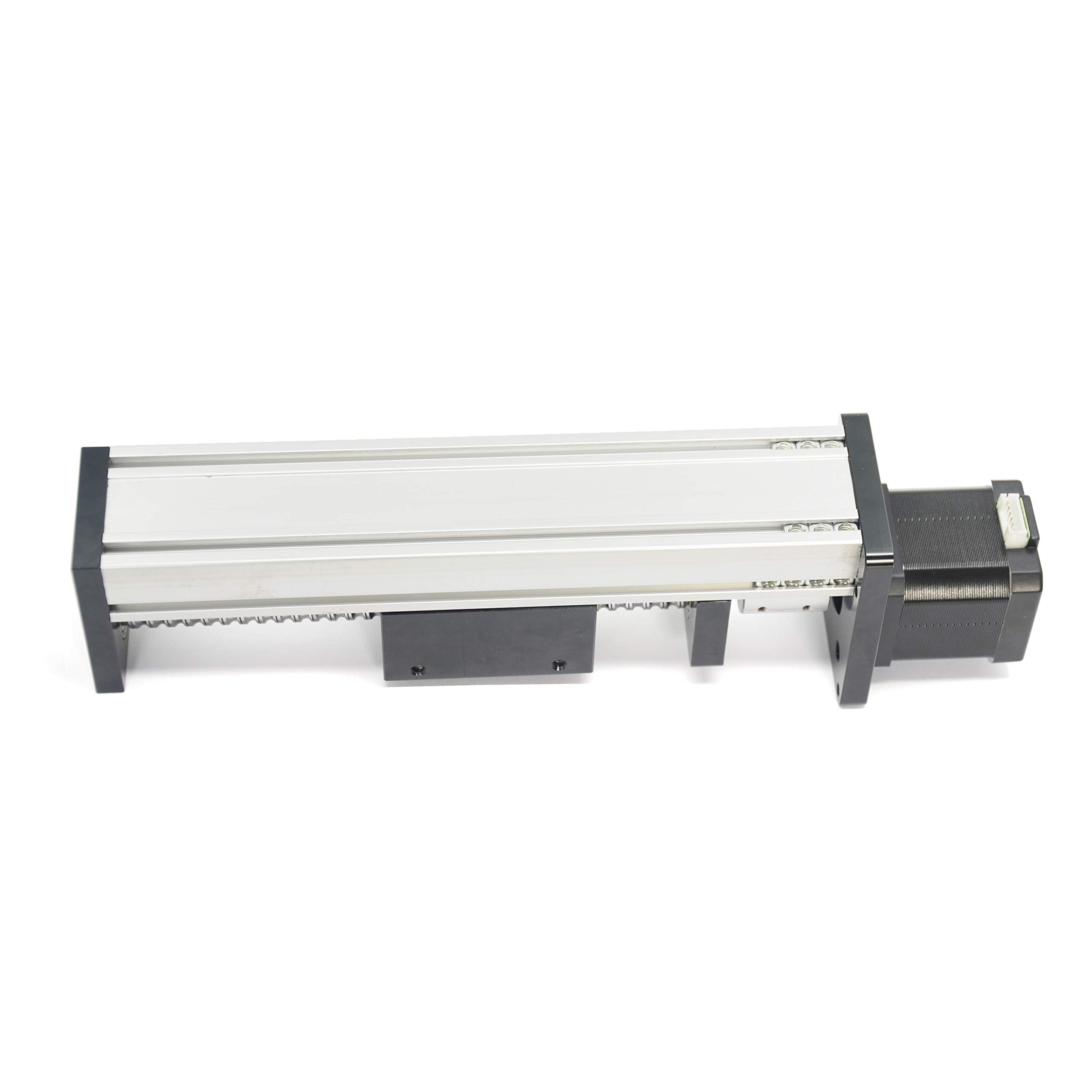

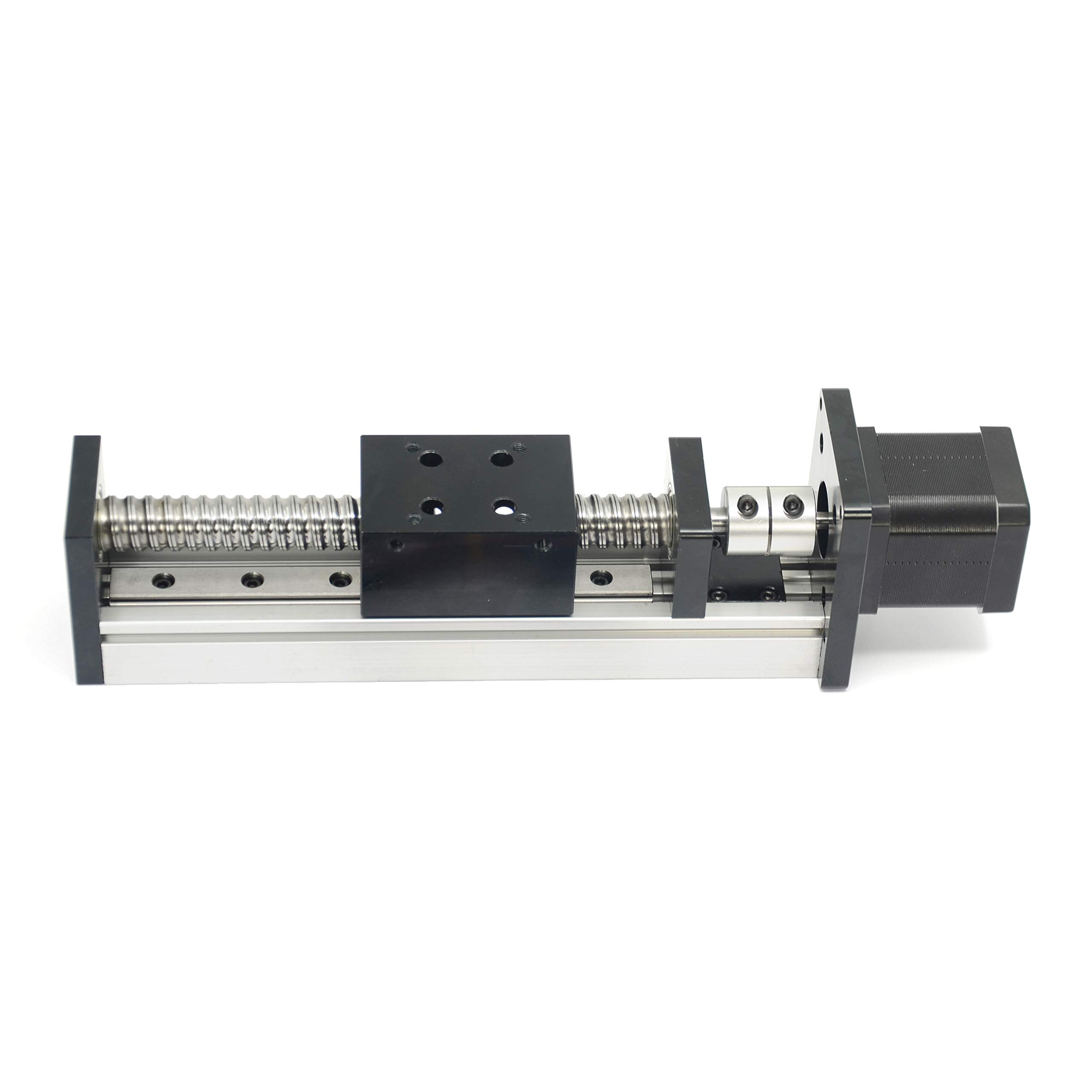

Befenybay 150mm Length Travel Linear Stage Actuator with Square Linear Rails Ballscrew SFU1605 with NEMA17 Stepper Motor for DIY CNC Router Parts X Y Z Axis
Options
1 availableAbout this item
- High precision, heavy load resistance SFU1605, Horizontal maximum load capacity: 30kg; Vertical maximum load capacity: 15kg
- Repeat positioning accuracy of ± 0.03mm
- Speed: 0-100mm/s
- 4 pcs M4 threaded hole to fix the workpiece
- Effective stroke:150mm, Lead:5mm ( The lead screw moves 5mm in one turn)
Product description

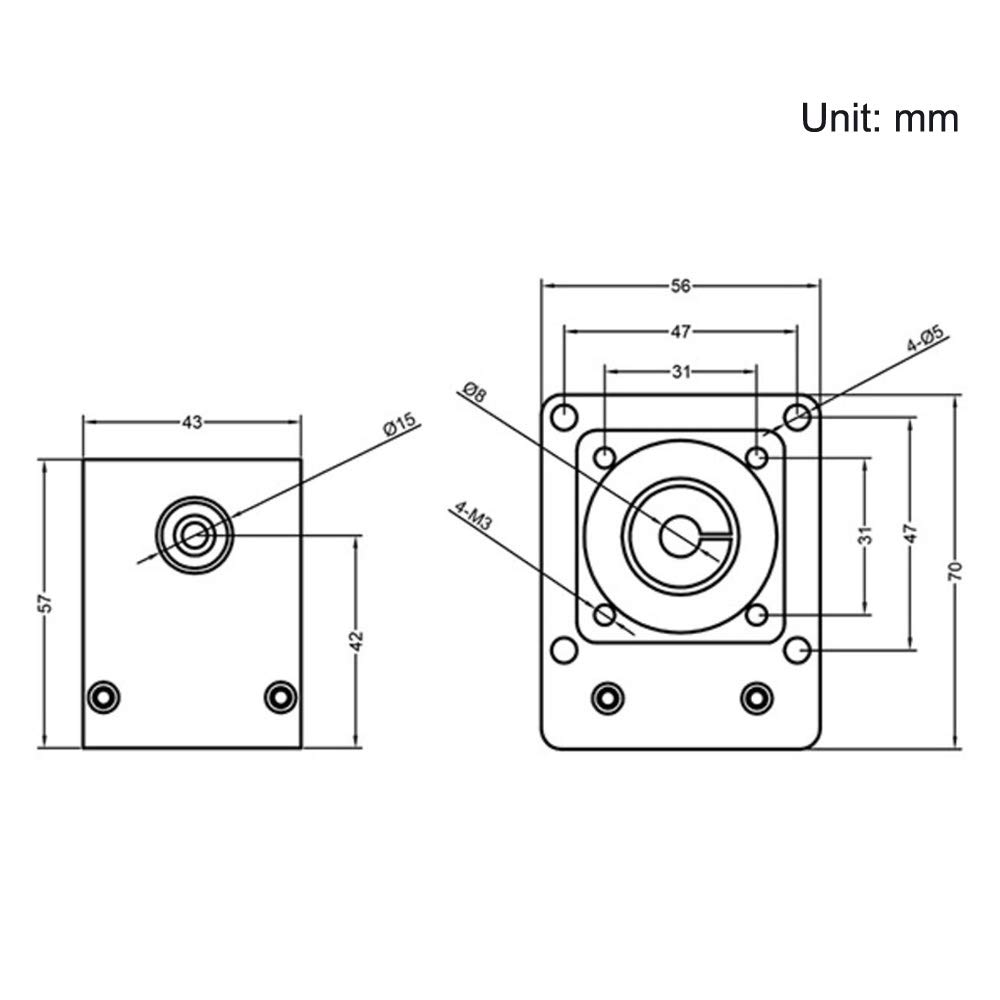

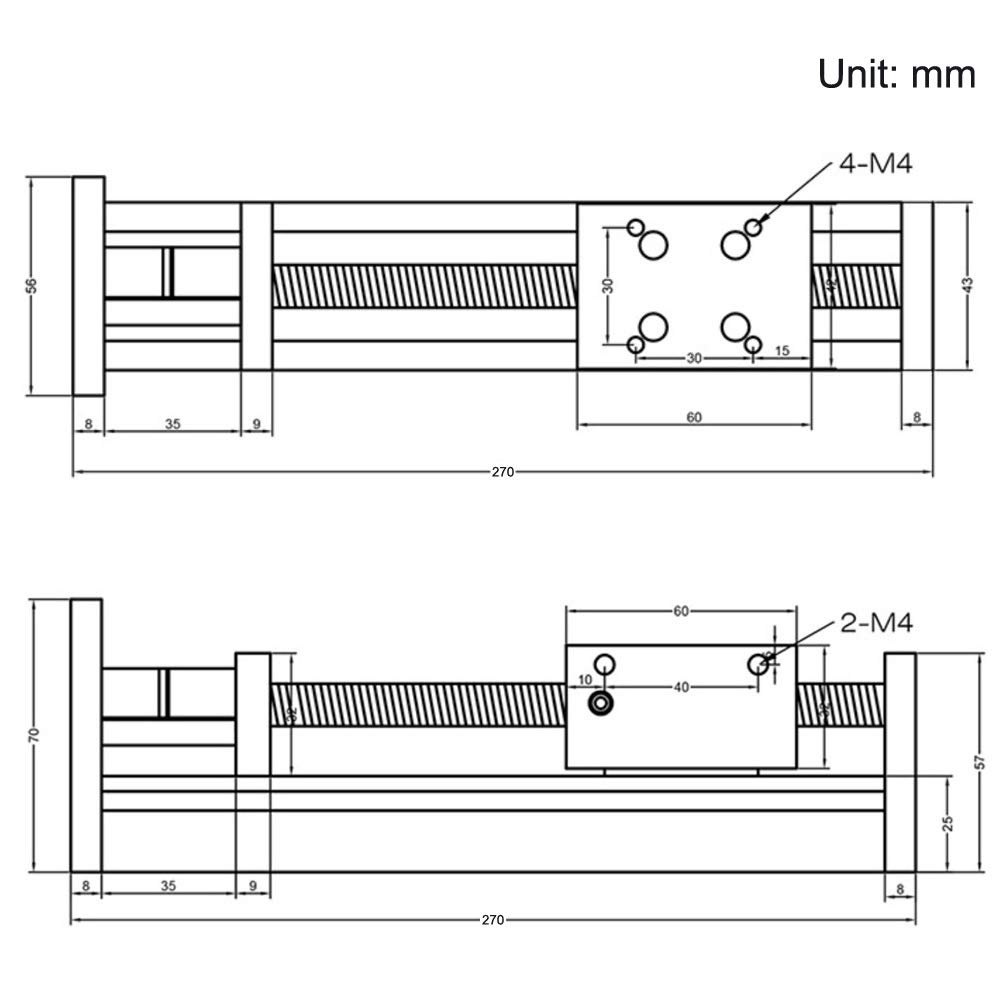

Stepper motor Parameter: Step angle: 1.8 degree Motor flange size: 42mm Motor length: 47mm Holding torque: 1.2N.m Current: 1.5A Resistance: 0.8 ohm Inductance: 2.4 mH Rotor Inertia: 87.3g.cm Lead wire: 4pcs Wiring: Red: A+ Green: A- Yellow: B+ Blue: B- Linear Stage Actuator Parameter: Effective Travel Length: 150mm Total length :315mm Type: linear system moulde Ballscrew type: SFU1605 (diameter:16mm, pitch of screw:5mm) Level ballscrew: c7 Weight: 1590g Package Content: 1pcs Linear Stage Actuator with NEMA17 Stepper Motor 1pcs stepper motor cable
