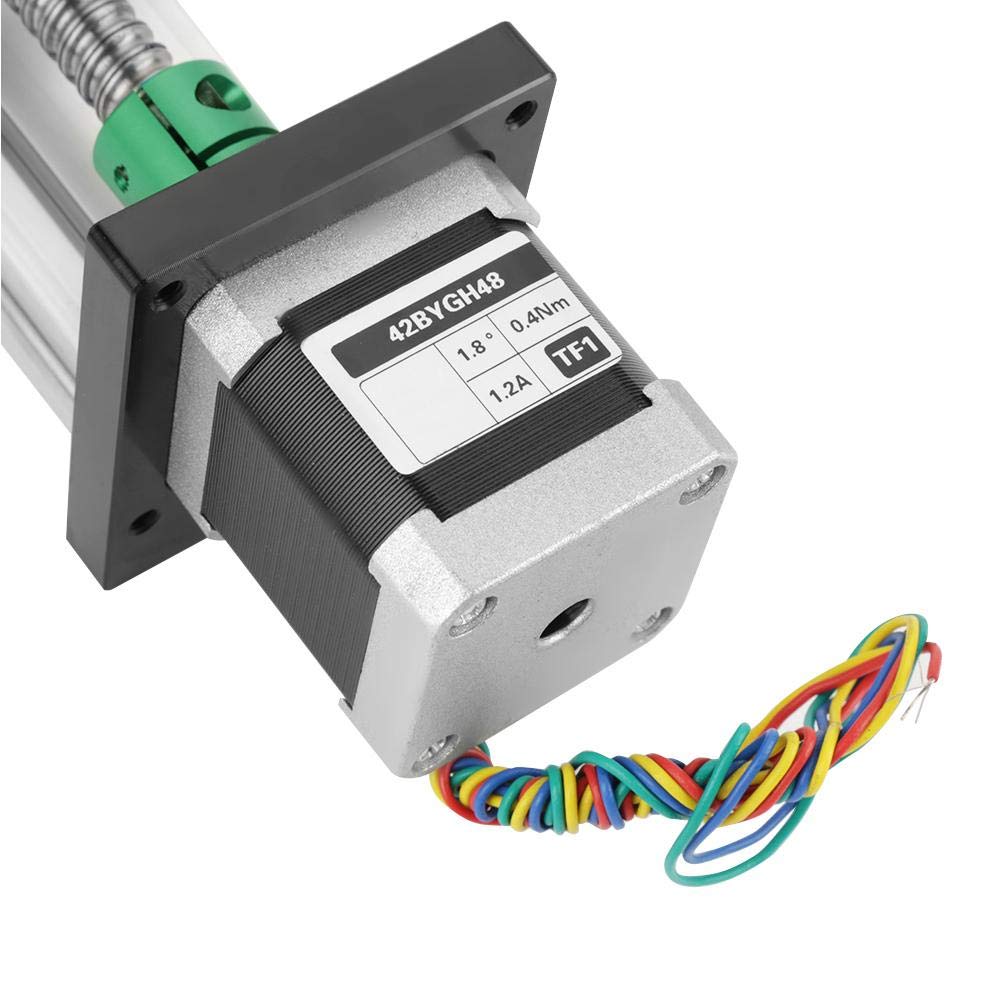

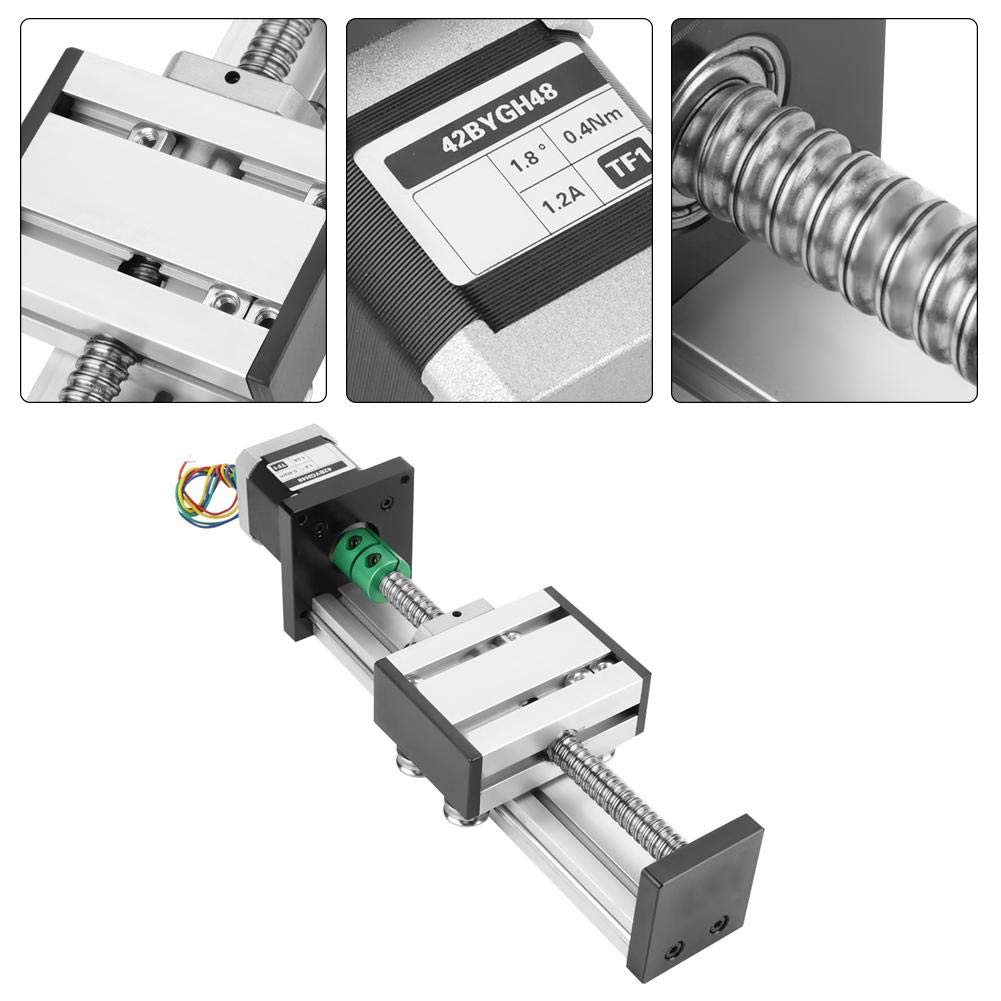

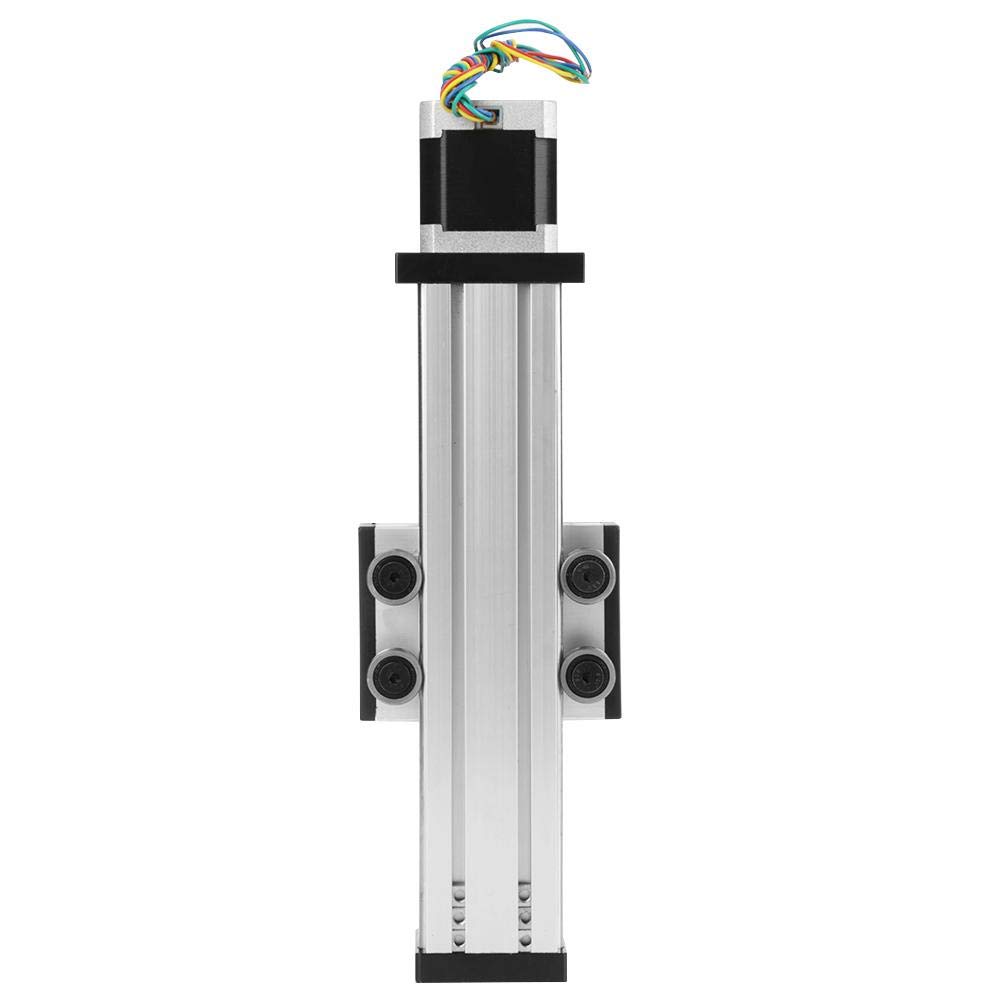

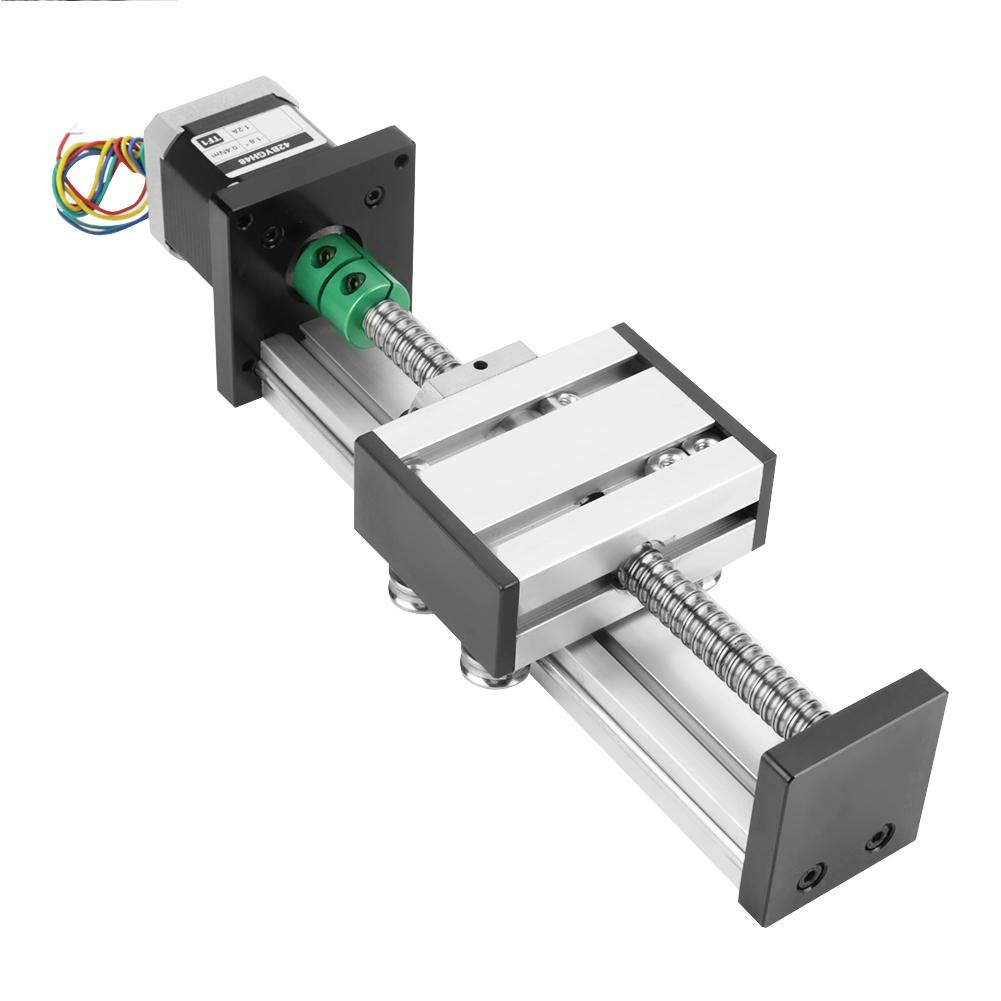

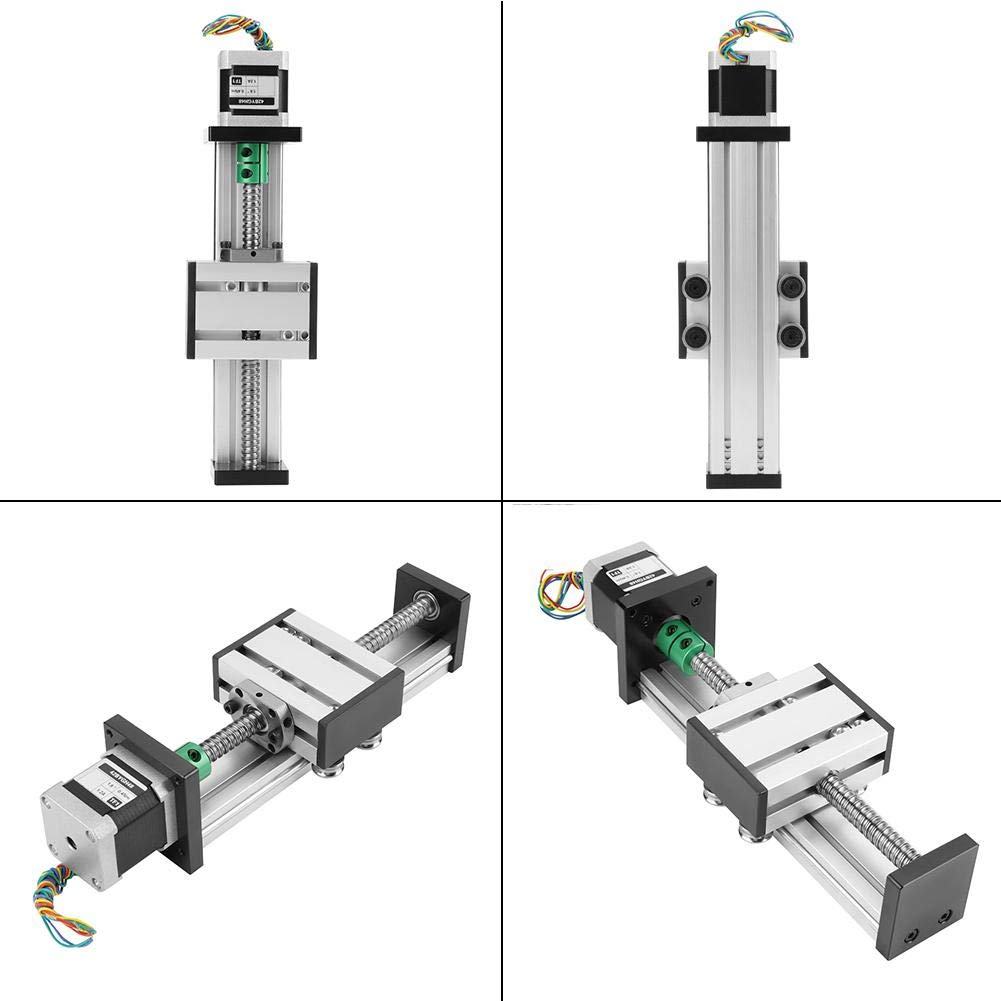

Ball Screw Linear Slide, 1204 Ball Screw Slide with a Stepper Motor Ball Screw Linear Slide Stroke Long Stage Actuator with Stepper Motor 100mm Stroke

• [Clockwise and Anti-clockwise Rotation] This DC Motor supports speed regulation, clockwise and counterclockwise rotation.
• [Less Heat and Energy Loss] The coil of this motor is made of pure copper with less heat and energy loss.
• [Large Torque, Low Noise] This DC motor features large torque, low speed, and low noise.
• [Application] This CW/CCW motor is widely used in office/home/production automation, safety equipment, consumer electronics, aviation models and automotive electronics.
• [Vital Info] Rated power: 35W; Rated voltage: 12/24 (V); 3C rated voltage range: < DC 36V

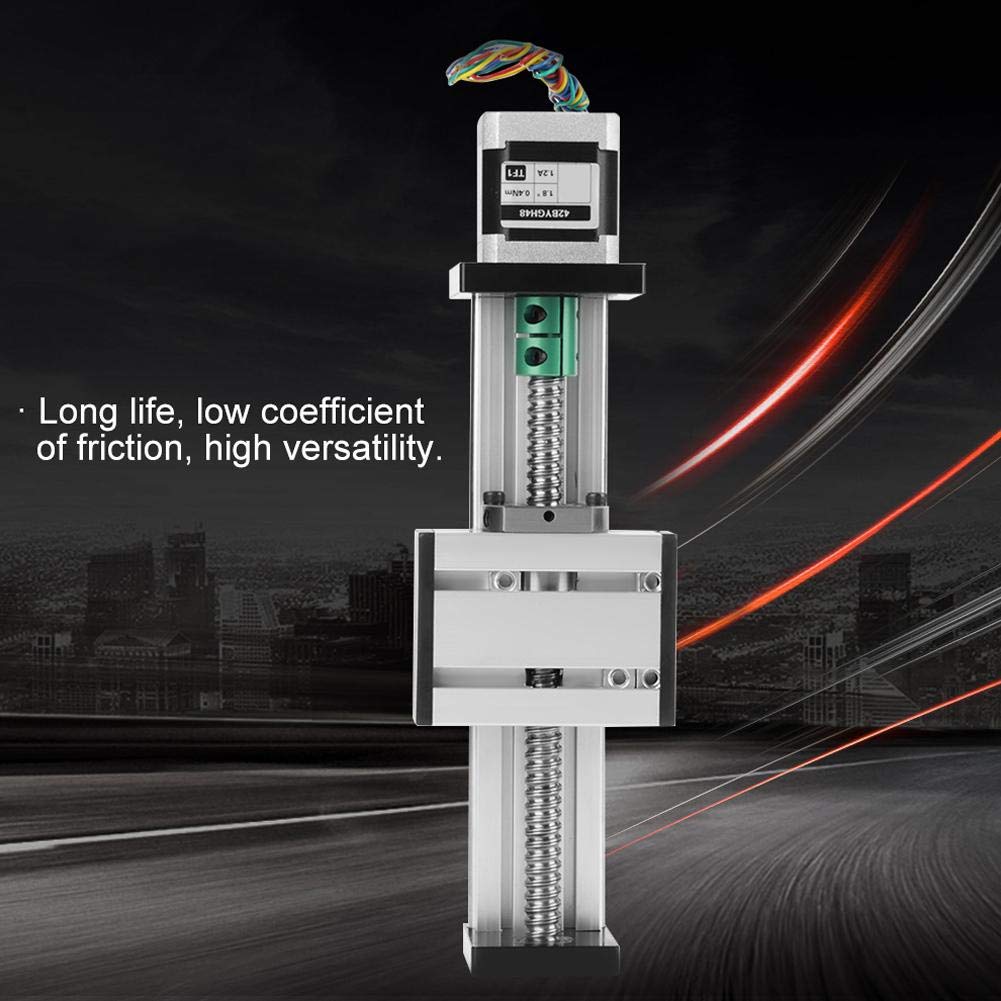

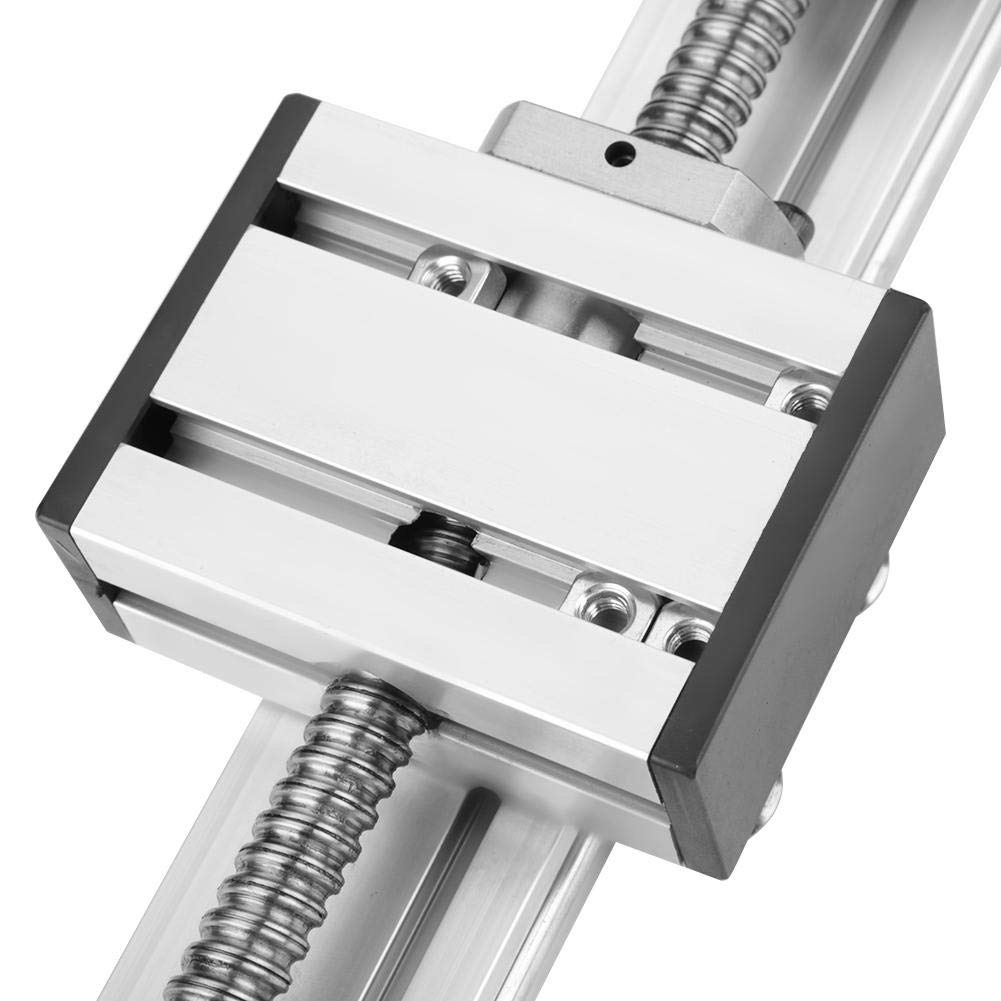

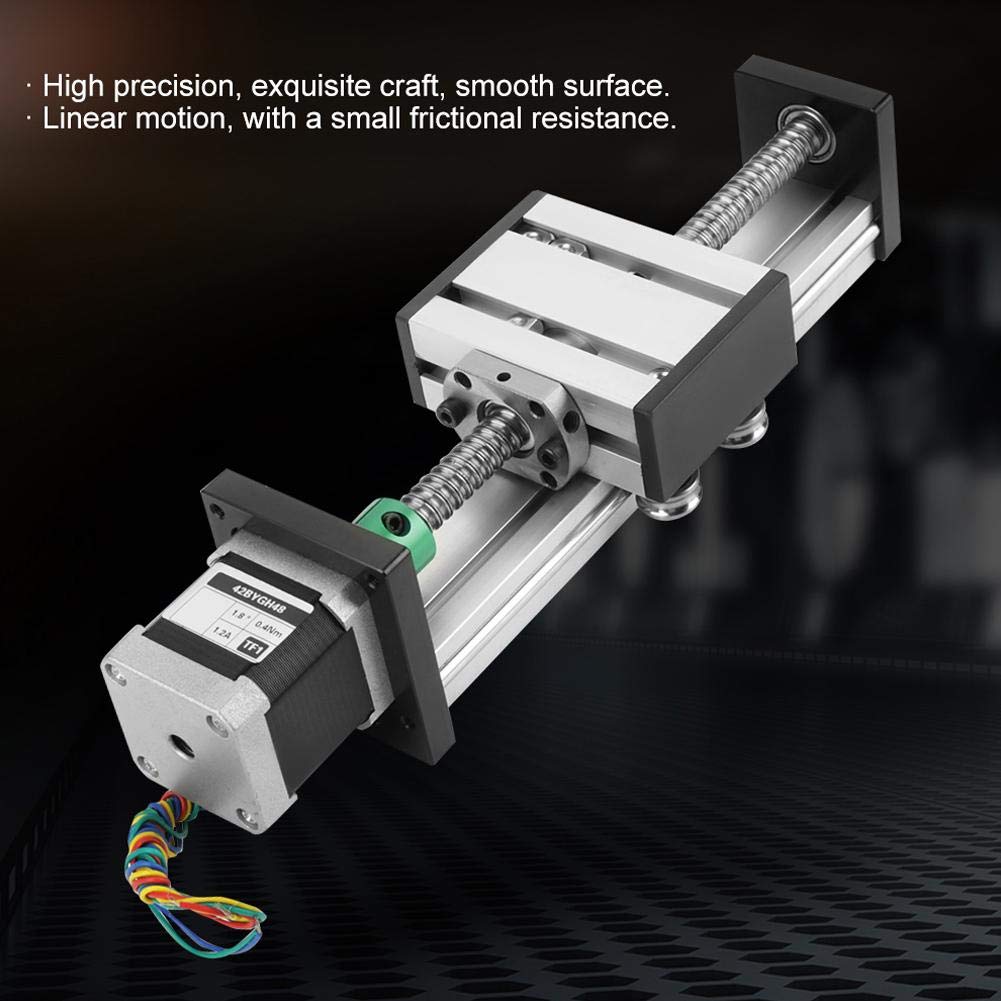

Features: Made of high quality metal with durable construction. High precision, exquisite craft, smooth surface. Long life, low coefficient of friction, high versatility. Linear motion, with a small frictional resistance. Linear shaft diameter is 12mm/0.47inch, and the effective stroke is 100mm/3.9inch. Specifications: Material: Aluminum Boundary dimension: 40mm Shaft diameter: 12mm / 0.47inch Rated vertical load: 40KG Rated horizontal load: 60KG Accuracy: 0.01mm Effective stroke: 100mm / 3.9inch Ball screw length: 165mm Sliding block: 60 x 80 x 30mm / 2.36 x 3.15 x 1.18inch Pitch-row width: 68mm (max) Pitch-row length: 60mm Screw: M6 Slide table size: 190 x 40 x 20mm / 7.48 x 1.57 x 0.79inch Weight: Approx. 1432g Package Included: 1 x Ball Screw Slide with a Stepper Motor
