BAER Tap and Die Set - HSS M3-M12 - Internal & Male Threads - High-Speed Steel, Copper

• Strong – The BAER HSSG thread cutting set contains everything you need to make internal and external threads according to ISO standard. With the hand taps, you can create an exact internal thread in three steps. With the die you can cut the perfect external thread and all this with just one accompanying holding tool.

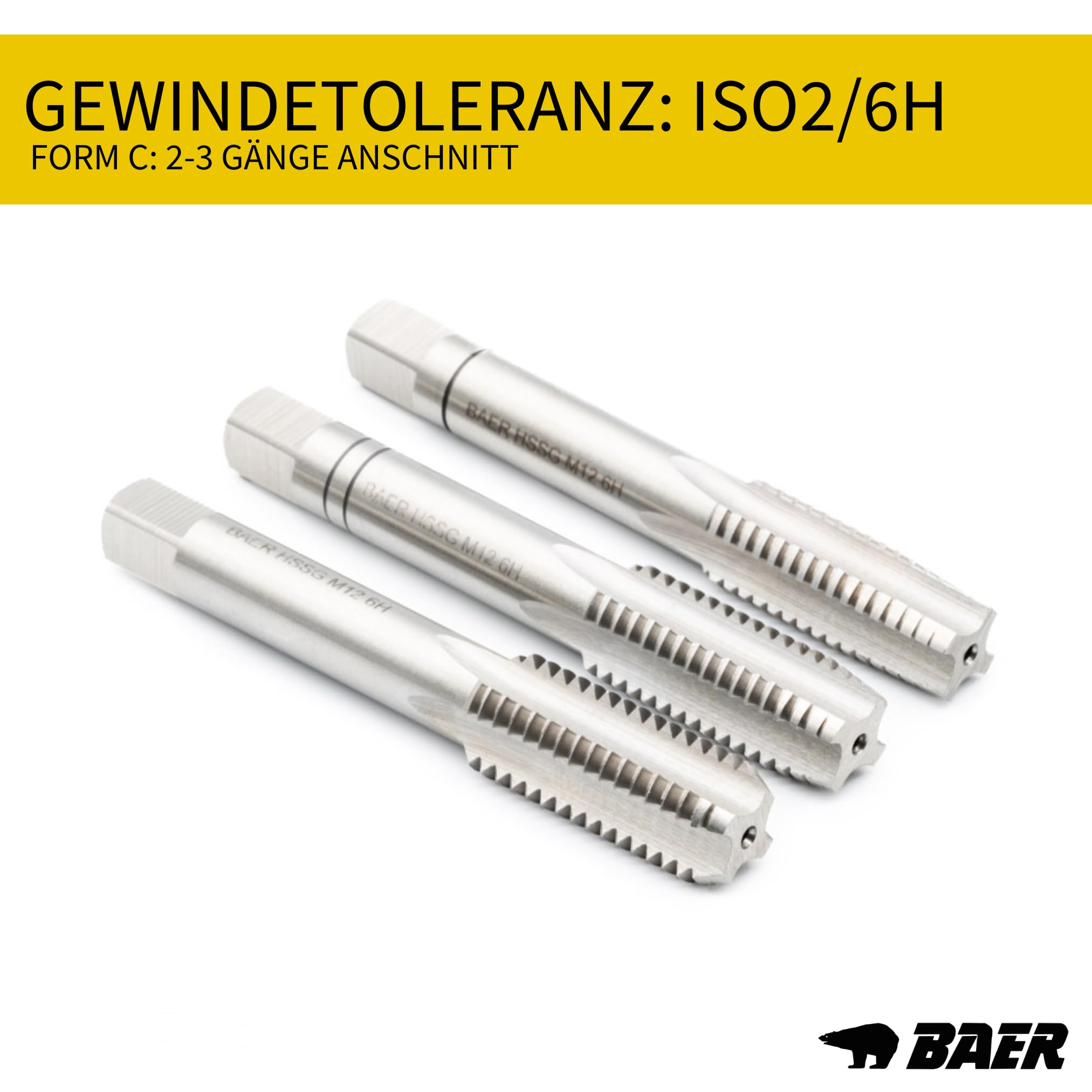

• A BAER hand tap set is 3-piece set (taper, intermediate tap, bottoming tap), manufactured according to DIN 352 and for cutting a metric ISO standard thread. Taper tap (1 ring on the shaft) shape A, cut: 5-6 speeds, decreases 65% of the threaded profile / intermediate tap (2 rings on the shaft) shape D, cut: 3-4 speeds, decreases 85% of the threaded profile / bottoming tap (no ring on the shaft) form C, cut: 2-3 speeds, decreases 100% of the thread profile

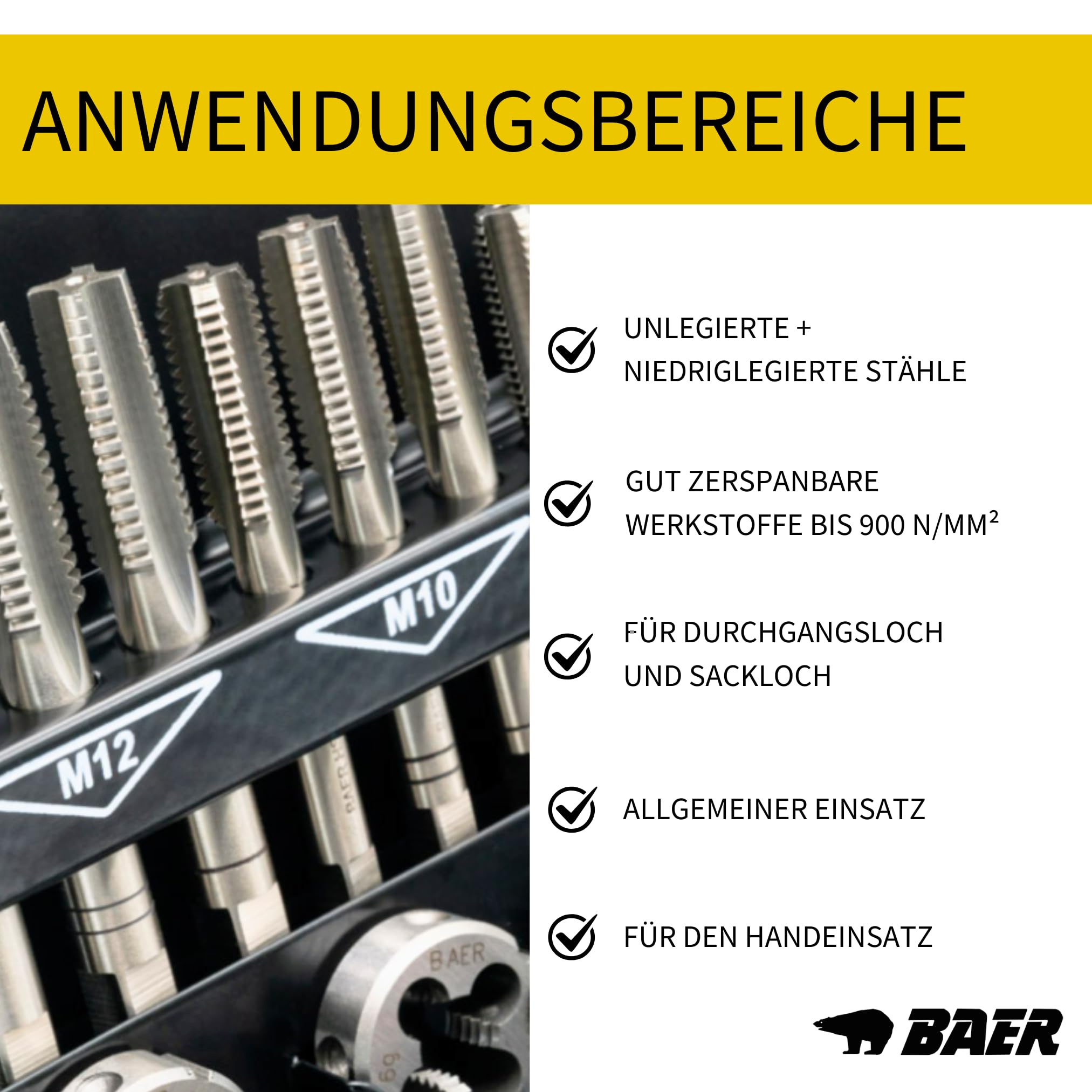

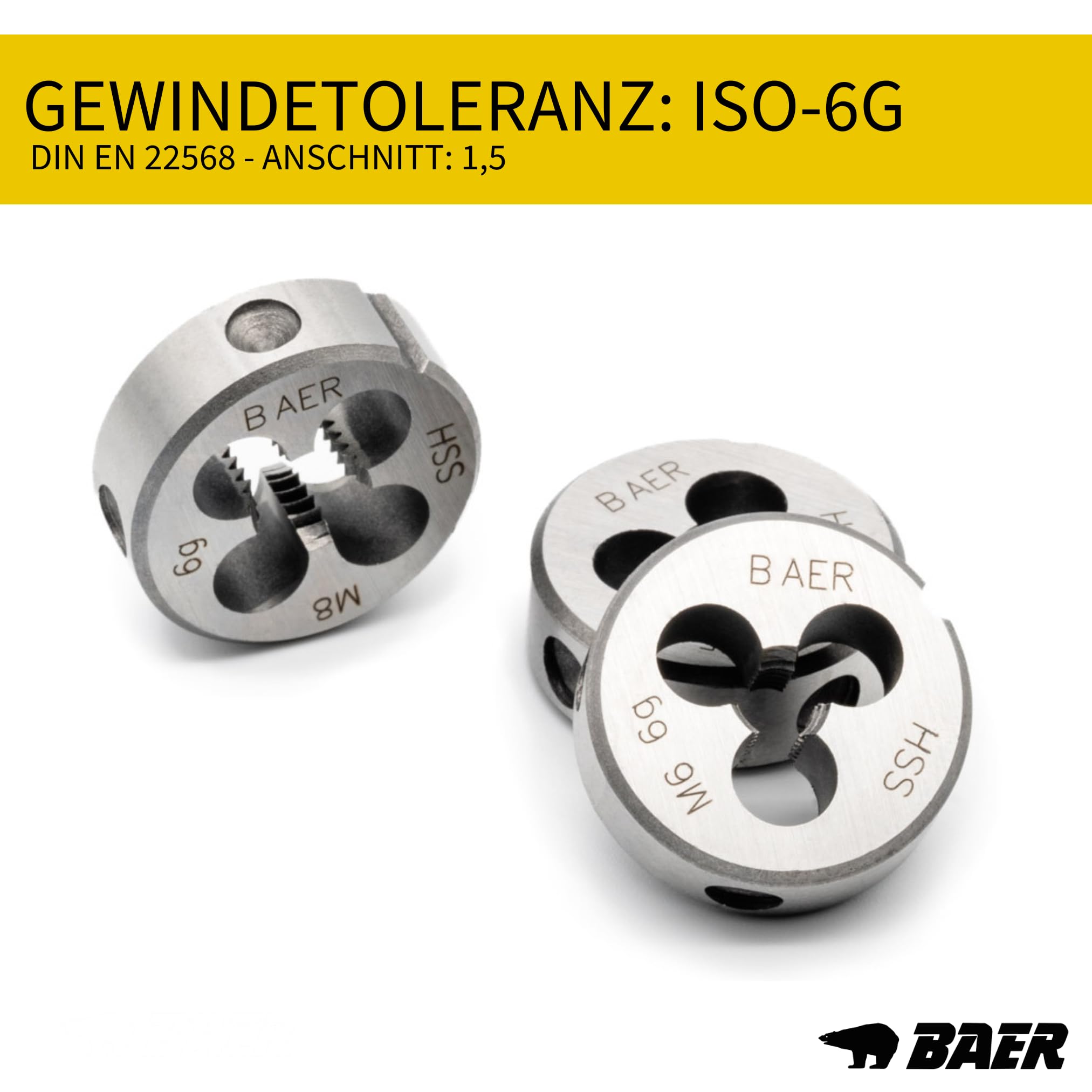

• Cutting die – BAER dies are used to produce metric external threads with round outer profile. These BAER die made of high-performance high-speed steel HSS is suitable for normal applications for different materials with a strength of up to 800 N/mm². These include the following materials: General structural steels, automatic steels, insert steels, non-alloy tempered steels, pure copper, low-alloy copper and copper-tin alloy (bronze) short chipping, as well as plastics.

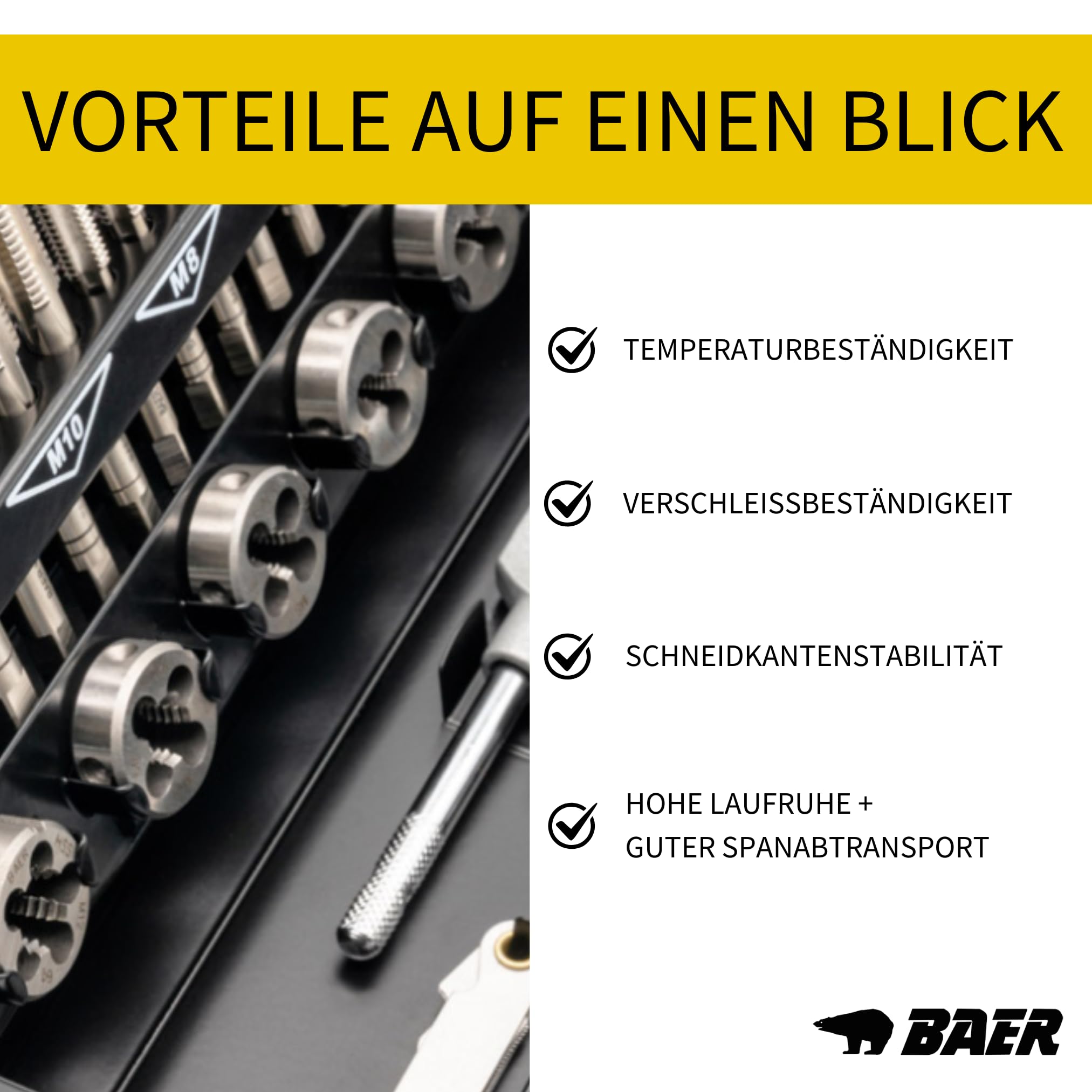

• Quality: the high-alloy tool steel HSS can work with up to four times higher cutting speeds compared to ordinary tool steel. Advantages: temperature resistance/heat hardness, wear resistance, cutting edge stability, high smoothness, good chip removal. Thus, the BAER hand tap and die made of high-speed steel HSS can meet many material requirements. Precise work and long-term cost savings are added.

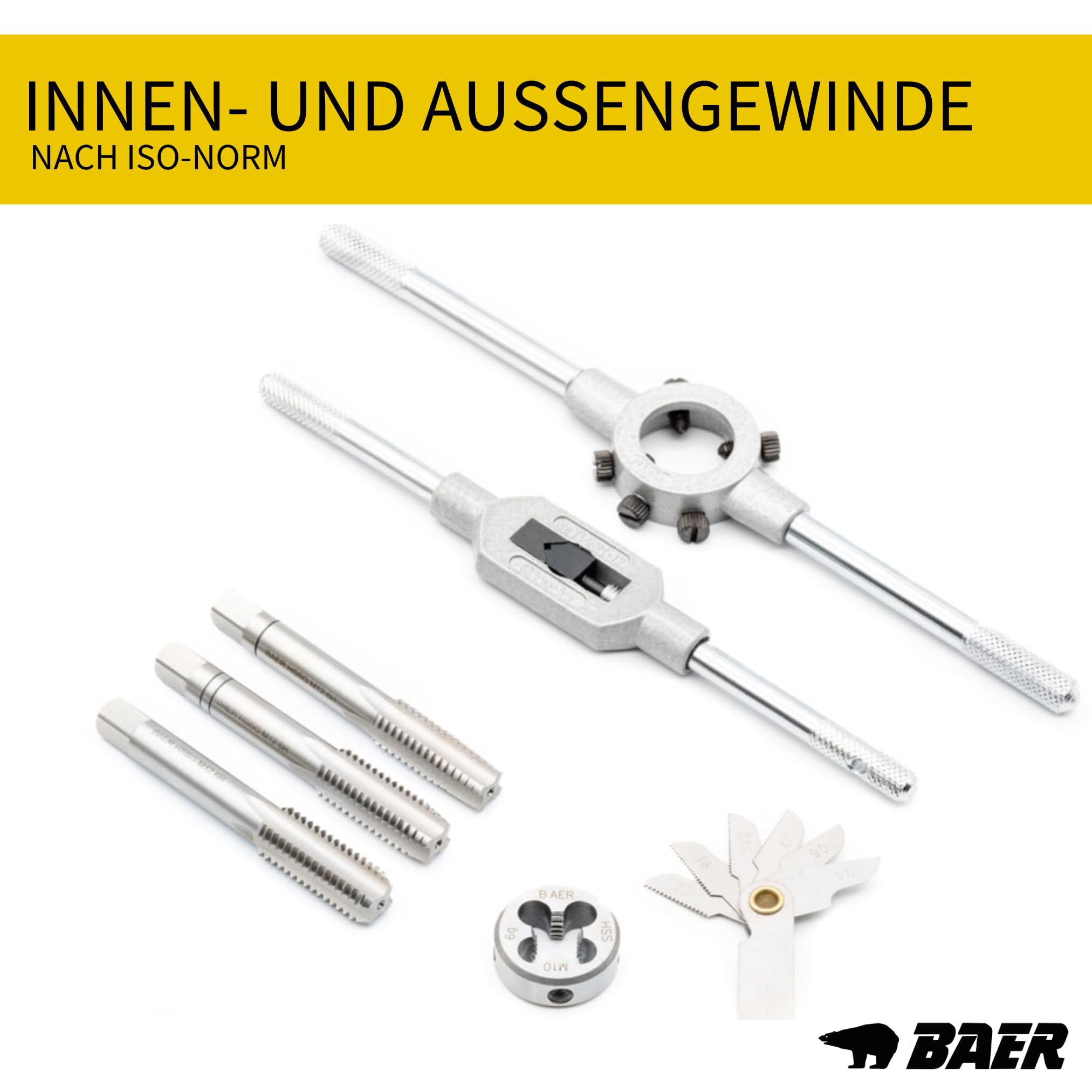

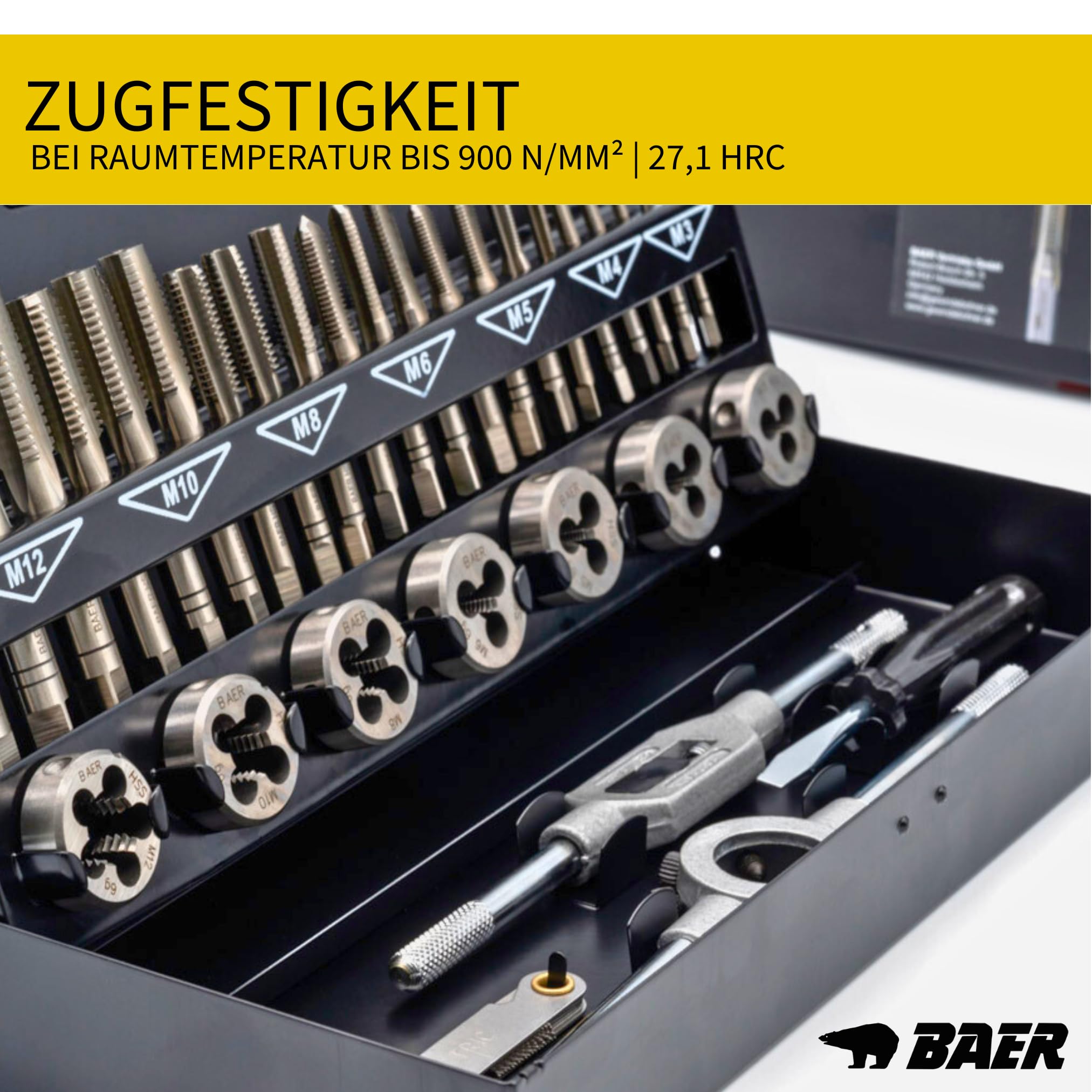

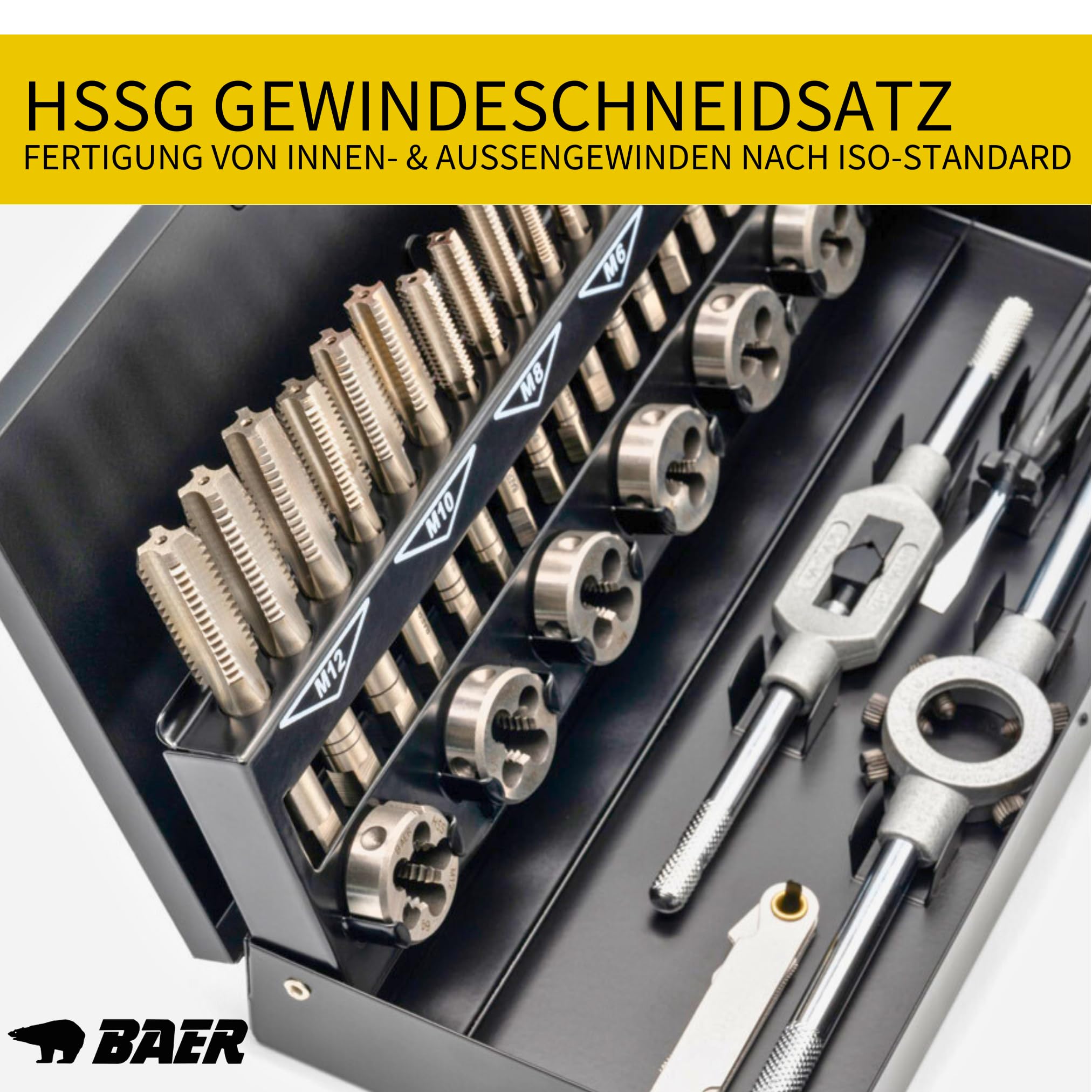

• Box contents: BAER HSSG thread cutting set M 3 - M 12 (32 pieces): BAER HSSG Hand Tap Drill, Each 3-Piece Set (M3-M12) – BAER HSS Die (M3-M12) – BAER Die Holder Made of Die-Cast Zinc (25 x 9 mm, M 7 - 9, BSW 5/16), BAER Adjustable Tap Wrench Made of Die-Cast Zinc Size 1.1/2 (M1-12, 1/16-1/2, G1/8) - thread gauge and driver

BAER ENSTARK – The Baer HSSG thread cutting set contains everything you need to make internal and external threads according to ISO standard. With the hand taps, you can make an exact internal thread in three steps. With the dies you can cut the perfect external thread and all this, with only one corresponding holding tool. A Baer hand tap set is 3 pieces (taper, middle tap, finishing tap), manufactured according to DIN 352 and for cutting a metric ISO standard thread. Taper (1 ring on the shank) form A, cut: 5-6 speeds, takes 65% of the thread profile / middle cutter (2 rings on the shank) shape D, cut: 3-4 speeds, takes 85% of the thread profile / finishing tap (no ring on the shaft) shape C, cut: 2-3 speeds, takes 100% of the thread profile; - Baer dies are used to produce metric external threads with a round outer profile. These BAER dies made of high-performance high-speed steel HSS are suitable for normal applications for different materials with a strength up to 800 N/mm². These include the following materials: general structural steels, free-cutting steels, insert steels, unalloyed tempered steels, pure copper, low-alloyed copper and copper-tin alloy (bronze) short chipping, as well as plastics. Quality – The high-alloy tool steel HSS can work with up to four times higher cutting speeds compared to ordinary tool steel. Advantages: temperature resistance/heat hardness, wear resistance, cutting edge stability, high smoothness, good chip removal. Thus, the Baer hand taps and dies made of high-speed steel HSS can also meet many material requirements. Precise work and long-term cost savings are added. Box contents: Baer HSSG thread cutting set M 3 - M 12 (32 pieces): Baer HSSG hand tap, each 3-piece set (M3-M12) - Baer HSS die (M3-M12) - Baer die holder
