Assa Abloy 118F-A71 Door Opener 118F FaFix without Strike Plate 10-24V

• Contact type: temporary and permanent contact
• Direction: universal
• Can also be used as a safety door opener
• Rated voltage: 10-24 V

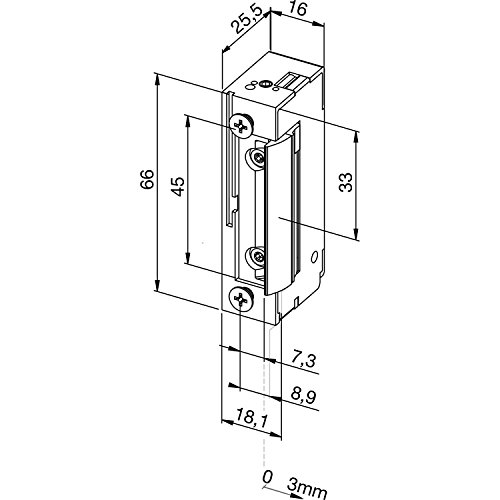

Load AC: 200 N, DC (stabilised): 50 N, breaking resistance 9000 N, FaFix 3 mm adjustable, can also be used as a safety door opener, connection clamp/plug, symmetrical design. Therefore DIN left/right, can be used horizontally, with bipolar protection diode suitable for use on fire protection doors. Release required by the door element or frame manufacturer. Continuous current only when the construction requirements are adhered to (e.g. (e.g. connection with fire alarm system). Contact type: momentary and permanent contact; box design: symmetrical; box height (mm): 66; box width (mm): 16; box depth (mm): 25.5; type: 118F; nominal voltage: 10-24 V; direction: universal; design: bipolar; lock: no; feedback: no; fire protection: yes.
