GEZE White TS 2000 V BC Linkage Door Closer for Single Leaf Doors up to 1250 mm Wing Width with Frame and Mounting Plate / Set 3 in 1, White

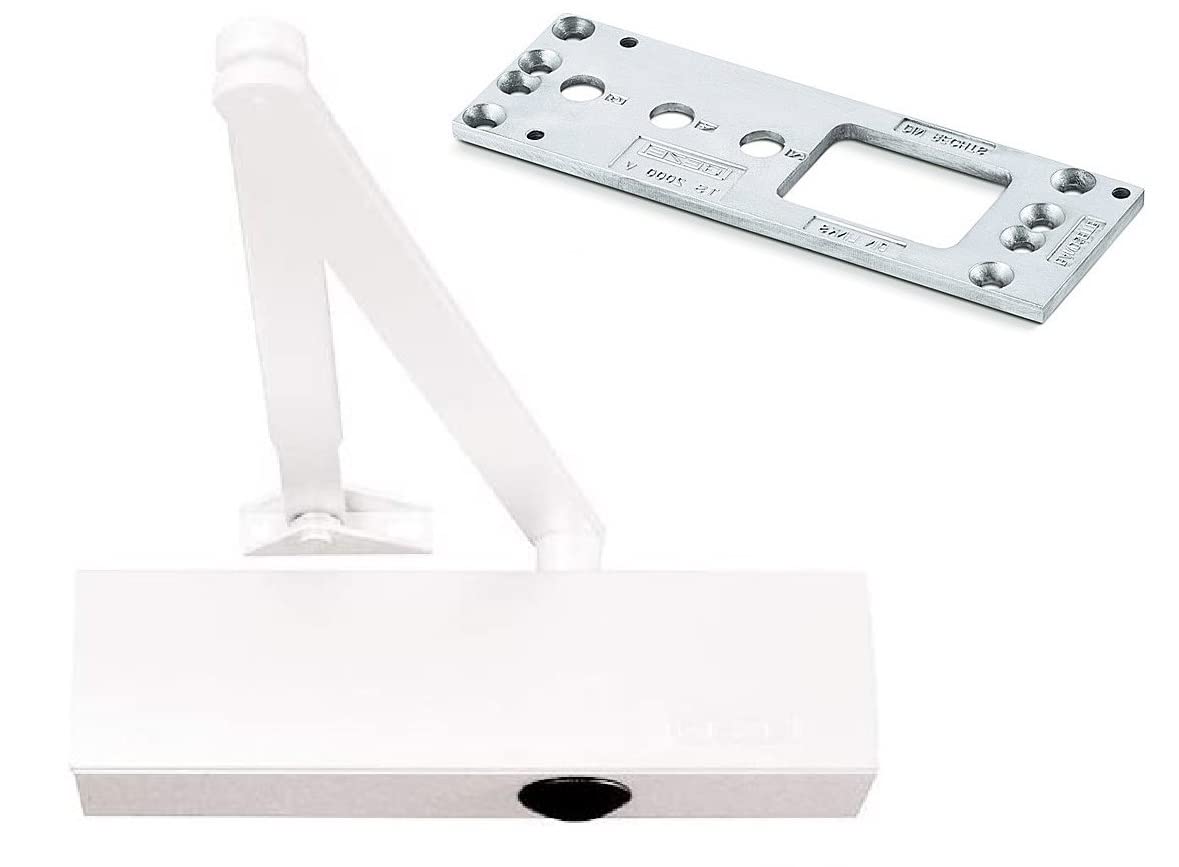

• Weiss Geze TS 2000 V BC linkage door closer with linkage and mounting plate / set 3 in 1
• Can be used for left and right handed doors without changeover
• Integrated opening damping, brakes heavily thrown doors
• Hydraulic end stroke that accelerates the door shortly before closed position
• Closing speed can be individually adjusted
• All functions can be adjusted from the front (except closing force)
• Variable closing force of EN2, EN4 or EN5 due to offset installation

White Geze TS 2000 V BC linkage door closer with linkage and mounting plate / set 3 in 1. Areas of application: fire and smoke protection doors, right and left stop doors, hinged doors up to 1250 mm wing width, door leaf mounting, hinge side and head mounting, hinge opposite side door leaf mounting possible in parallel arm mounting. Technical data for the product TS 2000 VBC: closing force according to EN 1154: EN 2/4/5 barrier-free according to DIN 18. 040 to Blade width (max. ) in mm: 1100 mm blade width (max. ): 1250 mm. Mounting type: door leaf mounting band side, door leaf mounting hinge opposite, head mounting band opposite suitability: fire protection doors: no. Closing force adjustable: yes, adjustable via mounting: yes, integrated via valve. Opening damping: hydraulic fix position closing force adjustment: mounting position: optional smoke switch integrated: no
