AOICRIE 3pcs for Arduino Mini 5V 16M Micro Controller Board Module with cabels for Arduino

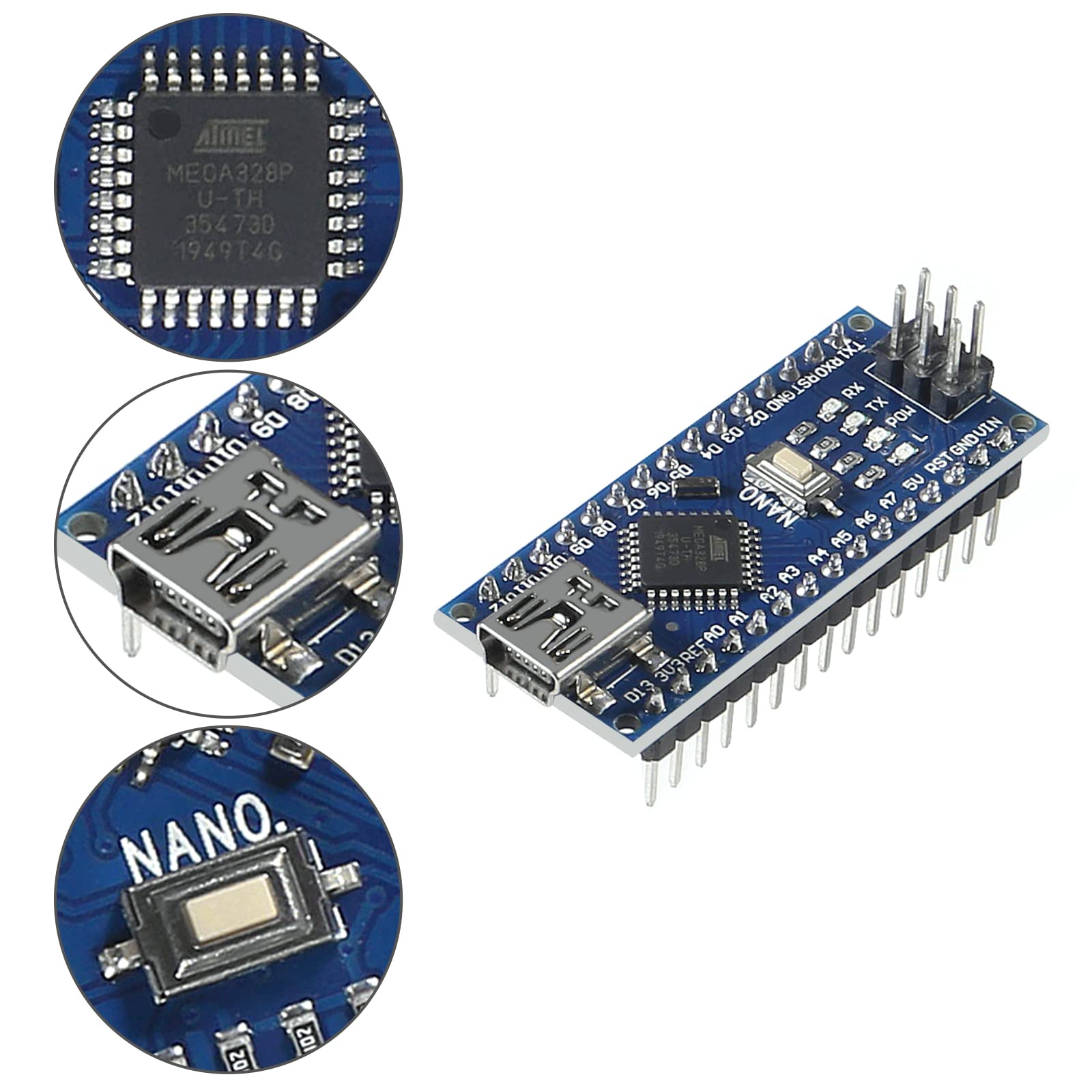

• The is using the chips and CH340, Replace FT232RL

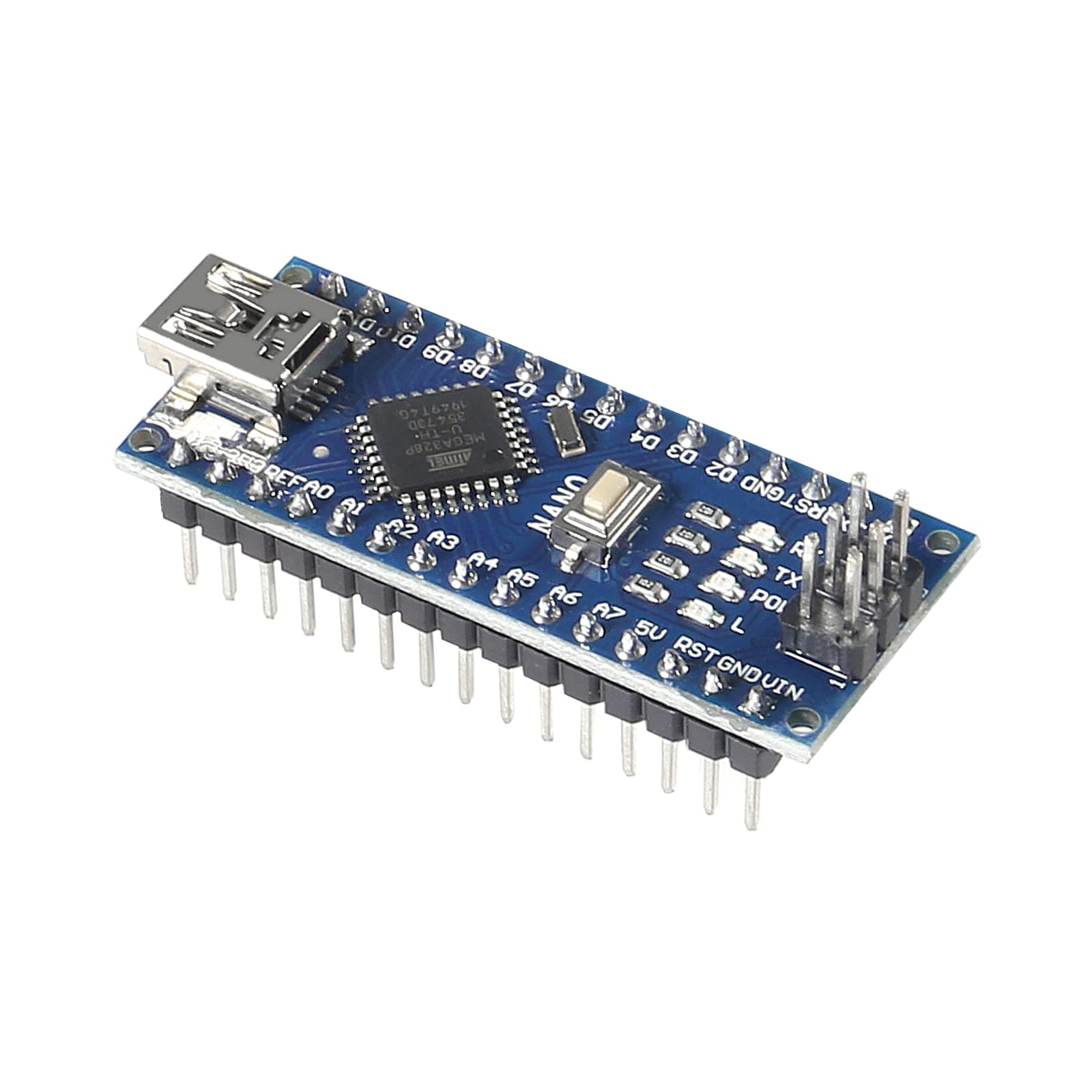

• It is a smallest, complete, and breadboard friendly board. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper.
• got the breadboard-ability of the and the Mini+USB with smaller footprint than either, so users have more breadboard space. It's got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other).
• The can be powered via the Mini-B USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
• The can be powered via the Mini-B USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source

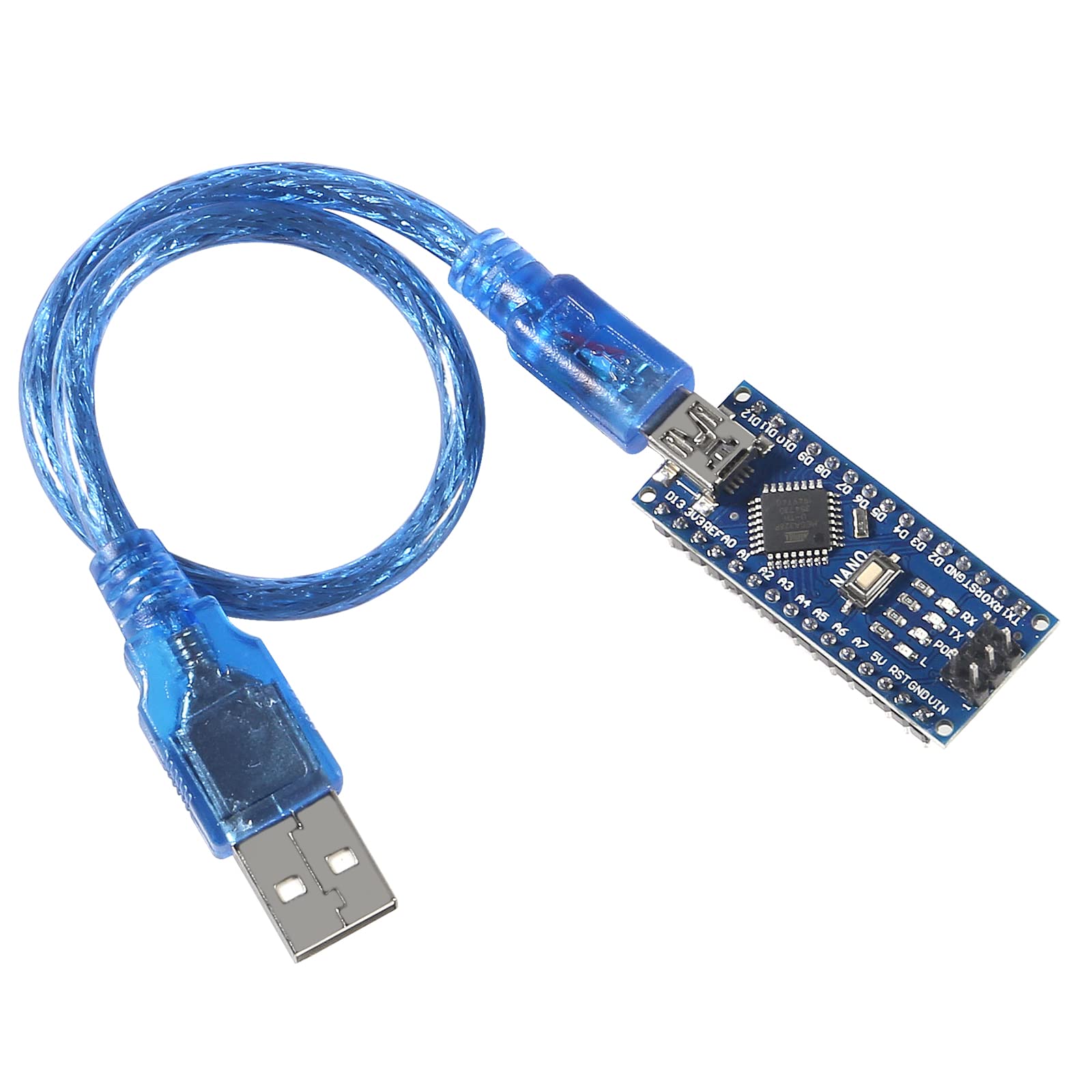

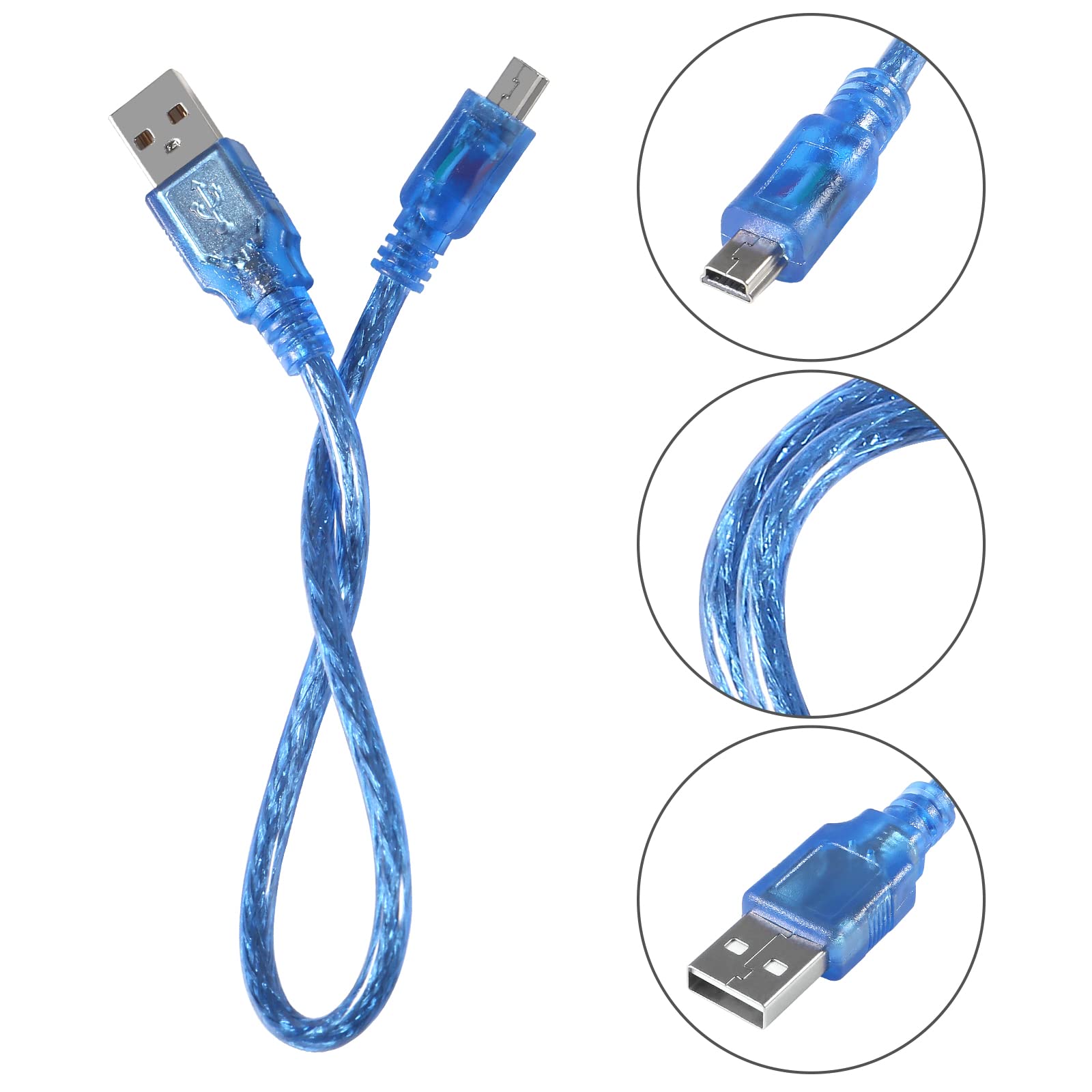

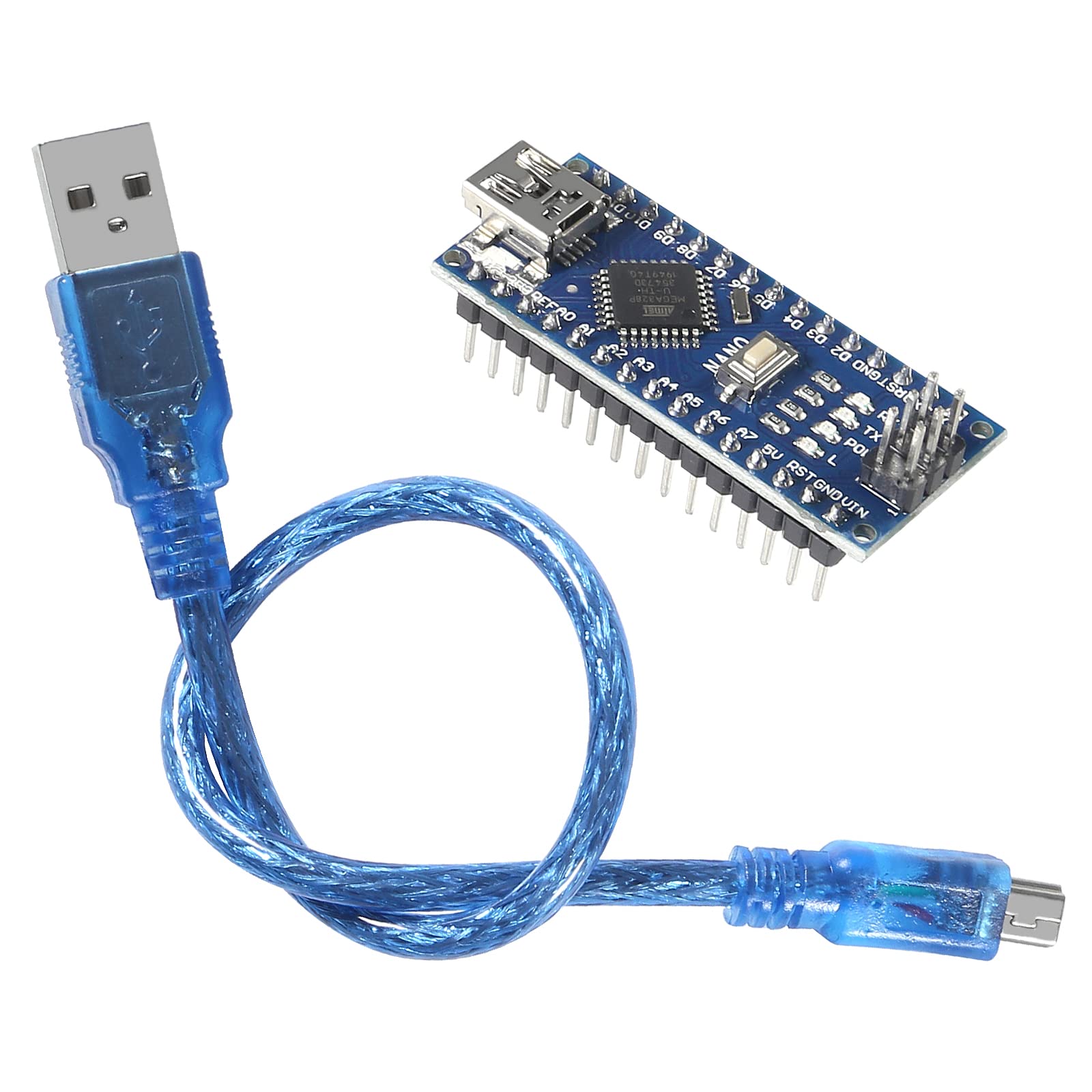

➤The is a small, complete, and breadboard-friendly board based on the ( for Arduino ). ➤It has more or less the same functionality of the official for Arduino/Genuino , but in a different package. ➤It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one. Feature: Microcontroller: ATmega328A Operating Voltage (logic level)：5 V Input Voltage (recommended)：7-12 V Input Voltage (limits)：6-20 V Digital I/O Pins：14 (of which 6 provide PWM output) Analog Input Pins：8 DC Current per I/O Pin：40 mA (I/O Pins) Flash Memory：16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by bootloader SRAM：2 KB (ATmega328) EEPROM：1 KB (ATmega328) Clock Speed：16 MHz Package Include : 3pcs Board with 3pcs USB cables
