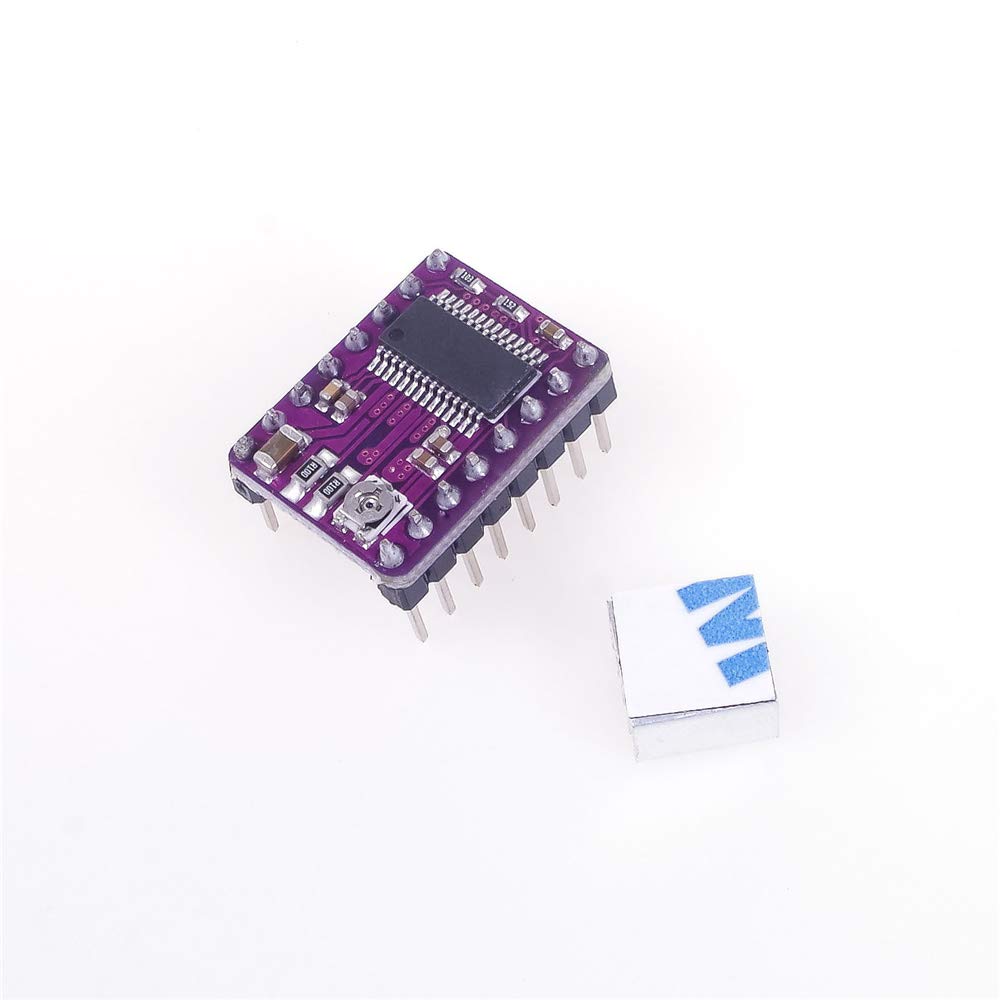

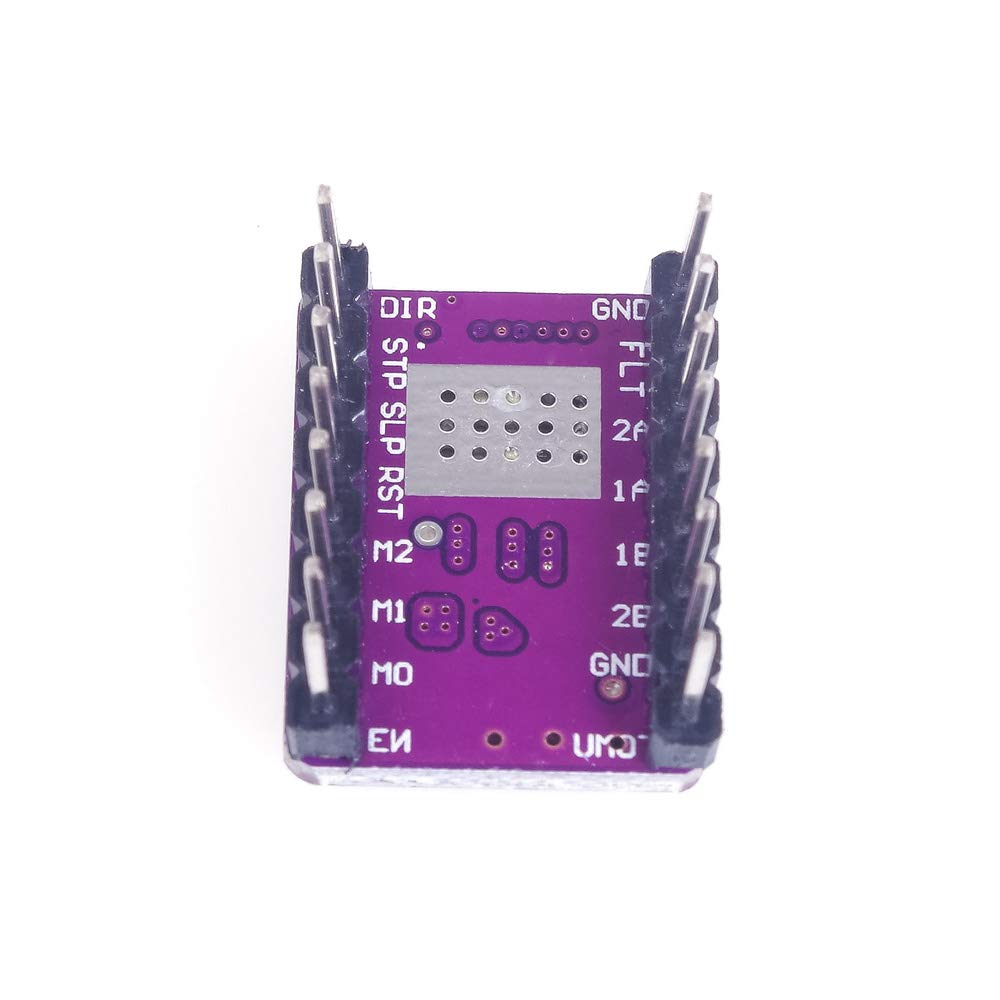

ANGEEK Stepstick Drv8825 Stepper Motor Driver Reprap 4-Layer PCB Board for 3D Printer Pack of 3

• It is suitable for driving stepper motors up to 8.2 V ~ 45 V 2.5 A. Simple step and direction control interface. Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
• The adjustable potentiometer can adjust the maximum current output to obtain a higher step rate
• Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
• Ground short circuit protection and load short circuit protection
• Automatic current decay mode detection/selection

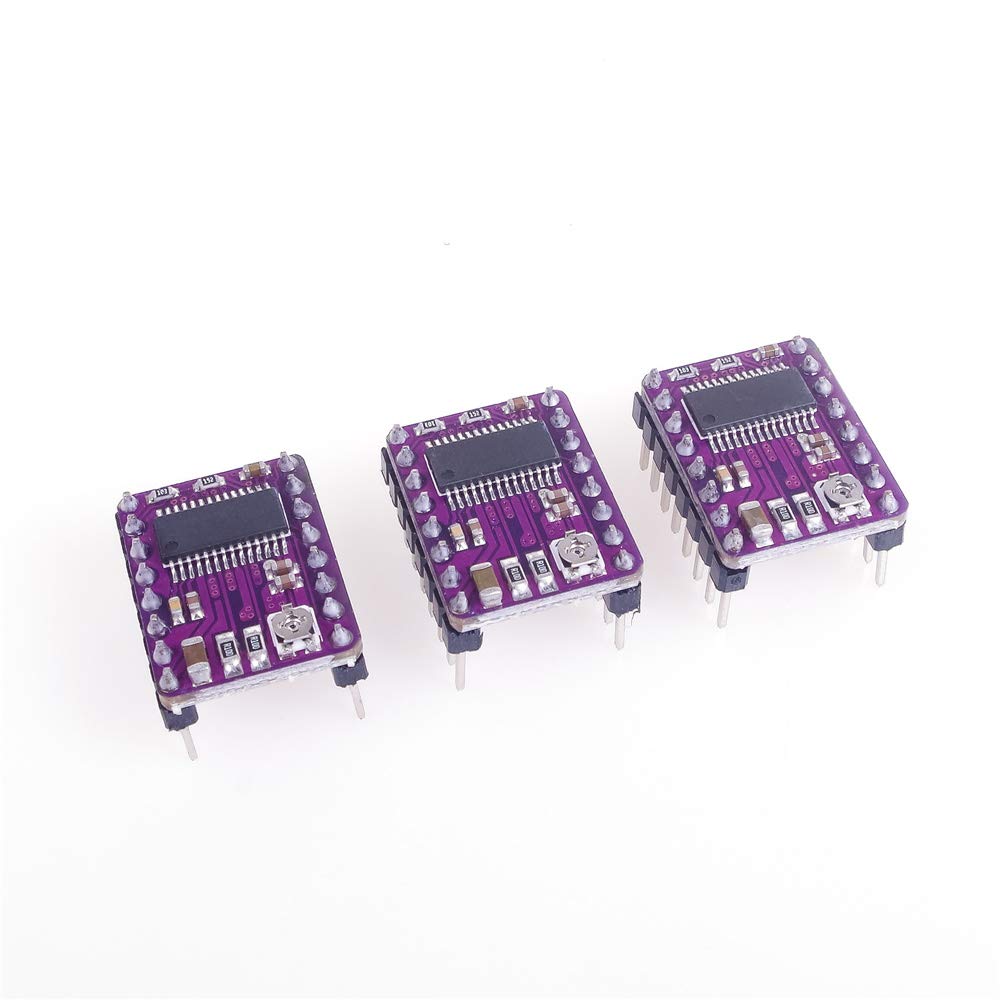

Description: The maximum current is 2.5 A. The highest support for 32 subdivisions. 4-layer PCB board, better heat dissipation performance. The chip internal resistance is smaller, lower heat, better heat dissipation. Driven current: 2.5 A. Subdivision: 1, 1/2, 1/4, 1/8, 1/16, 1/32 Manufacturing process: SMT placement machine manufacturing, non-manual welding, higher yield, more stable performance. Suitable for: Need to drive the stepper motor. It is a necessary module for building 3D printers, CNC, engraving machines, etc. Supported 3D printers are Prusa Mendel, Ultimaker, Printbot, Makerbot and so on. Package includes: 3 x DRV8825 stepper motor driver.
