ALMOCN 10pcs CD74HC4067 16-Channel Analog Digital Multiplexer Breakout Board Module for Arduino 2V-6V Microcontroller 16 Device RX Lines

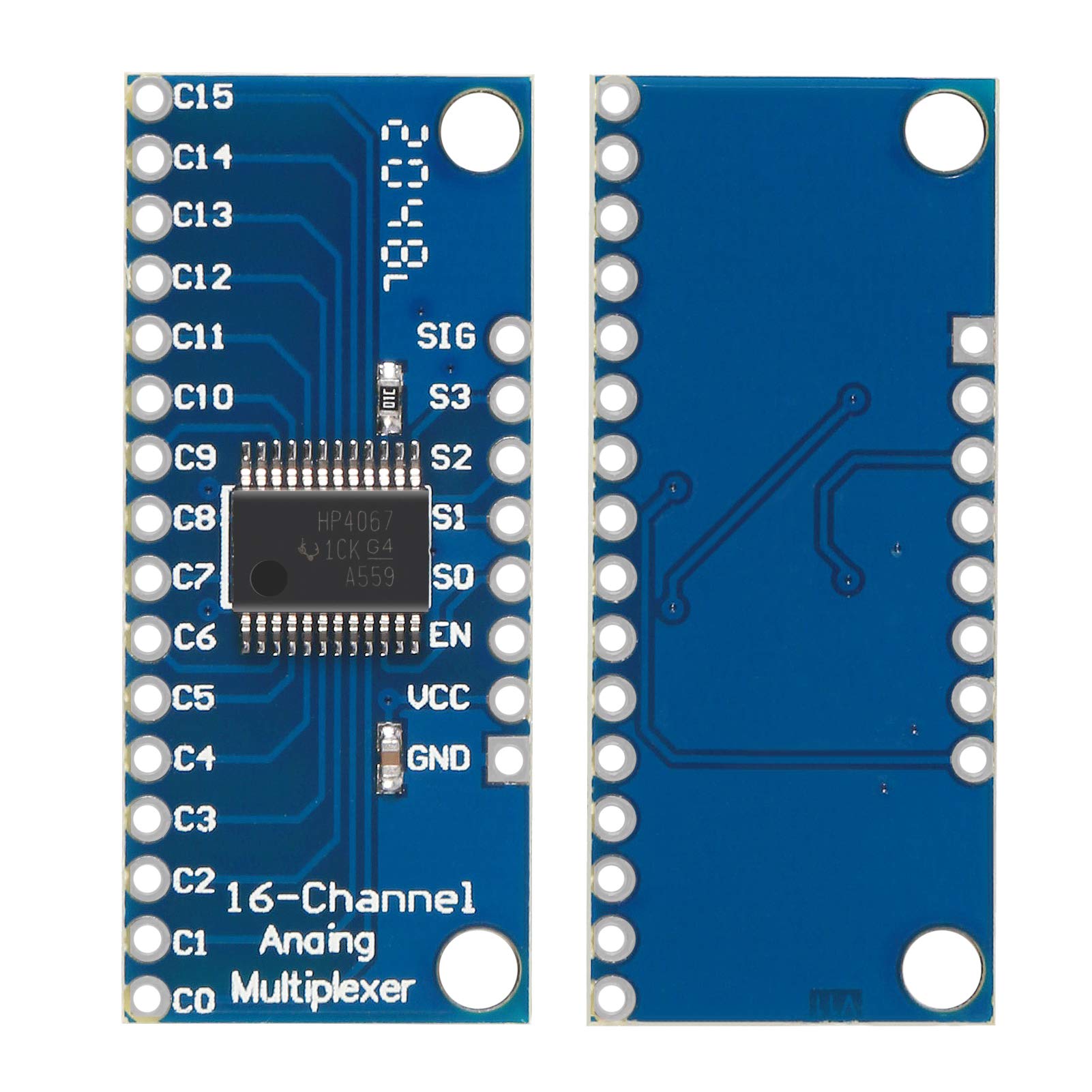

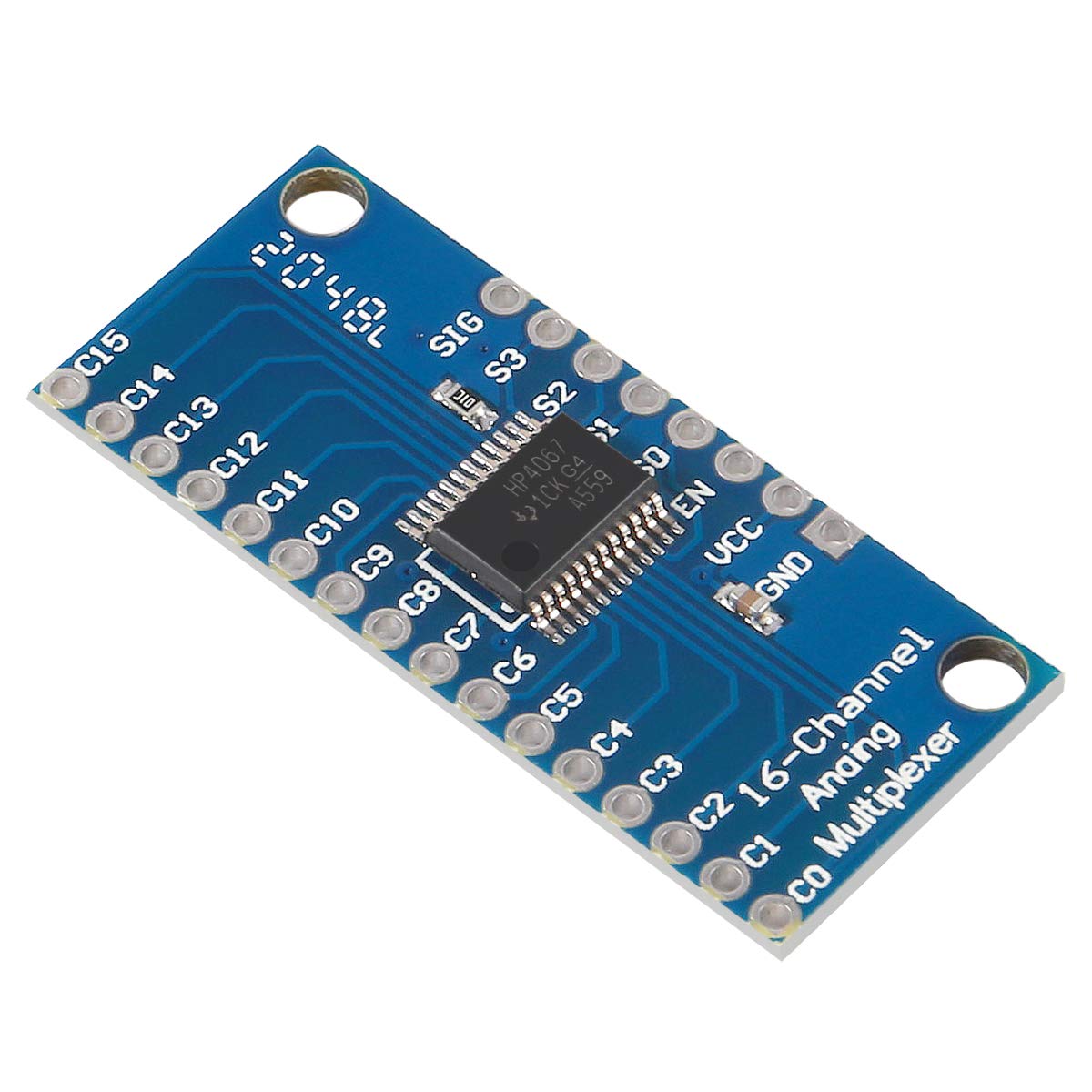

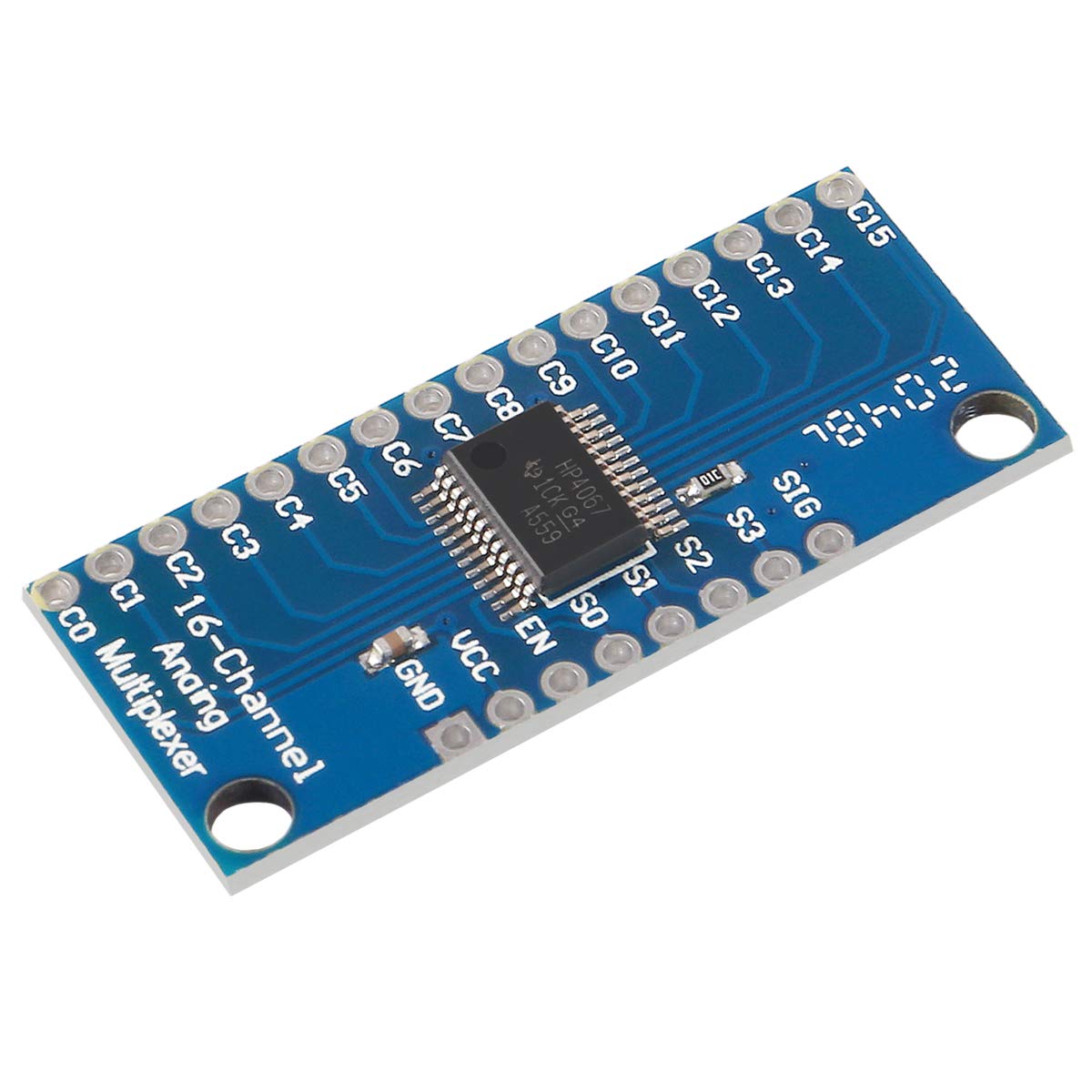

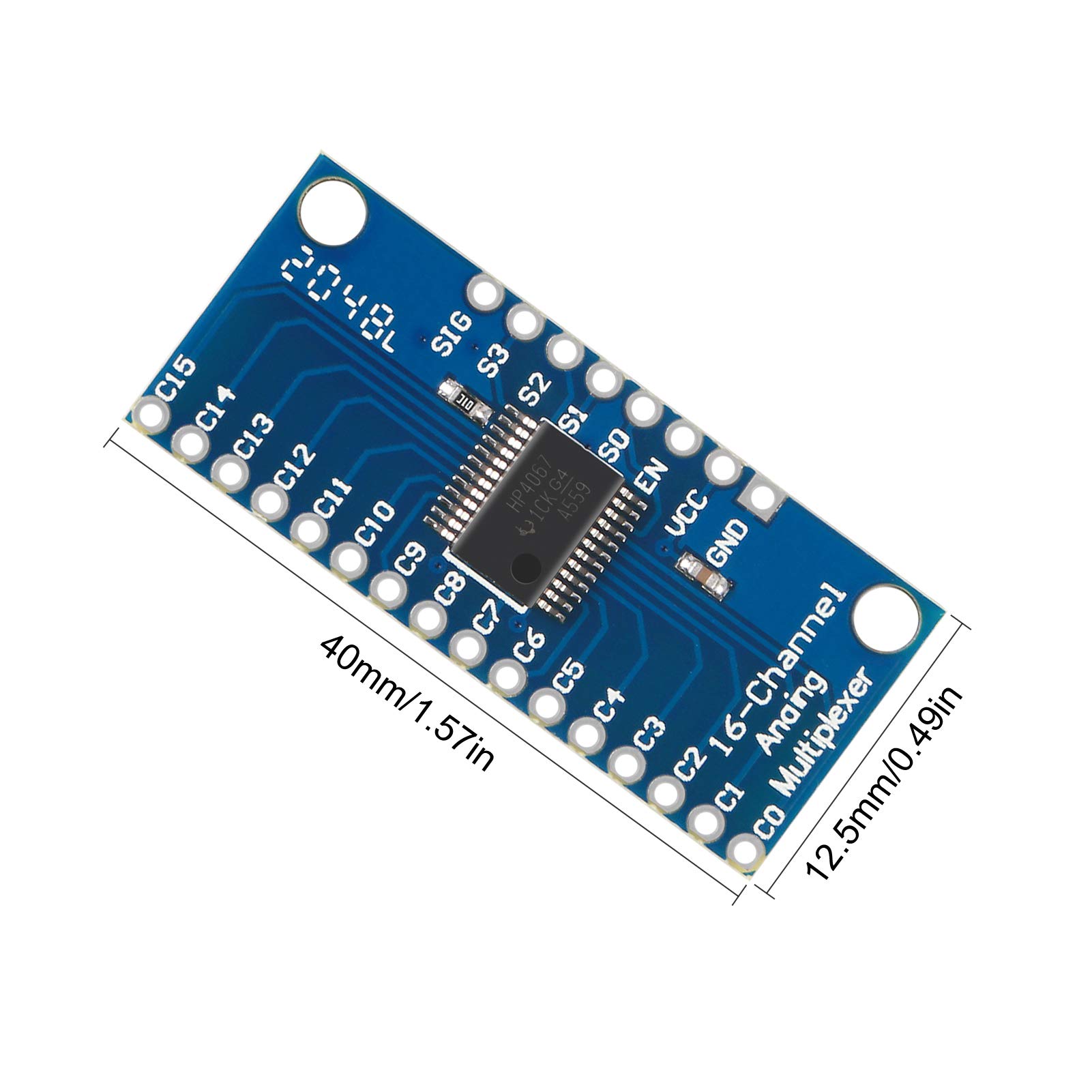

• This is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067. This chip is like a rotary switch - it internally routes the common pin (COM in the schematic, SIG on the board) to one of 16 channel pins (CHANxx)
• It works with both digital and analog signals (the voltage can’t be higher than VCC), and the connections function in either direction.
• Analog output: DIG;Channel control: S0-S3
• This is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067.
• To control it, connect 4 digital outputs to the chip’s address select pins (S0-S3), and send it the binary address of the channel you want. This allows you to connect up to 16 sensors to your system using only 5 pins!

Specifications: 2V to 6V operation “On” resistance: 70 Ohms @ 4.5V 6ns break-before-make @ 4.5V Wide operating temperature range: -55C to 125C Analog signal input: C0-C15/16 channel Analog output: DIG Channel control: S0-S3 Package Includes: 10*CD74HC4067 CMOS 16 Channel 16 CH Digital Analog Multiplexer Breakout Module
