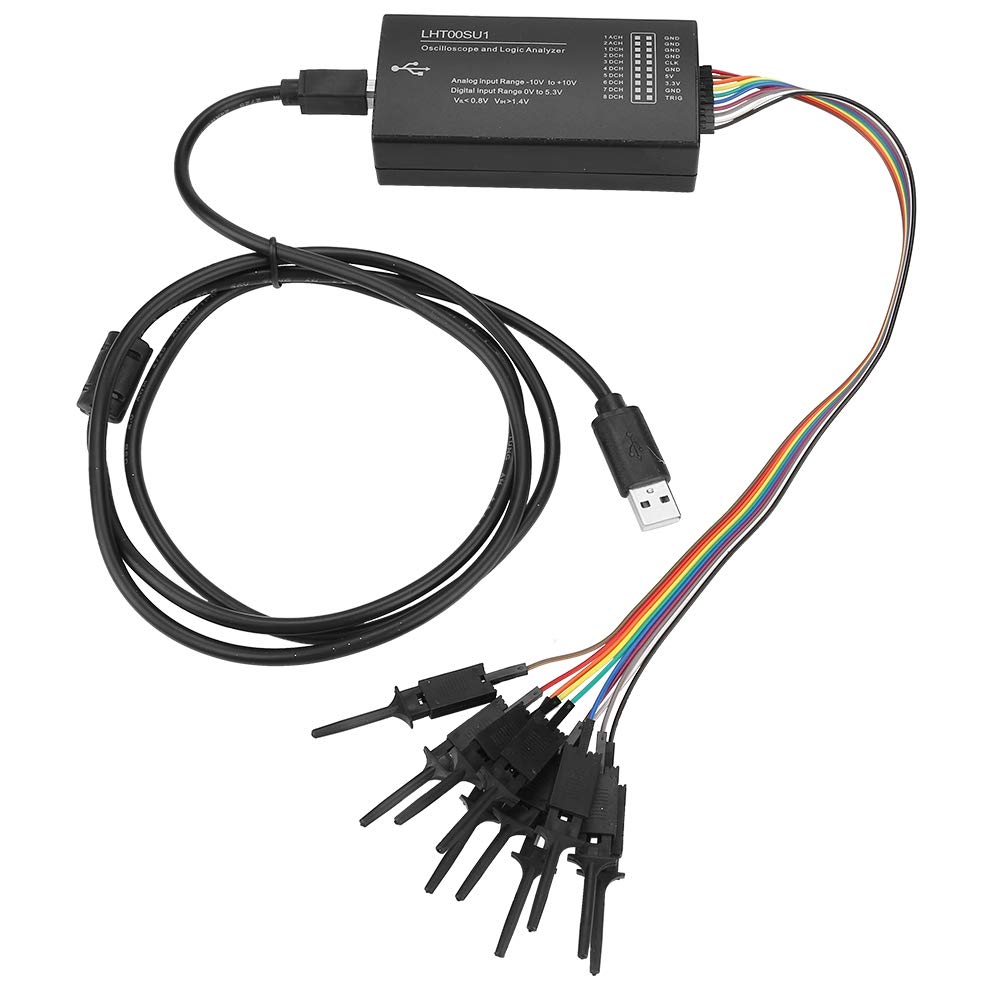

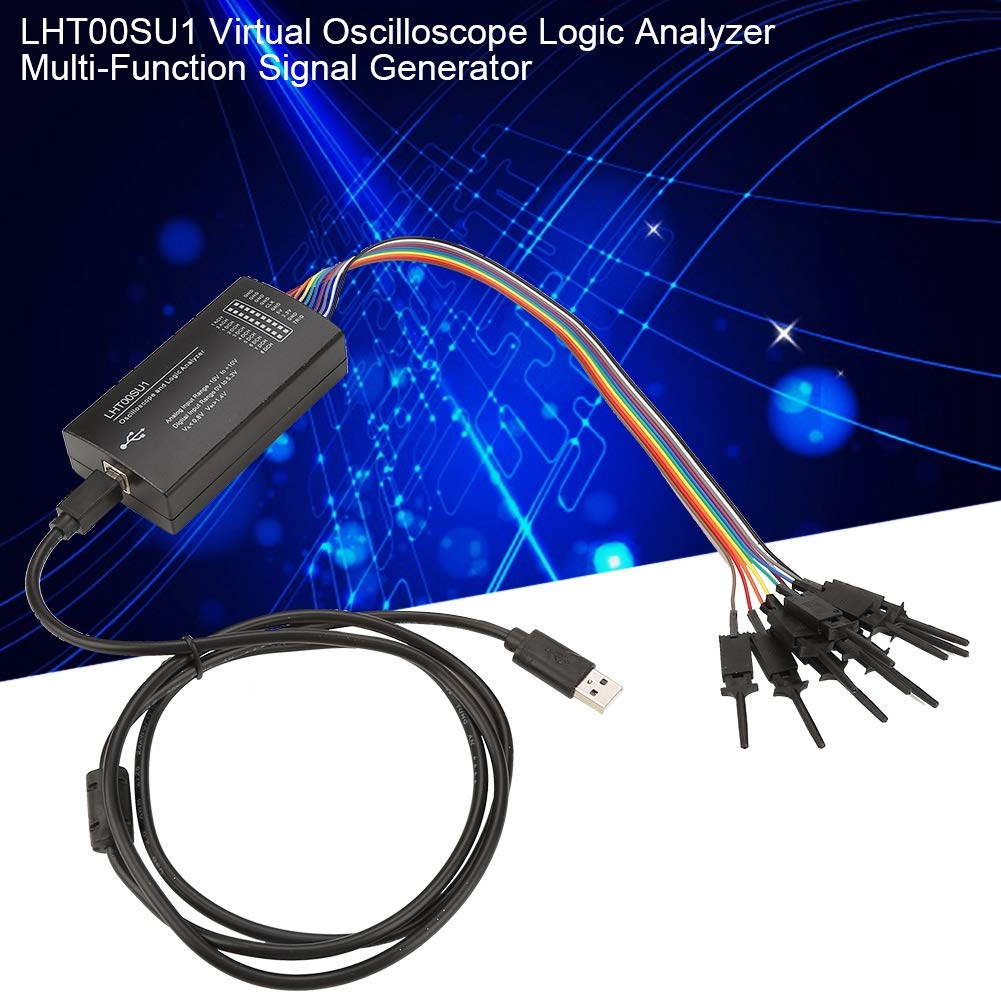

Akozon Virtual Oscilloscope Logic Analyzer LHT00SU1 Multi-Function Generator I2C SPI CAN Uart (Oscilliscope Logic Analyzer) - 1 x Machine, 1 x Testing clamp line (with 10 test clip), 1 x USB

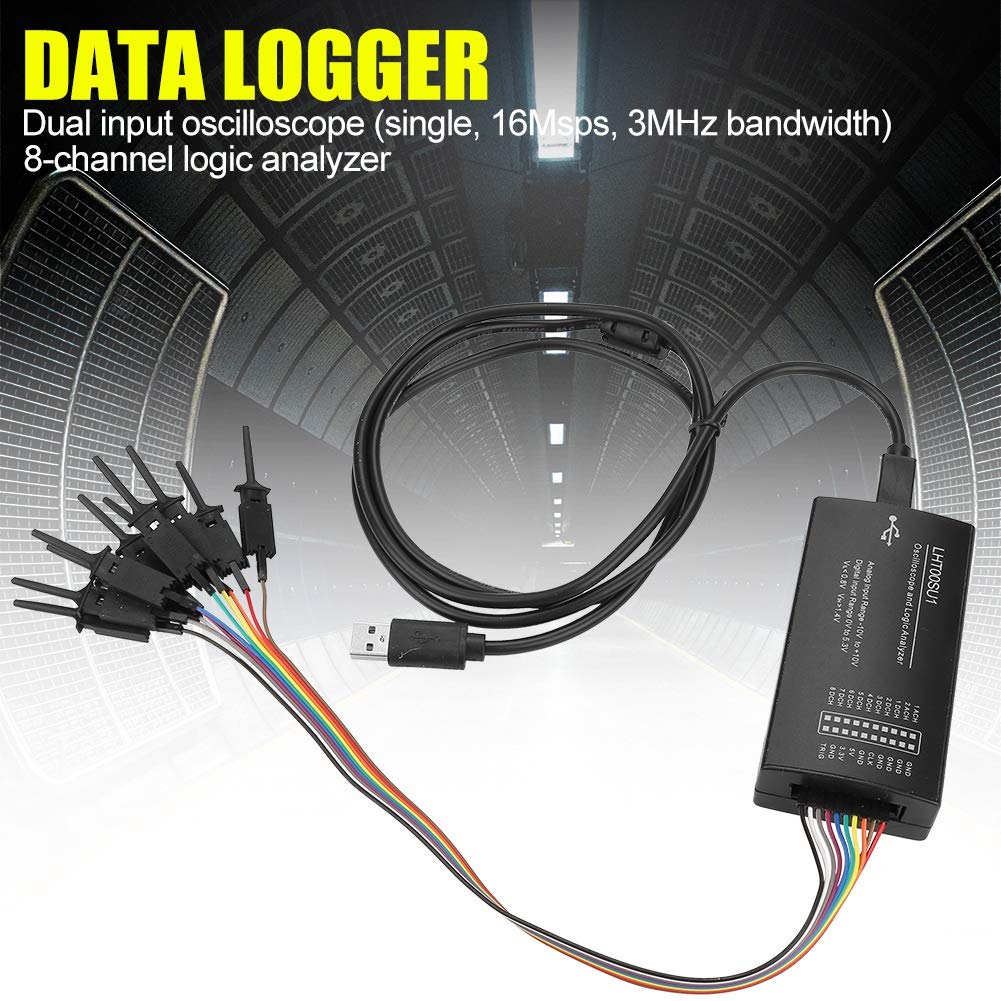

• Double: Dual input oscilloscope (single, 16Msps, 3MHz bandwidth). It also has dual channel voltmeter, frequency meter, remote controller PWM controller, frequency generator, I2C controller, pulse/edge counter and other functions.
• System Requirements: The virtual oscilloscope analyzer supports the operating system XP/Vista Celeron 4 2.0G or Pentium 4 1.8G or higher processor. Requires USB2.0 high-speed interface, does not support USB2.0 full speed or USB1.1, you need to install Framework 3.5 SP1.

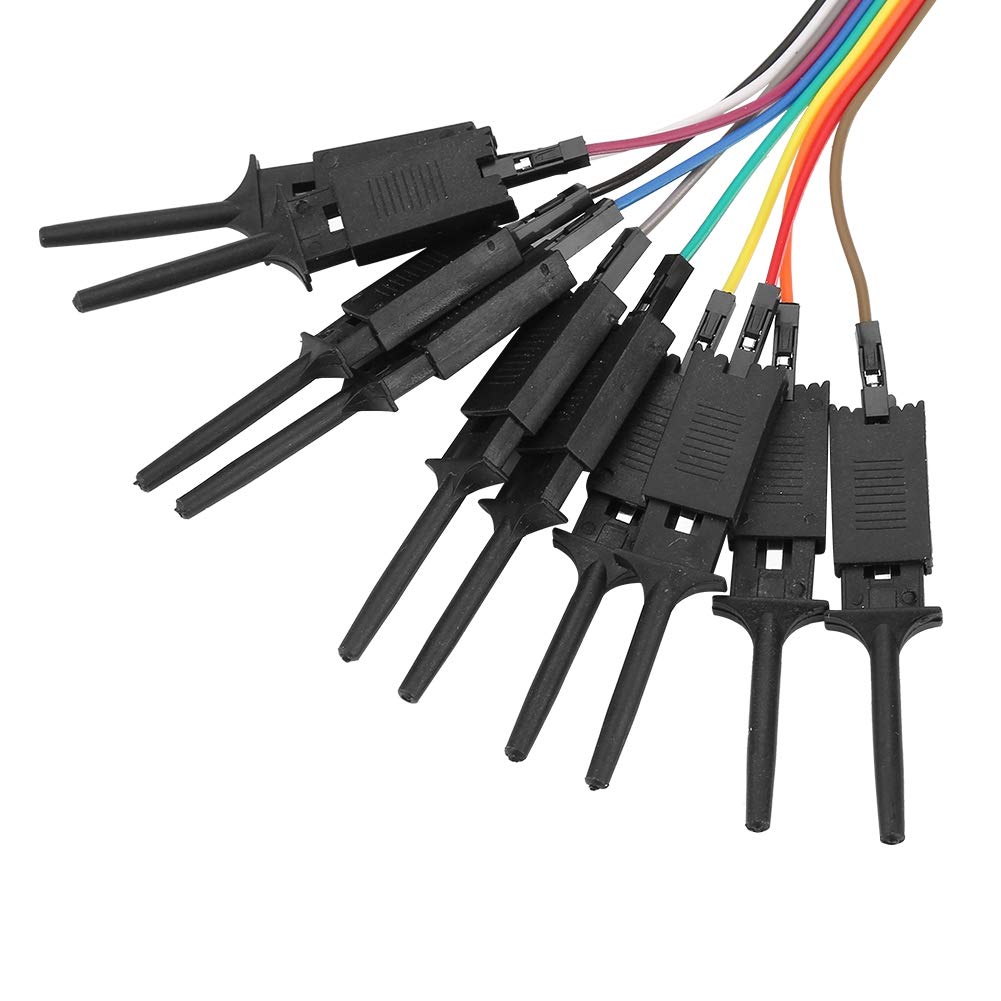

• Accessories: LHT00SU1 Virtual Oscilloscope Logic Analyzer I2C SPI CAN Uart - compatible SCM and DIY kit programmer and logic analyzer - 1 machine, 1 test clamp line (with 10 test clips), 1 USB.
• Standard parameter: Standard parameters: The maximum sampling frequency is 16MHz, the maximum analog bandwidth is 3MHz, and the input voltage range is -10V~+10V. The sensitivity is 78mV and the maximum vertical resolution is 256 levels.
• High performance: 8 digital channels + 1 analog channel logic analyzer, support for multiple protocol I2C controllers, pulse/edge counters, mixed signal oscilloscopes and logic analyzers.

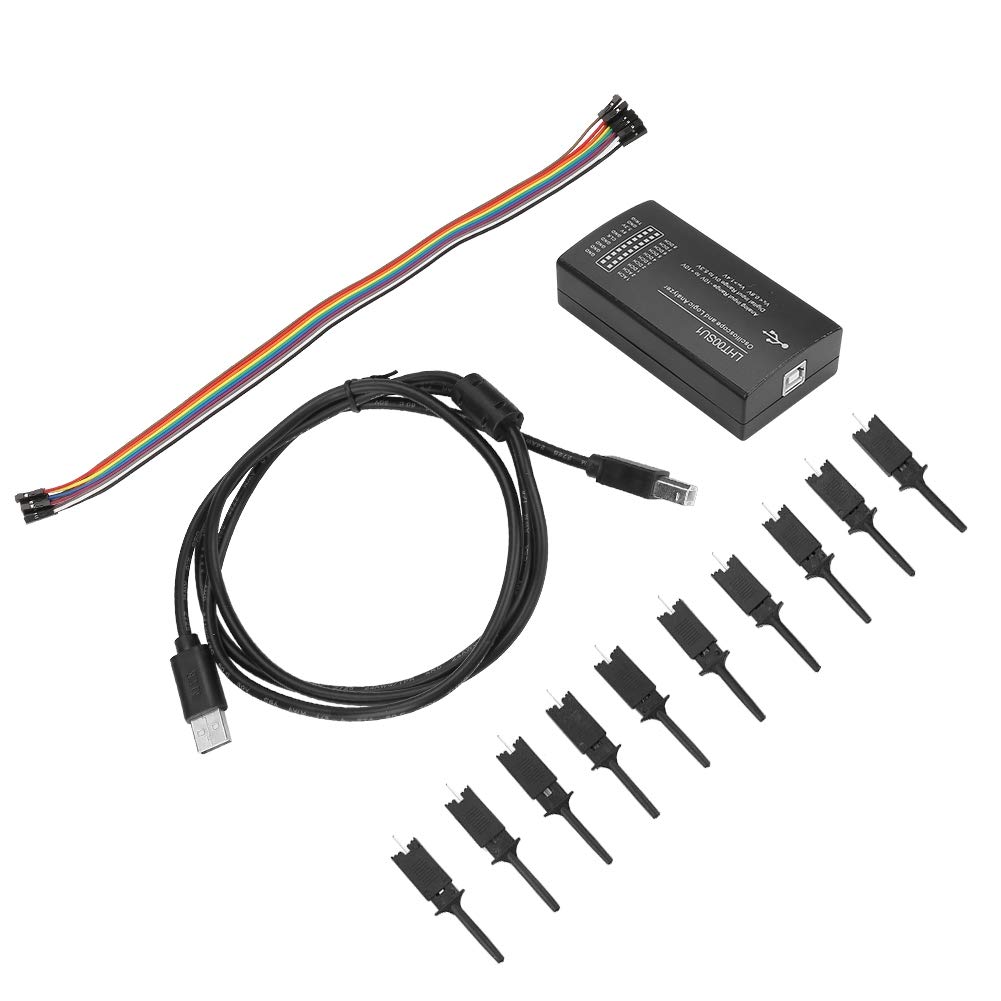

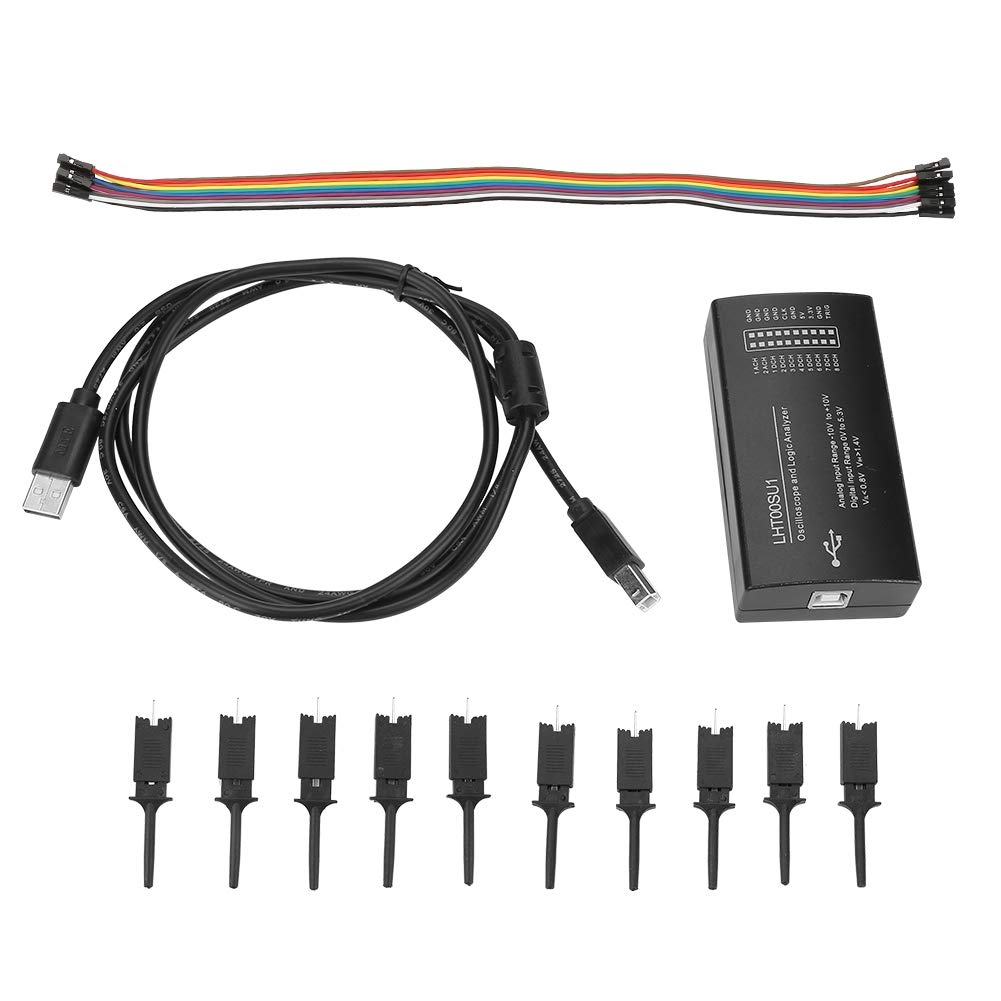

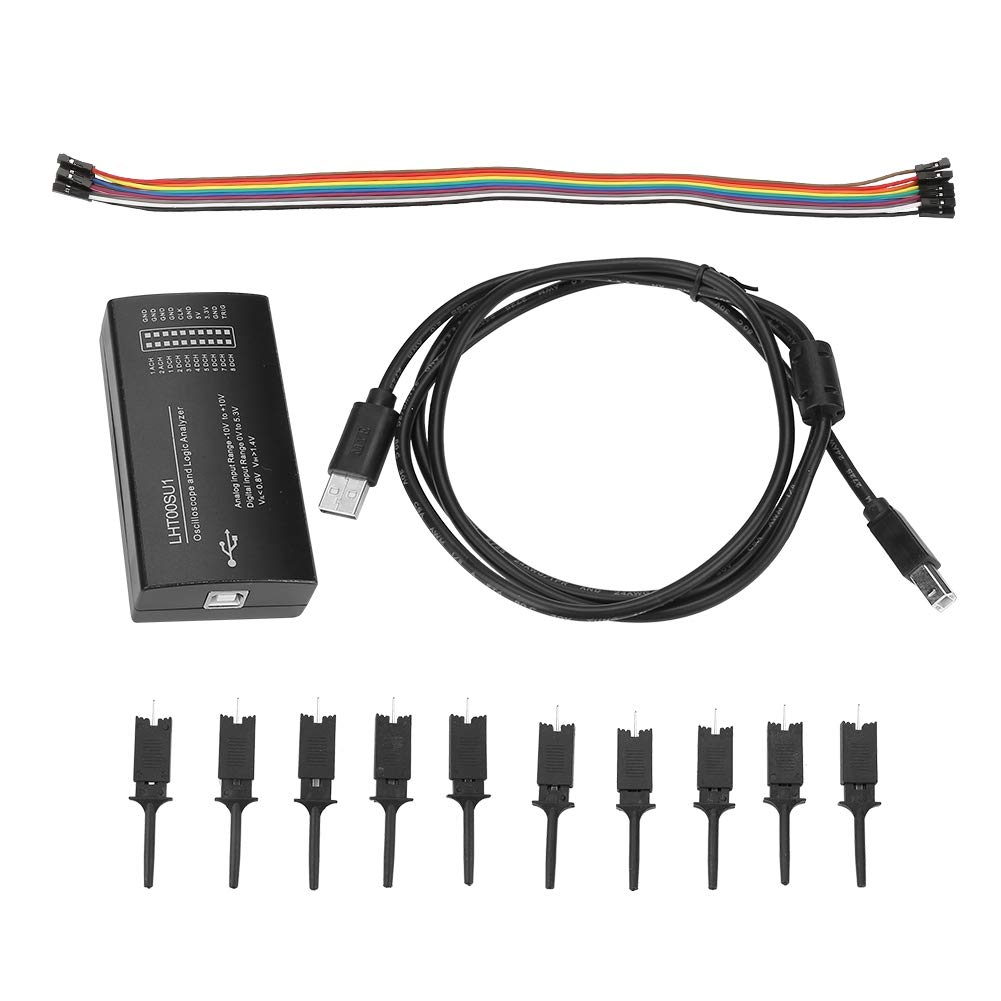

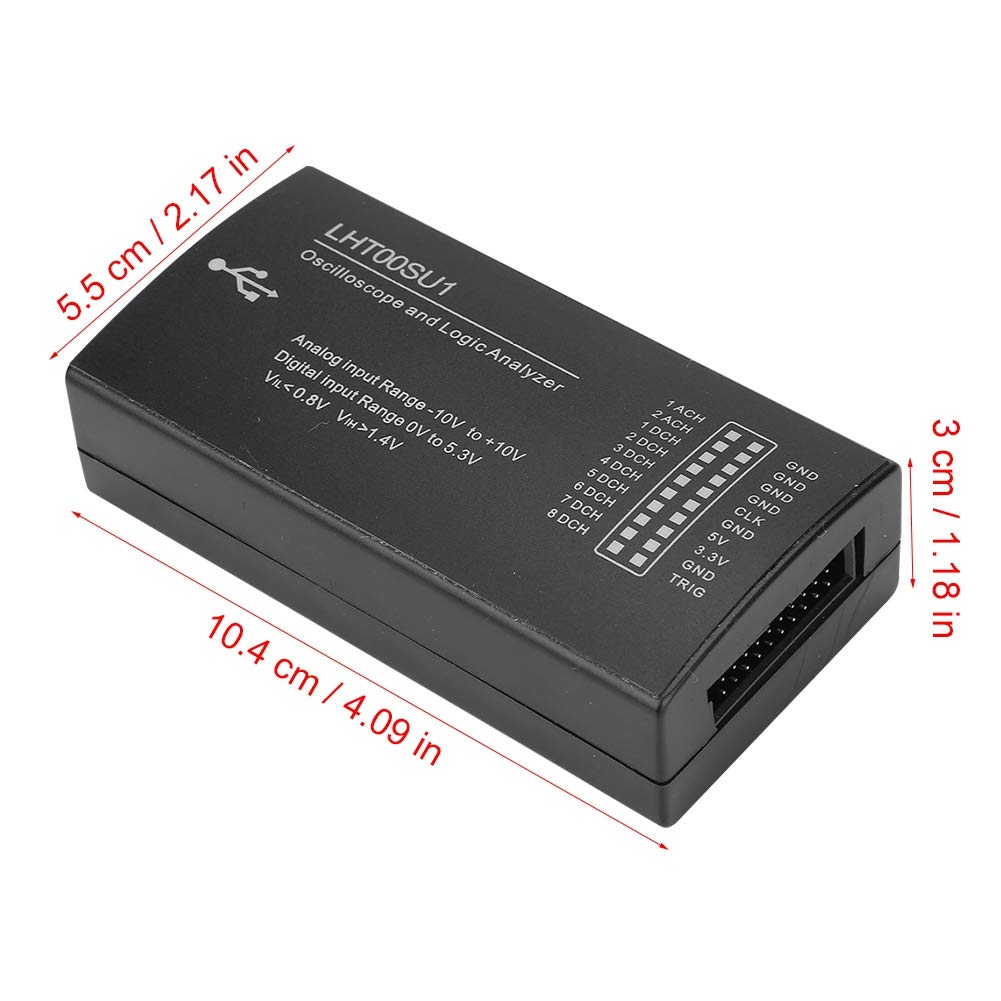

Specification: Model: LHT00SU1 Size:10.4*5.5*3cm/4.1*2.2*1.2in Weight: Approx.218g/7.7oz Analog parameters: Number of input channels: 2 channel Sampling channel: 1 channel The maximum sampling frequency: 16MHz The maximum analog bandwidth: 3MHz Input voltage range: -10V to + 10V Sensitivity: 78mV Maximum vertical resolution: 256 level Digital parameters: Number of channels: 8 Input voltage: 0V-5.3V Input Low level: <0.8V Input high level: >1.4V Supported protocols: Serial Peripheral Interface, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wite, PS / 2 The communication interface parameters: USB parameters: USB2.0 high-speed 480Mbps System requirements: Supported operating systems / XP / Vista / (32bit) Celeron 4 2.0G or Pentium 4 1.8G higher processor Need USB2.0 high speed interface, does not support full speed USB2.0 or USB1.1 Memory Requirements 128M or more Need 2G or more hard disk You need to install Framework 3.5 SP1 Note: If your system is XP, please check whether your computer has ".NET 3.5 SP1" this component, if not, go to the website to download and install. Package included: 1 x Machine 1 x Testing clamp cable 1 x USB connection cable 10 x test clip
