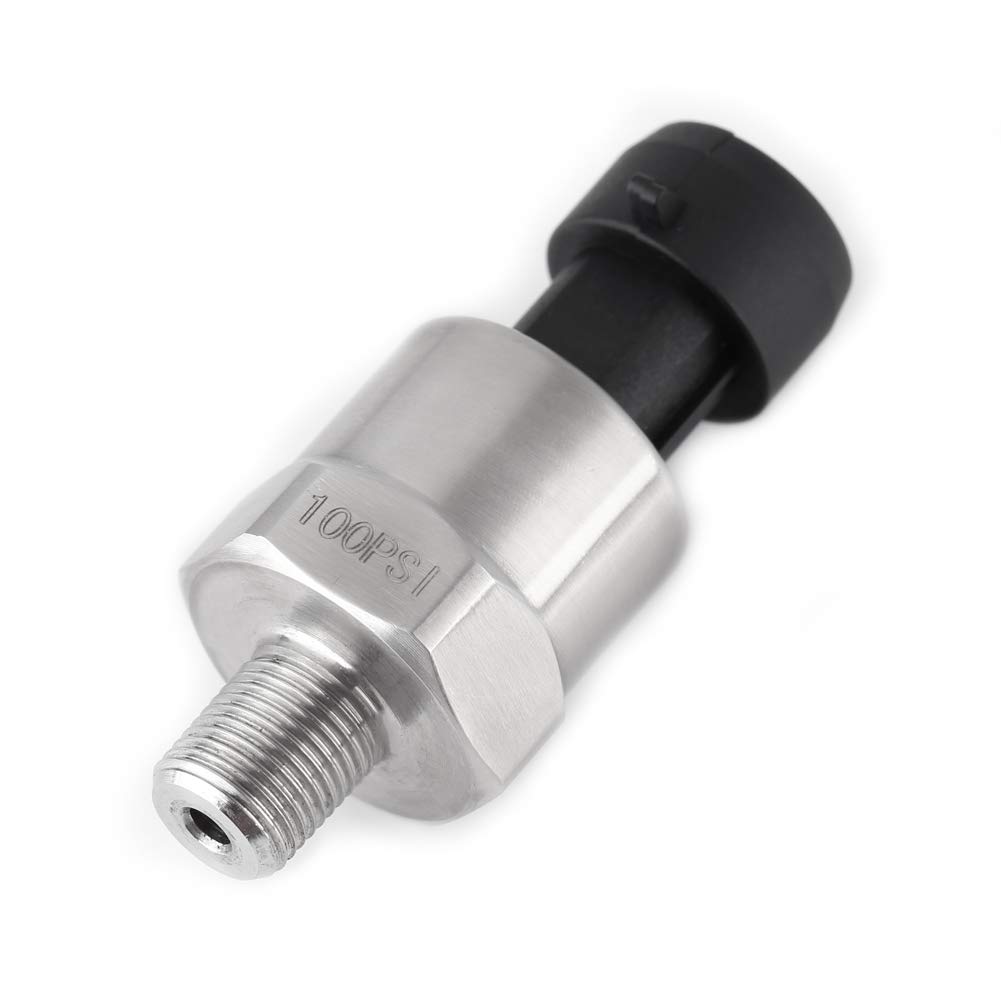

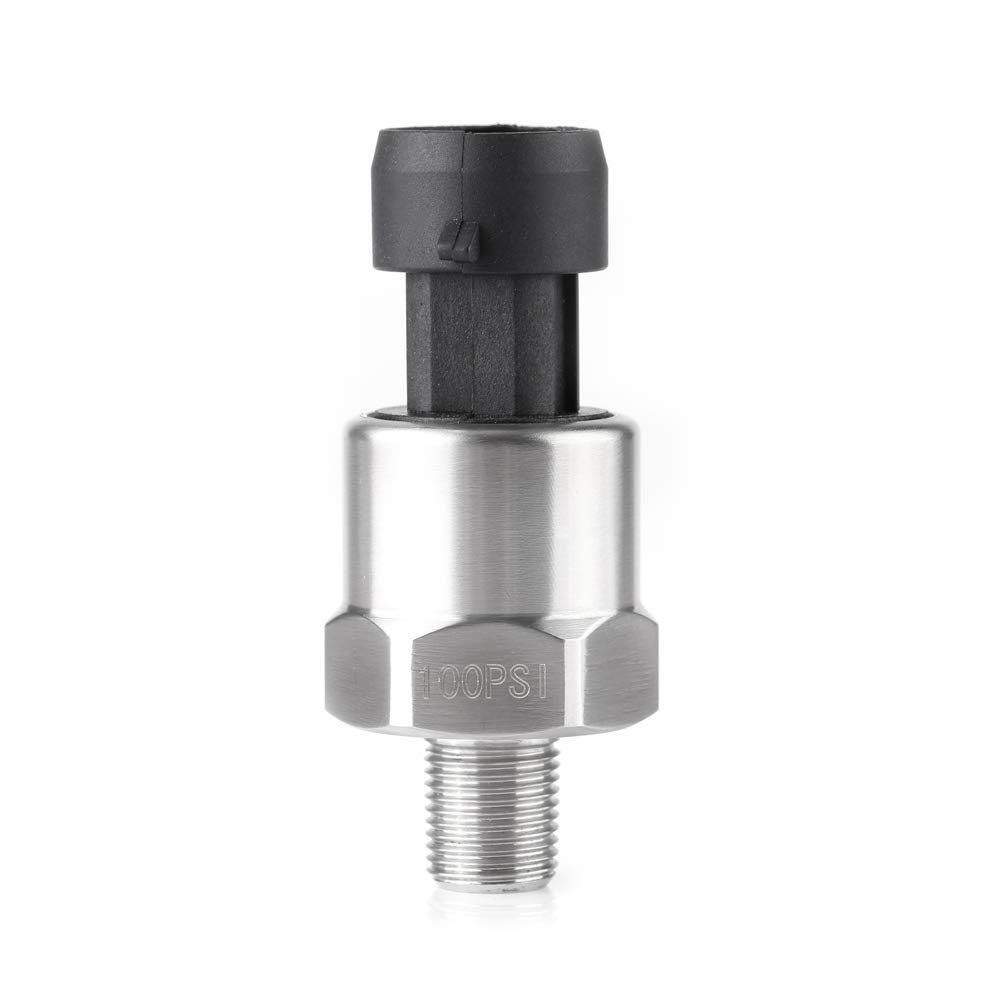

Akozon Pressure Transducer Sender Sensor 1pc Transducer Pressure Transducer 1/8NPT Thread Stainless Steel for Oil Fuel Air Water(100PSI)

• 【Wide range of applications】 This pressure sensor is suitable for oil, fuel, diesel, natural gas, water, air pressure, and can be used for fuel tanks, gasoline tanks, tanks, etc.
• 【High precision】 The air pressure sensor has a small output error of ±2% FS, including non-linearity, hysteresis error and repeatability, and the entire temperature range.
• 【Upgrade design】 This water pressure sensor is more advanced than the traditional mechanical pressure sensor, the is simpler, and the error is small.
• 【Easy to use】The Pressure Sender Pressure Gauge is light weight, with small size, easy to install and It has a complete function. This kind of pressure sensor is more advanced than the traditional mechanical pressure sensor, the is simpler, and the error is small.
• 【Service】 We are responsible for the products and believe in the quality of the products. Professional functions and high reliability give you a different experience and ensure the satisfaction of every customer. If you have any questions about our products, we will answer you at any time.

Specifications: Material: Stainless steel Voltage: DC 5V Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional) Thread Type: 1/8" NPT 30 psi Input: 0-30 psi Output: 0.5V~4.5V linear voltage output. Accuracy: within 2% of reading (full scale). Thread: 1/8"-27 NPT. Wiring: Red for +5V; Black for ground; Blue for output. 100 psi Input: 0-100 psi Output: 0.5V~4.5V linear voltage output. Accuracy: within 2% of reading (full scale). Thread: 1/8"-27 NPT 150 psi Input: 0-150 psi Output: 0.5-4.5V linear voltage output. Accuracy: +/-0.5%FS Thread: 1/8" NPT Overload Capacity: 2-4 times of rated pressure Working Temperature: -40℃~+120℃ Compensation Temperature: 0℃~+80℃ Class: IP67 200 psi Input: 0-200 psi Output: 0.5V~4.5V linear voltage output. Working Temperature: -40~+125℃ Accuracy: ±1%FS Thread: 1/8"-27 NPT Overload Capacity: 2 times of rated pressure Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel 300 psi Input: 0-300 psi Output: 0.5-4.5V linear voltage output. Accuracy: +/-0.5%FS Thread: 1/8" NPT Wiring: Red: +5V; Black: ground; Green: output Overload Capacity: 2-4 times of rated pressure Working Temperature: -40~+120℃ Compensation Temperature: 0℃~+80℃ 500 psi Input: 0-500 psi (Gauge Pressure) Output: 0.5-4.5V linear voltage output Accuracy: +/-1%FS Thread: 1/8" NPT Overload Capacity: 2-4 times of rated pressure Working Temperature: -40℃~+120℃ Compensation Temperature: 0℃~+80℃ Package Includes: 1 x Pressure Transducer (With cable)
