Akozon Converter Module, Dc Step Down Converter 300W 20A DC-DC Converter Step-down Module Constant Current LED Driver

• [Professional tools]: The converter module has a wide input voltage range from 6V to 40V, and the converter can precisely adjust the output voltage and current.The efficiency can be up to 96%, measured at 20 A, with conversion from 24 V to 12V.
• [Stable performance]: The step down dc dc converter It is designed with double 75V / 80A large current MOS tube.The input and output use high frequency low resistance electrolytic capacitors, low ripple, stable output.
• [Good heat dissipation effect]: The step-down module has 2 heat sinks, which can improve the heat dissipation effect. When the input and output voltages differ greatly, reduce the power and current.
• [Easy to install]: No need to use other complicated tools or even modifications. It is very convenient to use these high current 30A screw terminals for wiring.
• [Service]: If you have any questions about our products, please feel free to contact us. We will respond within 24 hours. Help >>> Need More Help >>> Contact us at the top of the page and select "Chat Customer Service.

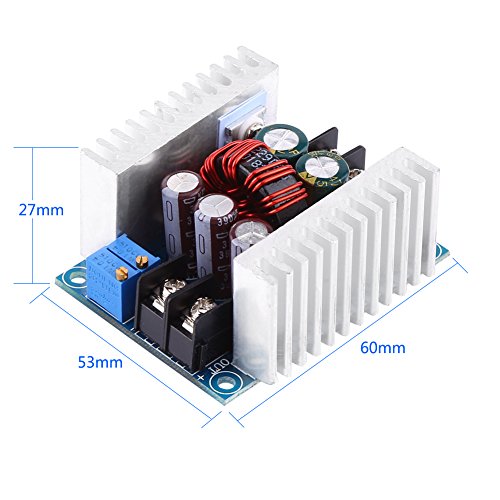

Features: With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current. The efficiency can be up to 96%, measured at 20A, converting 24V to 12V. It is designed with 75V/80A large current dual MOS tube. Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output. Wiring is convenient with these large current 30A screw terminals. The module has 2 heat sink that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current. Specifications: Input Voltage: 6V to 40V DC(10V to 40V is suggested) Output Voltage: 1.2V to 36V DC Output Current: 20A(max.), 15A(suggested, ) Efficiency: 95%(24V to 12V, 20A) Output Ripple: ≤50mV Wiring Method: Terminal Short Circuit Protection: Self-recovery(cannot short circuit for long time) Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06" VO+ Output positive When input and output is common grounded, no-load CV output constant voltage, CC output constant current VO- Output negative +IN Input positive -IN Input negative CV Output voltage adjustment CC Output current adjustment EN Enable, low voltage level shut off output; suspension, high voltage level is effective Package Includes: 1 x Module Nota: en cuenta que el tipo nuevo y el tipo antiguo de este producto se enviarán al azar, y asegúrese de que no le importe antes de realizar el pedido.
