Current to Voltage Transmitter Signal Module 0-20MA to 0-5V C/V Converter CV-20MA5V

• The output signal can be directly connected to AD converter
• Maximum drive capacity is 3mA, linear output
• This converter can converter industrial standard current (0~10mA, 4~20mA) to industrial standard voltage (0~5V, 1~5V)

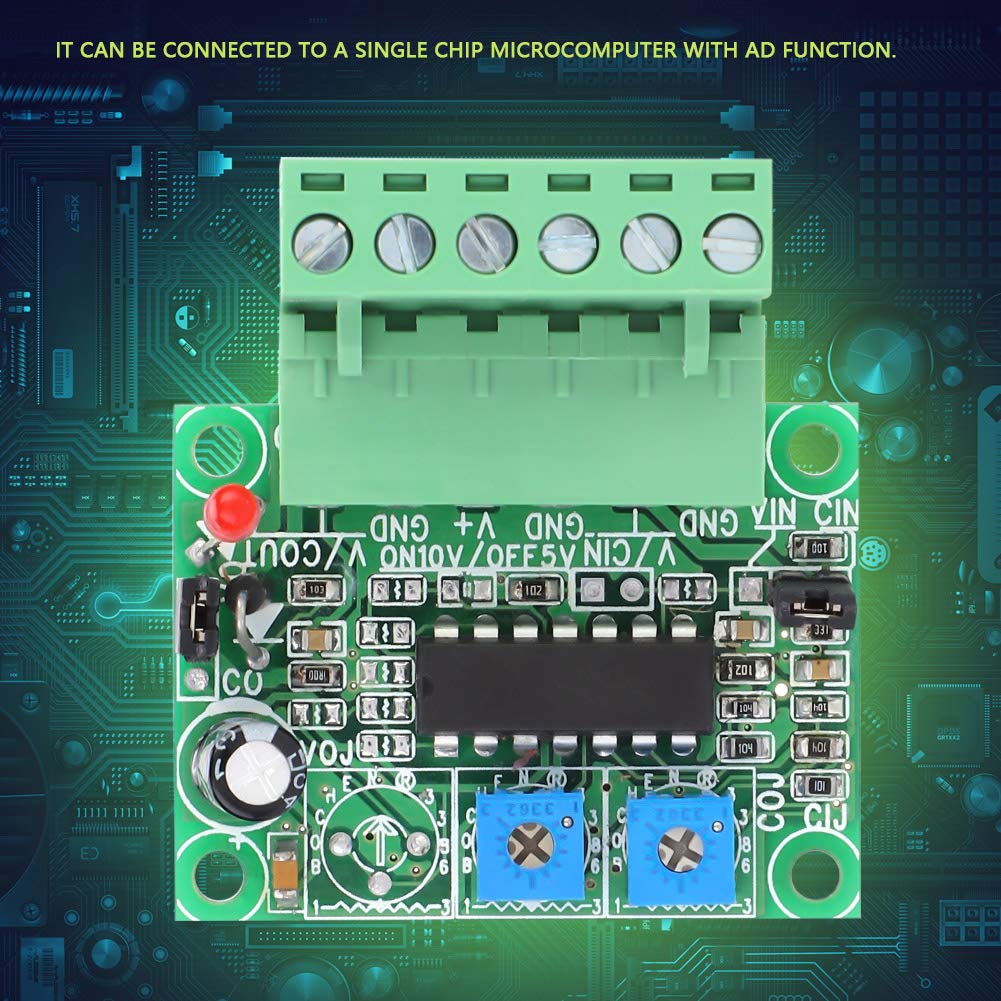

• It can be connected to a single chip microcomputer with AD function

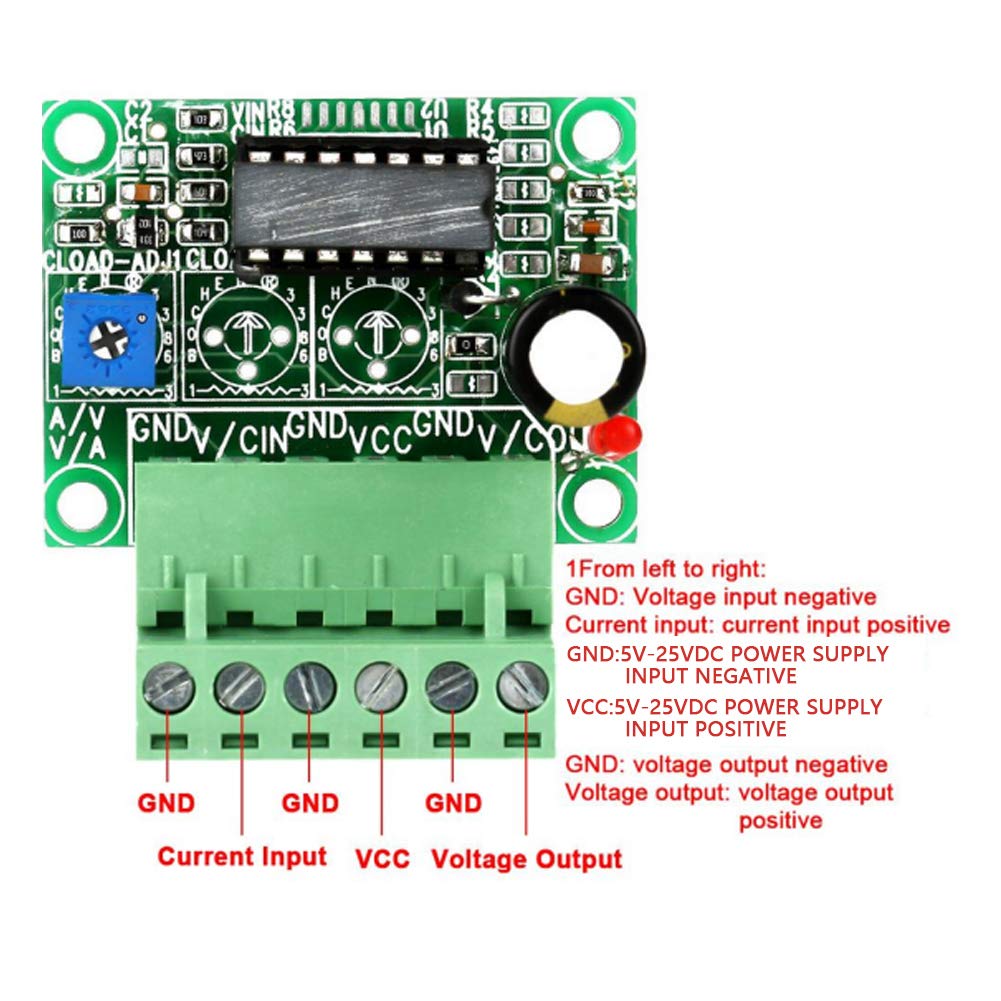

• Input 0-20mA, output 0-5V; the output value generally has already been calibrated, and there is a potentiometer on the board, which can be used to finely adjust output value

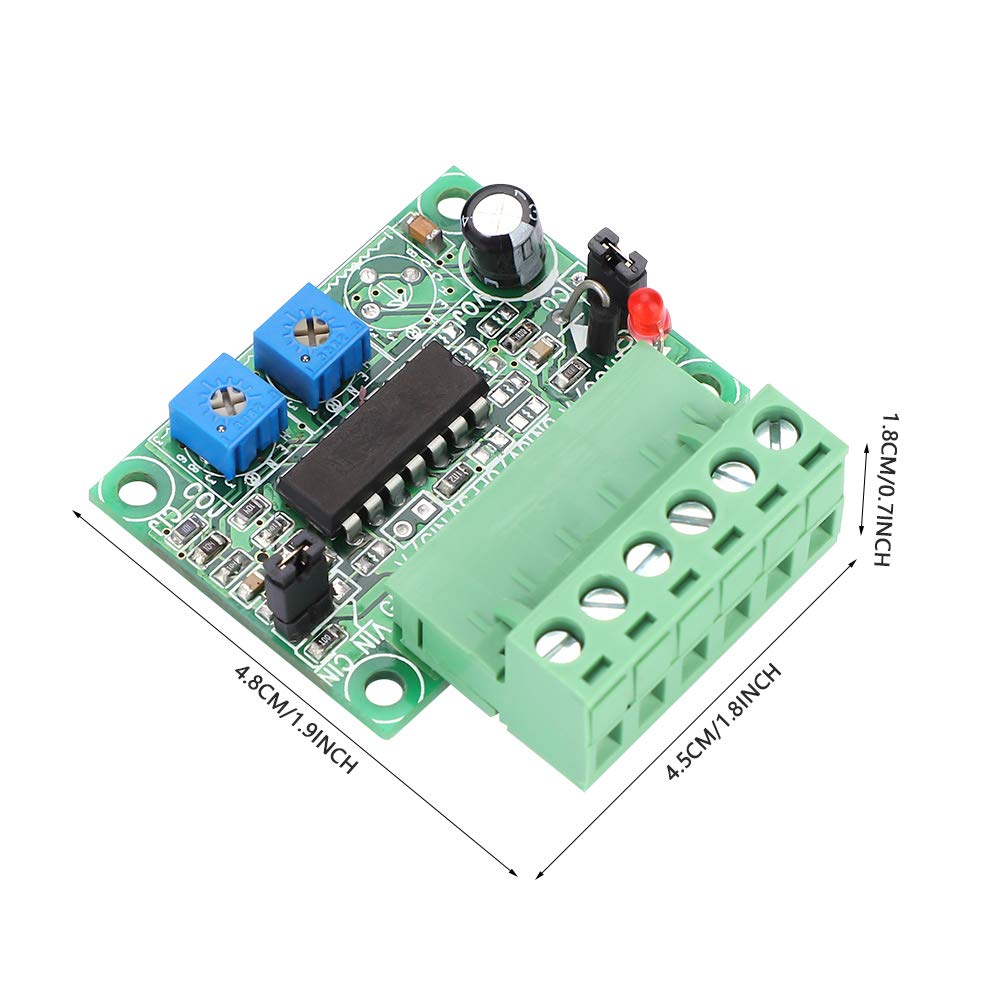

Specification: Model: CV-20MA5V Power Supply Voltage: 5V~25VDC Internal Resistance of Input Signal: 77-320Ω (Adjustable), 200Ω (default) Input: 0-20mA Output: 0-5V Size: Approx. 4.8*4.5*1.8cm/1.9*1.8*0.7inch Weight: Approx. 20g / 0.7oz Package List: 1 x C/V Converter Module
