Agptek HDMI Kvm Extender Router Switch with Ethernet Cable, Ultra HD 1080P @ 60Hz USB Keyboard and Mouse Control Supports (Lkv373 Rx) 100 m Black

• Lkv373 HDMI (version 3. 0) Extensor (works only for Lkv373 TX) is designed to convert HDMI signal to Tcp / Ip and transfer standard Cat5E / 6 cable or LAN. With the advantage of Tcp / Ip - standard, it can transfer the HDMI signal source from Hd - Stb, DVD, PS3, HDMI graphics card, etc. HD projector, DLP, LCD, LED and other audio-visual devices. It extends via router, connection or LAN connection.
• HDMI formats supported: 480I @ 60Hz, 480P @ 60Hz, 576I @ 50Hz, 576P @ 50Hz, 720P @ 50/60Hz, 1080I @ 50/60Hz, 1080P @ 50/60Hz. Compressed implementation of the M - Jpeg. Siga Technology - Standard Ieee - 568B.
• Supports Tcp / Ip, unlimited extending HDMI signal via router or hub/switch.
• It supports resolutions up to full HD 1080P. Supports Ethernet - Bandwidth: 100 M. HDCP compatible.

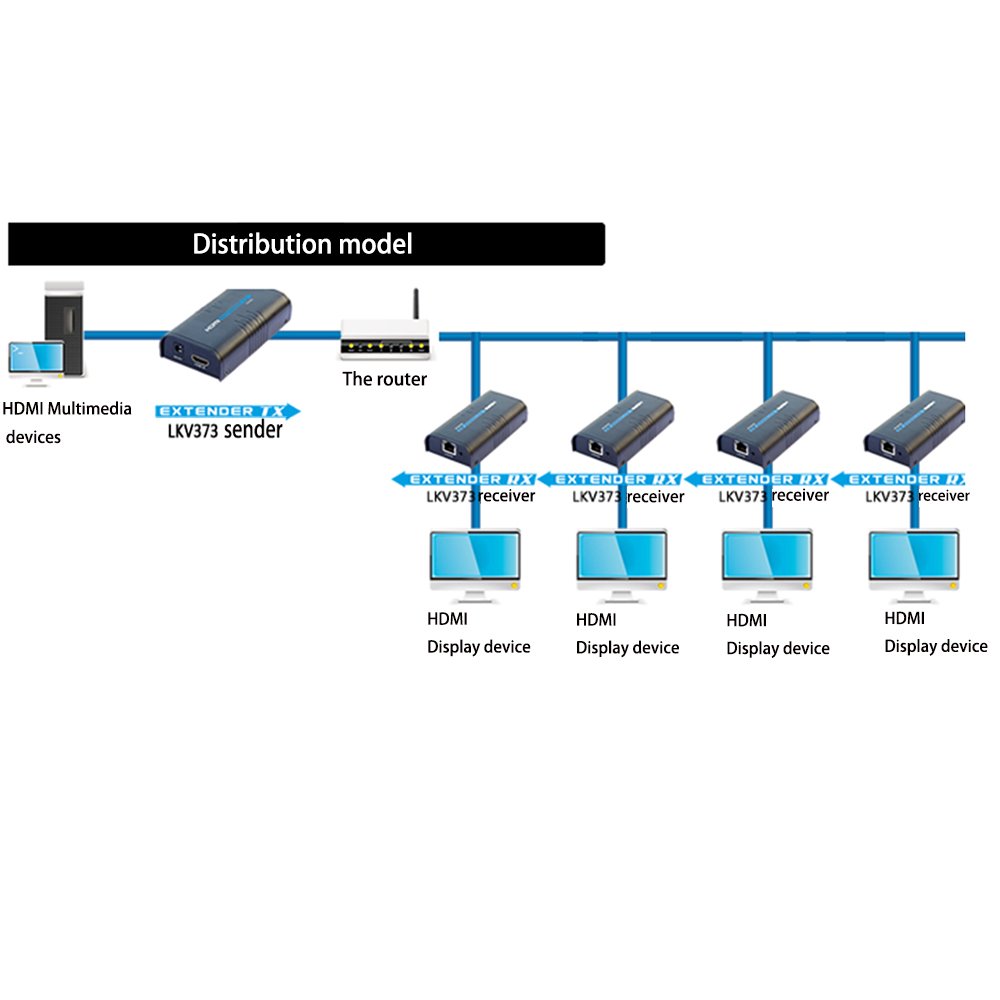

• Multiple display devices are used: The transmitter multiple receivers connection via a router or switch, multiple screen display in the transmission signal.

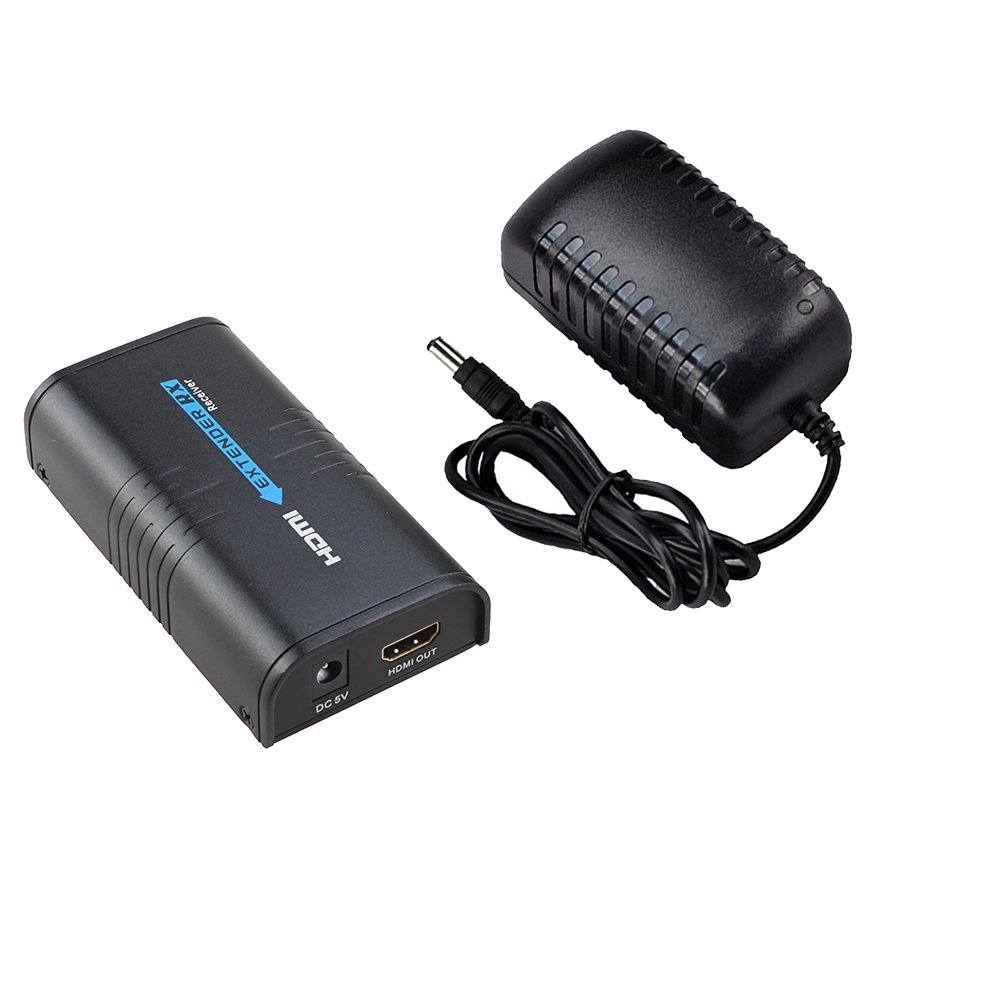

Description This HDMI receiver Lkv373 extender does not include the transmitter. It converts the HDMI signal into Tcp / Ip standard and transmits through the cable 5E / 6 or LAN. With the advantage of Tcp / Ip - standard, it can transfer the HDMI signal source from Hd - Stb, DVD, PS3, HDMI graphics card, etc. HD projector, DLP, LCD, LED and other audiovisual devices. Extend router or LAN connection, requirements of cable are: Cat5 maximum 80 m between two Cat5E devices maximum of 100 metres between two Cat6 devices up to 120 metres between specification devices: Supports the following resolutions: 480I @ 60 Hz, 480P @ 60 Hz, 576I @ 50 Hz, 576P @ 50 Hz, 720P @ 50/60 Hz, 1080I @ 50/60 Hz, 1080P @ 50/60 Hz, operating temperature: 60 ~ 10 connector (transmitter/receiver): Utp / Stp 5E / 6. Consumption: 3 W (max), each relative humidity: 20% ~ 90%, Power: DC 5 V/1 A. Dimensions: 110 mm x 58 mm x 26 mm, Weight: 239 G Cat5E/6 - Cable: Follows the standard Ieee – 568B. Package includes: 1 x extension HDMI receiver, 1 x power DC 5 V/1 A, 1 x user manual (English language not guaranteed).
