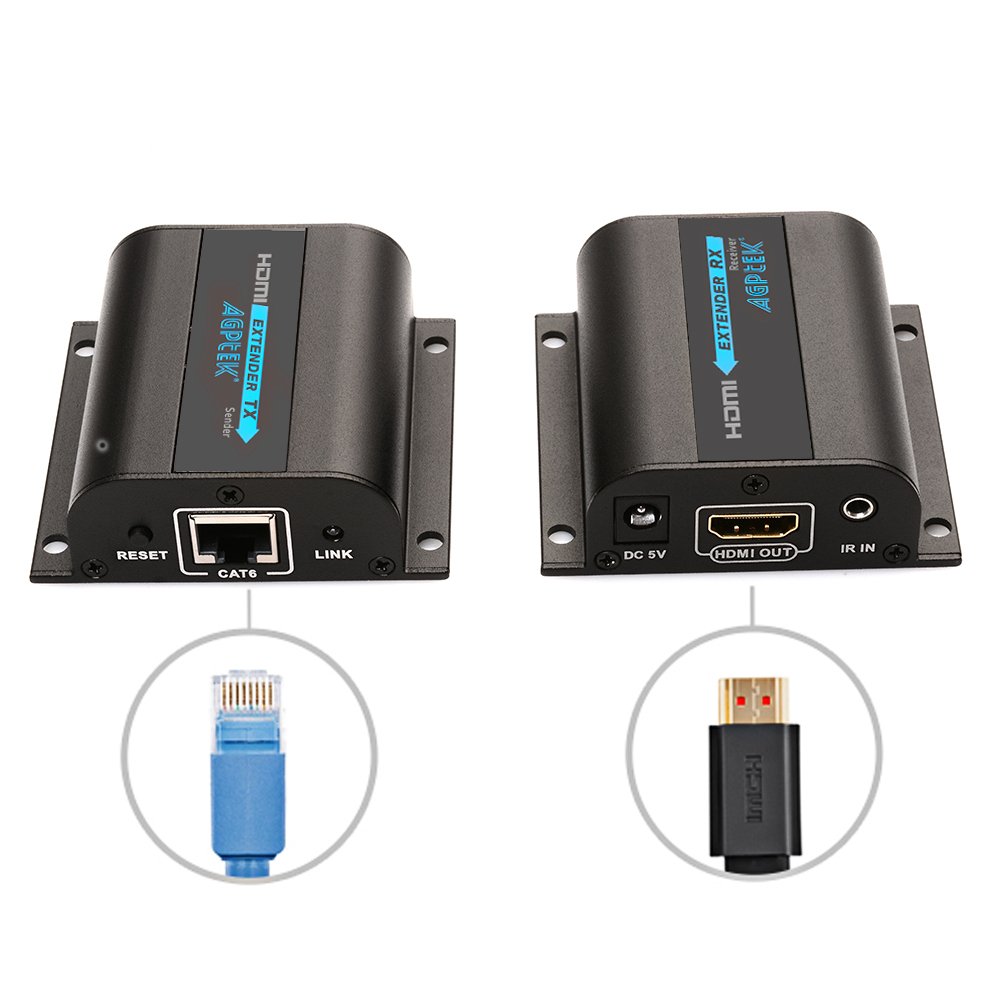

AGPTEK HDMI Network Extender, 60m HDMI Network Extender LKV372A via Single Cable Cat6 / 6A / 7 Ethernet Cable - Supports 3D 1080P 20~60KHz Frequency IR Remote Control

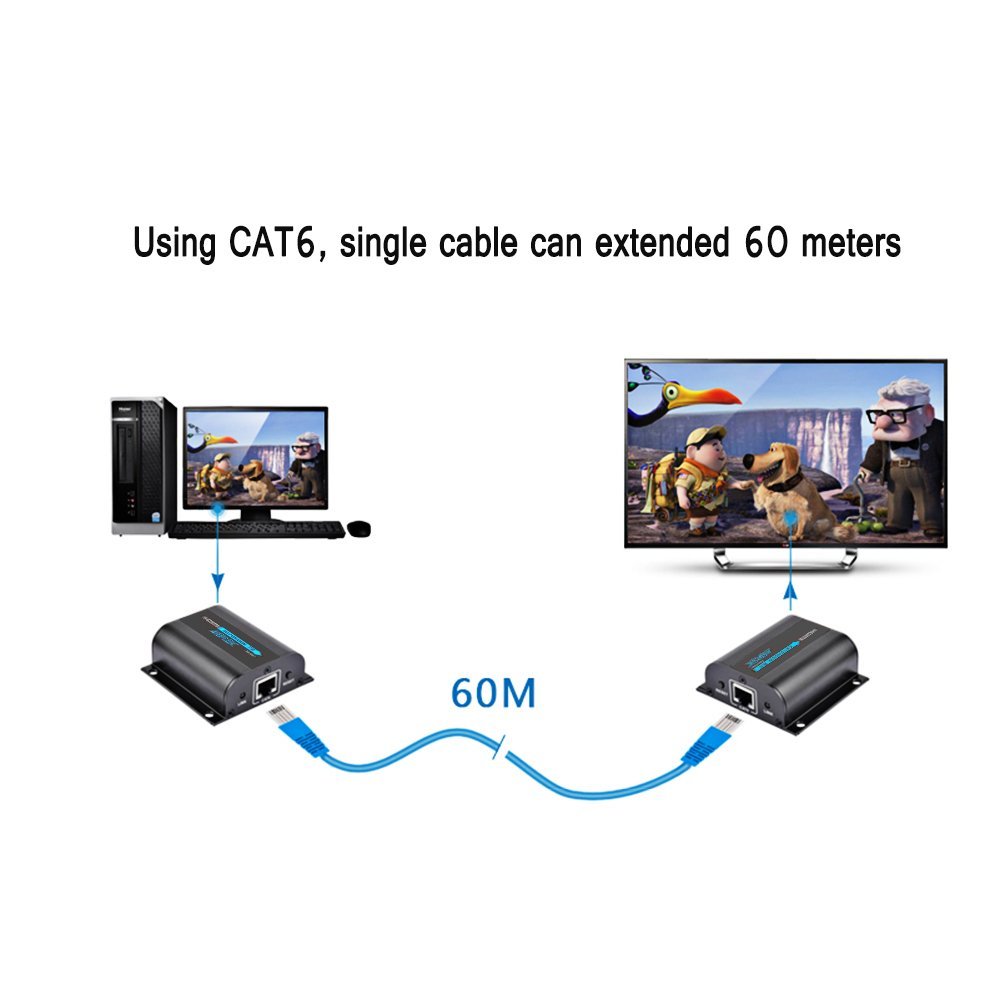

• 【4K HDMI Extender】-- Transmits HDMI signals up to 230ft/70m(1080P) and 130 ft/40m(4k) over a single Cat6a/Cat7/Cat8 cable, Support full HD 1080p,3D, 4Kx2K@30HZ; HDMI1.4, compatible with HDCP 2.0; Support CEC and 24bits deep color
• 【Uncompressed Video】-- Enjoy 1080p@60HZ and 4K@30HZ video. This HDMI extender maintains excellent stability and reliability of the signal even when dealing with extended distances, making a crystal clear multimedia experience for you
• 【Multi-channel Audio Compliant】-- This HDMI extender supports uncompressed LPCM audio and compressed DTS-HD, Dolby True HD

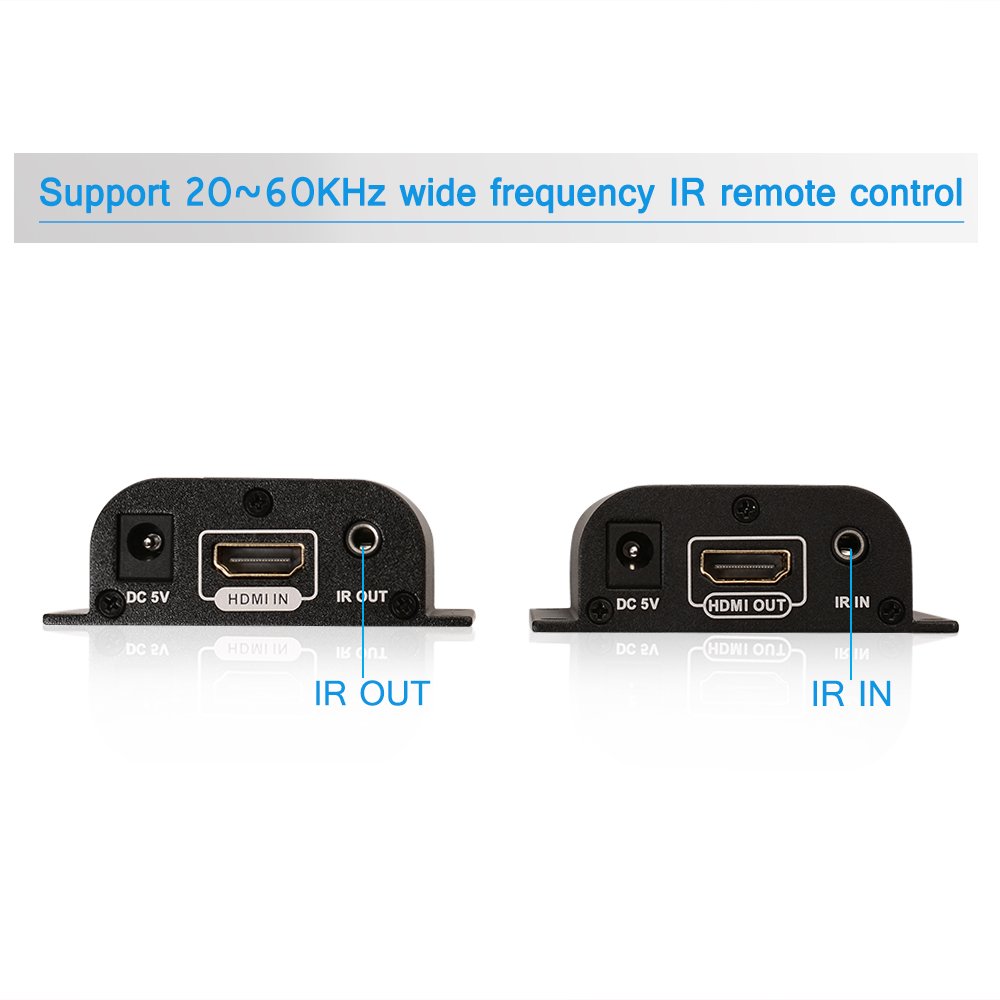

• 【Bi-directional IR Path】-- This bi-directional extender over Cat6/7/8 cable makes use of IR receivers, which allows you to control devices from either direction to the opposite end. It gives you the flexibility to have various setups

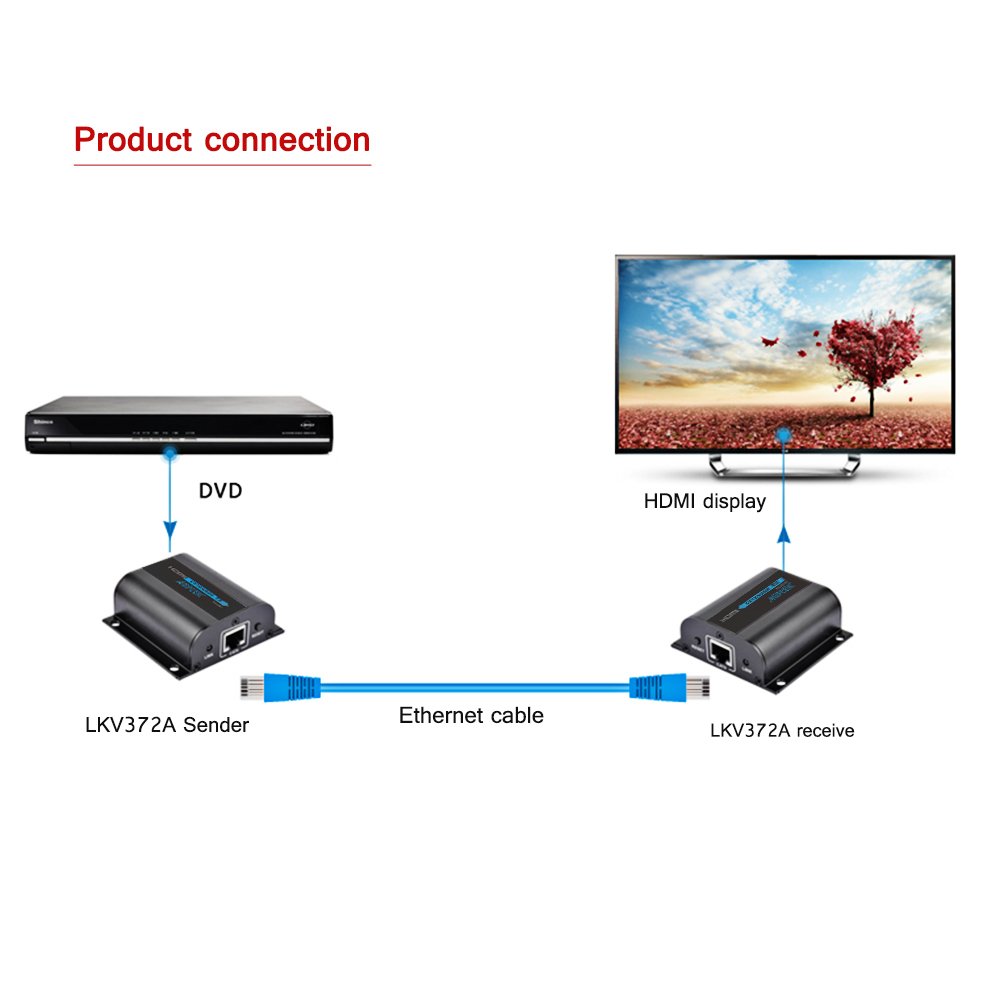

• 【Broad Compaitibility】-- Extend audio/video HDMI connection between a computer, Blu-ray player, or gaming console to an HDTV/monitor over a single Cat cable following the standard of IEEE/568B; It is a cost-effective alternative to using extenders while providing the ultimate viewing experience

Discription: The HDMI extender over a single UTP cables with IR control is the right way to send your HDMI signal over long distances. Instead of using expensive HDMI cables, this device lets you use your existing Cat6/7cables/sockets while also performing the same functions like transferring Deep Color video and new lossless compressed audio. And if that weren't enough, you can use your existing remote to control your device through an IR blaster. Specification: HDMI signal: Comply HDCP Resolution supported: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz Network cable: Low resistance and consumption oxygen-free copper core（CAT6、CAT6A、CAT7） Transmission length: CAT6:60m at 1080P IR remote control: Support 20~60KHz wide frequency IR remote control Working temperature: 0℃～60℃ power: DC5V/1A power consumption: TX：2W； RX<2W Product size: 2.82(W) x 2.62(D) x0.98(H)inch Package Contents: 1 x HDMI to RJ45 sender TX 1 x RJ45 to HDMI receiver RX 2 x DC5V/1A power 1 x User manual 1 x IR blaster extension cable 1 x IR receiver extension cable Note: 1.High quality cat6 or cat6a cable is needed to work with this hdmi extender 2.Only supports the PCM audio output 3.Do not mix up HDMI to RJ45 sender and RJ45 to HDMI receiver before installation. 4.Do not plug when it is working. 5.Make sure the cables in right connection. 6.Please press RX RESET button when no image output. 7.Please make sure the cables follows 568B and reset TX/RX to input HDMI Signal when RX"LINK" Led is flashing all the time.
