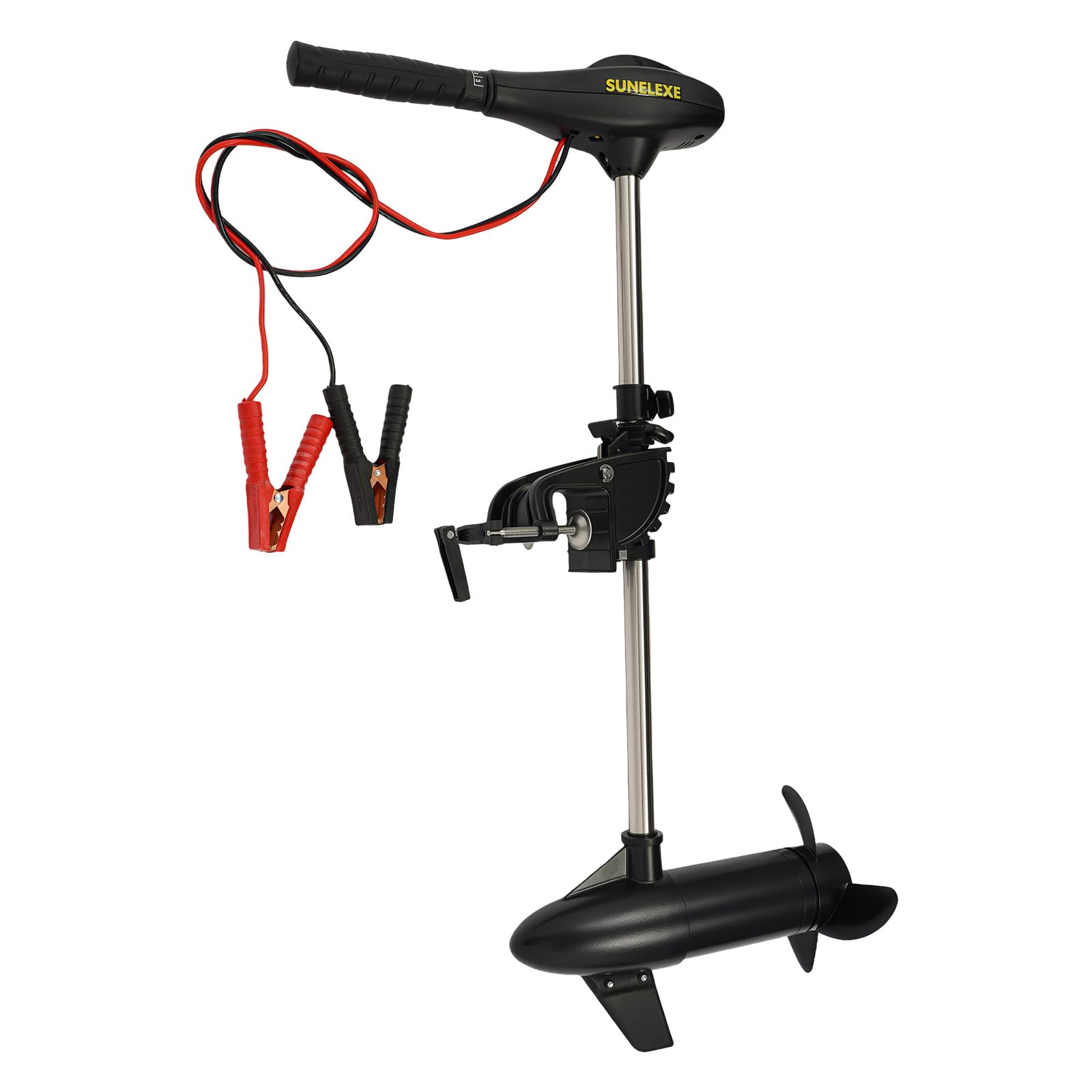

12V Electric Boat Motor | Trolling Motor | Outboard Motor, 58 Lbs Thrust

• 【Powerful Thrust for Small Craft】：Delivering 58 lbs of thrust, this electric boat motor is designed for vessels up to 9.84ft in length, achieving a maximum speed of 8km/h (approx. 5mph) and handling 1102 lbs load capacity for fishing or aquaculture.

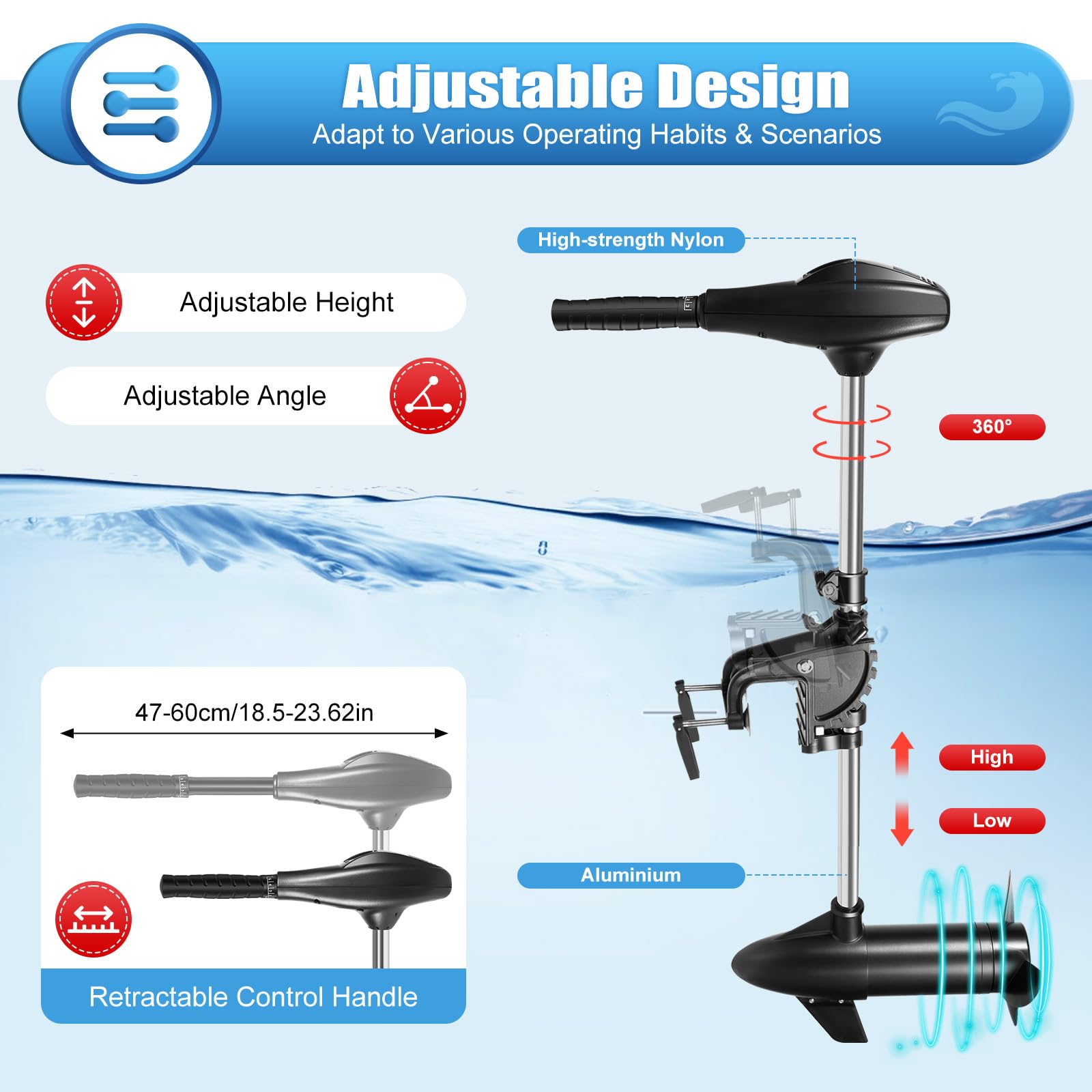

• 【Precise Speed & Handle Control】：Equipped with a telescopic handle (18.5 to 23.62 inches) and 5 forward + 3 reverse gears (F5-R2), this outboard engine provides fine manoeuvrability in tight waterways or open lakes, solving the need for accurate throttle response on small boats.
• 【Ultra-Quiet Operation】：Running at just 50dB, this trolling motor avoids spooking fish or disturbing peaceful environments. The pure copper motor and 612W power draw ensure reliable, low-noise performance for extended fishing trips or outdoor tourism.

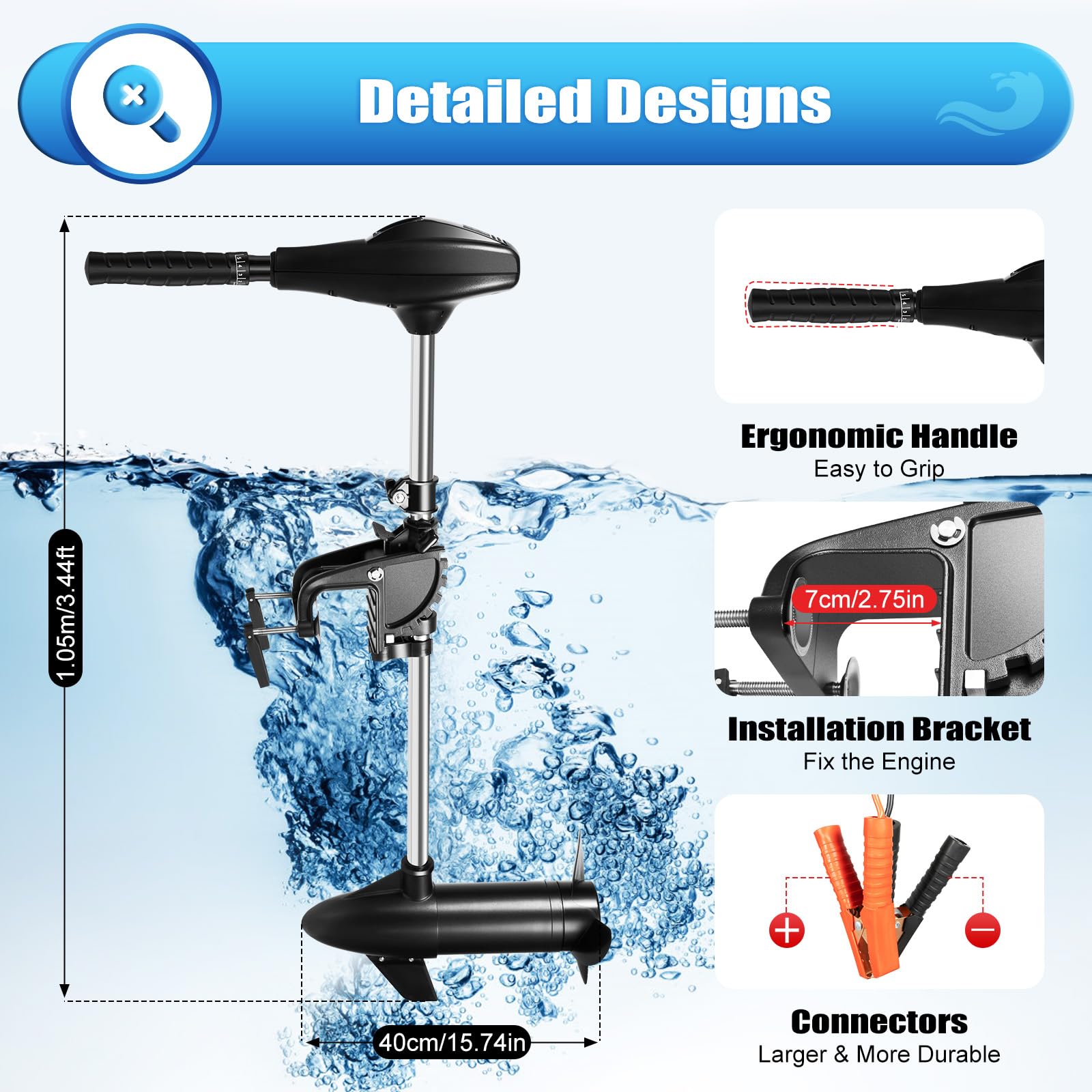

• 【High Load & Compact Fit for Kayaks】：Supporting up to 1102 lbs, this kayak motor easily carries your boat, gear, and catch. Its 8.66-inch three-blade propeller and clamp space of 2.75 inches fit transoms on kayaks, inflatables, or dinghies under 9.84ft.
• 【Effortless Mounting with 12V System】：The retractable handle offers ergonomic steering, and the motor operates at 1700RPM rated speed. For full thrust output, pair this outboard motor with a 12V 150Ah battery (excluded) – a straightforward solution for powering your small watercraft.

Specification Model: L58 Speed Control: F5-R3 Motor Type: Brush Motor Rated Voltage: 12V Rated Speed(R/min): 1700 Rated Current: 51A Rated Power: 612W Control Handle: Retractable Maximum Speed: 8km/h Noise DB: 50db Battery Model: 12V 150A Batteries Propeller: 3 leaves, 22cm/8.66in Shaft Length:76cm(29.92inch) Package Size: 101*46*16CM/39.76*18.11*6.29inch Product Height: 1.05m/3.44ft Net Weight: 9.5kg/20.94lb Gross Weight: 11.5kg/25.35lb Thrust: 58lbs Installation 1. Tear off the sticker at the spring on the handle. 2. Take out the handle, and align the handle with the interface at the inner shell of the handle. 3. Press the handle spring with one hand and push the handle in with the other hand. After a crunching sound is heard, the handle is installed. 4. Take out the cylindrical card pin and insert it into the round hole of the drive rod (note that the length of both ends needs to be consistent). 5. Align the back of the propeller with the card slot and the card pin horizontally, and then tap into the propeller with force. 6. Put in the card flap, then screw the nut to complete the installation. 7. Take the fins out of the box and insert them into the fin slot. 8. Put the included screws into the screw holes of the fins and put the nuts into the other end. Hold them down. 9. Then tighten the screws with the Phillips screwdriver. 10. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible. Package Included 1*Trolling Motor 1*Power Propeller 1* Circuit Breaker Protector 1*Battery Clamp 1 Set of Screws 1*English Manual Notes 1. Please read the attached manual completely before use. And pay particular attention to the safety instructions included. 2. Don't start the motor on the bank. If you want to test the motor, it should be done in the river. 3. Don't use the motor when no water comes out of it, and then check whether the pump impeller or the water outlet is blocked. 4. Do not switch gears too quickly. You should switch from one gear to another. 5. Be sure the switch is in the OFF position before the connection to the battery. 6. Always disconnect power when replacing the propeller, removing debris around the propeller, charging batteries, transporting a boat, or when the motor is not in use. 7. Remember always disconnect from batteries once the motor leaves water as a rotating propeller can cause personal injury. 8. Electrical arcing near the battery could ignite hydrogen gas and cause the battery to explode. 9. Please wash the motor with freshwater, so that it can greatly reduce the possibility of corrosion. 10. All trolling motors have noise. And the noise of this motor is the same as a motorcycle, which is normal. 11. The machine itself is very light and can be used on boats under 100kg with a load capacity of 4 people, but the load capacity will affect the speed. So if you have a high-speed operation requirement, please note in particular. 12. You must prepare a boat motor bracket or lifting board on your boat. 13. The battery is not included in the package. 14. Please choose 12V 150A battery so that the maximum power can be guaranteed for 3 hours of continuous operation. 15. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
