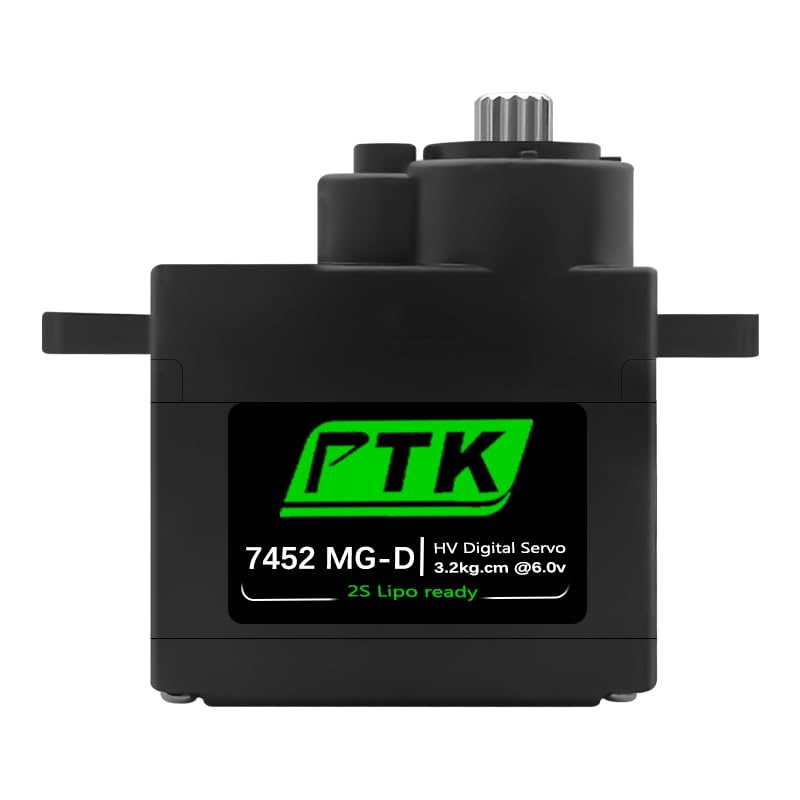

PTK 7452 MG-D 9g Digital Metal Gear Servo, RC Model Servo, F3P, Remote Control Helicopter, Fixed Wing (1pcs)

• Micro High-Torque Power Core：PTK 7452 with DC Core motor. 4.8V stall 2.8kg.cm (0.144s/60°); 6.0V 3.4kg.cm (0.111s/60°); 7.4V up to 4.5kg.cm (0.105s/60°). Rated 1.2kg.cm@7.4V. 3μs dead band, 1520μs/333hz frequency, ±45° travel, precise low-noise, fits low-medium load power needs of micro devices.
• Plastic Shell + Metal Gears：Wear-resistant Metal Gears, suitable for high-frequency use in micro scenarios; 12.55g plastic shell, balances lightweight and basic protection, anti-light vibration, fits non-watery micro aircraft, mini robots, balancing portability and durability.
• Single-Bearing Stable Output：Precision assembly with 1 ball bearing reduces wear, smooth transmission without jamming; 4.8V-8.4V wide-voltage circuit, stable under fluctuation, provides continuous power for micro scenarios, avoiding control delay under low-medium load.
• Programmer Function + Long Harness：Supports programmer (sold separately) for torque/speed adjustment. 250mm JR connector harness, compatible with most micro models, flexible wiring without distance limits, easy for beginners to debug device parameters.
• Micro Low-Medium Load Scene Adaptation：23.6×11.7×21.3mm, 12.55g, suitable for micro aircraft control surfaces, mini RC toy drive parts, small robot joints, easy installation, matches "lightweight + high-torque programmable" core needs.

Gears : Metal Motor: DC Core Ball Bearing : 1 Weight : 12.55g Dimensions : 23.6*11.7*21.3mm Working frequency： 1520μs/333hz Default Travel Angle: ±45°@1000us-2000us Speed/Stall Torque@ 4,8V : 0,144 sec/60° 2.8kg.cm Speed/Stall Torque@ 6,0V : 0,111 sec/60° 3.4kg.cm Speed/Stall Torque@ 7,4V : 0,105 sec/60° 4.5kg.cm Rated working Torque : 1.2kg.cm@7.4V Input Voltage : 4.8V - 8.4V Harness length : 250mm JR Dead band : 3
