MAXYNOS Thor 2830 Brushless Planetary Gear Motor, High Torque DC Outrunner for Robotics, RC Vehicles, and Automation (880KV, Gear Ratio 14:1)

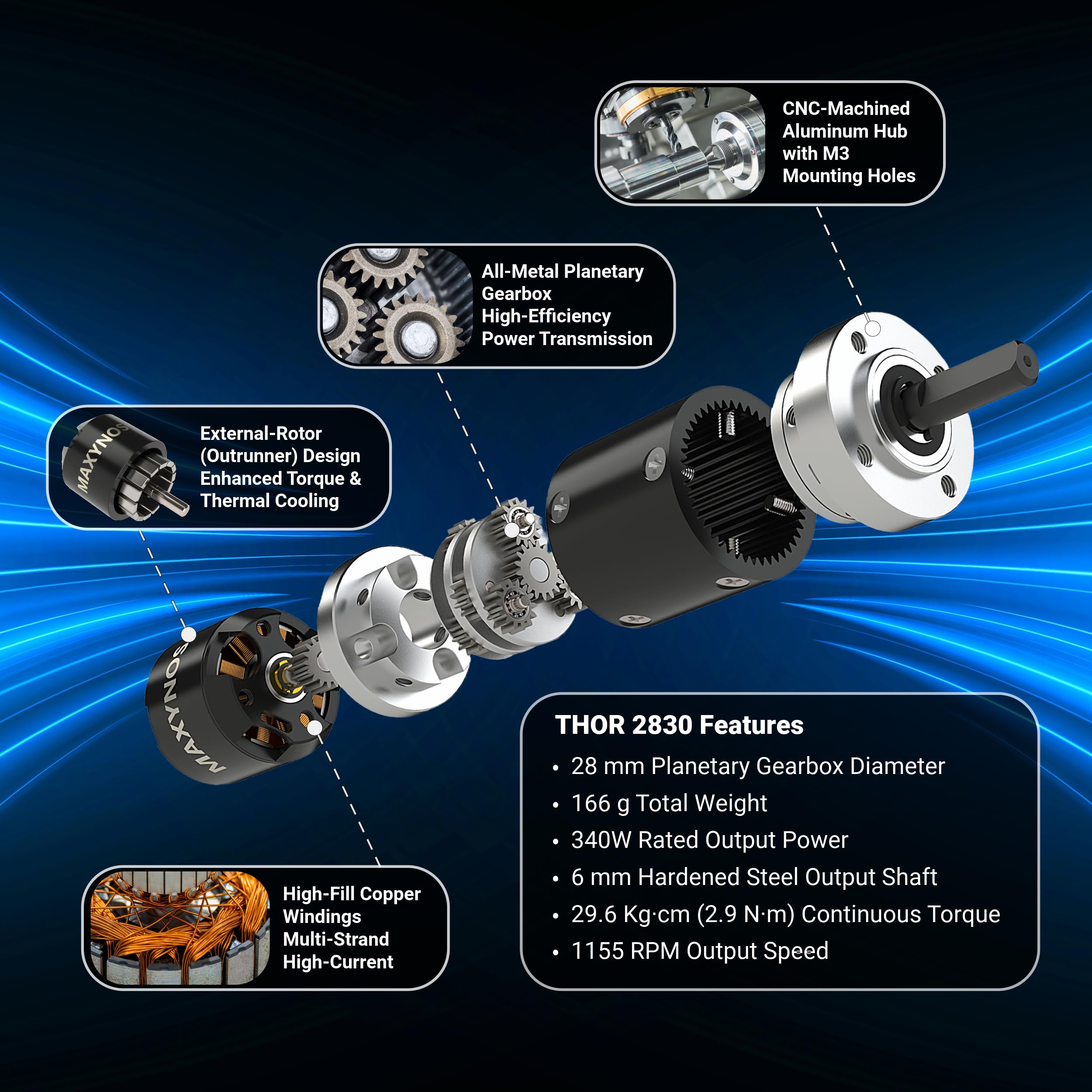

• Exceptional Power-to-Size Ratio: The MAXYNOS THOR 2830 series delivers a high-power up to 380 Watt, high-torque output in a compact form factor. The outrunner design and precision planetary gearbox ensure a superior size-to-power ratio, making it ideal for applications with limited space and weight constraints.
• Next-Generation Brushless Motor Technology Replaces traditional brushed motors with a more efficient, longer-lasting solution. Offers reduced maintenance, lower heat, and higher reliability over time.
• High-Torque Outrunner Design: Featuring an external rotor that spins around the stator, this motor generates significantly higher torque at lower speeds. This design improves thermal stability and energy efficiency, eliminating the need for bulky gearing and simplifying your project's design.
• High Quality Planetary Gearbox: Each motor is equipped with a high-precision gearbox, providing smooth acceleration, low nois and backlash.
• Equipped with 3.5mm bullet connectors and 6mm D-shape shaft provides a secure, non-slip fit for gears, pulleys, and sprockets, ensuring maximum torque transfer and long-lasting durability in demanding applications.

High Speed · Extreme Torque · Explosive Power The MAXYNOS THOR 2318 Series (Titanium High-Power Outrunner) is a flagship line of planetary gearbox brushless DC motors designed for compact size, maximum torque, high speed, and energy efficiency in robotics, automation, and RC applications. THOR motors feature an external rotor design that spins around the stator to deliver significantly higher torque while maintaining excellent thermal stability and superior energy efficiency. Each motor comes equipped with a precision planetary gearbox, providing smooth acceleration, minimal backlash, and enhanced load handling — making it the ideal choice for robotics, RC vehicles, and smart automation projects. The MAXYNOS THOR series offers an exceptional size-to-power ratio, peak torque output, and rugged reliability — engineered for creators, builders, and professionals who demand nothing but the best. 1250KV Motor Specifications: Rated Voltage: DC 7–15V (4SLipo) Power: 86W No-Load Current: 0.4A Stall Current: 10A Number of Poles: 14 Internal Resistance: 0.13 Ohm Connector: 3.5mm bullet plug Recommended Controller: Maxynos Bidirectional 45A ESC 625KV Motor Specifications: Rated Voltage: DC 7–15V Power: 60W No-Load Current: 0.2A Stall Current: 6A Number of Poles: 14 Internal Resistance: 0.18 Ohm Connector: 3.5mm bullet plug Recommended Controller: Maxynos Bidirectional 45A ESC Planetary Gearbox – Exact Reduction Ratio: Gear ratio 19:1 → Exact reduction ratio 19.20:1 Gear ratio 27:1 → Exact reduction ratio 26.85:1 Gear ratio 51:1 → Exact reduction ratio 50.89:1 Planetary Gear Motor Weight: THOR 2318 gear ratio 19:1 weight = 70 g THOR 2318 gear ratio 27:1 weight = 70 g THOR 2318 gear ratio 51:1 weight = 77 g Planetary Gearbox Speed (RPM) Calculations: Motor Speed (RPM) = (Motor KV value) × (Applied Voltage) → Example: 1250KV Motor speed at 14V → 1000 × 14 = 17,500 RPM Gearbox Speed (RPM) = Motor speed ÷ Exact reduction ratio → Example: Gear speed (RPM) at Ratio 27:1 & 14 Volts → 17,500 ÷ 26.85 = 651 RPM
