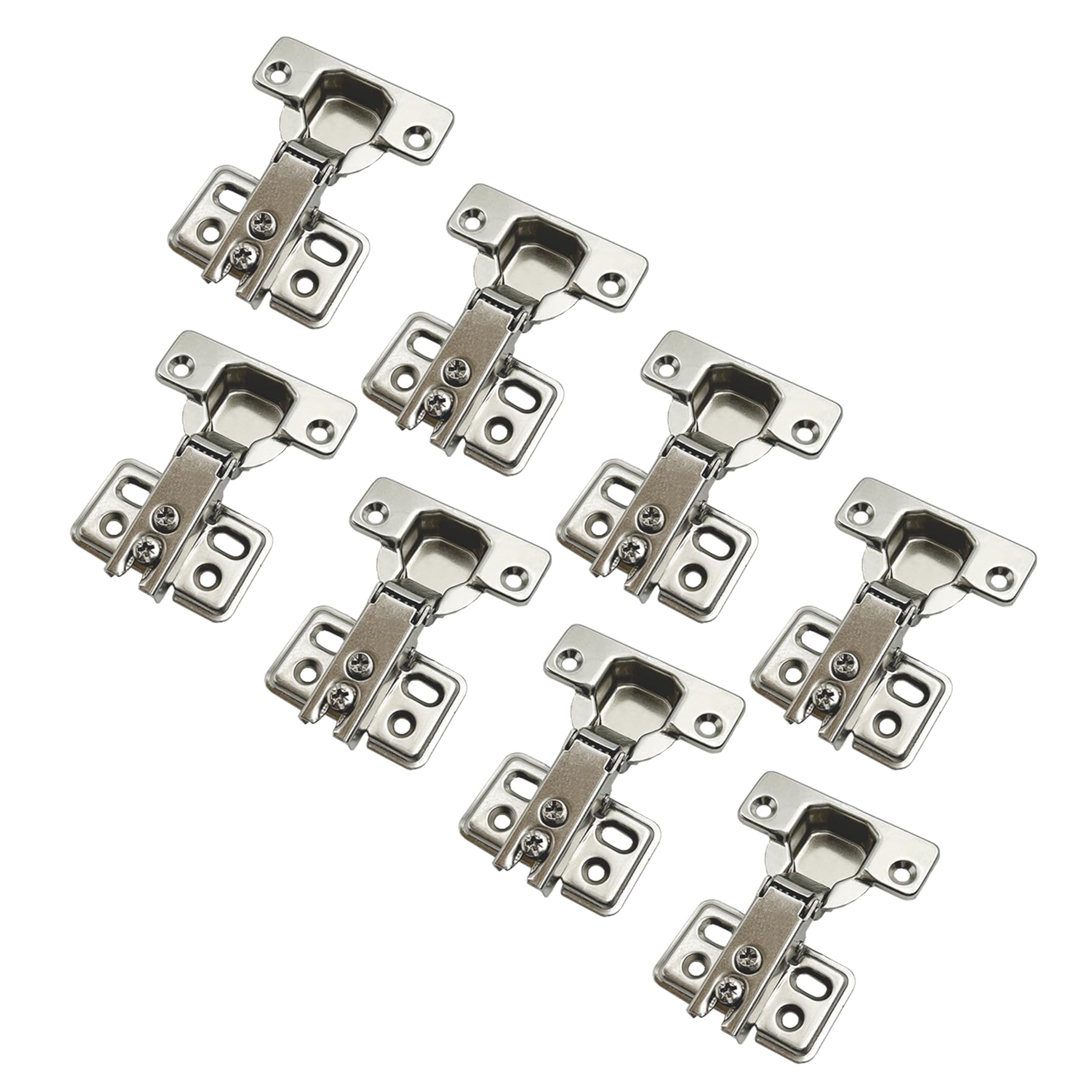

LIKERAINY 95 Degree Full Overlay Frame Hinge 35mm for Cabinet Door Compact Short Mini Hinges for Cabinet Cupboard Wardrobe Pack of 8

• Short-arm hinges are suitable for narrow cabinet and frame, especially for insufficient installation space

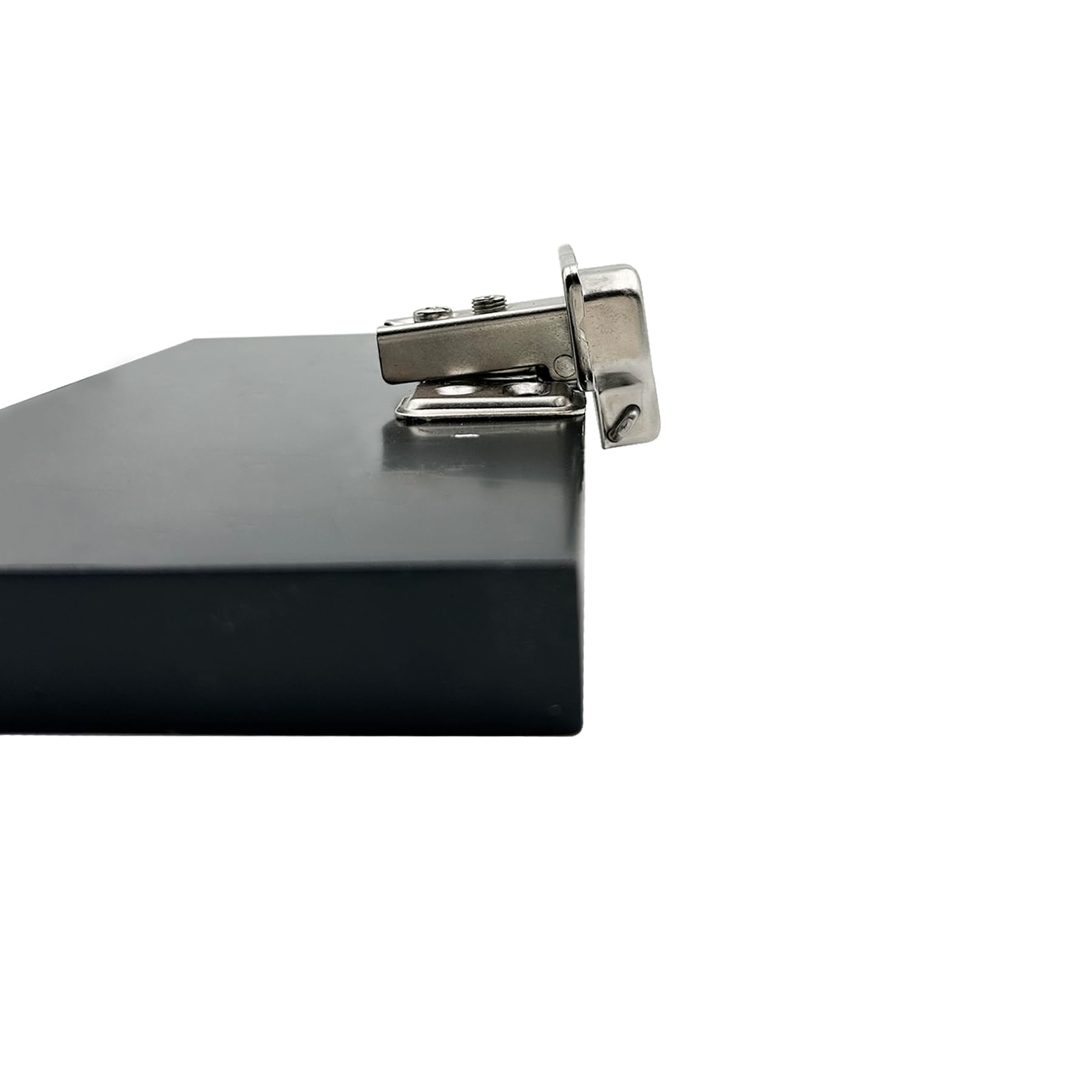

• Cabinet depth requirements: not less than 40mm (the length of hinge carcass under closed condition)
• For Door Thickness 15-20mm; Hinge pot diameter Ø 35mm; Hinge pot depth: 12mm
• Made of cold-rolled steel; Copper and nickel plating; Full Overlay Application
• High loading frame hinge for kitchen cabinet cupboard door

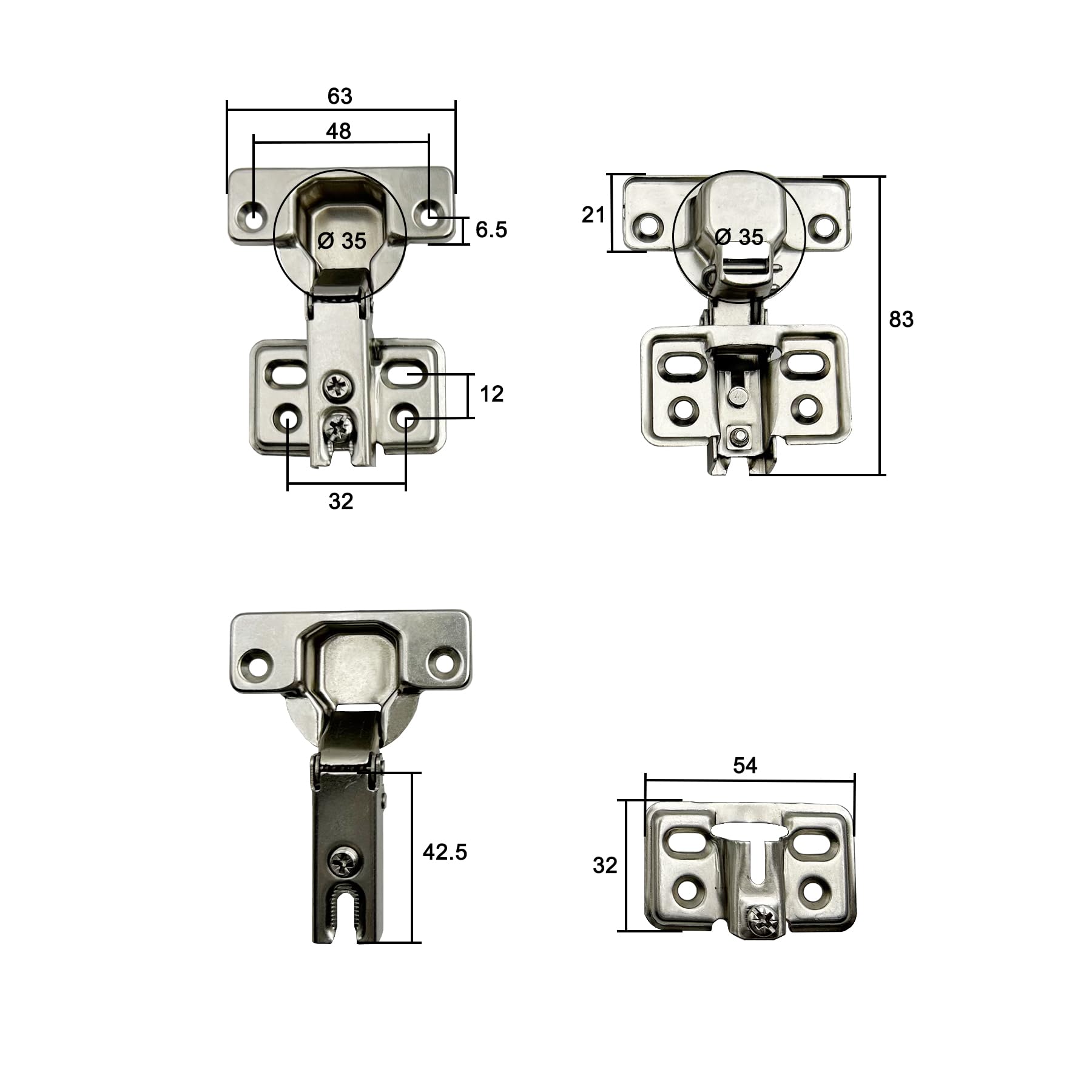

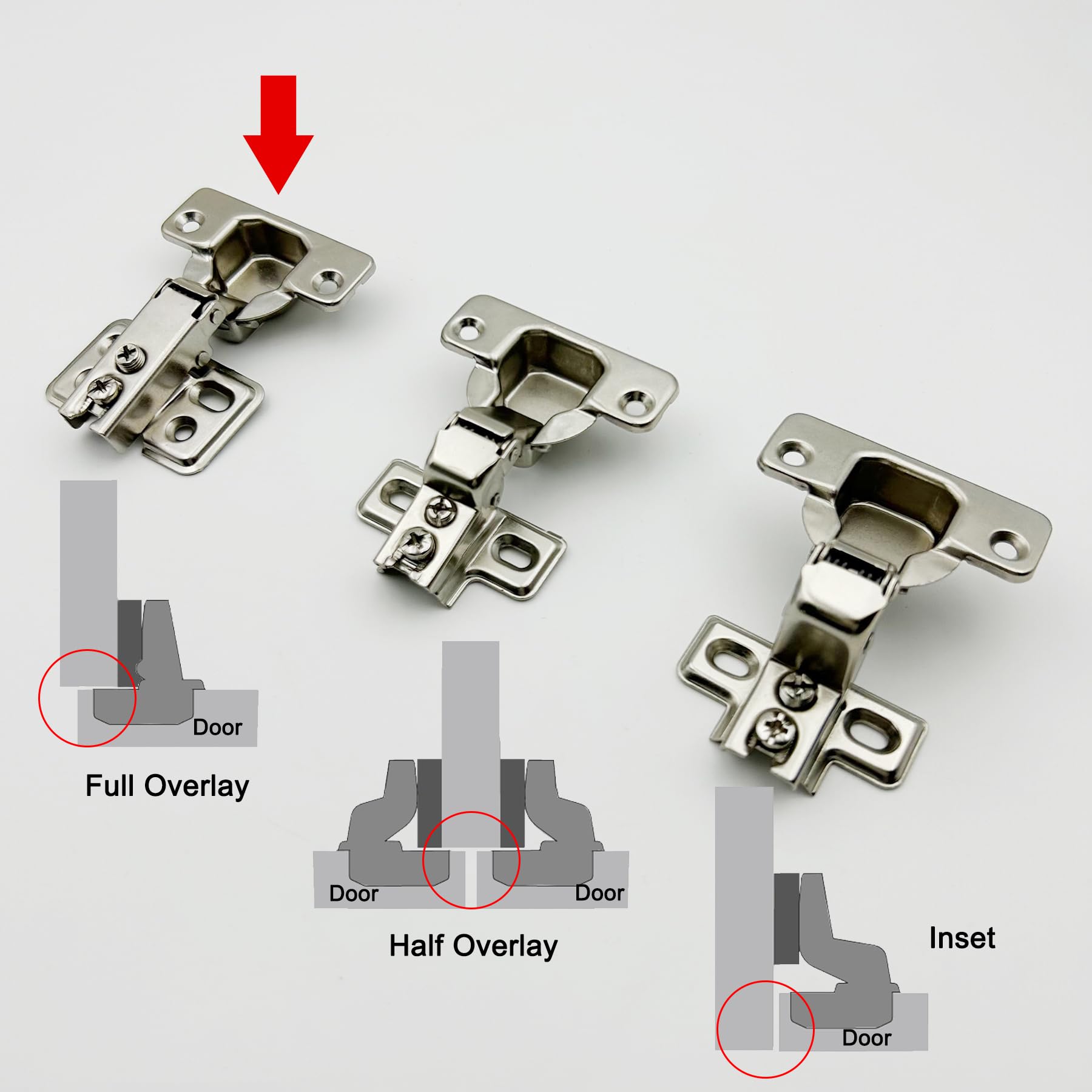

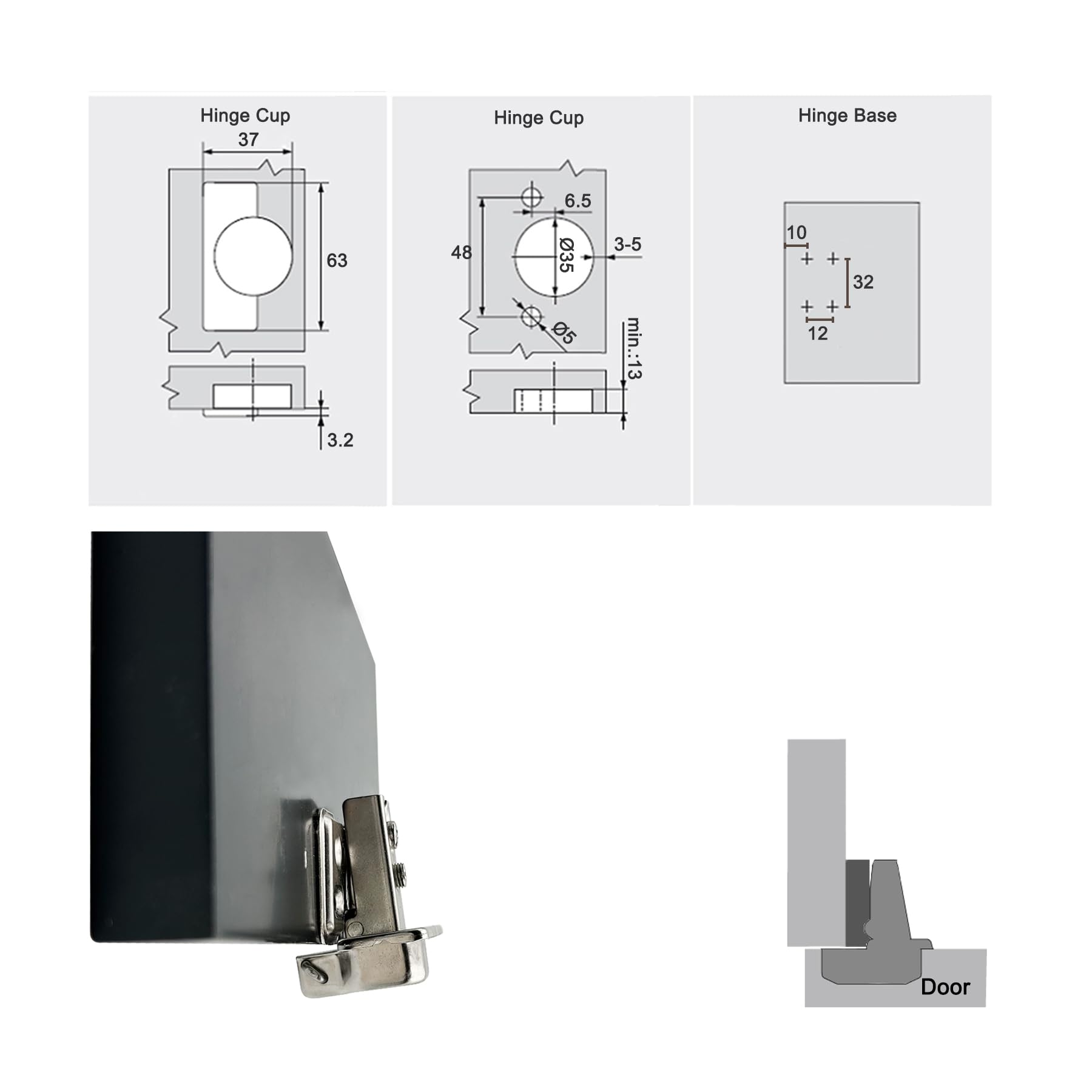

Please determine the type of your hinge application (Full Overlay, Half Overlay, and Inset) before you purchasing. Product Dimension Article type: LIKERAINY short-arm face frame hinge, without soft closing damper Material: cold-rolled steel Hinge cup/arm finish: copper plated and nickel plated Opening angle (°): 95 - 105 Degree Pot drilling version: 48mm / 6.5mm Pot diameter: Ø 35mm Pot Depth: 12mm Distance between the two screw holes (next to the cup): 48mm Mounting option: for screwing on Door mounting option: Full Overlay Door Application For side panel thickness: 15mm (min.) – 20mm (max.) For door thickness: 15mm (min.) – 20mm (max.) Cabinet depth requirements (min.): 40mm (the length of hinge carcass under closed condition) (see photo above) Horizontal adjustment: -1.0mm / +1.0mm Depth adjustment: 0mm / +2.0mm Vertical adjustment: -2.0mm / +2.0mm Cover cap for hinge carcass and hinge pot: No Package Ø 35mm frame hinges: 8 Pieces with mounting screws No mounting instruction and processing information (see photos above)
