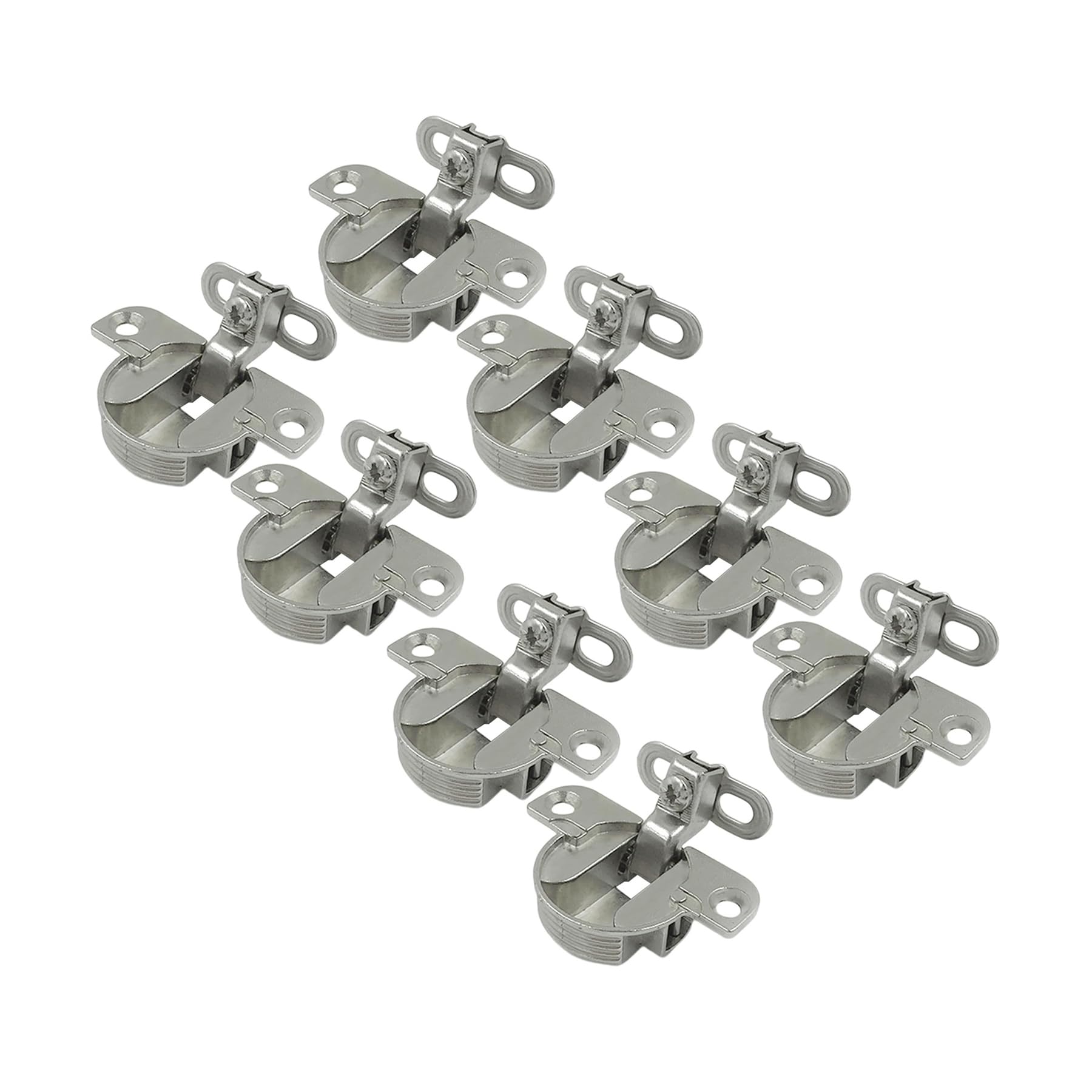

LIKERAINY 97 Degree Concealed Compact Face Frame Hinges for Furniture Cupboard Wardrobe Cabinet Door Die-Cast Zinc Nickel Plated Pack of 8 Pieces

• Opening angle 97º, Designed for doors from 16mm to 19mm, A trial installation is suggested for doors thicker than 19mm or doors with profiled edges
• Two types of mounting: for overlay and insert door application. Overlay door application for pulling outwards; Inset door application for pushing inwards
• Hinge cup diameter: Ø 35mm, Cup Depth: 13.5mm, Hole Distance: 48mm, K size: 4mm - 5mm
• Includes a total of 8 hinges with screws; Finish: Nickel plated, Material: Zinc alloy and iron
• Suitable for cabinet doors, closet doors, bookcases, wine cabinet doors and other doors. It can also be used to repair and fix furniture cabinet doors

Product Features Opening angle (°): 97 Degree Material: Die-Cast Zinc and Iron Finish: Nickel Plated Hinge pot diameter: Ø 35mm Cup bore depth: 13.5mm K size: 4mm - 5mm Suitable for door thickness: 16mm - 19mm The maximum applicable side panel thickness can be up to 38mm Load capacity of a pair of hinges: approx. 6-8kg For door opening type: Push inwards and pull outwards Door installations: Overlay and inset application Compact hinges are adjustable in two dimensions: height (0mm/+3mm) and depth (0mm/+2mm) Package Frame hinges: 8 pieces with mounting screws
