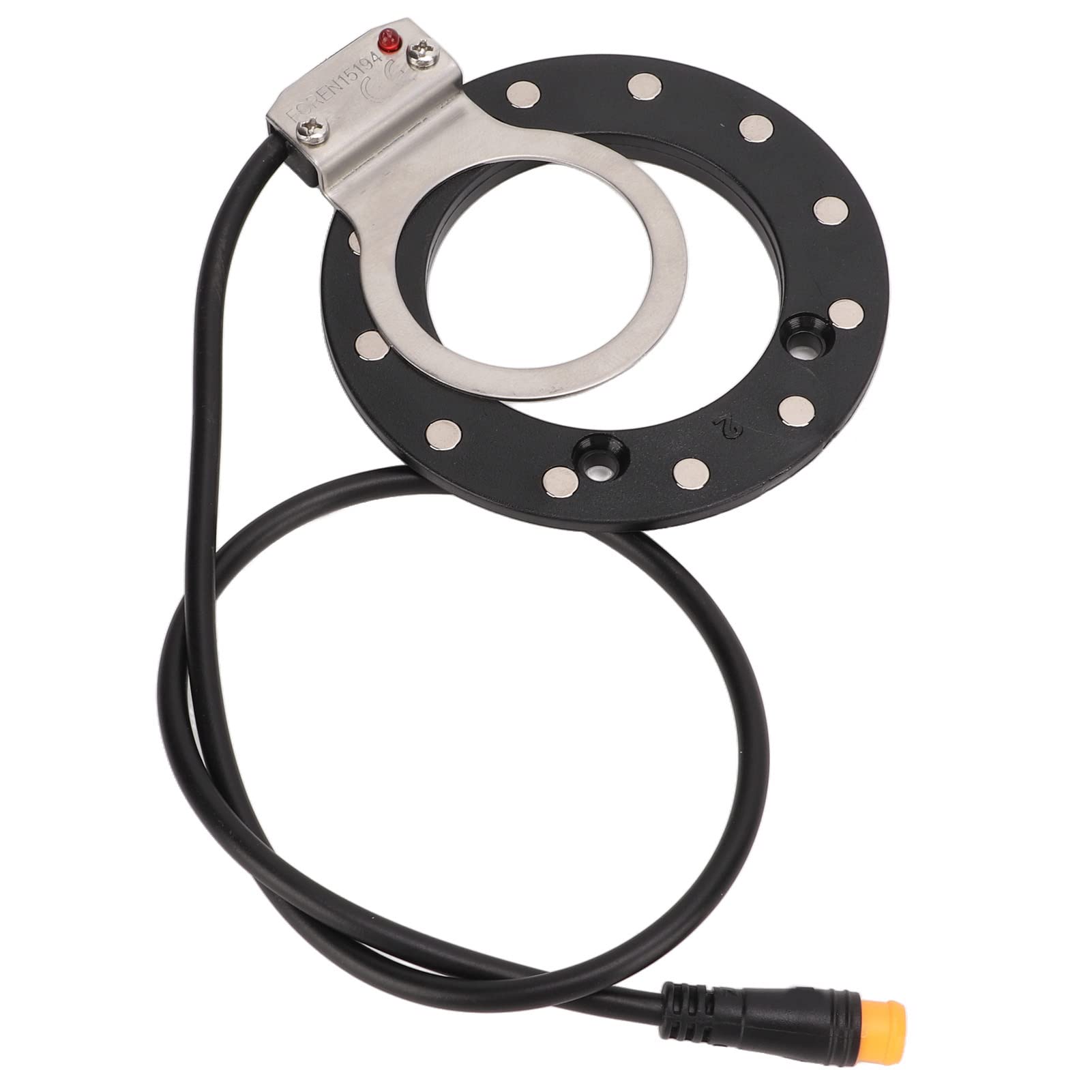

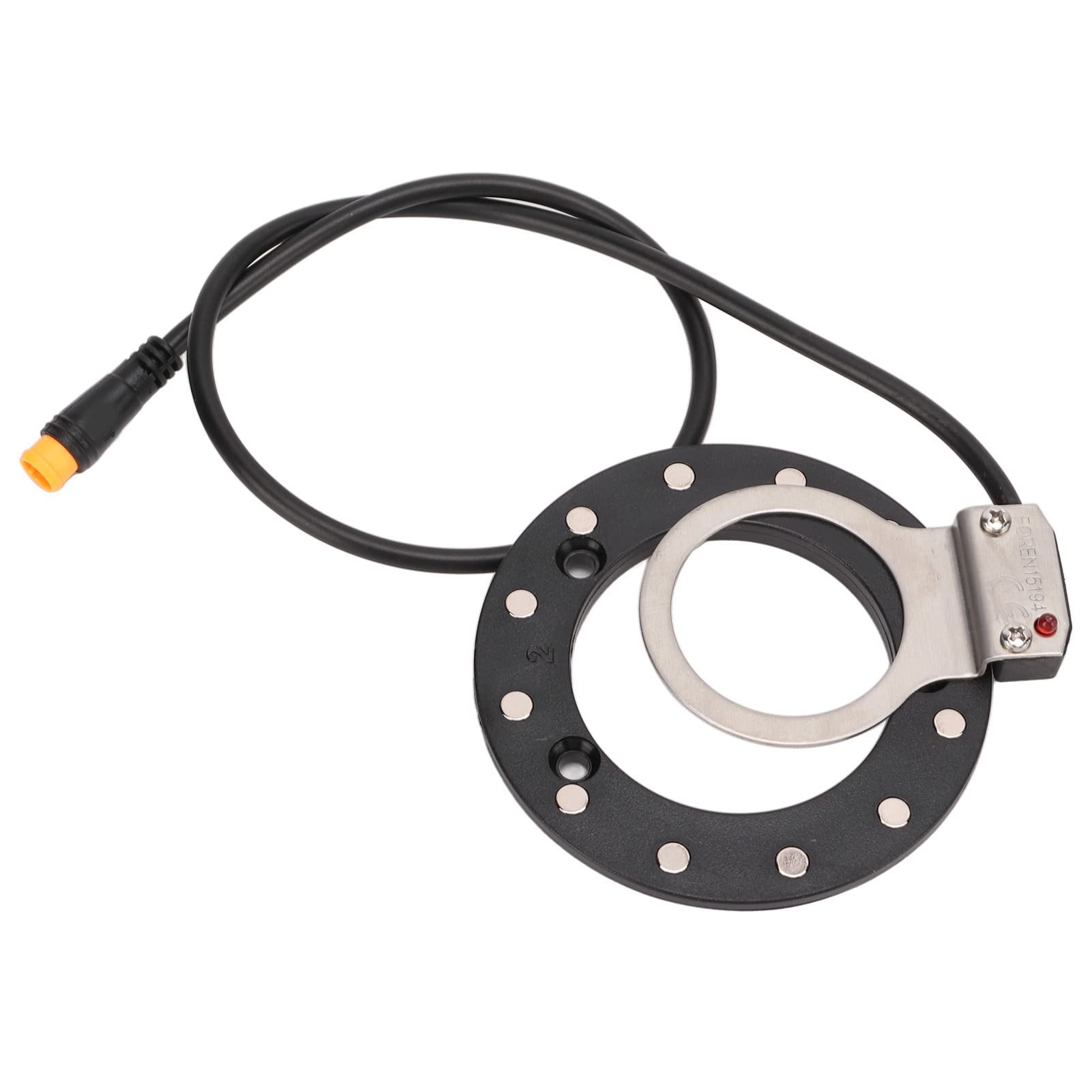

POENVFPO Power Pedal Speed Assist Sensor, High Sensitivity 12 Magnets Right Dual Hall Sensor Cycling Accessory Parts Set for Electric cycle Mountain cycle (Large Hole 2.4 X 3.7 X 5.7in

• Dual Hall Sensors: The electric cycle assist sensor housing has dual Hall sensors to detect the riding of the cycle.
• 12 Magnets: With 12 magnets, the accuracy will be higher than with 5 magnets, and the distance from the sensor will be longer. In terms of sensitivity, it is 2‑3 times that of ordinary 5 magnets, and there is no wrong action.
• Pulse Signal: Installed on the right side of the pedal by default, with 12 pulses in a circle. The chip screens and identifies the pulse signal to determine the rotation direction. The forward direction is valid, and the reverse direction is invalid.
• LED: When the pedal moves forward, the sensor will output a pulse signal, and the LED is at a low level (with or without a pulse signal), so the LED will not flash.
• Characteristics: Made of material, strong and sturdy. Professional manufacture, stable performance and high reliability. Easy installation and disassembly, waterproof interface.

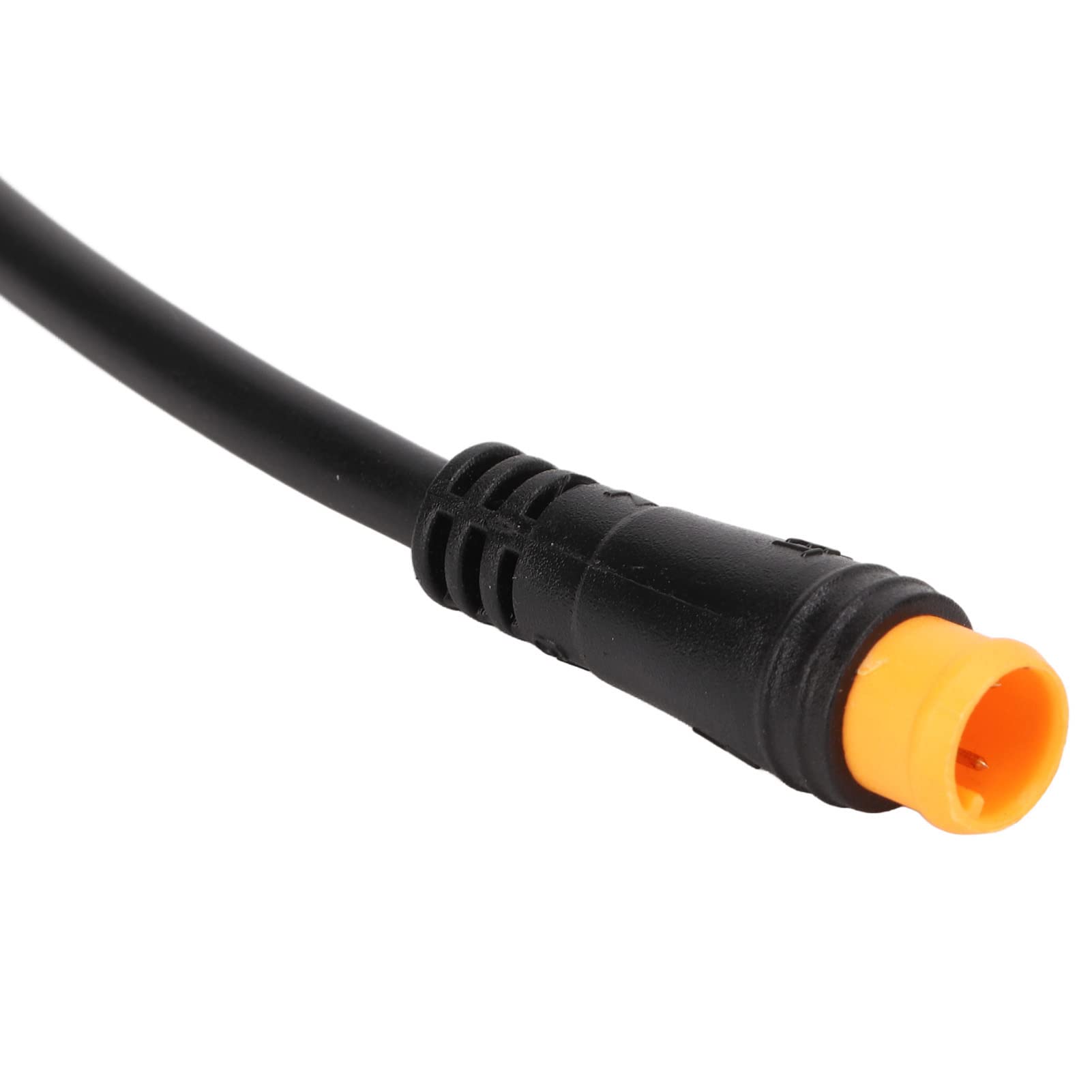

Specification: Item Type: Electric cycle Assist Sensor Material: PC Plastic Hall Electrical Life: >20M times Rated Voltage: 4.5-6V (DC) No Braking Current: 5mA With Braking Current: 6mA Insulation Dry Condition: > 20M ohm Insulation Wet Conditions: > 2M ohm Braking Corresponding Time: Corresponding Distance: 2-3mm How to Use: It is installed on the right pedal, and the waterproof interface can be connected to the controller. Packing List: 1 x Sensor Wiring 1 x Sensor Sheet
