Wishiot RD51160 160 kg High Torque Digital Servo Motor Dual Shaft CNC Aluminium Robot Arm Servo for Robotics RC Vehicles DIY Projects (160 kg 180°)

• High Torque Capability: Delivers up to 185 kg.cm of stall torque at 25.2V, good for heavy-duty applications such as robotic arms, large-scale automation, and RC vehicles
• Fast Speed and Precision: Features a speed of 0.19 sec/60° at 25.2V, providing rapid and precise movements for applications requiring quick response times and accuracy Fast Speed and Precision: Features a speed of 0.19 sec/60° at 25.2V, providing rapid and precise movements for applications requiring quick response times and accuracy

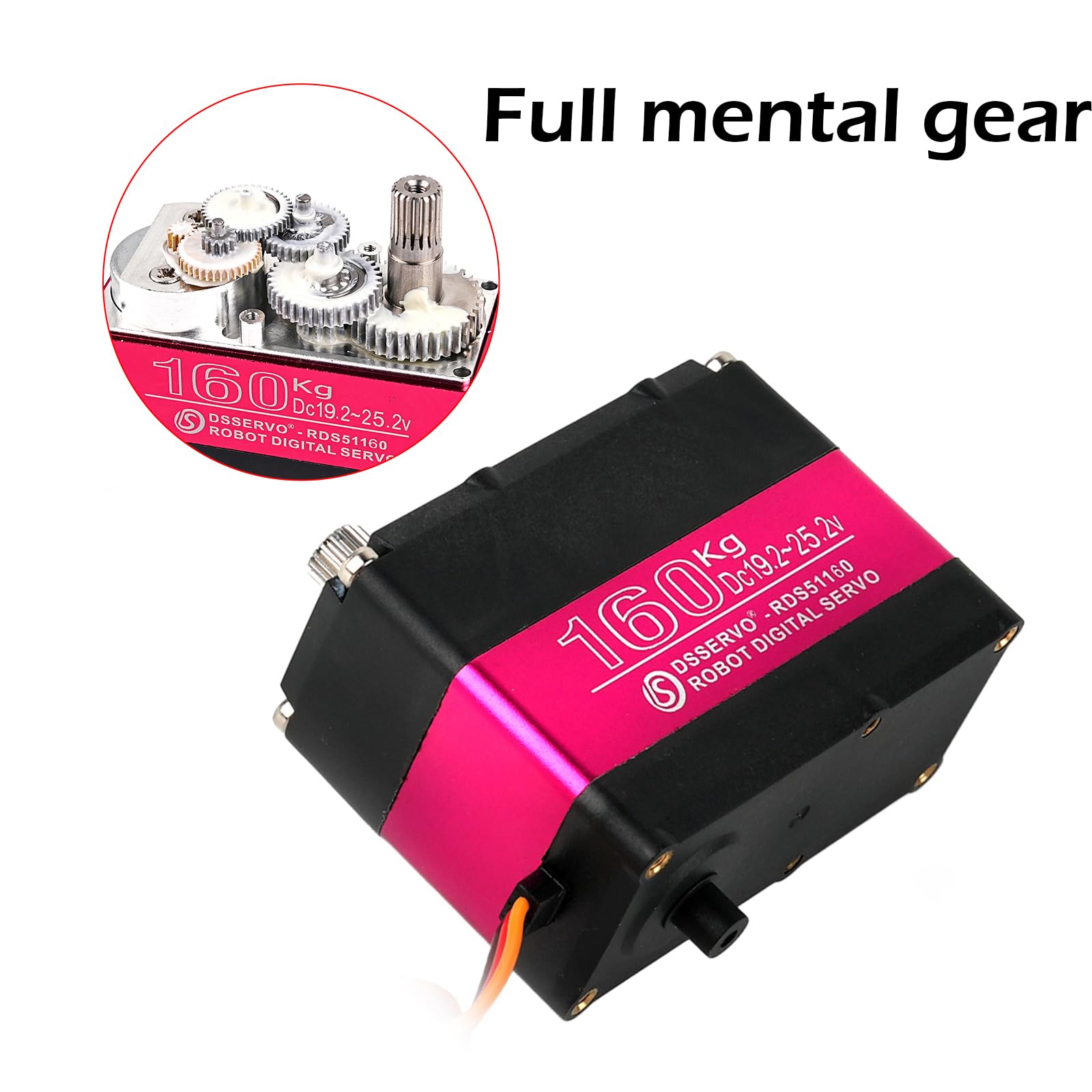

• High quality materials: Built with high-precision steel gears and a CNC aluminum housing, ensuring stable performance and longevity even under high-stress operations
• Versatile Compatibility: Compatible with a wide range of control systems, for Futaba, JR, for SANWA, for Hitec, for Arduino, making it good for robotics, for PTZ cameras, and DIY projects

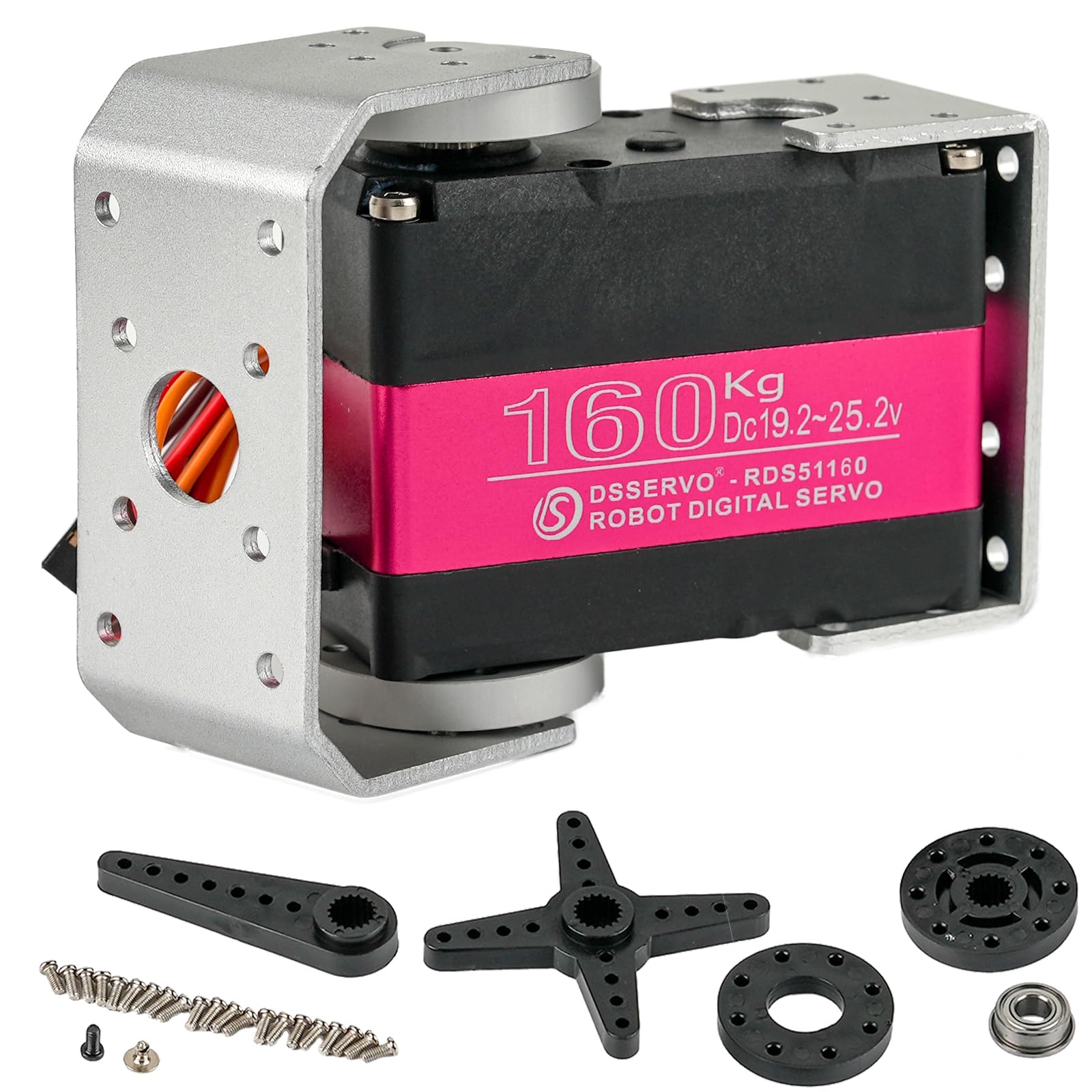

• Complete Installation Kit: Includes two mounting brackets, two aluminum circle discs, and a set of plastic accessories, providing everything needed for quick and easy installation

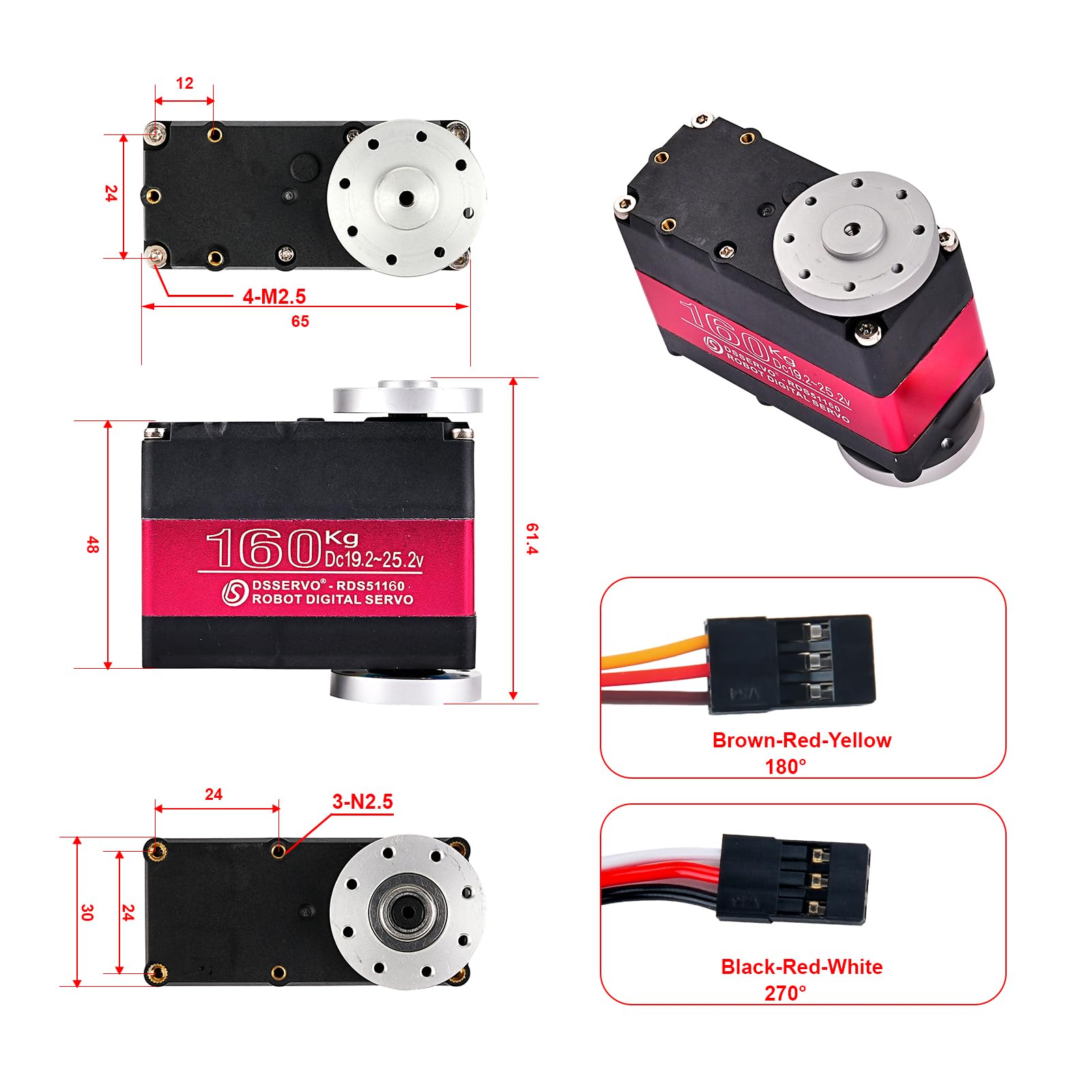

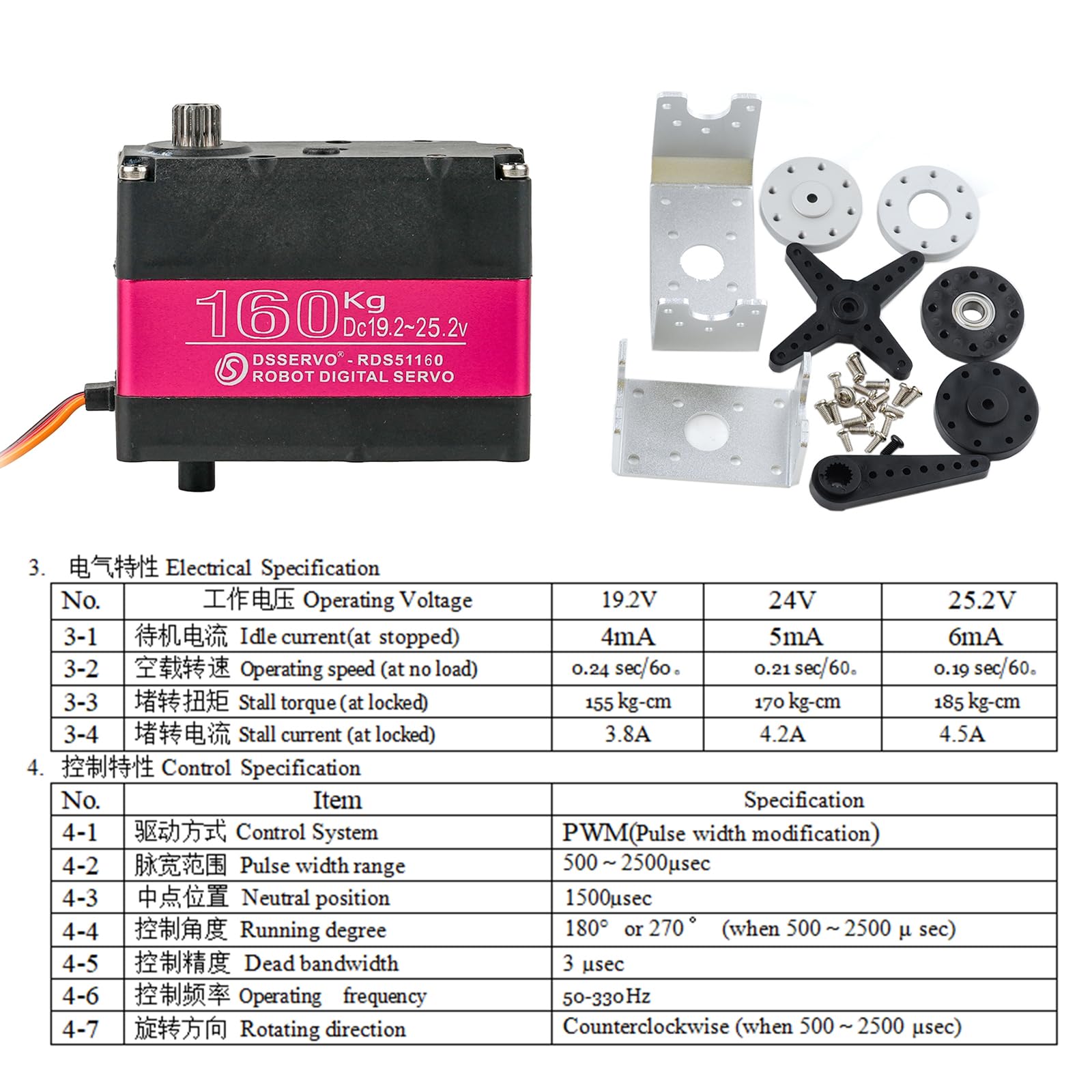

Product description Product name: RDS51160-24V (RED). Product description: 24 V 160 kg robot digital servo. 1. Environmental conditions: Storage temperature range: -30°C to 80°C. Operating temperature range: -15°C to 70°C. Operating voltage range: 19.2 V to 25.2 V. 2. Mechanical specifications: Size: 65 x 30 x 48 mm. Weight: 163 g. Gear ratio: 357. Bearing: Double bearing. Connector wire: 300 ± 5 mm. Motor: 3-pole(s) 3.Electrical Specifications: Operating voltage: 19.2V, 24V, and 25.2V Idle Current (at stopped): 4 mA at 19.2 V. 5 mA at 24 V. 6 mA at 25.2 V. Operating Speed (at no load): 0.24 sec/60° at 19.2 V. 0.21 sec/60° at 24 V. 0.19 sec/60° at 25.2 V. Stable Torque (at locked): 155 kg-cm at 19.2 V. 170 kg-cm at 24 V. 185 kg-cm at 25.2 V. Stall Current (at locked): 3.8 A at 19.2 V. 4.2 A at 24 V. 4.5 A at 25.2 V. 4. Control specifications: Control system: PWM (pulse width modulation). Pulse width range: 500 ~ 2500 µsec. Neutral position: 1500 µsec. Running degree: 180° or 270° (when 500 ~ 2500 µsec). Dead band width: 3 µsec. Operating frequency: 50 ~ 330 Hz. Rotating direction: counterclockwise (when 500 ~ 2500 µsec). Safety Warning No
