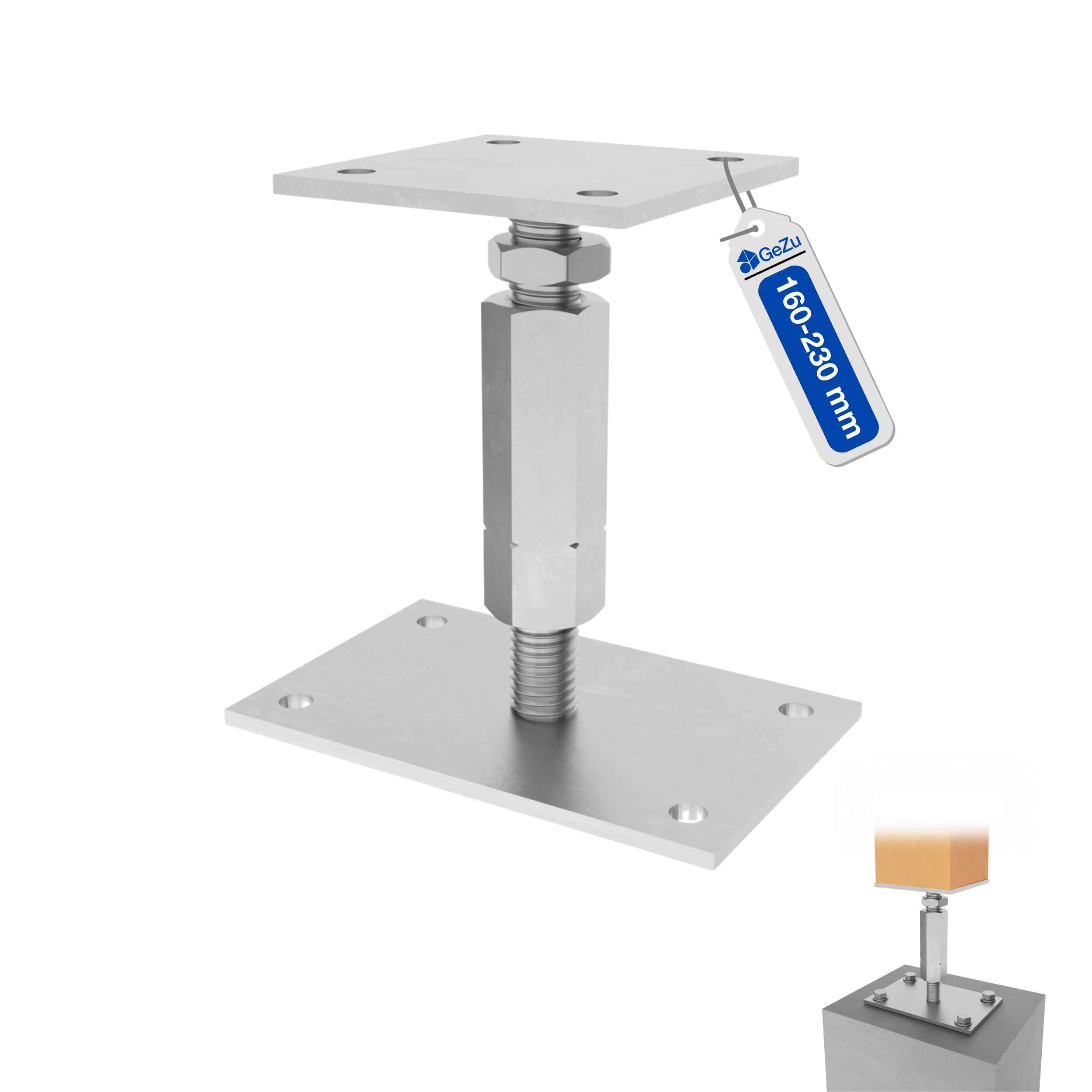

GeZu Impex Adjustable Post Support 100 x 160 mm | 180-230 mm

• PRODUCT - Post support height adjustable Andy is perfect for many gardening and modelling projects, as it can still be adjusted after installation thanks to its right-hand / left-hand thread.
• FEATURES - The post supports can be screwed onto a flat concrete or wooden floor using 4 holes per plate, each with a diameter of 13 mm. If the foundation is not the same height everywhere, the post support can be adjusted in height range.
• VERSATILITY - For stability, approx. 10 - 20 mm of the adjustment range is required for thread safety, and the galvanisation ensures the Post support is protected from external weather influences.

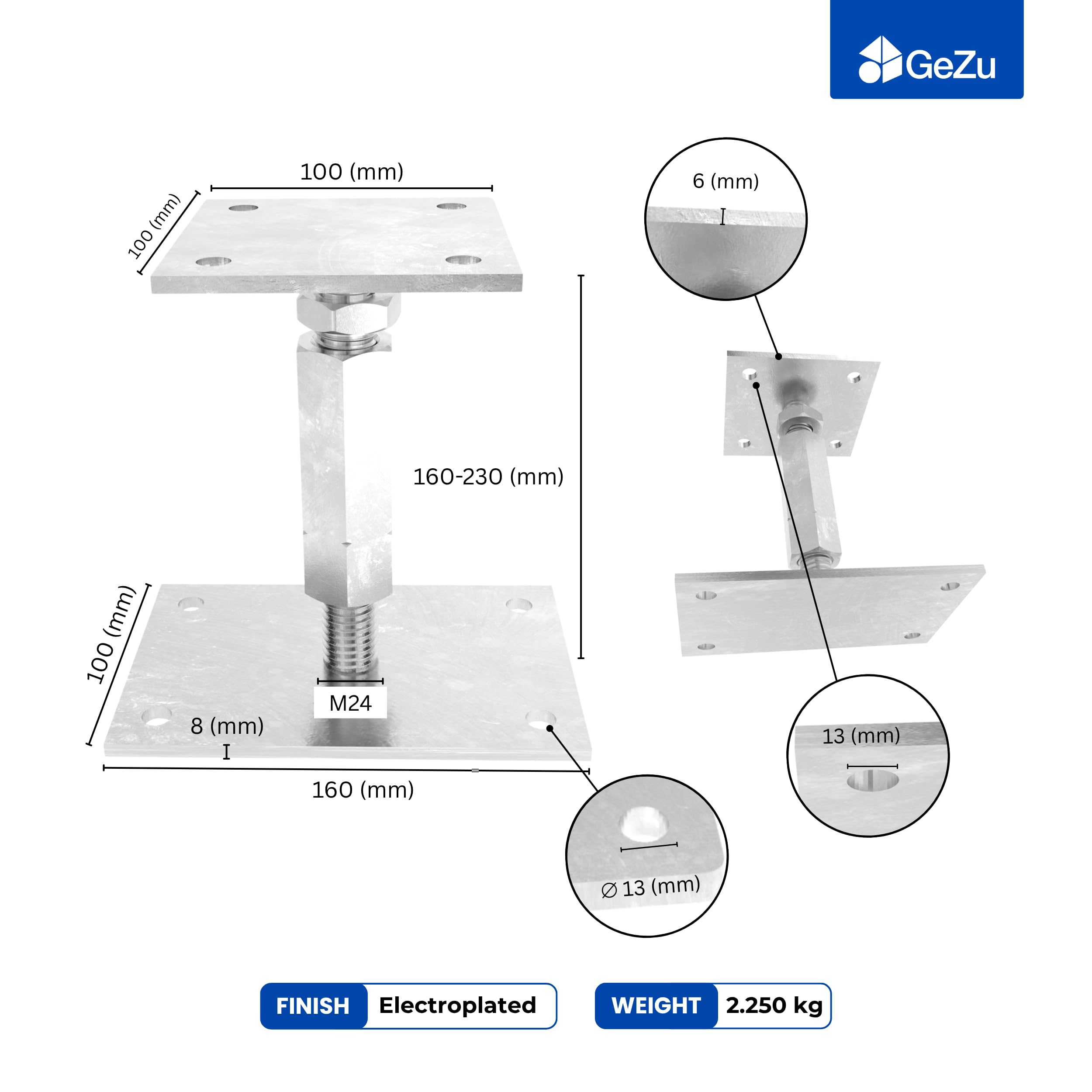

• TECHNICAL DATA - Adjustment range: 180 - 230 mm - Support plate: 100 x 100 mm - Material thickness of support plate: 6 mm - Holes in support plate: 2 long holes Ø 13 mm & 2 holes Ø 13 mm - Hole spacing of support plate: 70 mm - Base plate: 100 x 160 mm - Material thickness of base plate: 8 mm - Holes in base plate: 4 holes Ø 13 mm - Hole spacing of base plate: 70 & 130 mm - Lock nut: SW 36 - Long nut: SW 36 - Material type: Galvanized steel

Product description What is the post base used for? The post base is height-adjustable thanks to the right/left thread and can still be adjusted in height after assembly and is therefore used in many gardening projects.How is the support base constructed and how is it used? The post base can be adjusted using 4 holes per plate, each with a diameter of 13 mm, can be screwed to a flat concrete or wooden floor. If the foundation does not have the same height everywhere, the post support can be adjusted within a range of 180 - 230 mm and thus compensate for differences in height. To avoid unwanted adjustment of the height, the post supports are equipped with a lock nut. The lock nut is screwed against the long nut and thus prevents it from being unscrewed unintentionally. What should you pay attention to and what technical details does the post holder have? Important: For reasons of stability, approximately 20 - 30 mm of the adjustment range is required as thread security. Thanks to the galvanizing, the post base is optimally protected against external weather influences. Technical details - Adjustment range: 180 - 230 mm - Support plate: 100 x 100 mm - Material thickness of support plate: 6 mm - Holes support plate: 2 long holes Ø 13 mm & 2 holes Ø 13 mm - Hole spacing of carrier plate: 70 mm - Base plate: 100 x 160 mm - Material thickness of base plate: 8 mm - Holes of base plate: 4 holes Ø 13 mm - Hole spacing of base plate: 70 & 130 mm - Lock nut: SW 36 - Long nut: SW 36 - Material type: steel galvanized Safety Warning Please note: For stability reasons, approximately 20 - 30 mm of the adjustment range is needed as thread locking. Use the lock nut to avoid accidental height adjustment.
