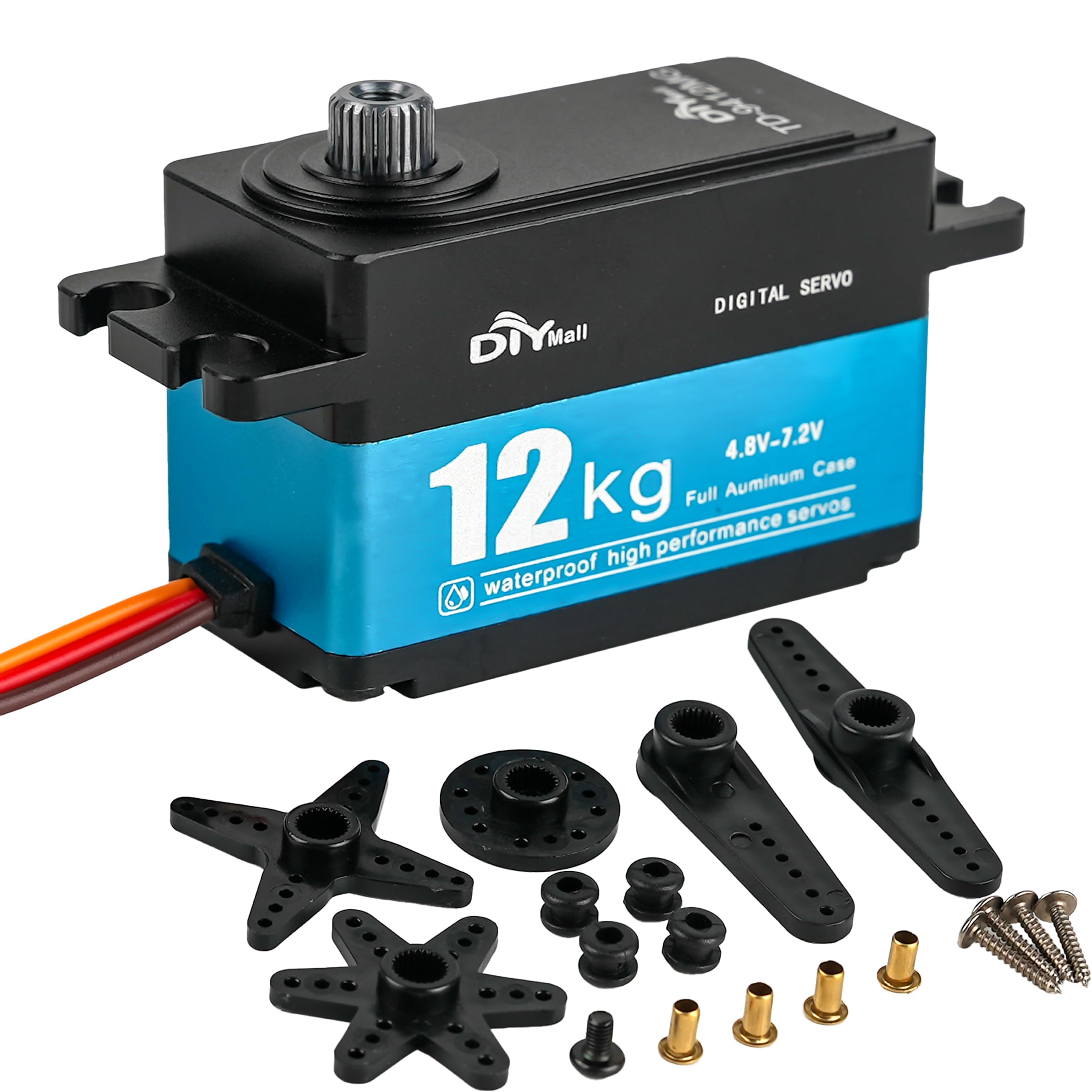

Wishiot 12KG Low Profile Servo High Torque RC Digital Servo 270° Waterproof Servo High Speed Full Metal for 1/8 1/10 RC Car DIY Robotic (TD-9412)

• 1. High precision, high voltage, large torque, multi-angle
• 2. High quality, full metal casing, strong heat dissipation ability, longer service life
• 3. Hardened gears, higher strength load; double ball bearings, smooth and wear-resistant, higher precision
• 4. Super waterproof performance: 3-layer waterproof ring waterproof and dustproof, strengthen the waterproof performance
• 5. High voltage 7.4V, suitable for 1/10 1/8 motorized, flat track, drift car

Product description 12KG TD-9412MG High torque all metal digital steering gear 270 degree Angle controllable blue short body 1.Apply Environmental Conditon Storage Temperature Range: -30°C～80°C Operating Temperature Range: -25°C～70°C 2.Standard Test Environment Temperature Range: -25°C～70°C Humidity Range: 65%±10% 3. Mechanical Specification Size: 40.8*20.2*28.7mm Weight: 60g±5% Gear type: 6 Metal Limit angle: 270° Bearing: 2BB Horn gear spline: 25T (Diameter:5.9mm) Horn type: Plastic, POM Case: Aluminum alloy Connector wire: 320mm±5mm Motor: Carbon brush motor Splash water resistance: IP66 4.Electrical Specification No load speed: 0.12sec/60°@4.8V / 0.09sec/60°@7.2V Runnig current: 210mA@4.8V / 260mA@7.2V Peak stall torque: 11.5kg.cm@4.8V / 14.5kg.cm@7.2V Stall current: 2000mA±10%@4.8V / 2700mA±10%@7.2V Working voltage range: 4.8-7.2V 5.Control Specification Command signal: Pulse width modification Amplifier type: Digital controller Pulse width range: 500～2500usec Neutral position: 1500usec Running degree: 270°±3°(when 500～2500usec) Dead band width: 5 usec Rotating direction: Counterclockwise (when 1000～2000usec) Package Included: 1 * 12KG Carbon brush Stainless Steel Gear Waterproof Digital Servo 1 * Servo Arm Kits Safety Warning NO
