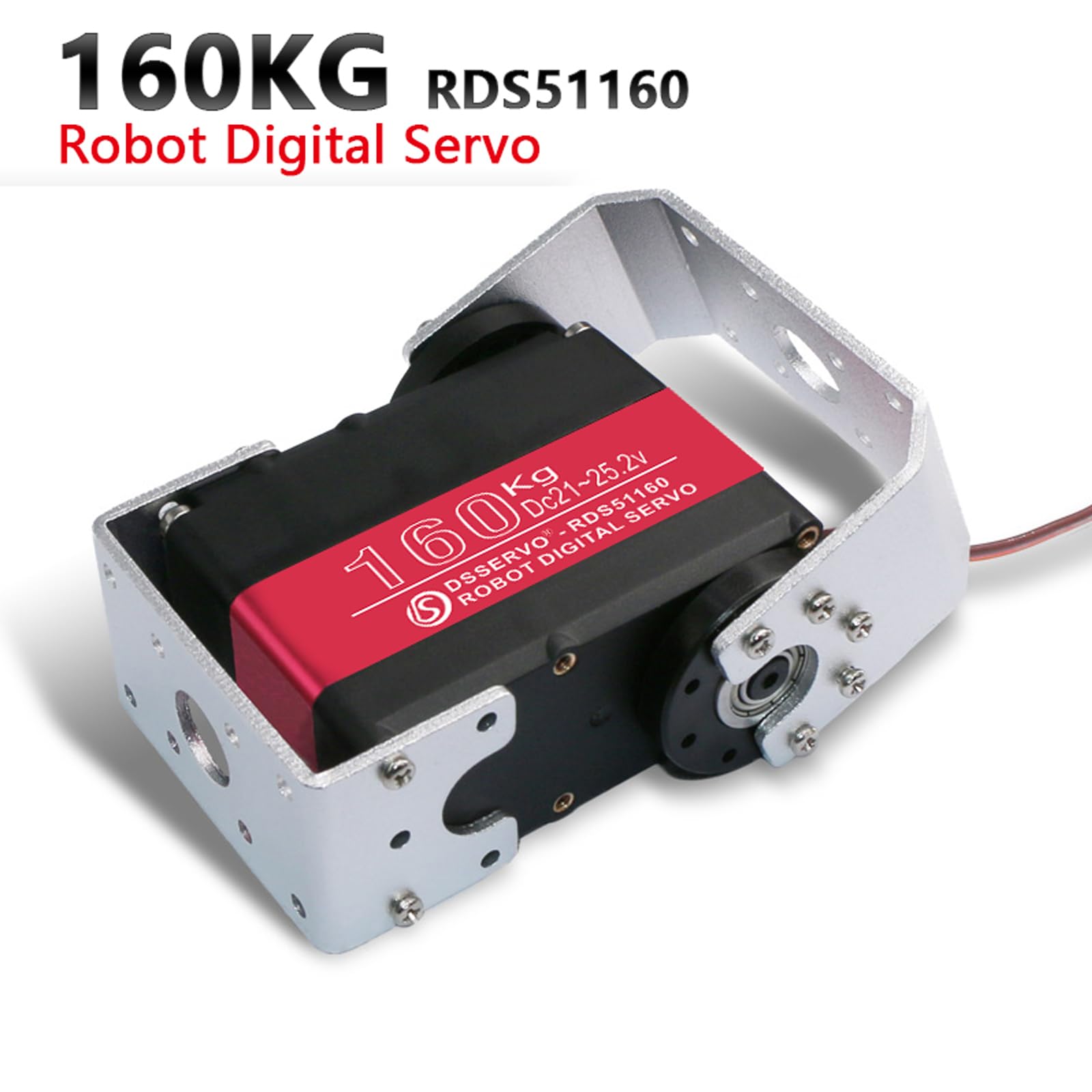

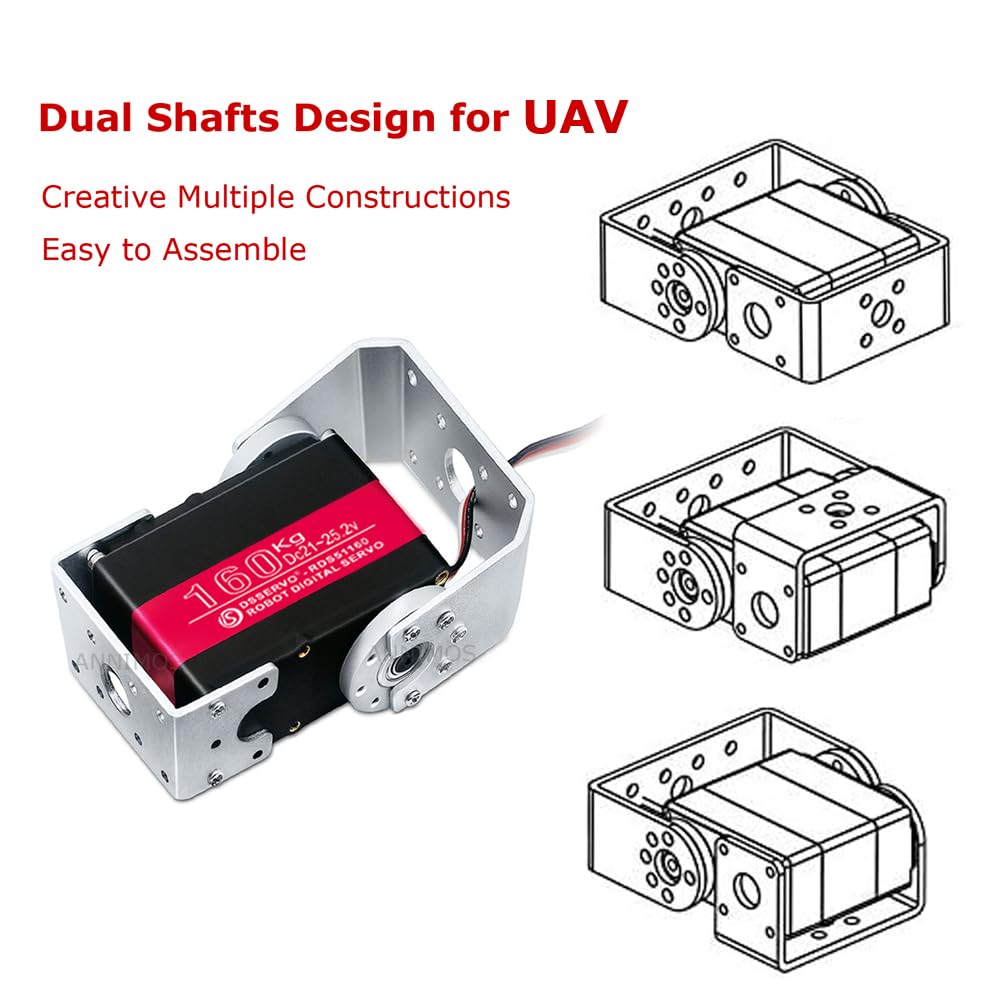

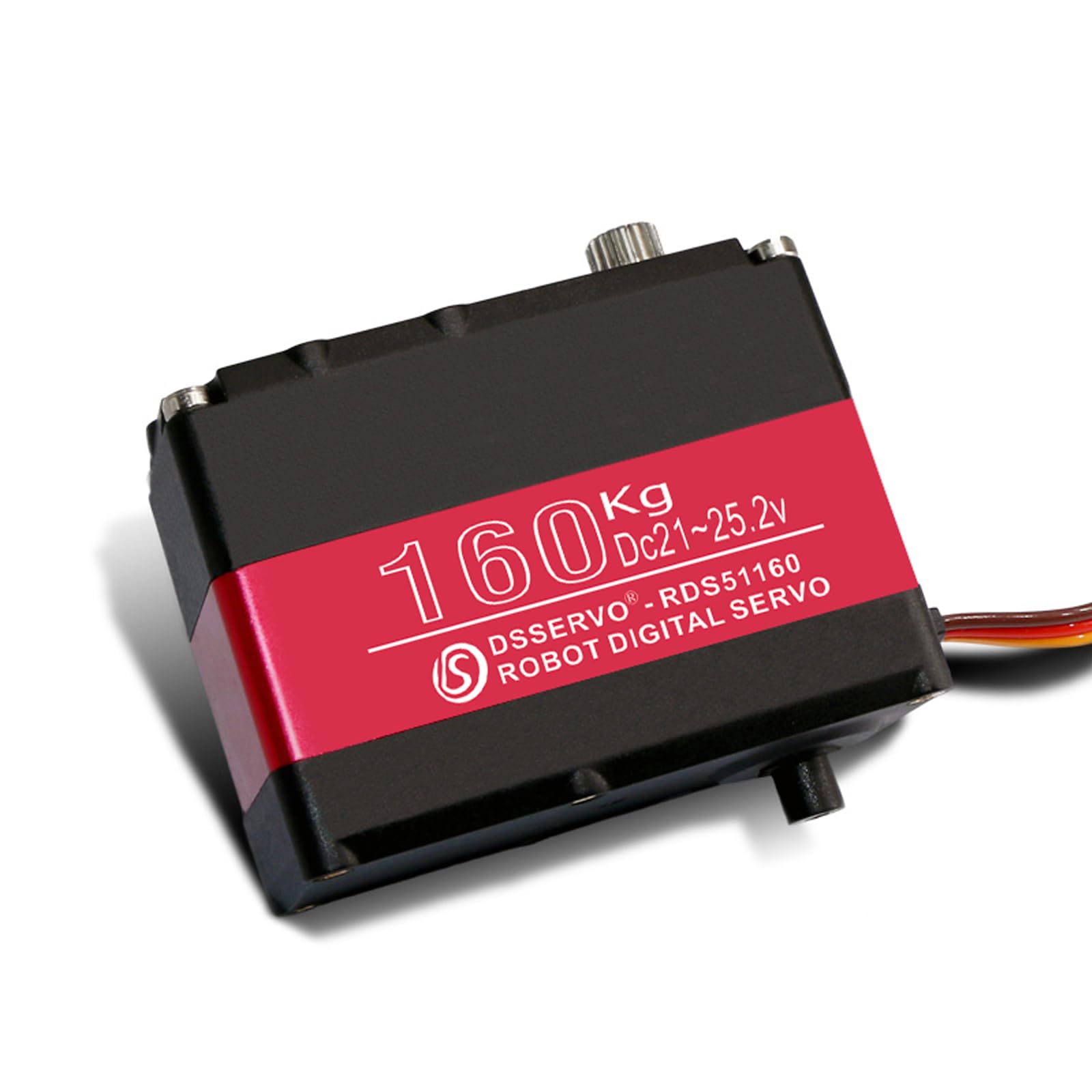

ANNIMOS 24V 160kg Robot Servo Motor Double-Shaft with U Mount Bracket Full Metal Gear Large High Torque Steering Digital Servos for RC Plane Quadcopter Helicopter Robotic Arm DIY

• Widely Used: RDS51160SG 160kg Servo Suitable for For RC Multicopter FPV Drone Quadcopter Aircraft UAV RC Plane Helicopter Robotic Arm AGV Unmanned Delivery Truck Humanoid Robot Industry Intelligent Field
• Great Heavy-Duty Servo: Amazing Torque & Fast Performance, Perfect for Industry and Robot Arms, Maximum Torque Can Up to 185kg.cm(2569oz-in),Speed 0.19 sec/60°@25.2V

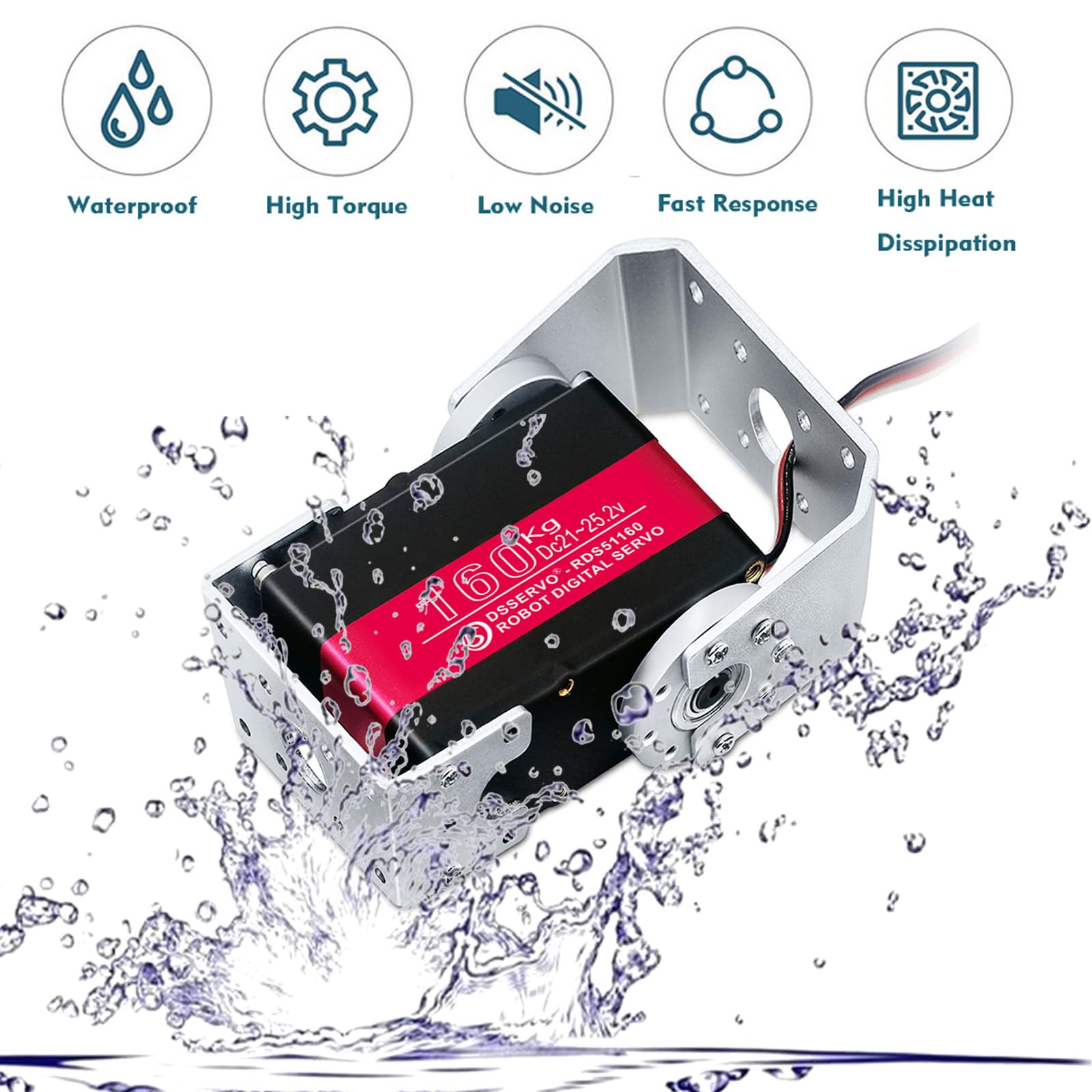

• Reliable Quality: Equipped with High-precision Steel Gear and Potentiometers , High-resolution Digital Chip, Waterproof Rubber Seals Screws, Made of First-grade Material and CNC Aluminum Middle Shell Ensure Stable Performance and Long Working Life.
• Best Upgrade for your RC Rigs: Durable, Responsive, Strong Anti-interference Ability, Low Noise, Fast Heat Dissipation. Precision Control, Angle Range from 0 to 180 Degrees,Can be Rotated within 360 Degrees when Power Off. Power Wire is longer Enough Up to 45mm.Provide Free U-Mounting Brackets & Accessories.
• Satisfied Customer Service: We Are Specialized in Developing and Manufacturing Robot & RC Servo, We Offer Value Price for Bulk Order. If Any Problem with Your Servo or Anything We Can Help, Please Do Not Hesitate to Contact with Us, We Will Try Our Best to Solve it Efficiently.

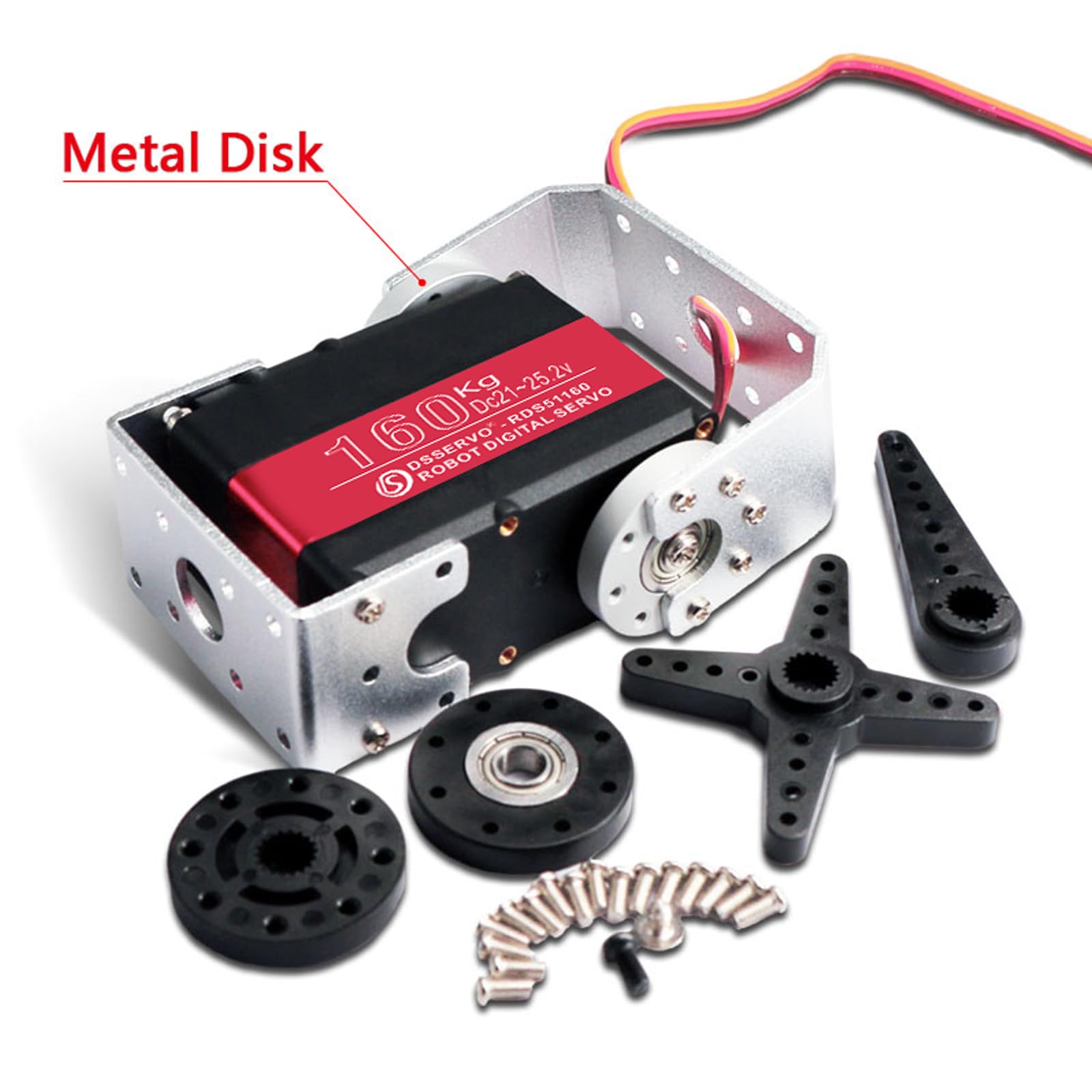

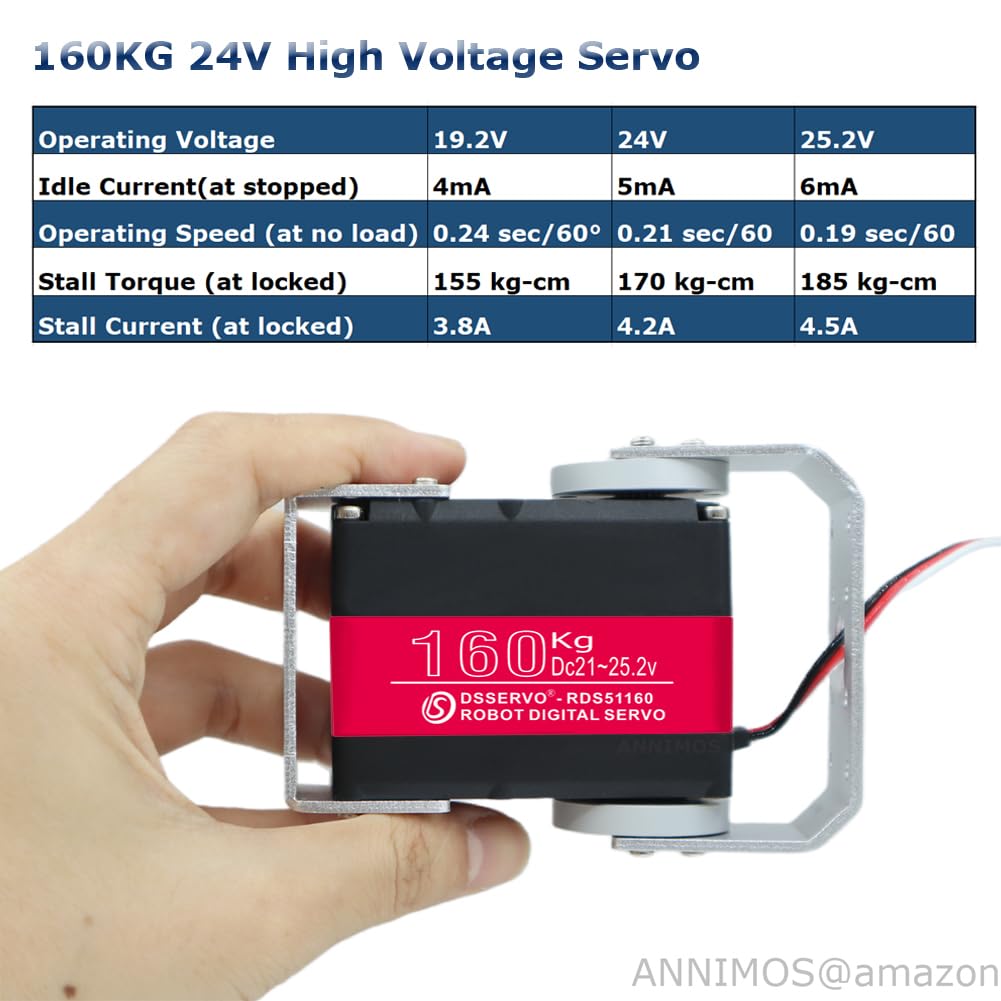

Electrical Specification： Operating voltage range: 19.2-25.2 Volts Idle current (at stopped): ( 4mA@19.2V ) / ( 5mA@24V ) / ( 6mA@25.2V ) Operating speed (at no load): ( 0.24sec/60°@19.2V ) / ( 0.21sec/60°@24V ) / ( 0.19sec/60°@25.2V ) Stall torque (at locked): ( 155kg·cm@19.2V ) / ( 170kg·cm@24V ) / ( 185kg·cm@25.2V ) Stall current (at locked): ( 3.8A@19.2V ) / (4.2A@24V ) / ( 4.5A@25.2V ) Control Specification: Control System: PWM (Pulse width modification) Pulse width range: 500-2500μsec Neutral position: 1500μsec Running degree:180° (when 500-2500μsec) Dead band width: 3μsec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (When 1500-2500μsec) Product Specification: Storage Temperature Range: -30℃～80℃ Operating Temperature Range: -15℃～70℃ Motor Type：3-pole(s) Gear Type: Steel Gear Spline:18 Tooth Gear ratio: 357 Bearing：Double Bearing Connector Wire: 17.7in (450mm) Size: 25.5 x 11.8 x 18.8inch（65 x 30 x 48mm） Weight: 5.75oz (163g) CE /RoHs: Yes Packing List: 1 x RDS51160SG 160kg Robot Servo (180°) 2 x U-Shaped Aluminum Mounting 2 x Aluminum Circle Discs One Set of Plastic Accessories (As Shown on The Picture)
