PATIKIL Flush Bolt 6" x 0.87", 2 Pcs Stainless Steel French Door Lock Concealed Slide Double Door Latch for Wood Composite Double Door, Red Bronze

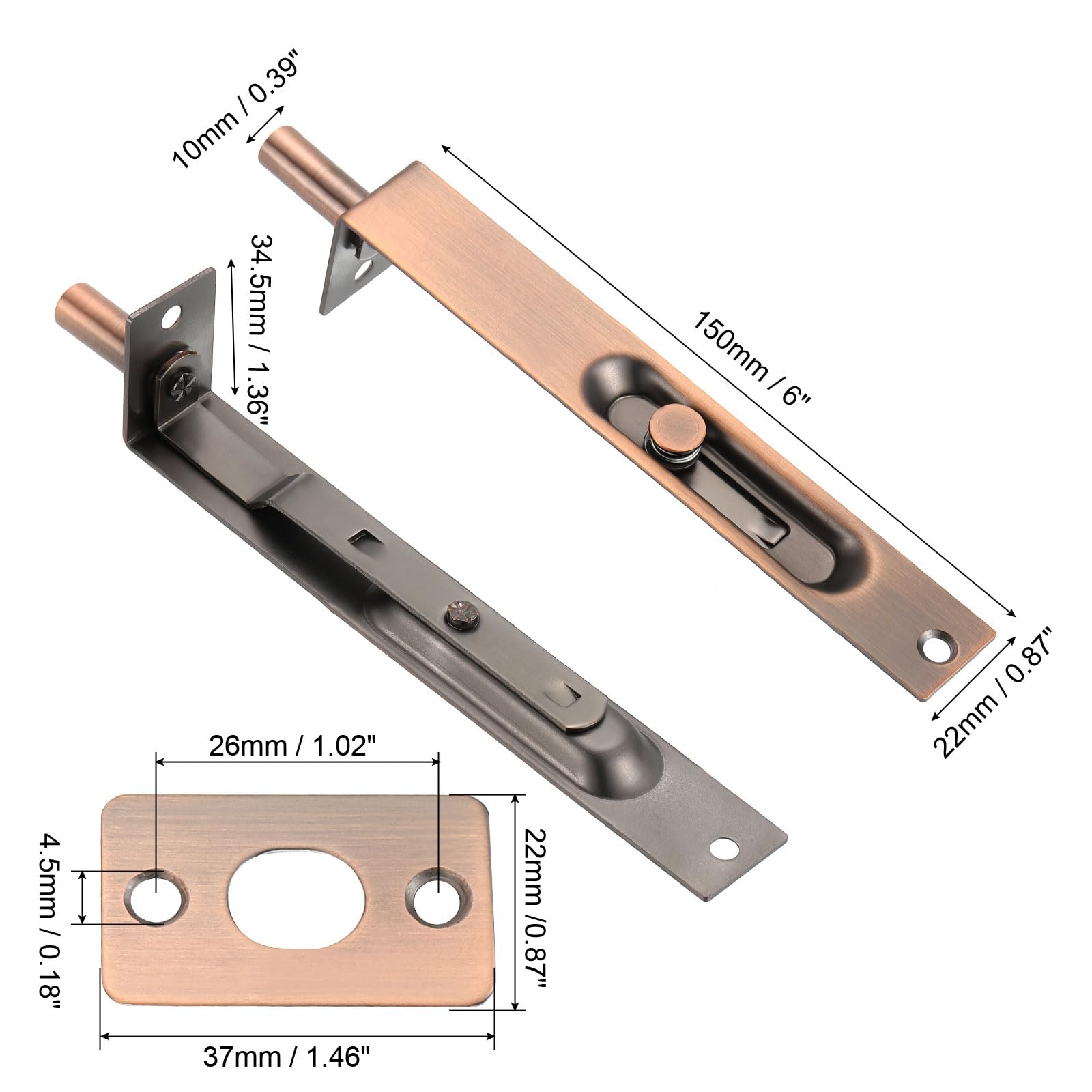

• Main Body Size: 150 x 22 x 1.5mm / 6 x 0.87 x 0.06 inch (L*W*Th); Strike Plate Size:37 x 22 x 1mm / 1.46 x 0.87 x 0.04 inch (L*W*Th); Bolt Diameter: 10mm / 0.39 inch; Mounting Hole Diameter: 4.5mm / 0.18"; Installation Hole Distance: 26mm / 1.02 inch
• Advantage: French door lock Constructed from stainless steel, sturdy, wear-resistant, corrosion-resistant, and not easy to rust. Hidden installation, which won't affect the doors' external integrity and image, matches various decoration styles.

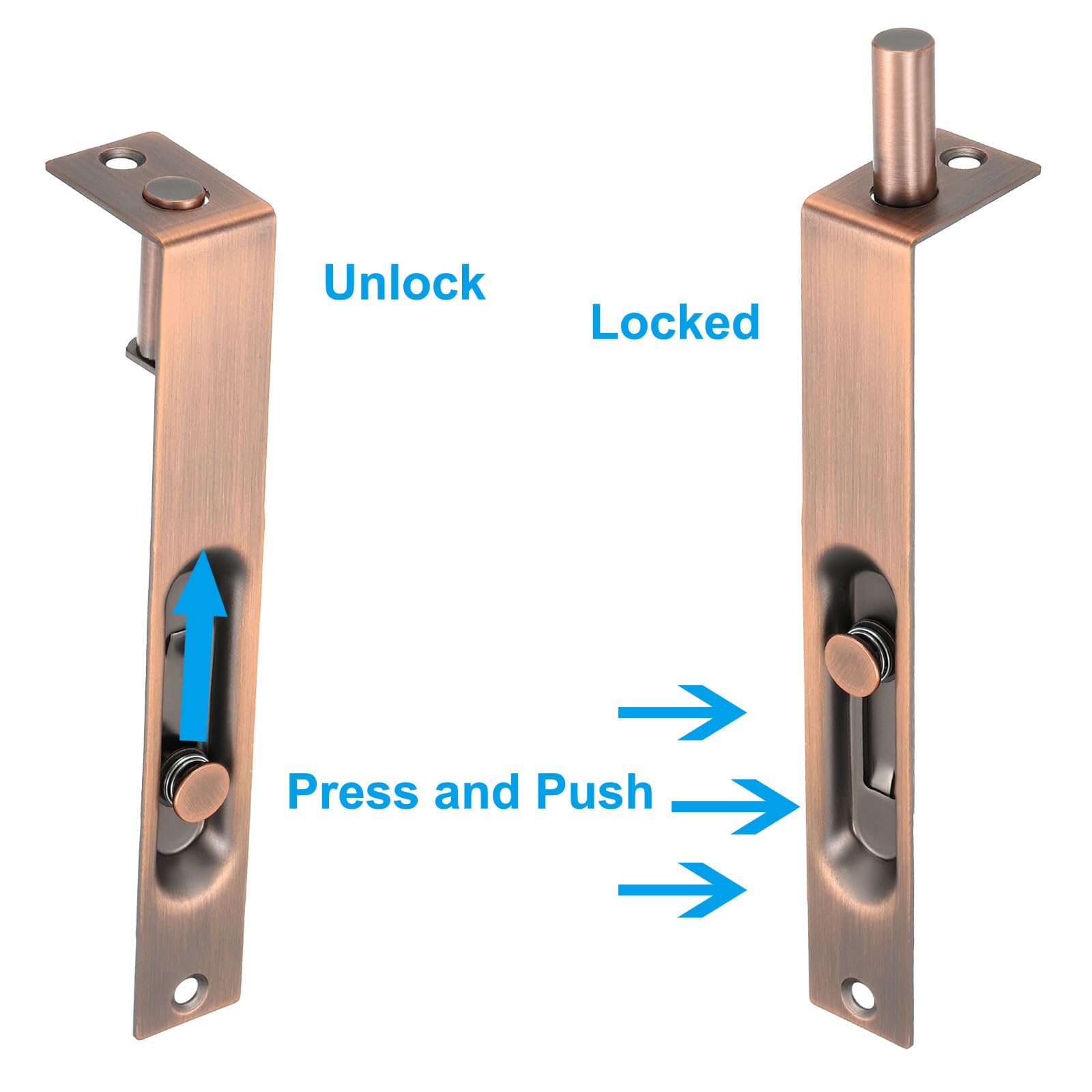

• Instruction: Flush bolt with the function of an automatic holding spring to provide holding power in both retracted and extended positions. Concealed Slide Door Bolt Lock, press the button and push it up and down to open/close the door leaf.
• Application: A double door latch is Suitable for many scenes, such as wooden double doors, composite doors in the hall, balcony, patio, living room, bedroom, dormitory, etc.
• NOTE: Please confirm the size before purchasing.

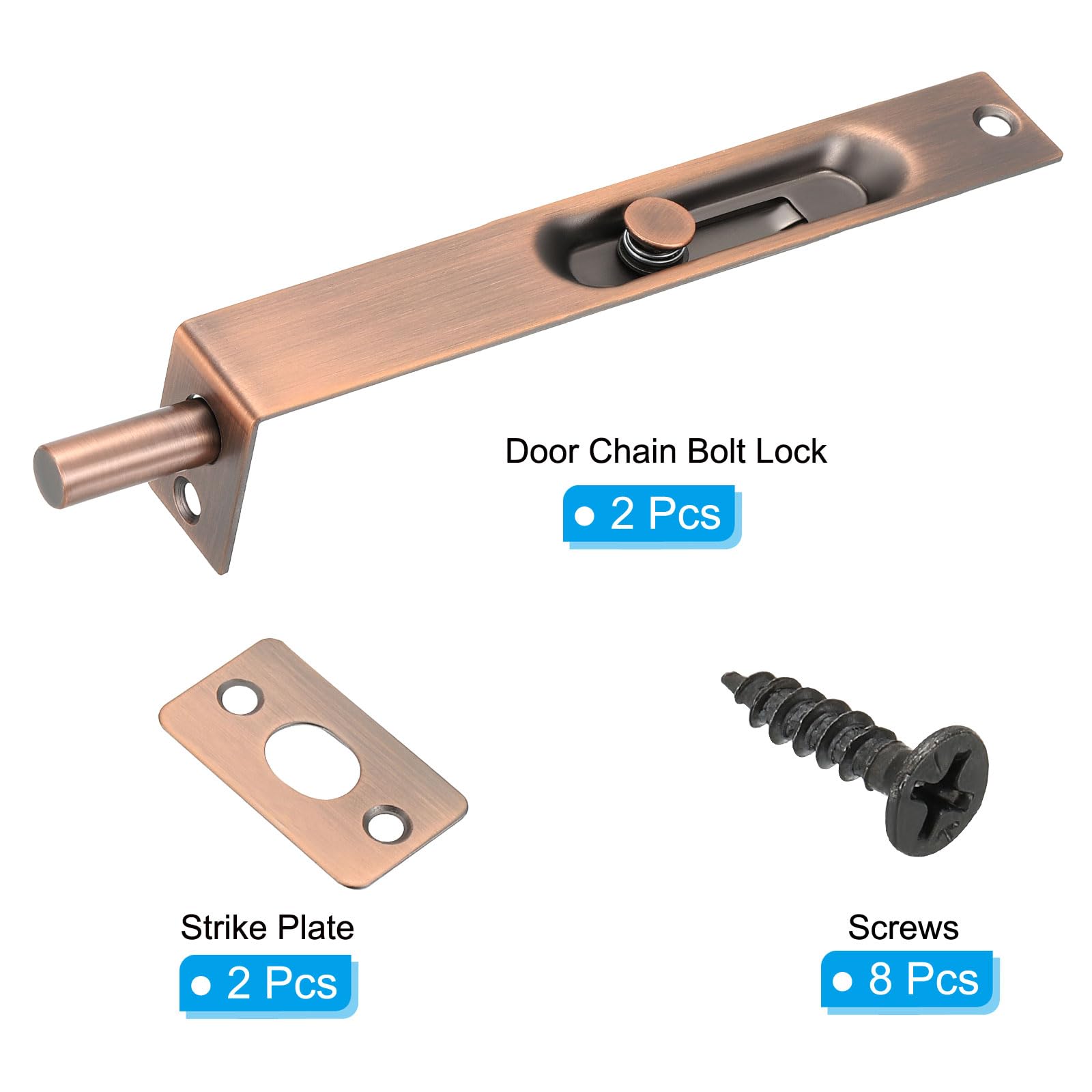

Stainless Steel French Door Lock Concealed Slide Double Door Latch for Wood Composite Double Door Specification Material: Stainless Steel Finish: Polished Brushed Plating Color: Red Bronze Main Body Size: 150 x 22 x 1.5mm / 6 x 0.87 x 0.06 inch (L*W*Th) Main Body Height: 34.5mm / 1.36 inch Strike Plate Size: 37 x 22 x 1mm / 1.46 x 0.87 x 0.04 inch (L*W*Th) Bolt Diameter: 10mm / 0.39 inch Mounting Hole Diameter: 4.5mm / 0.18" Installation Hole Distance: 26mm / 1.02 inch Packing List: 2 x Door Chain Bolt Lock; 2 x Strike Plate; 8 x Screws Advantage 1. Constructed from stainless steel, sturdy, wear-resistant, corrosion resistant and not easy to rust. You can use thickened material and solid insert lock plug head for more sturdy use. 2. Hidden installation, which won't affect the doors' external integrity and image, matches various decoration styles. 3. Flush bolt with the function of automatic holding spring to provide holding power in both retracted and extended positions. Concealed Slide Door Bolt Lock, press the button and push it up and down to open/close the door leaf. Instruction 1. Figure out and mark where to install the flush bolt(usually on inactive leaf of double door opening) and drill grooves. 2. Install the flush bolt on the door leaf and tighten with screws. 3. Line up strikes on the door frame or on the floor and drill holes, then tighten with screws. 4. Close the door, insert the pin into the hole, done. NOTE: Please confirm the size before purchasing.
