illuburg LED Driver 700mA - 750mA Constant Current 11W - 30W Flickerfree LED Power Supply Transformer

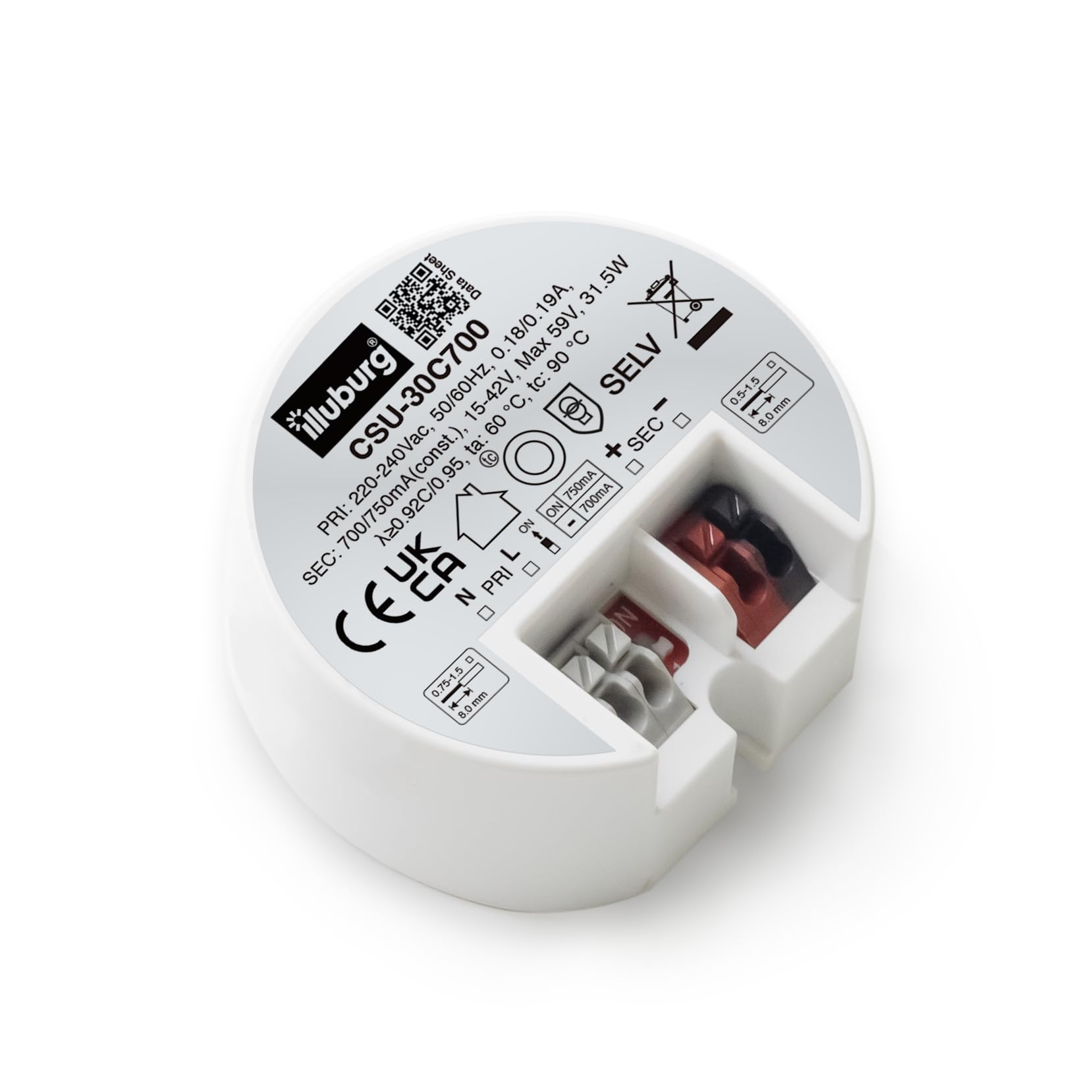

• LED POWER SUPPLY CSU-30C700: input voltage 220 - 240 V (AC), output current 700mA / 750 mA constant with voltage range 15 - 42 V (DC), not dimmable, built-in installation, Connection with spring terminals.
• OUTPUT POWER: adjustable output (output current: power range) 700 mA: 10,5 - 30 W / 750 mA: 11,5 - 31,5 W, setting via DIP switch, ideal for a single LED or multiple LEDs in series with a constant operating current from 600 mA to 800 mA.
• FLICKERFREE: flickerfree light source provides better eye protection and ensures high quality video recording.

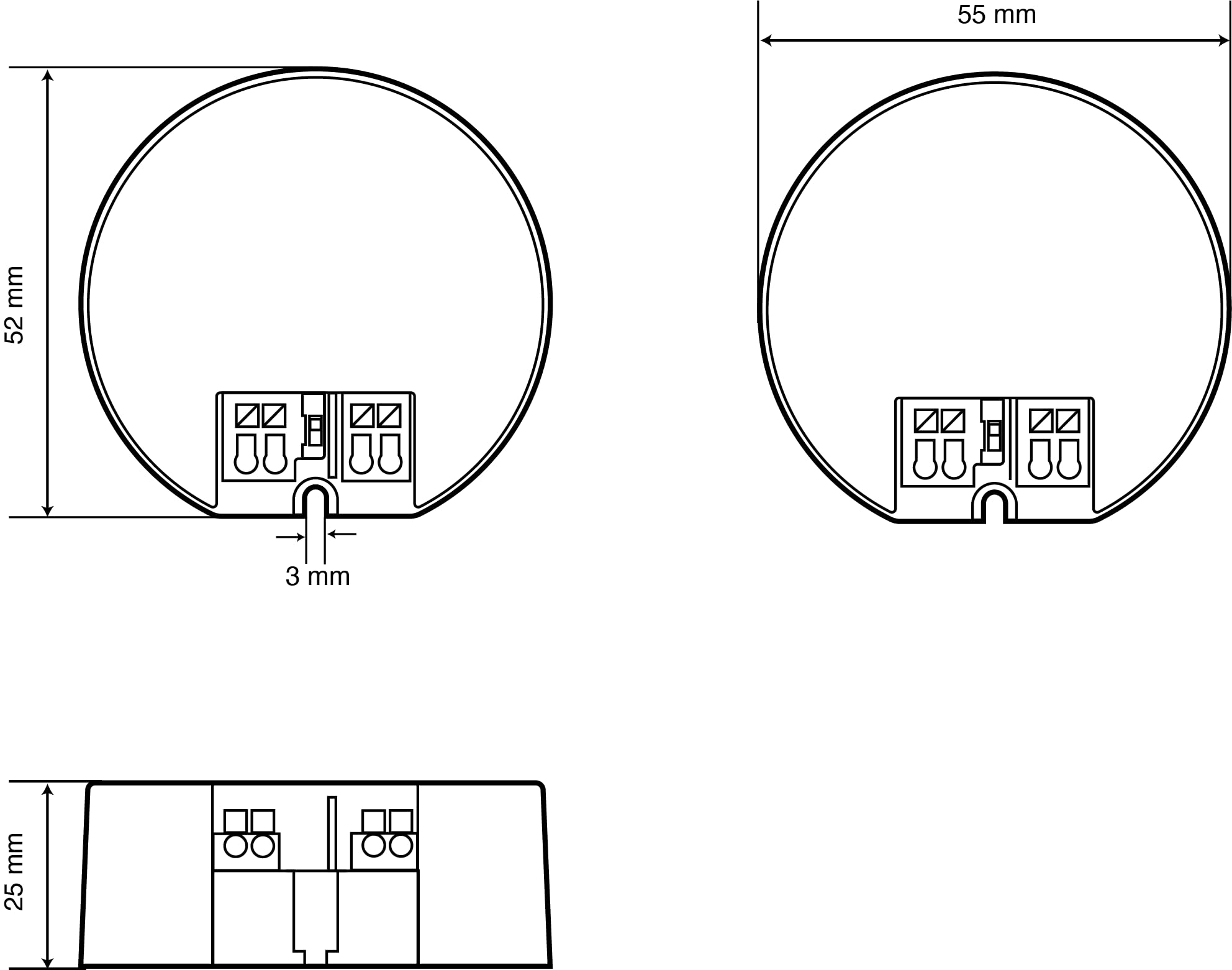

• INSTALLATION: protection type IP20, dimension 55 x 52 x 25 mm (L x W x H), operating temperature (ta) -20 - +60 °C, max. surface temperature (tc) 90 °C. Please check the instruction pictures for more details.
• SECURITY: equipped with overload protection, short circuit protection and overheating protection. certification CE, UKCA.
• ADVICE: this LED power supply does not deliver 12 V or 24 V constant voltage output. We are happy to recommend a suitable LED power supply for your application if we have the technical data (ideally with a photo of the LEDs or the old LED driver).

LED Power Supply CSU-30C700 Installation Instructions This product is not waterproof and can only be deployed in dry interior environment. Please note the input "PRI N/L" and the output "SEC +/-" during installation. Reverse connection of the input and output will destroy the product. If the LEDs flicker or do not light up (no voltage at the output) after connection, this power supply is then most likely not compatible with your application. In this case, please request a return and contact us so that we can recommend a suitable product.
