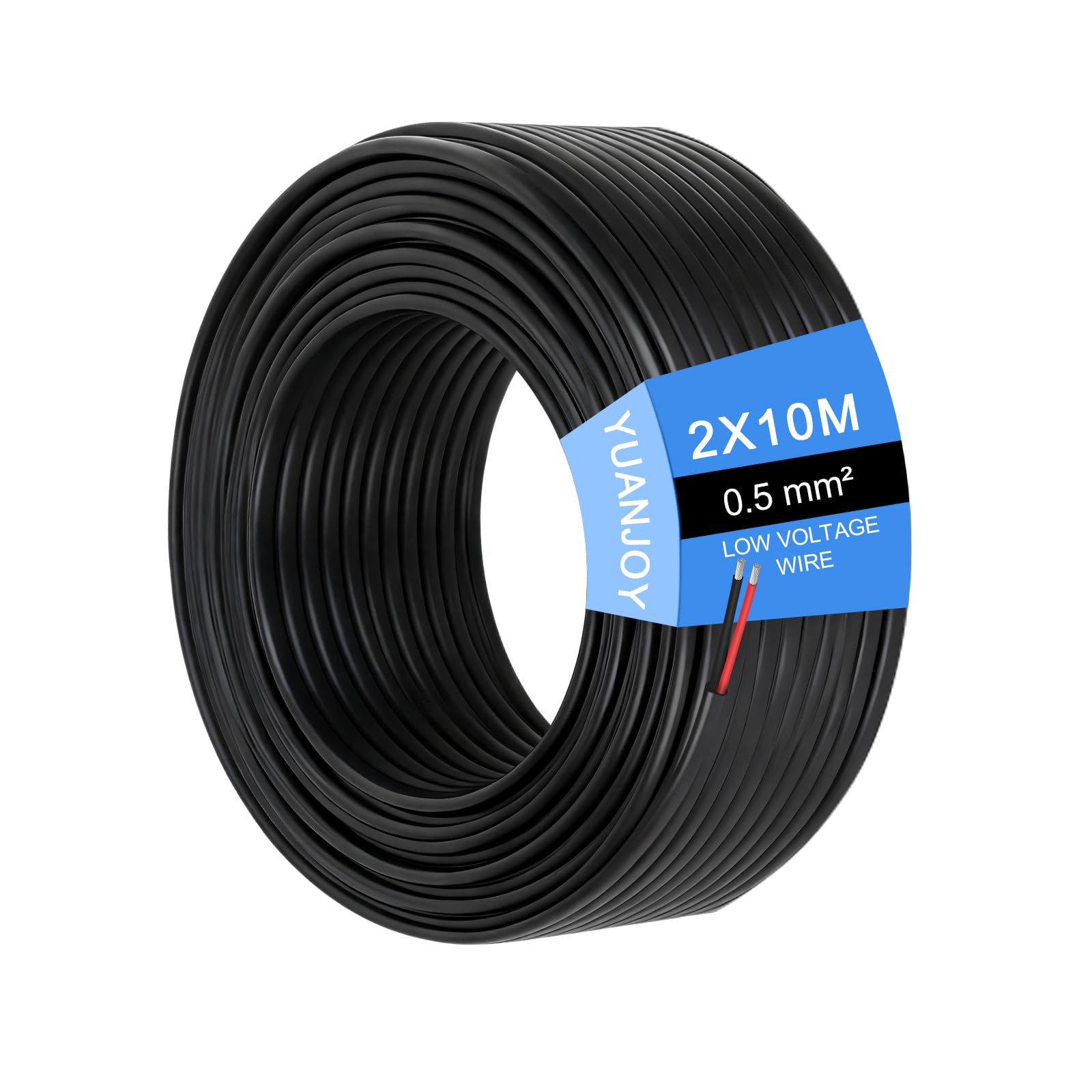

Yuanjoy2 Core Black 10 Metre Automotive Cable, 0.5 Mm² Multi Core Trailer Cable, 12v 24v Vehicles for Camping, Caravans, Trucks, Industry

• Vehicle cable in original equipment manufacturer quality: 7-pole cable, cross section 0.5 mm² each, vehicle cable for nominal voltage U ~ = 50 V U = 60 V, temperature range class A -40 °C - +70 °C, 12V/24V/36V/48V universal
• Car cable with reduced insulation wall thickness according to CE for space-saving installation - the thickness of the PVC insulation is thinner than conventional cables, while maintaining the same quality
• Round vehicle power cable, 7-core cable 0.5 mm² for wiring, lighting, signaling systems, electrical accessories and much more. Manufactured to the highest and most modern quality standards

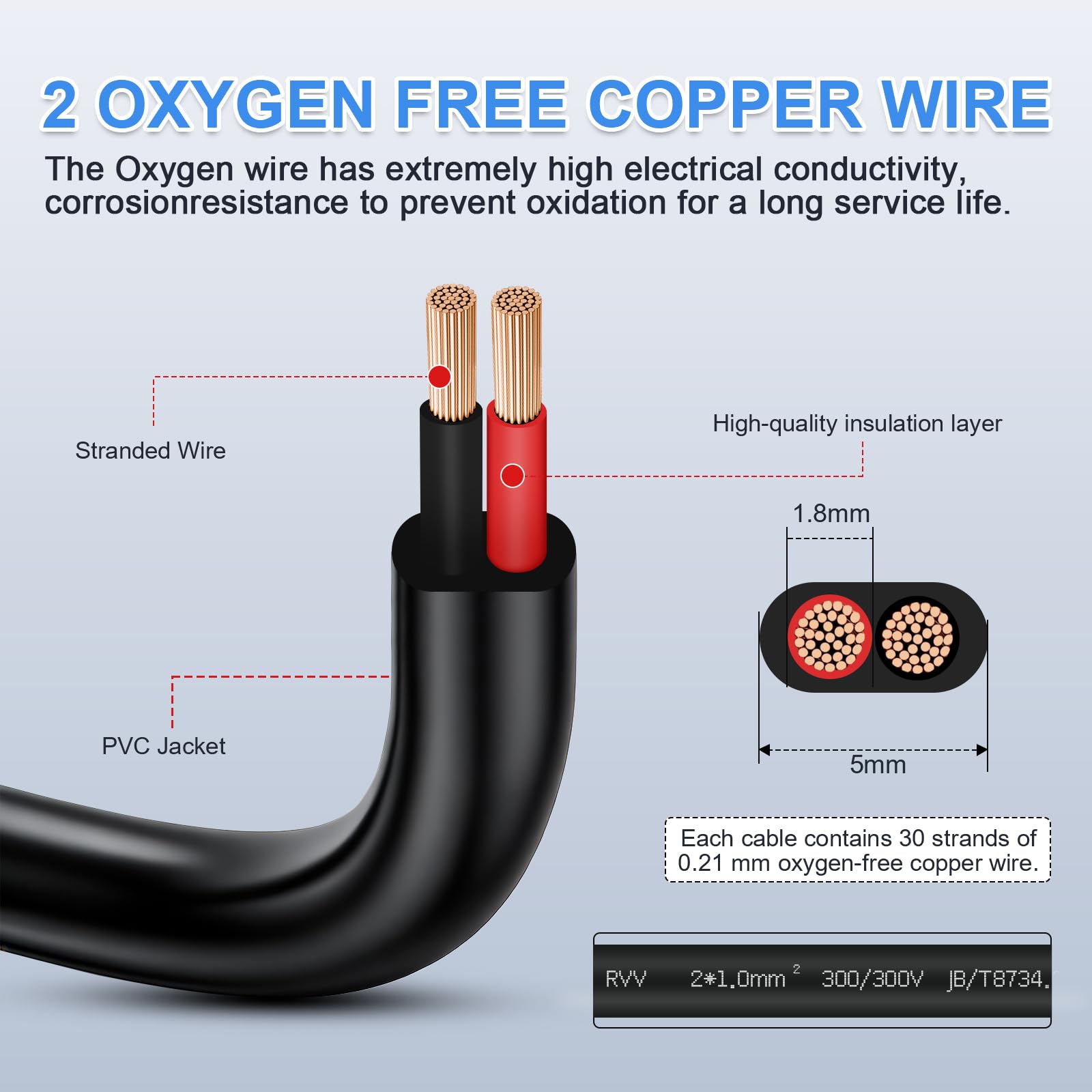

• Car cable conductor: copper Cu, bare, fine wire construction | Insulation: PVC - cores color coded red, white, yellow, black, blue, green, brown | Sheath: PVC black
• Wide Application: Multi-core cables can be widely used in trailers, caravans, trucks, cars, ships, ground cables, agricultural machinery and other related industries

Yuanjoy 2 Core 3/5/10/15/20/50 Metres 0.5/0.7/1.0 Mm² Multi-Core Trailer Cable, Flat Wire Underground Cable, for Caravans, Trucks, Industry Detailed parameters of the Yuanjoy cable: Conductor: Specification model: RVV 2 C*0.5, reference standard: GB/T5023-2016 Specification: 0.5㎜², structure: 22/0.17±0.005 Material: oxygen-free copper, outer diameter: 0.95 Insulation: Material:PVC, average thickness: 0.5 Minimum thickness: 0.35, outer diameter: 1.8 ± 0.05 Color: Black (Jet code) Outer quilt: Average thickness: 0.7, minimum thickness: 0.55 Outer diameter: 9 ± 0.15 mm (via powder extrusion), color: black Performance test elements: Nominal temperature (℃): 70℃, 20℃ Maximum conductor resistance: ≤39Ω/KM Insulation resistance MΩ -KM: ≥5000, dielectric strength test: AC1500V/5min Tensile strength N/mm²: 12.5, sheath breaking elongation %: 125 Cables are widely used: Therefore, we strictly control the quality, The cables are 2 core cables, 5 core cables, 7 core cables, 13 core cables, which are very suitable for earthing cables, camping cables, car cables, truck cables, trailer cables and industrial cables Cables, household cables and outdoor cables
