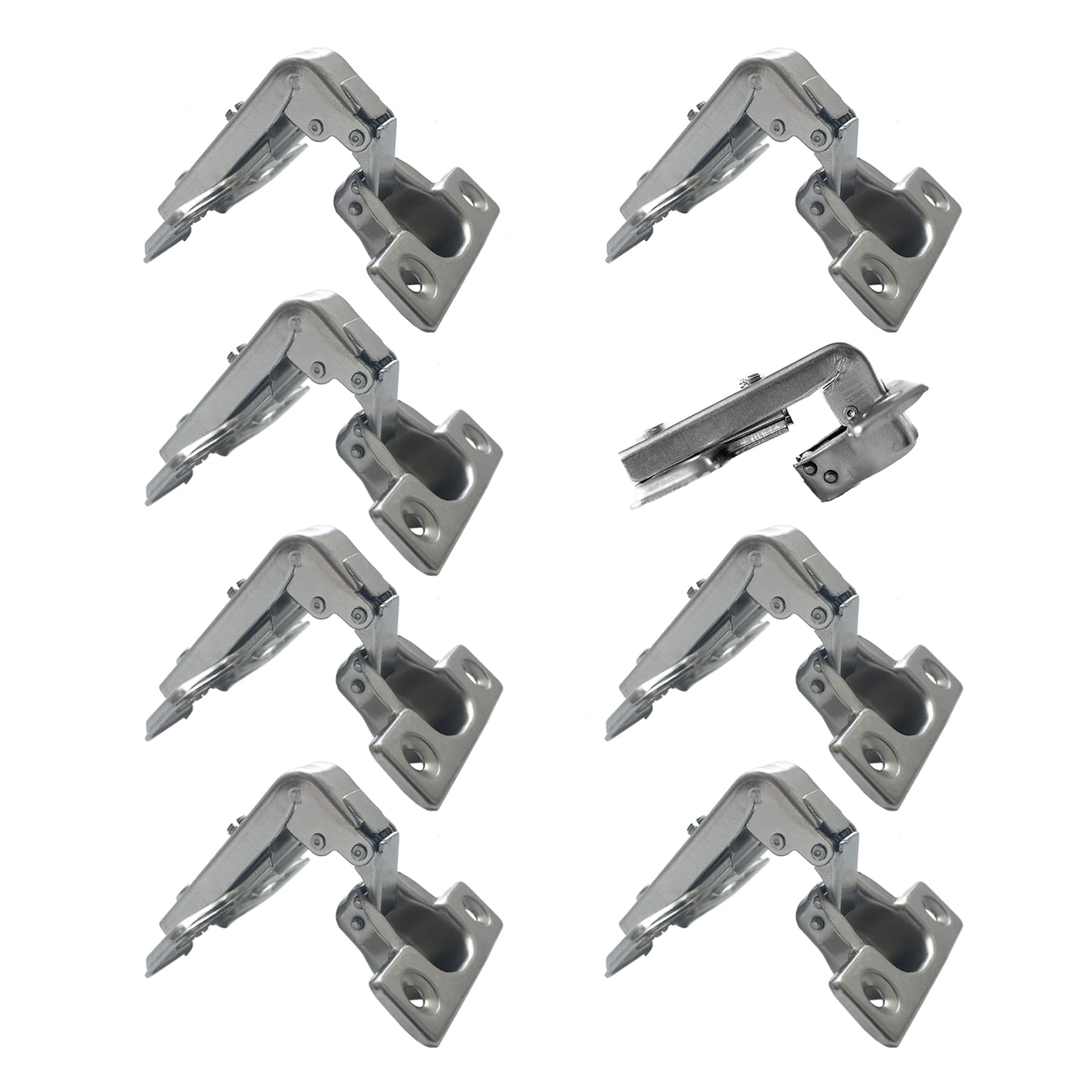

LIKERAINY 90Deg Short-arm Inset Blind Corner Hinge Ø 26mm H0 Without Damper for Cabinet Door Stud Hinges for Cupboard Wardrobe Doors Pack of 8 Pieces

• Short-arm hinges are suitable for narrow cabinet and frame, especially for insufficient installation space
• For light door thickness 12-18mm; Base plate height: H=0; Pot diameter Ø 26mm; Pot depth 10mm; Type: Internal stop
• Made of iron metal; Nickel plating; Hinge for studs constructions
• Concealed furniture hinge for studs, Opening angle 90°, Pot strap, for cabinet door
• This hinge can be stopped at any position between the door opening angle of 45-90 degrees. If the opening angle is less than 45 degrees, the hinge can close automatically

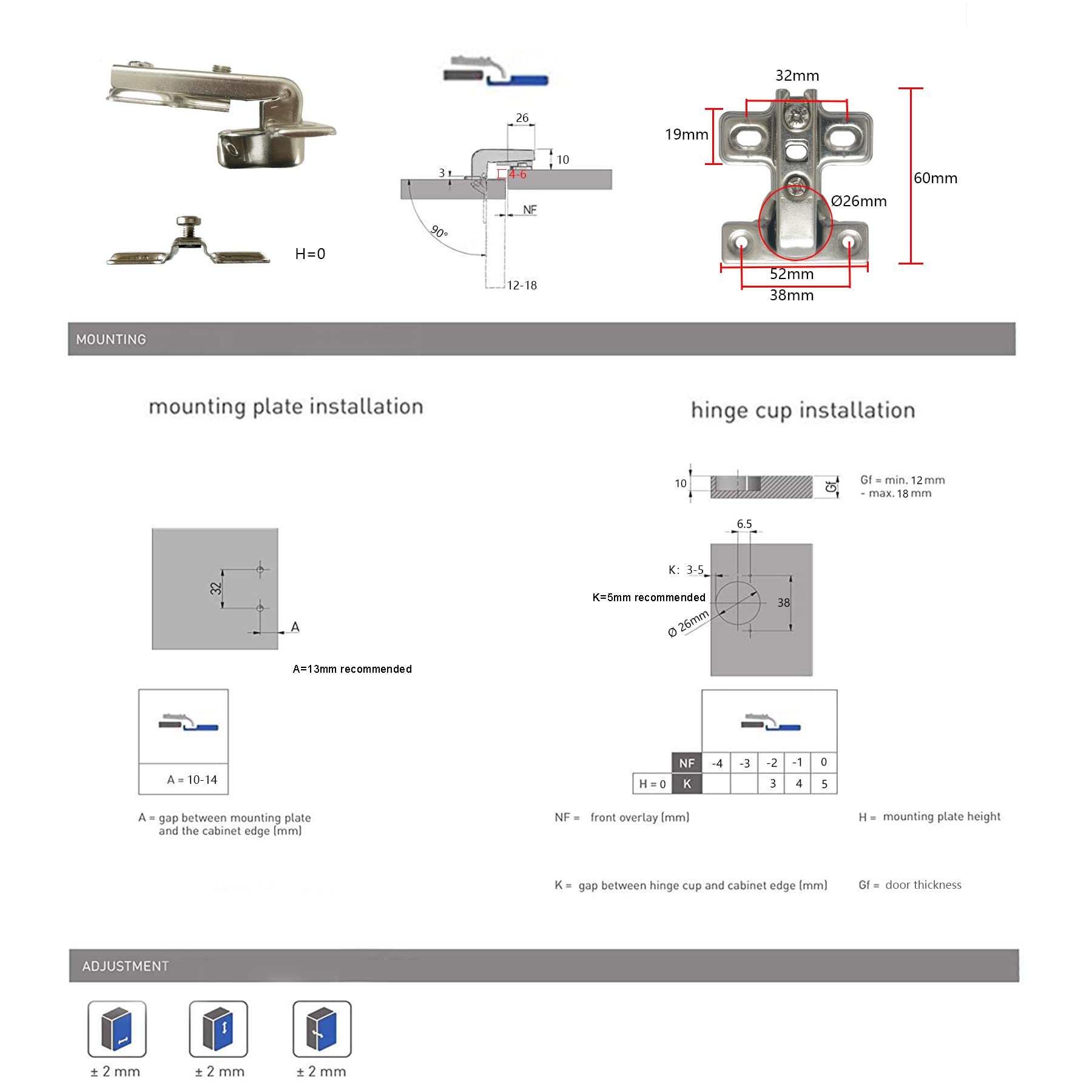

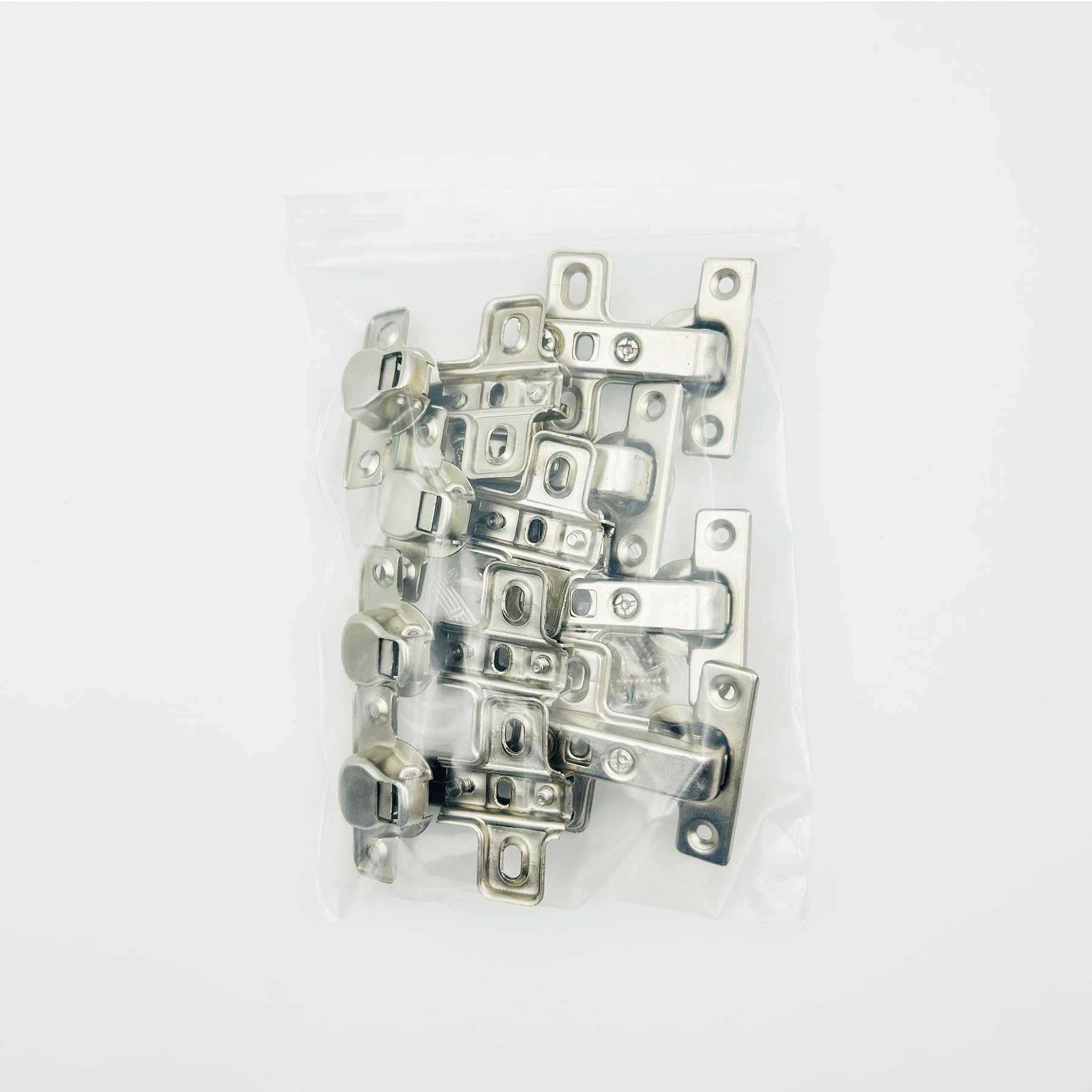

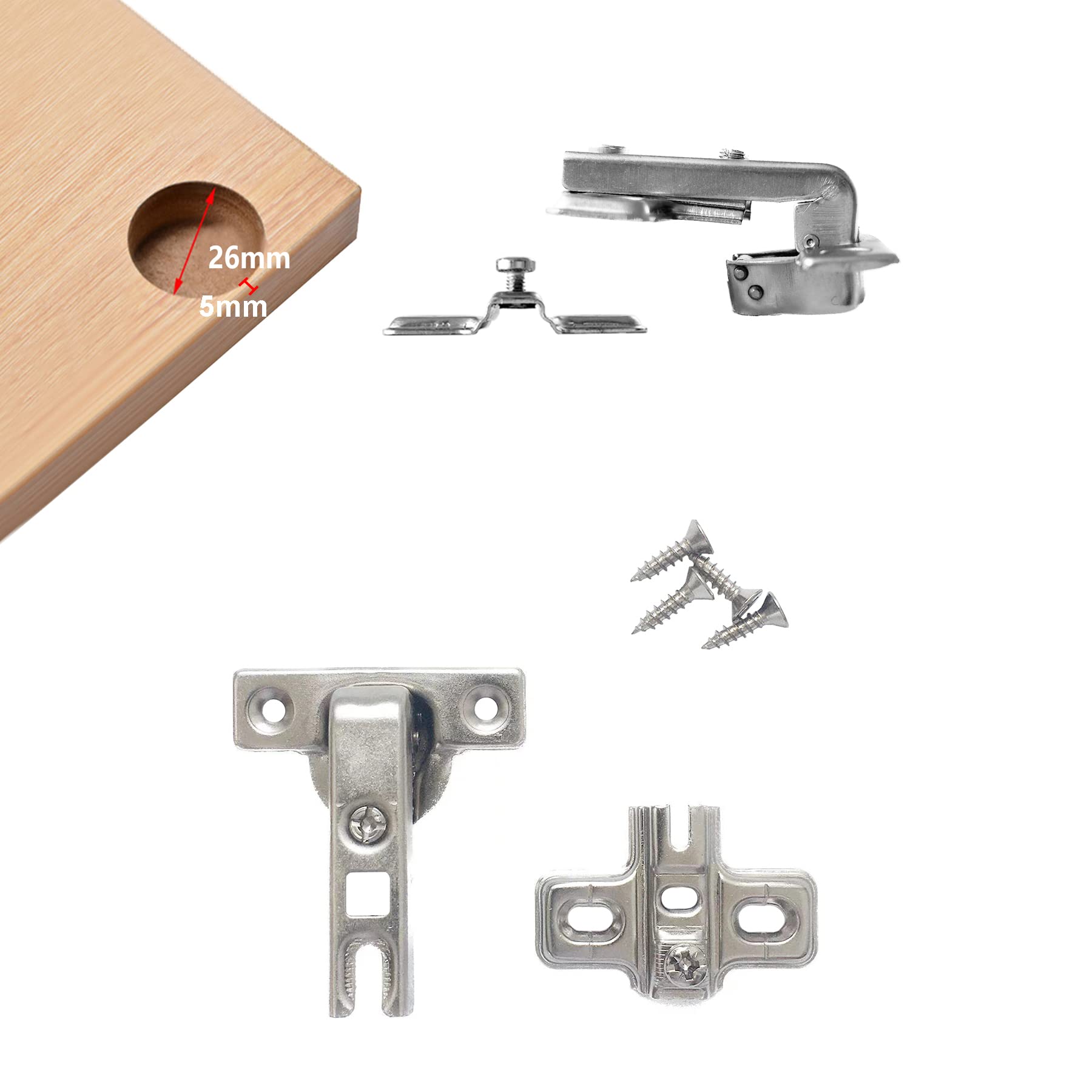

Product Dimension -Article type: LIKERAINY inset blind corner hinges -Base plate height: H=0 -Material: iron metal -Opening angle (°): 90 Degree -Pot drilling version: 38mm / 6.5mm -Pot diameter: Ø 26mm -Pot Depth: 10mm -installation type: Inside stop / Inset -Distance between the two screw holes (next to the cup): 38mm -Mounting option: for screwing on -For depth of side panel (min.): 25mm (see photo above) -For light door thickness: 12mm (min.) – 18mm (max.) -Integrated overlay adjustment: +2.5 mm / -2.5 mm -Integrated depth adjustment: +2.0mm / -2.0 mm -Hinge cup/arm finish: Nickel plated -Cover cap for carcass: NO -Cover cap for hinge cup: NO -Fast installation: Yes Package -Short-arm Blind-corner hinges: 8 Pieces -with mounting screws -No mounting instruction and processing information (see photos above)
