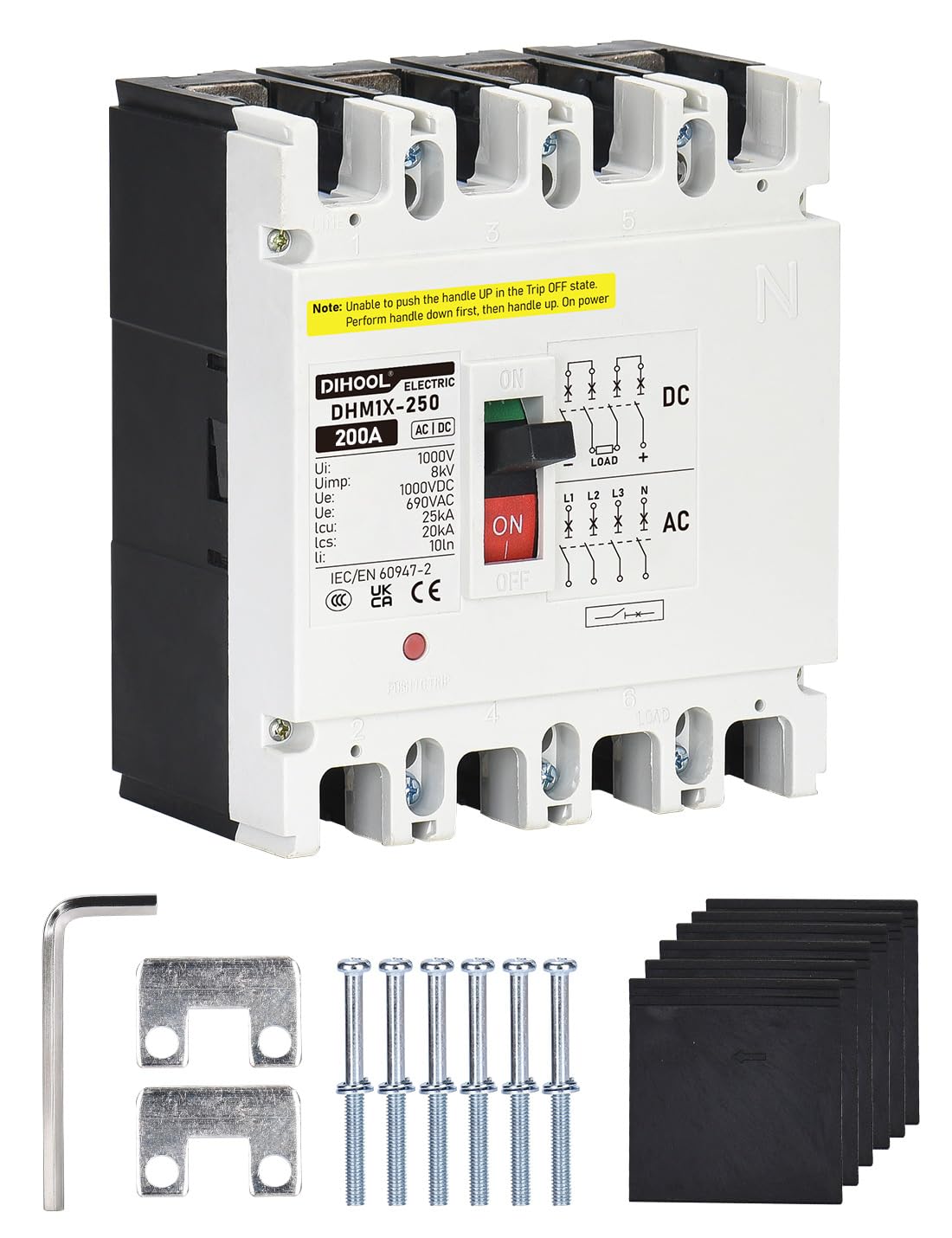

DIHOOL DC Molded Case Circuit Breaker,4 Pole 200 Amp 1000VDC/690VAC MCCB,DC Isolator for Solar Panels PV System,Battery

• Function: Thermal magnetic trip, circuit overload protection, insulation circuit, circuit short circuit protection

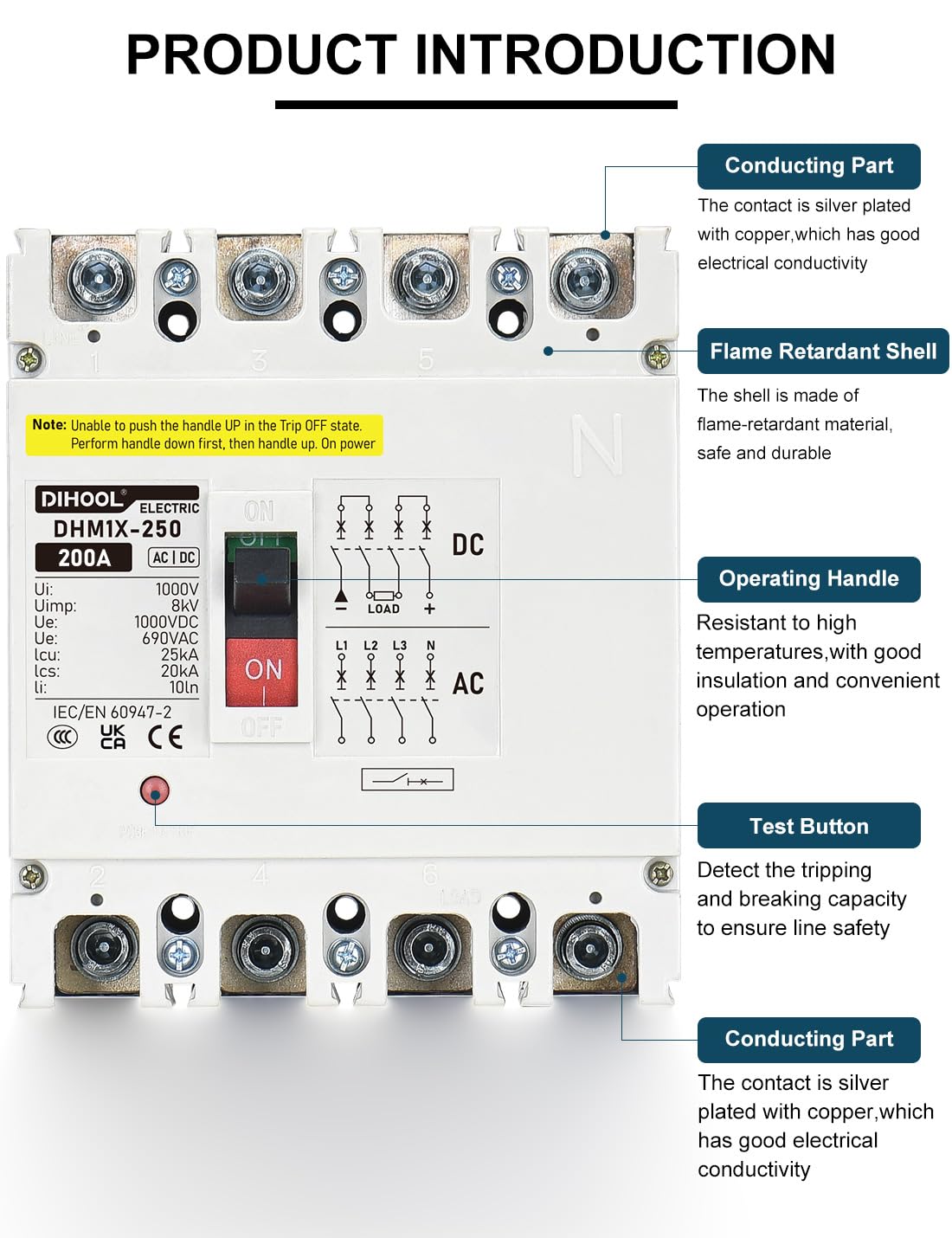

• 30% silver content in mobile contacts, 45% silver content in stationary contacts
• Short circuit power 20kA/500V

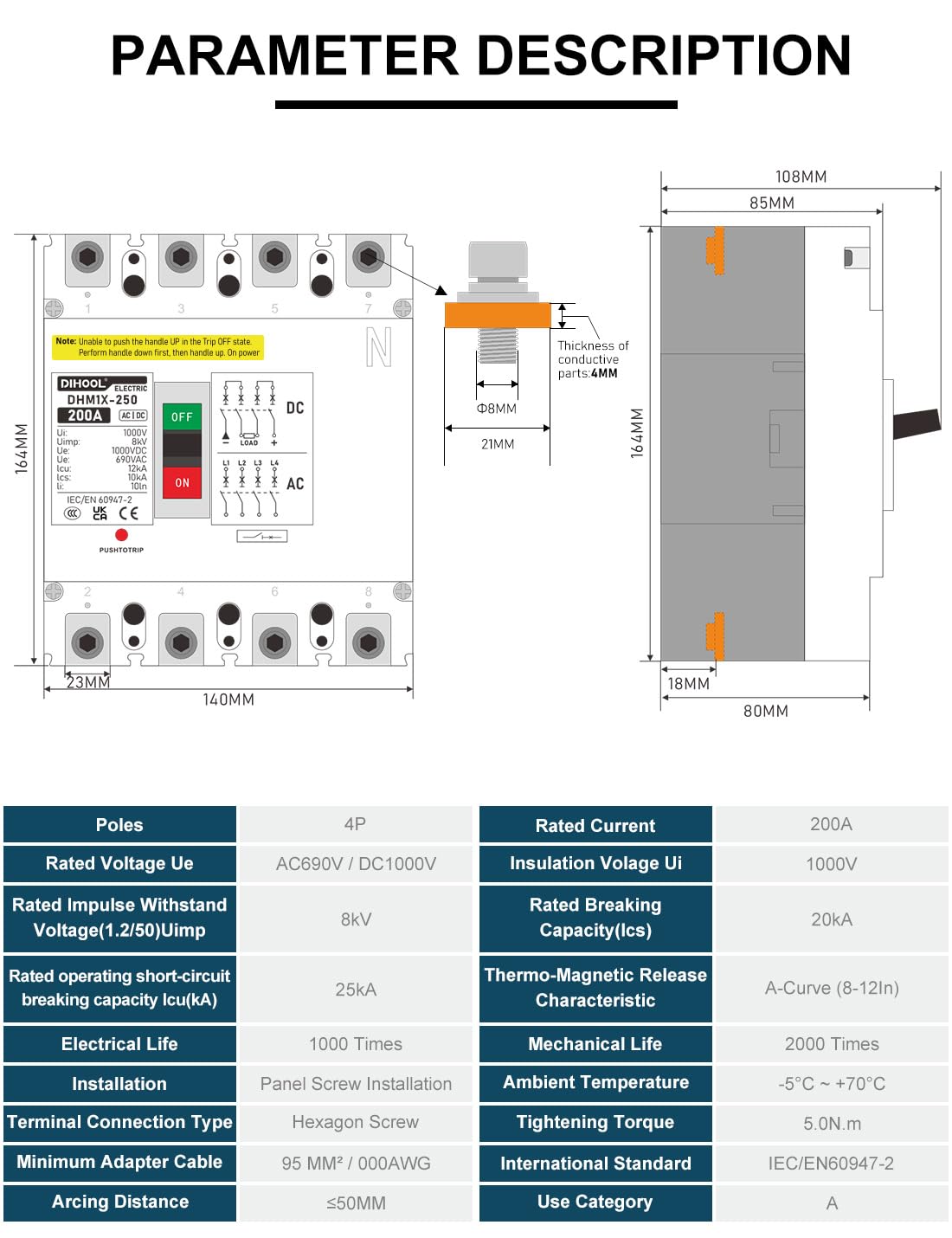

• Size: 140MM x 164MM x 108MM, it must be installed on the plate by screws

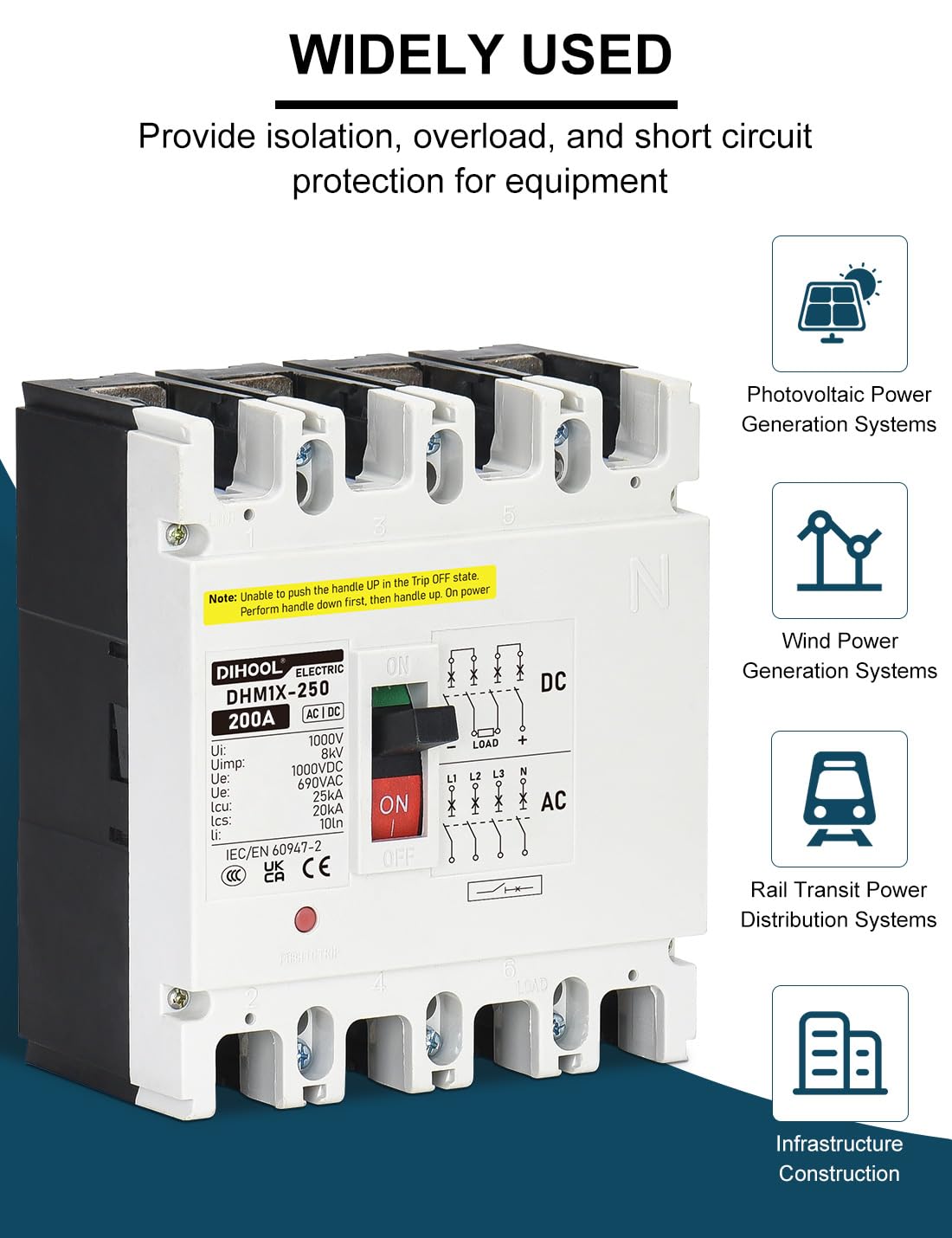

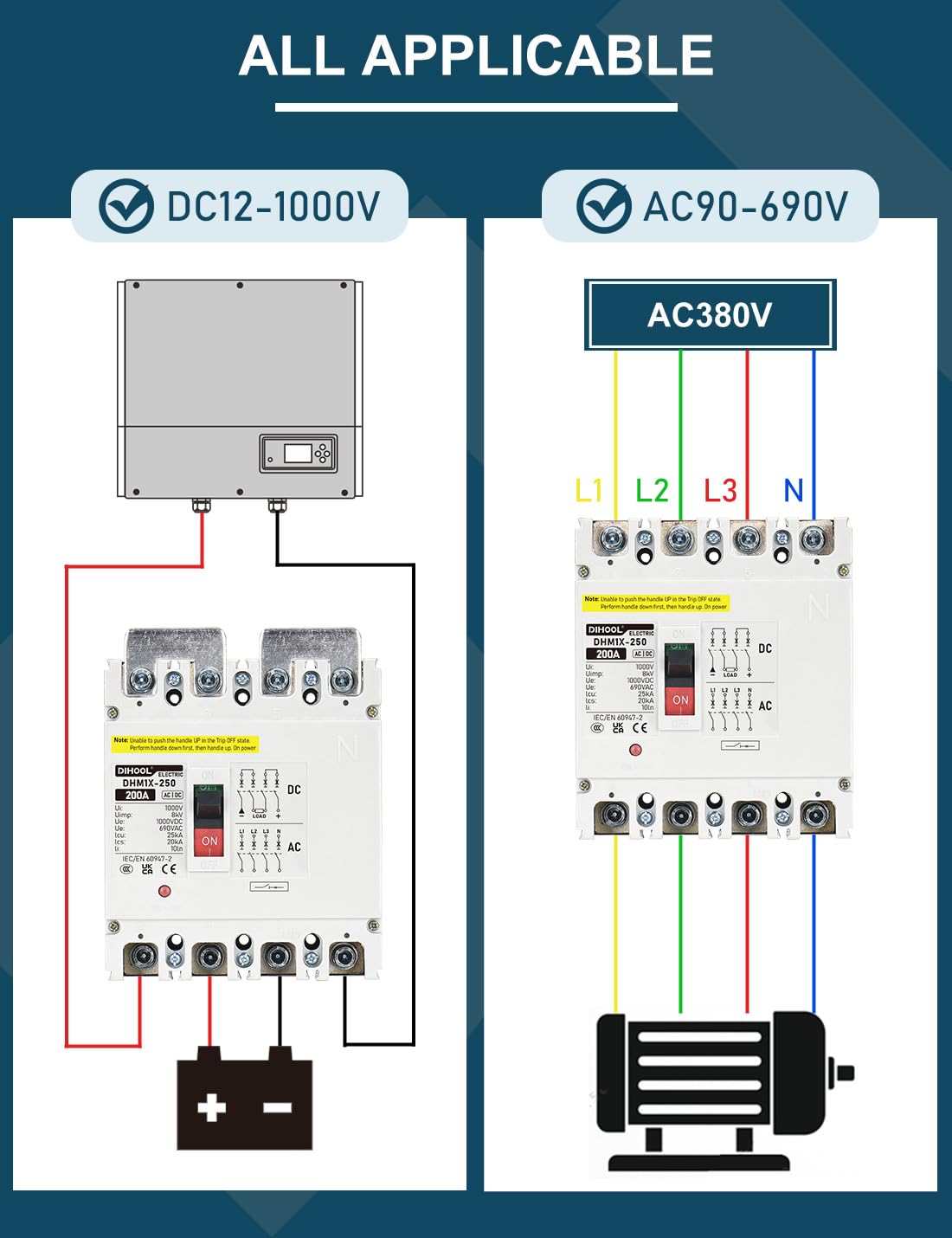

• Suitable for DC12-250V and AC90-240V Circuit such as photovoltaic systems, UPS systems, battery systems, etc.

DHM1X PV MCCB DC Disconnect Switch is an electrical device specifically designed to protect DC circuits in photovoltaic energy storage systems. It plays a role in cutting off and protecting battery circuits in photovoltaic energy storage systems, ensures the safe operation of the system, and prevents power outages that cause fire and other hazards. The maximum current of this DC Compact Circuit Breaker can reach 200A, and the maximum working voltage is 500VDC-1000VDC. It has the characteristics of small size, high breaking capacity, short rollover, vibration resistance and strong arc extinguishing ability, making it an ideal product for high performance battery energy storage systems. The design of these DC shape housing circuit breakers takes into account the special needs of photovoltaic power generation and energy storage systems. It uses high strength plastic shell materials with good insulation performance and protective function
