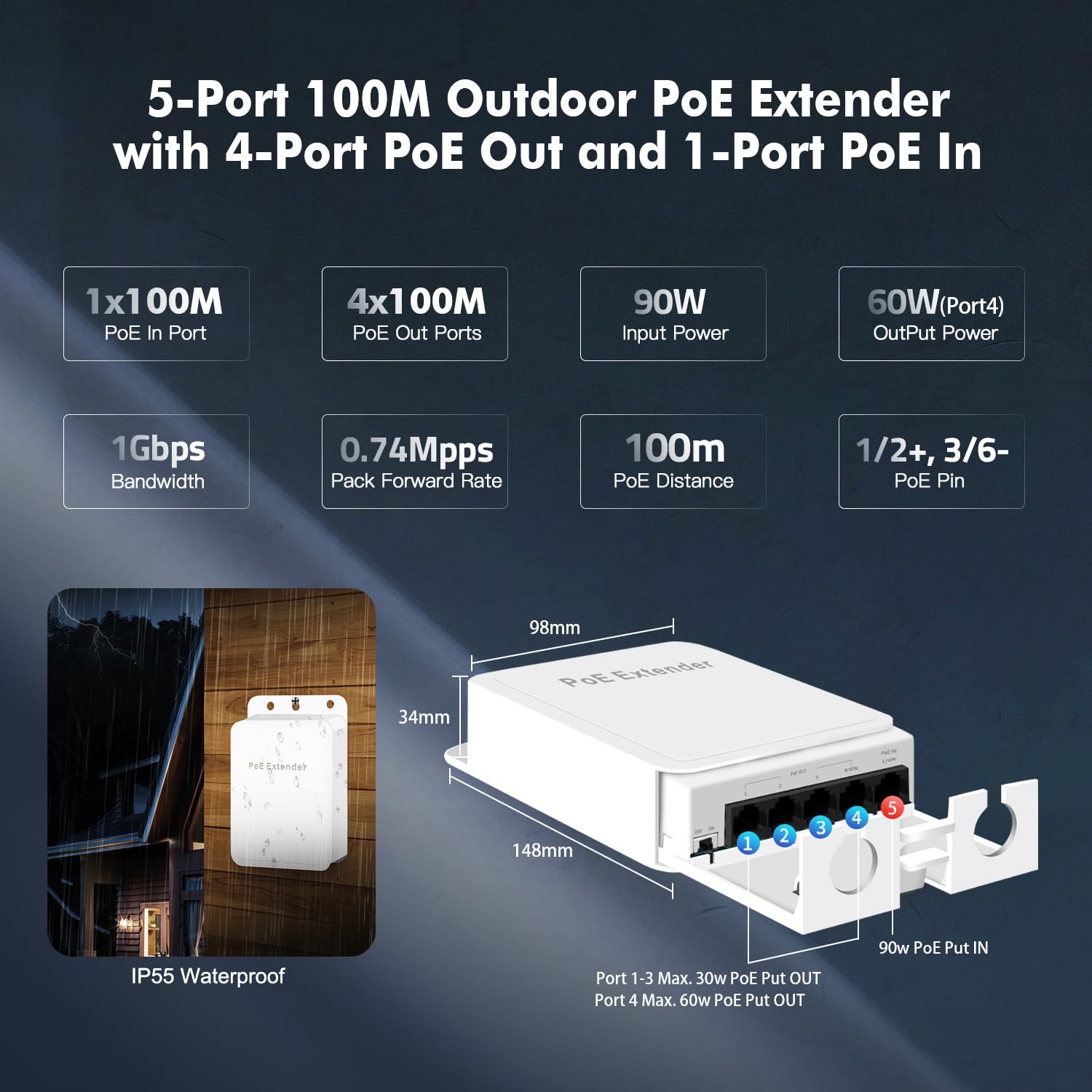

Binardat Outdoor PoE Passthrough Switch, 1 PoE in 4 PoE Out Extender, IEEE802.3af/at/bt PoE Powered 90W, 100Mbps Ethernet, Wall Mount Waterproof Plug and Play, 100M OUTDOOR 5 PORT

• 【PoE Gateway】Includes 1 PoE port input and 4 PoE output ports, 10/100 Mbps throughput. Power over PoE network, no AC power required

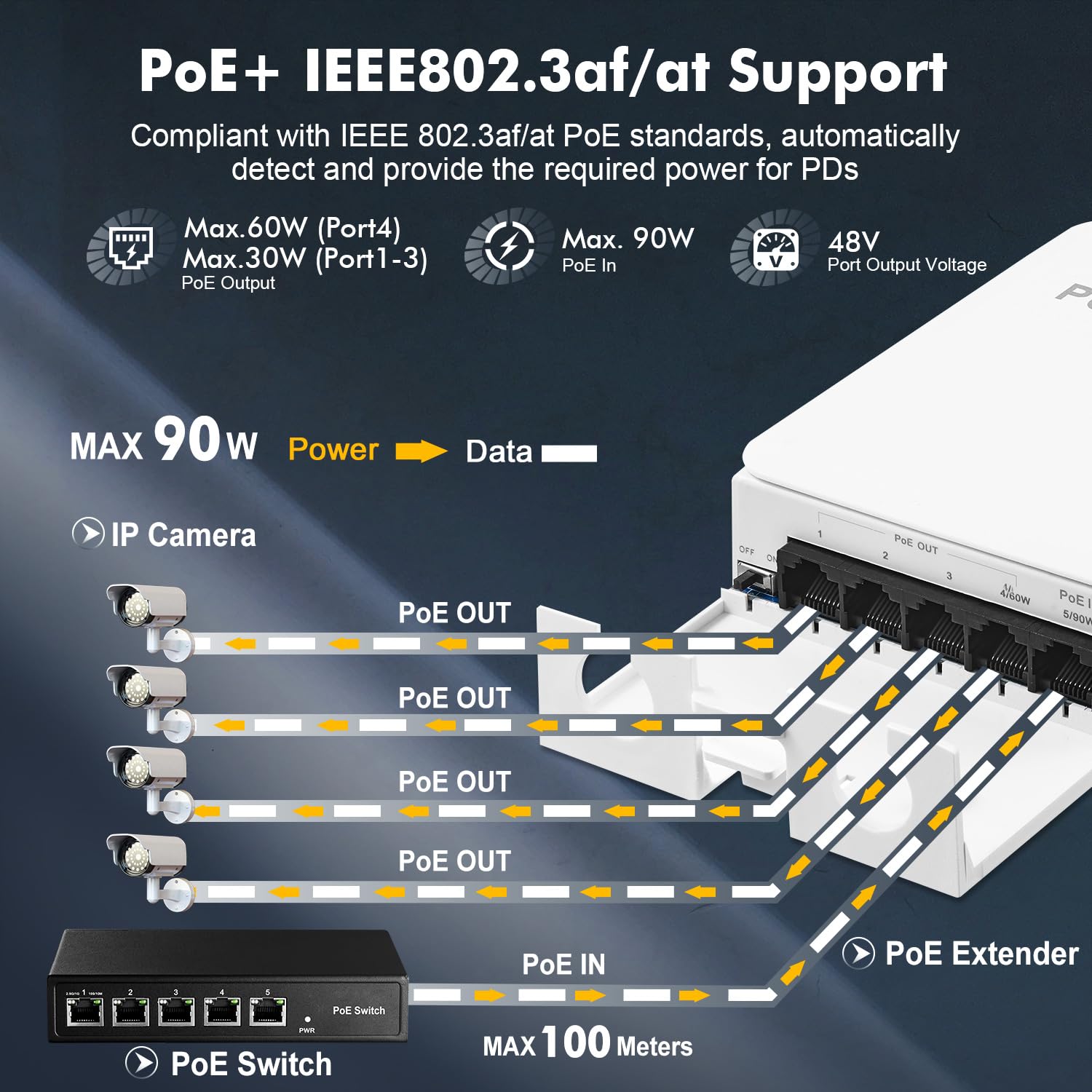

• 【IEEE 802.3 af/at/bt】 Supports PoE standard, max input 90W IEEE802.3bt, port 1-3 output max 30W (IEEE802.3at), port 4 output 60W (IEEE802.3bt). PoE voltage 44-57 Vdc. PoE-Pin: Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output Port 1-3: 1/2 (+), 3/6 (-); Output Port 4: 1/2 (+), 3/6 (-),4/5(+), 7/8(-)

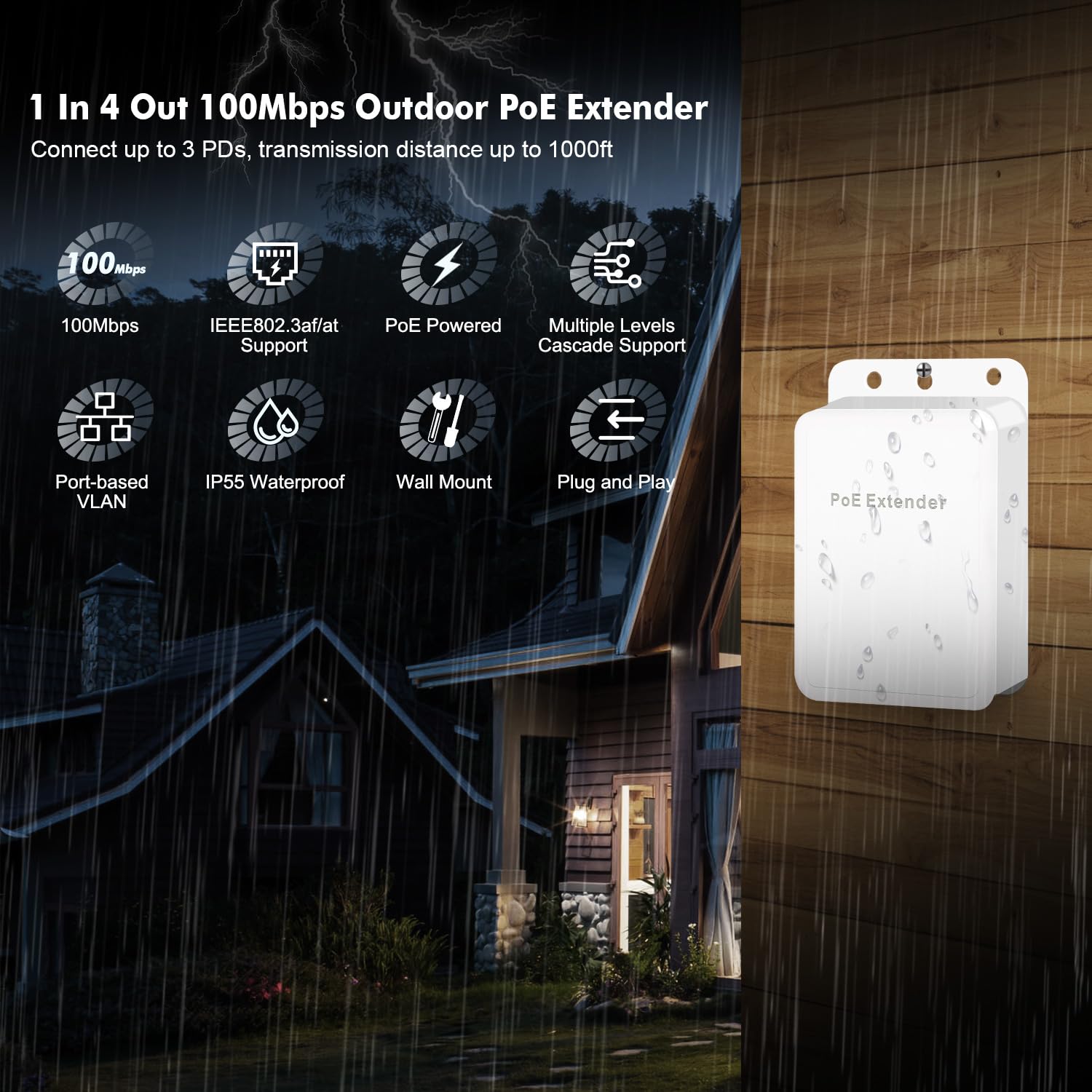

• 【Weatherproof for Outdoor】 Industrial ABS polymer material, all cable interfaces are protected in the casing, with better waterproof, dustproof and snowproof effect, better suitable for outdoors; also suitable for complex indoor environments, such as warehouses, computer rooms, garages, attics, etc.

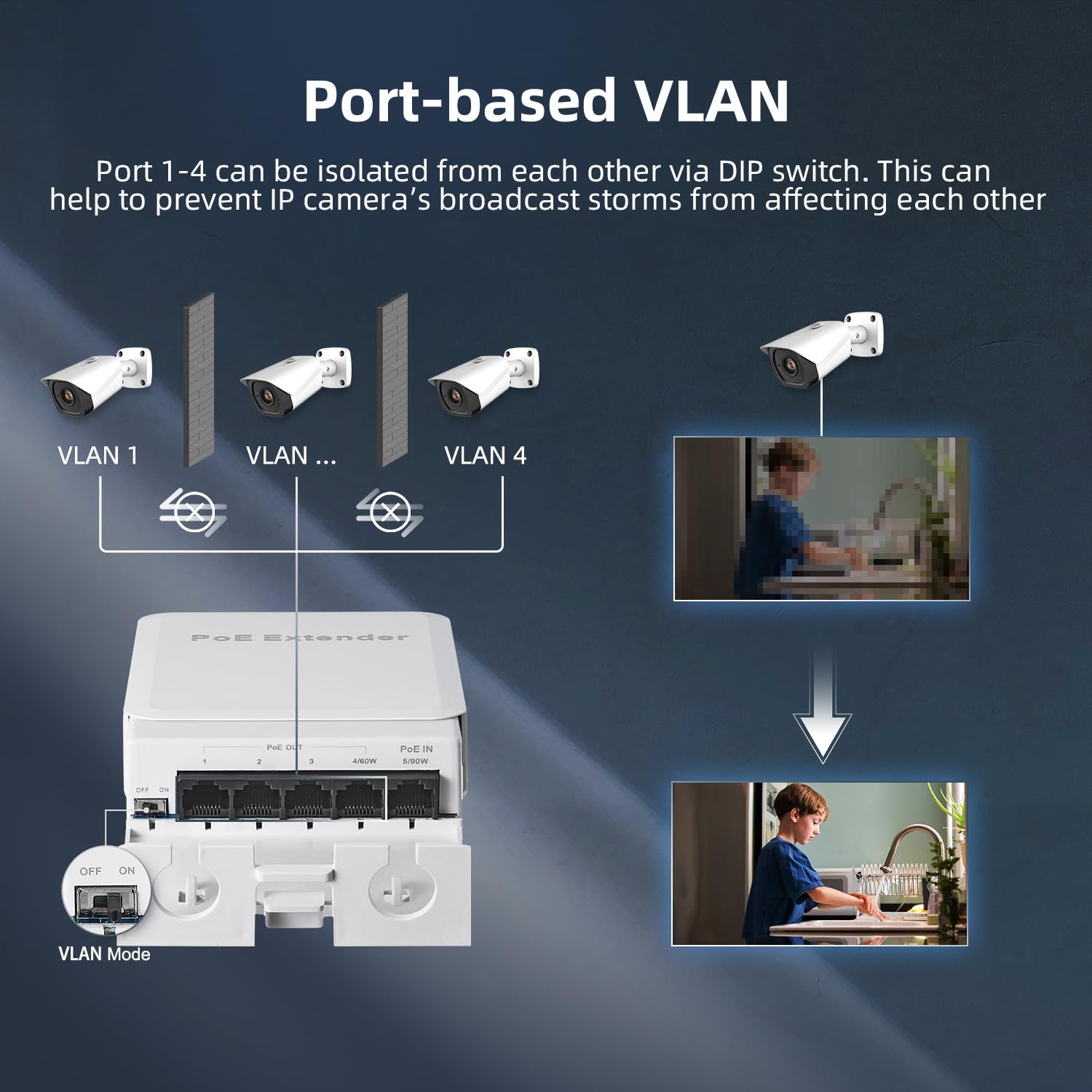

• 【Plug & Play】 Supports automatic device detection, just plug in the ethernet cable, connect directly to the device, LED port status display, no configuration. *Please note that 24V Passive PoE is not supported. Supports VLAN mode and extension up to 250m, controlled by DIP switches

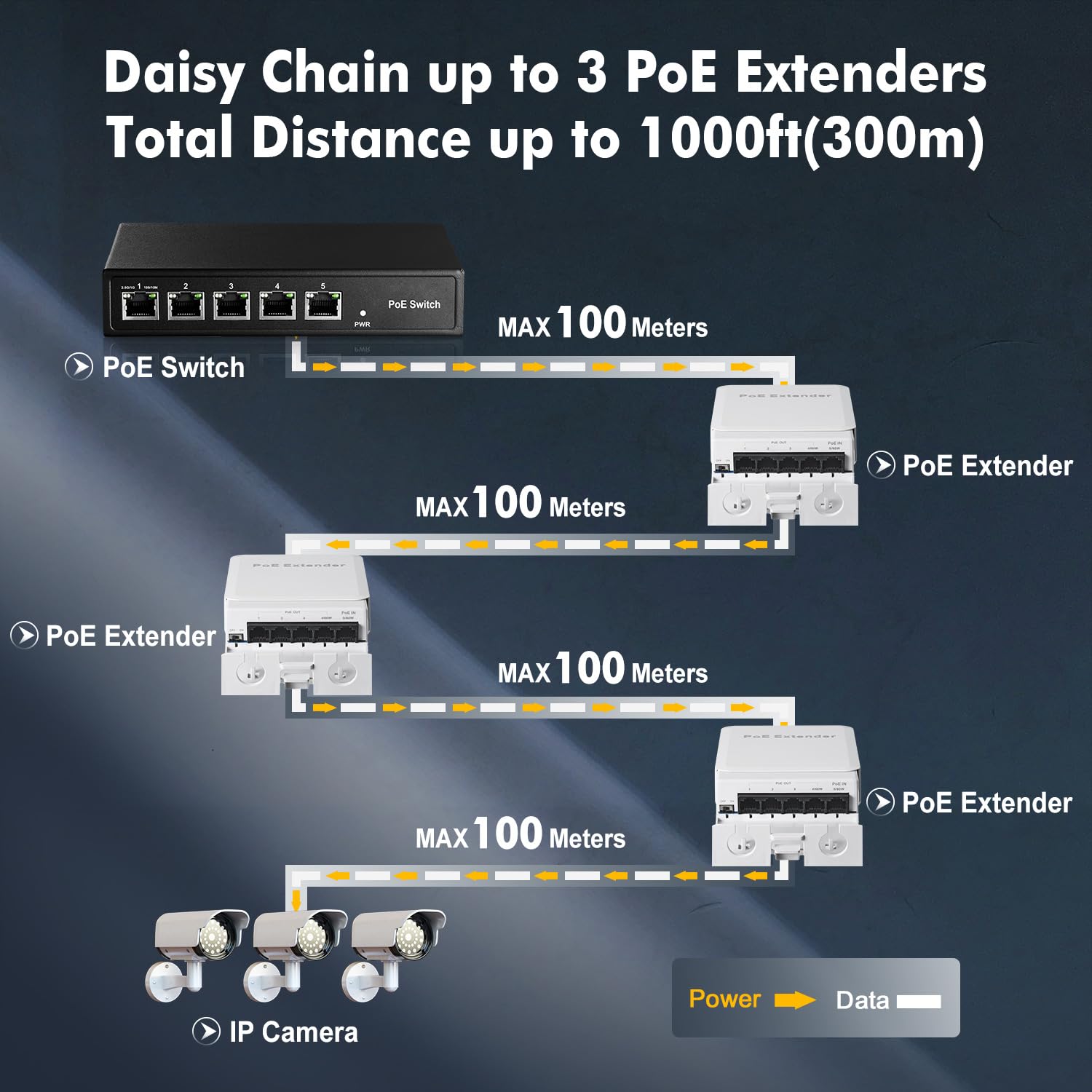

• 【Easy to Install】 Supports wall mounting, compact size saves space, suitable for many locations. Supports 3-level waterfall, can connect PoE access points, cameras, phones and other POE devices, expands POE coverage at low cost

Outdoor PoE Passthrough Switch, 1 PoE in 4 PoE Out Extender, IEEE802.3af/at/bt PoE Powered 90W, 100Mbps Ethernet, Wall Mount Waterproof Plug and Play
