Sparkleiot 59 Bits WS2812 RGB LED Ring 7/12/16/24 Bits 5050 WS2812B LED with Integrated Driver Individual Addressable Programmable for Arduino ESP32

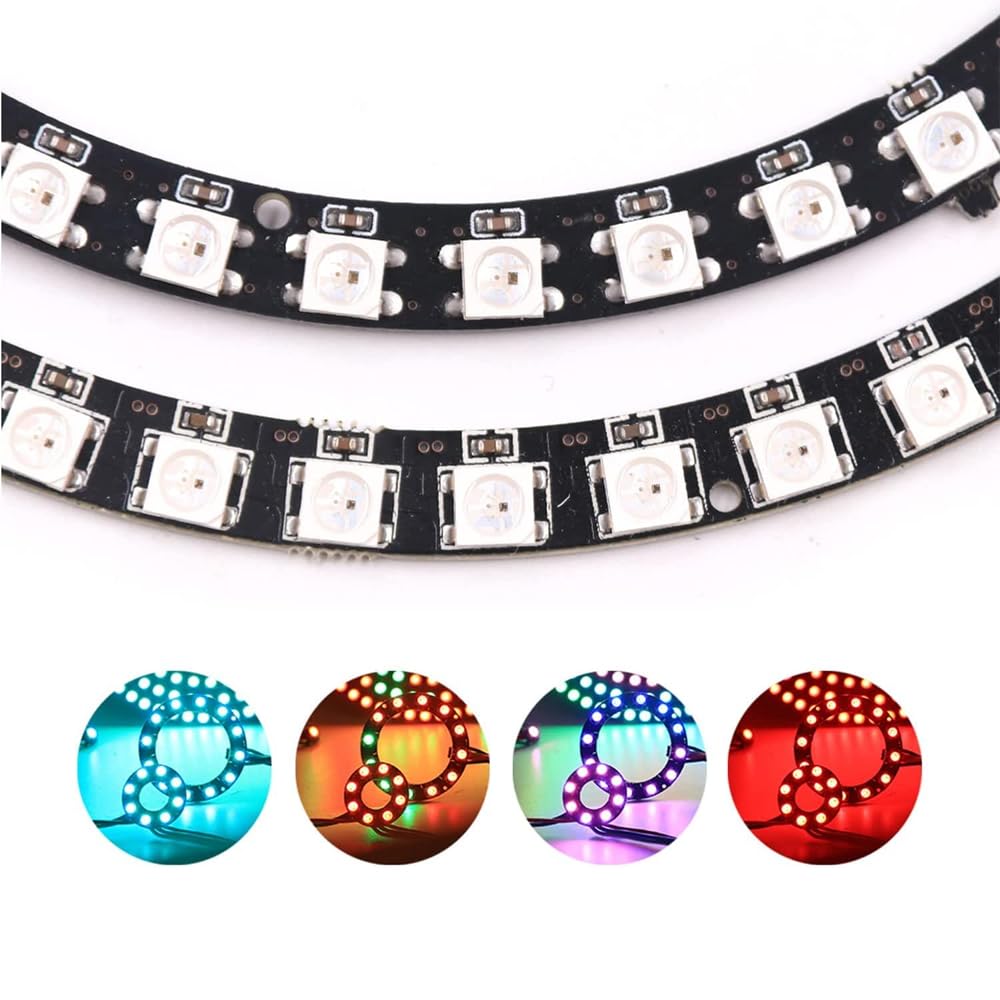

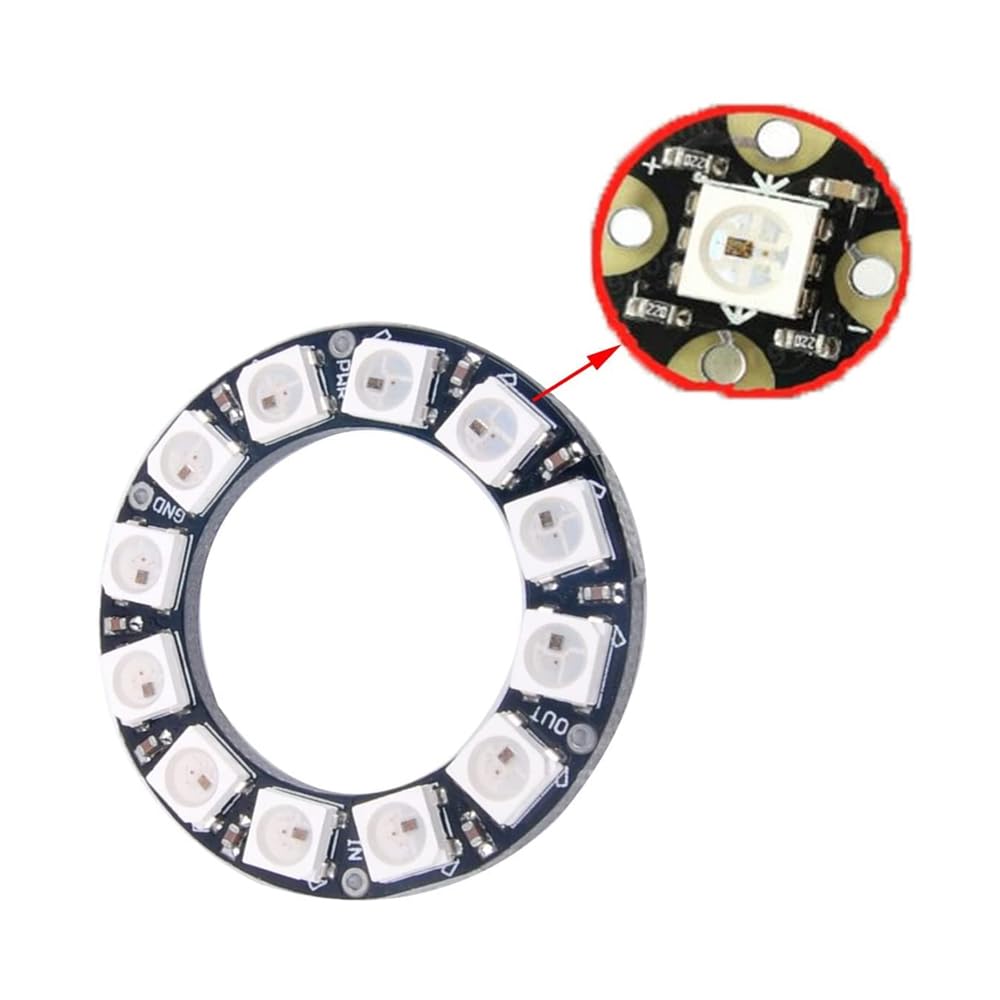

• [LED Chip] WS2812B SMD5050 RGB LED, each pixel is individually addressable and programmable
• WS2812 RGB LED Ring, can work with ESP-01S Serial Wifi module and WS2812 RGB LED Module, check the attached picture left. Link for ESP-01S:
• [Input Voltage] DC4-7V, we often use USB cable to power it.
• [Current]60 mA per LED (20mA red, 20mA green, 20mA blue) 12 X 0.060 = 0.72 amps

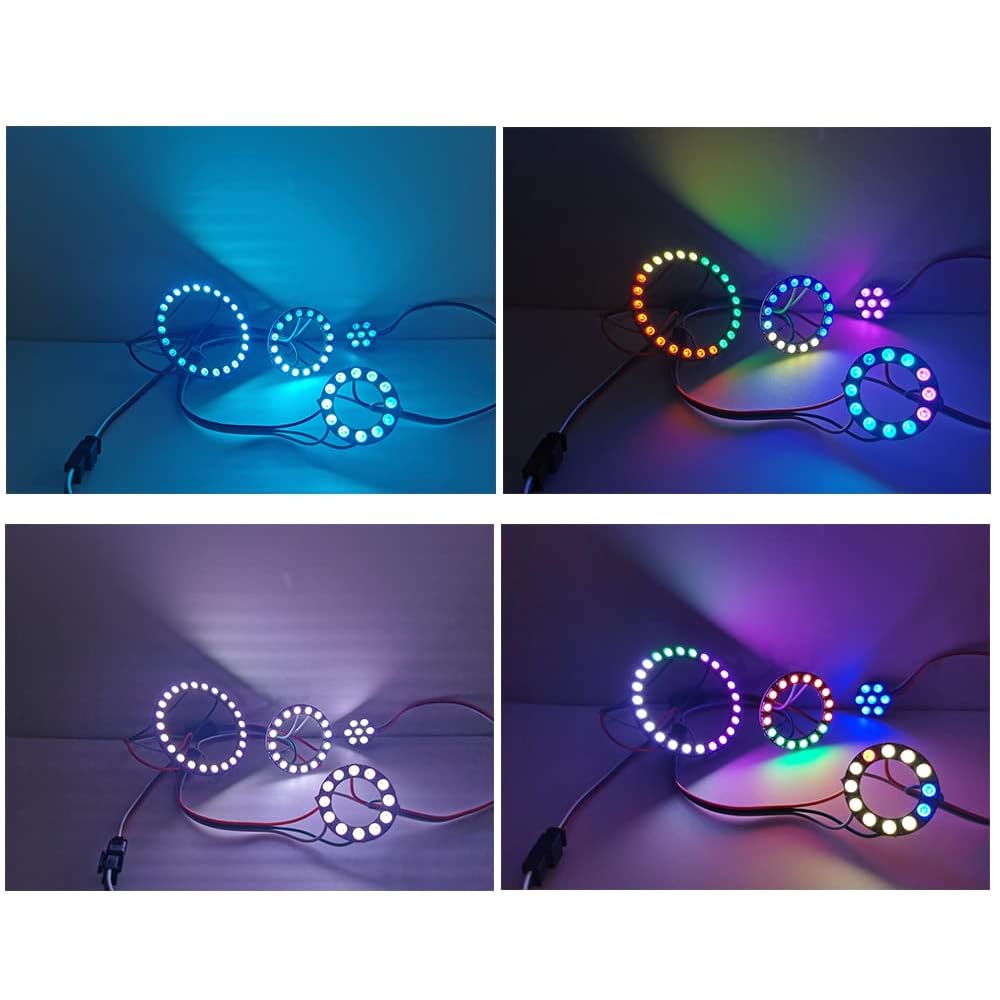

• [How many colors can it emit]It can emit 256X256X256=16777216 colors.[Application]LED Ring Clock, 3D Printed LED Fire Horns, Sound Reactive Peace Pendant

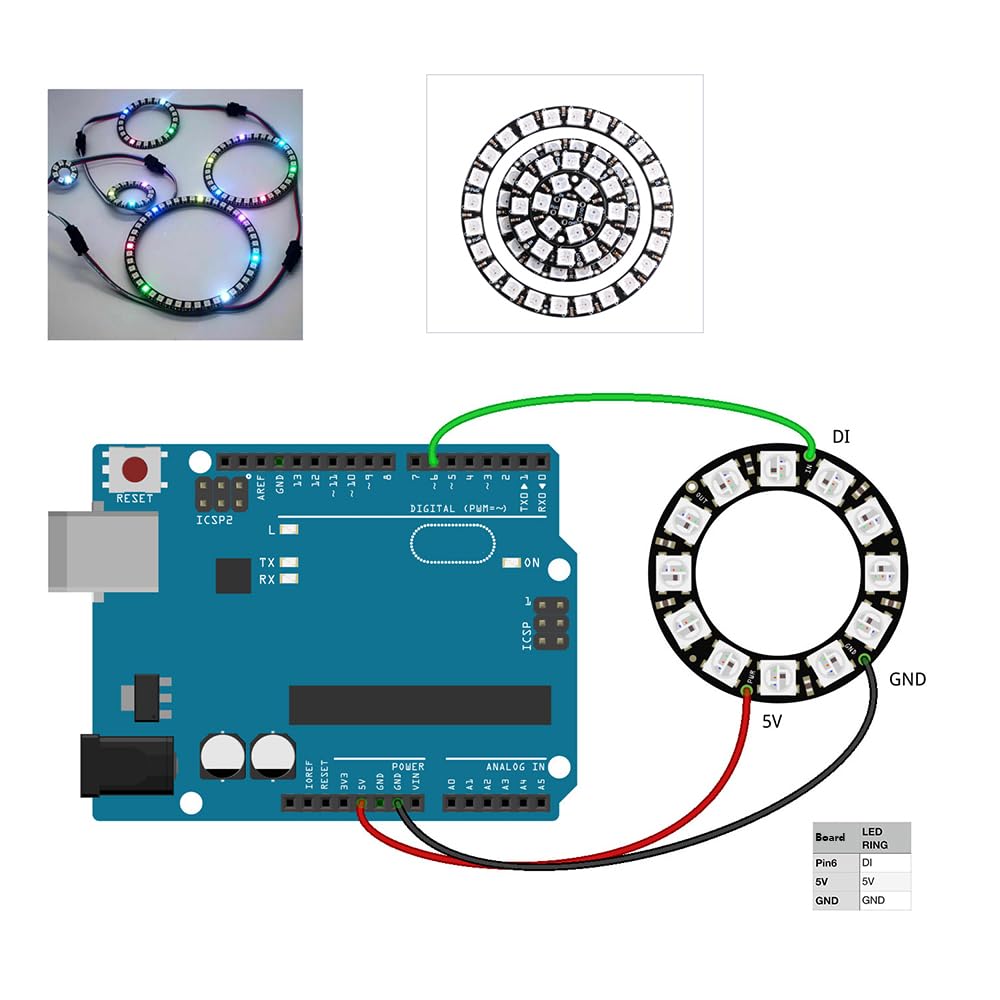

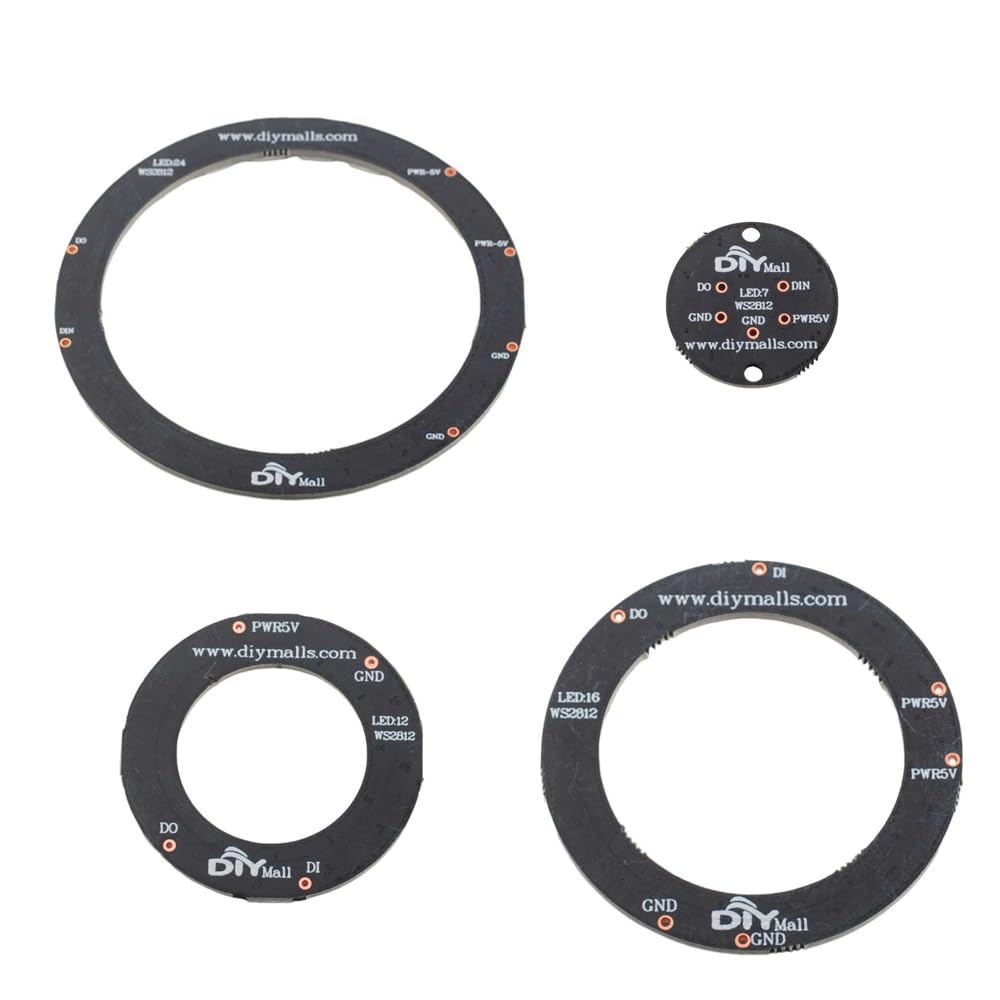

Voltage: DC4-7V Communication interface: Single-wire communication LED Chip: WS2812B LED Size: Outer diameter x Inner diameter 7 Bits: Outer diameter 23mm 12 Bits: 37x23mm 16 Bits: 45x32mm 24 Bits: 66x52mm Connection for the WS2812 LED Ring with MCU: 5V to 5V pin 6 to DI GND to GND Package Includes: 1 X 7 Bits WS2812 RGB LED Ring 1 X 12 Bits WS2812 RGB LED Ring 1 X 16 Bits WS2812 RGB LED Ring 1 X 24 Bits WS2812 RGB LED Ring FAQ Q: Can this be stripped to a red, green, and blue wire (+power) to be wired to a different board? A:No, the WS2812 is a digital LED, it need to be controlled by a micro controller or AVR with a digital pin and appropriate library Please check the link: https://github.com/jgarff/rpi_ws281x Q: Does each led require 18ma so the total 24 * 18 ma or total 432ma ? A: Yes, total is 24*18ma, this is for normal led brightness. You can also change code to change the led brightness, and the current will be different. Q: Is this something I can program once and not require data in? I need to program all led red or green and then power down and up to the last color. A: Yes, you can write code to achieve this function
