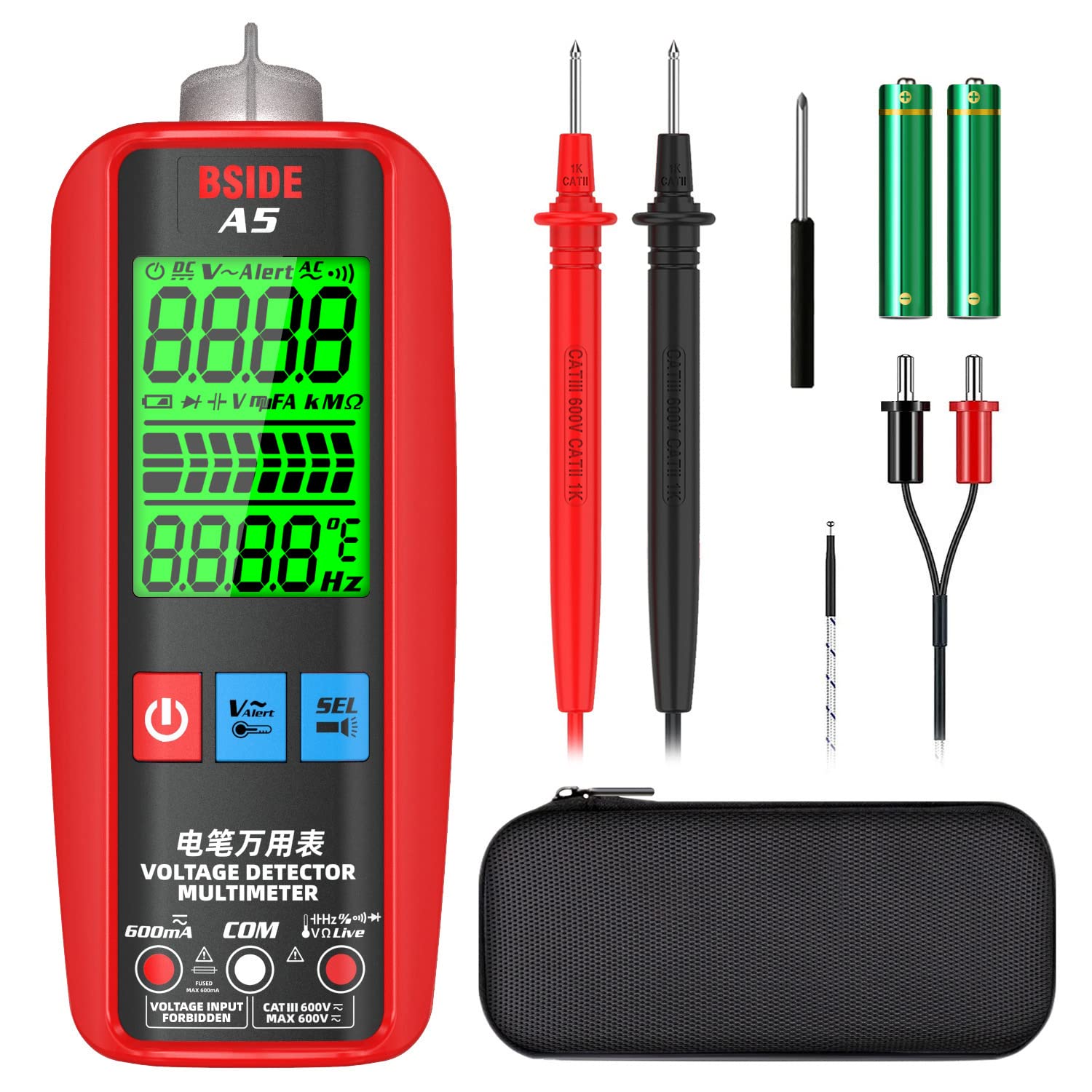

BSIDE A5 Smart Digital Multimeter Electrical Tester Auto range Intelligent Voltmeter with NCV VFC AC DC Volt/Amp Ohm Meter Cap Hz Continuity Diode Temperature Circuit checker Buzzer Alarm Flashlight

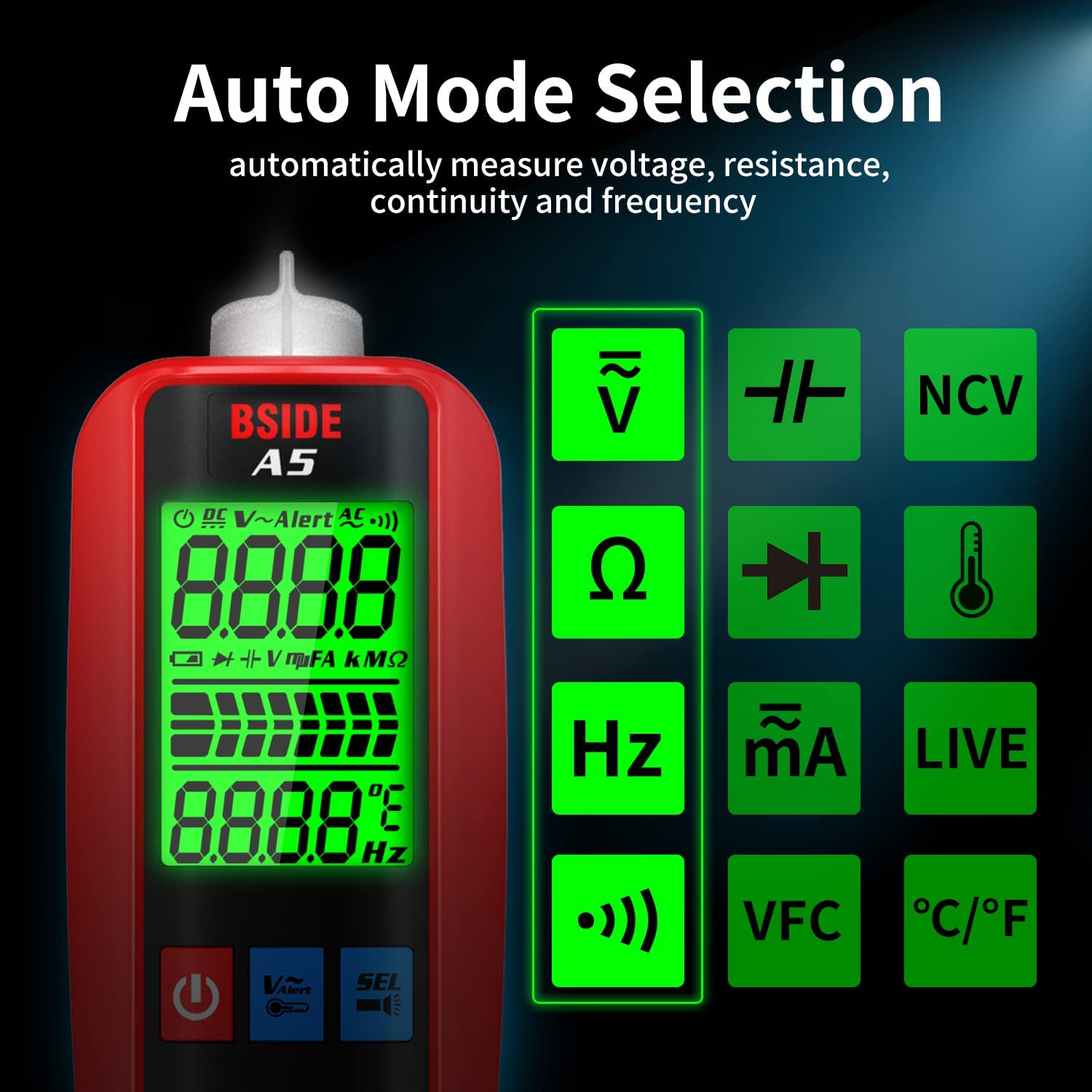

• AUTOMATIC AND SIMPLE - This A5 professional multimeter defaults to smart mode, automatically adjusting to what is read, giving you a fast and accurate reading without having to think about ranges. Easy to use for beginners.

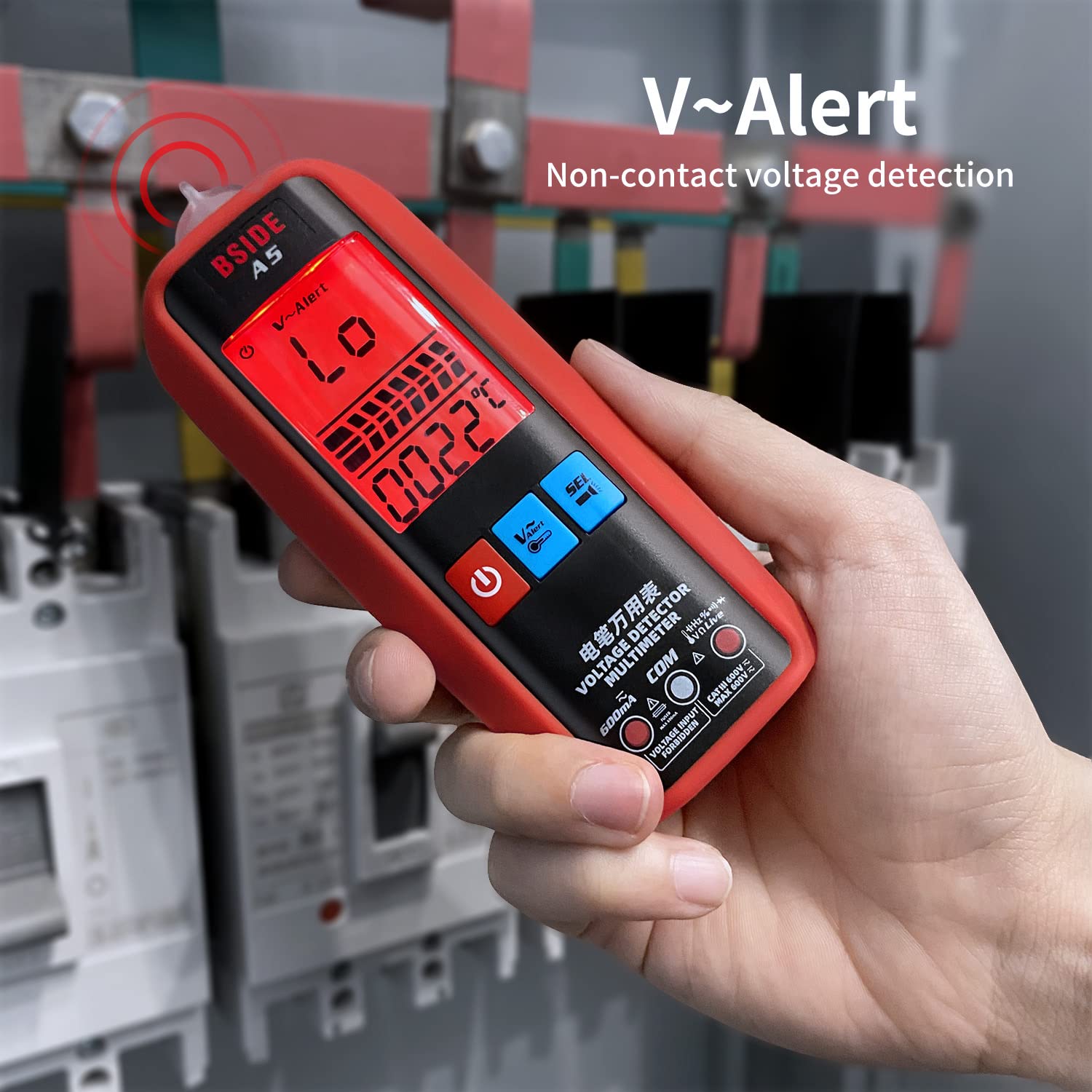

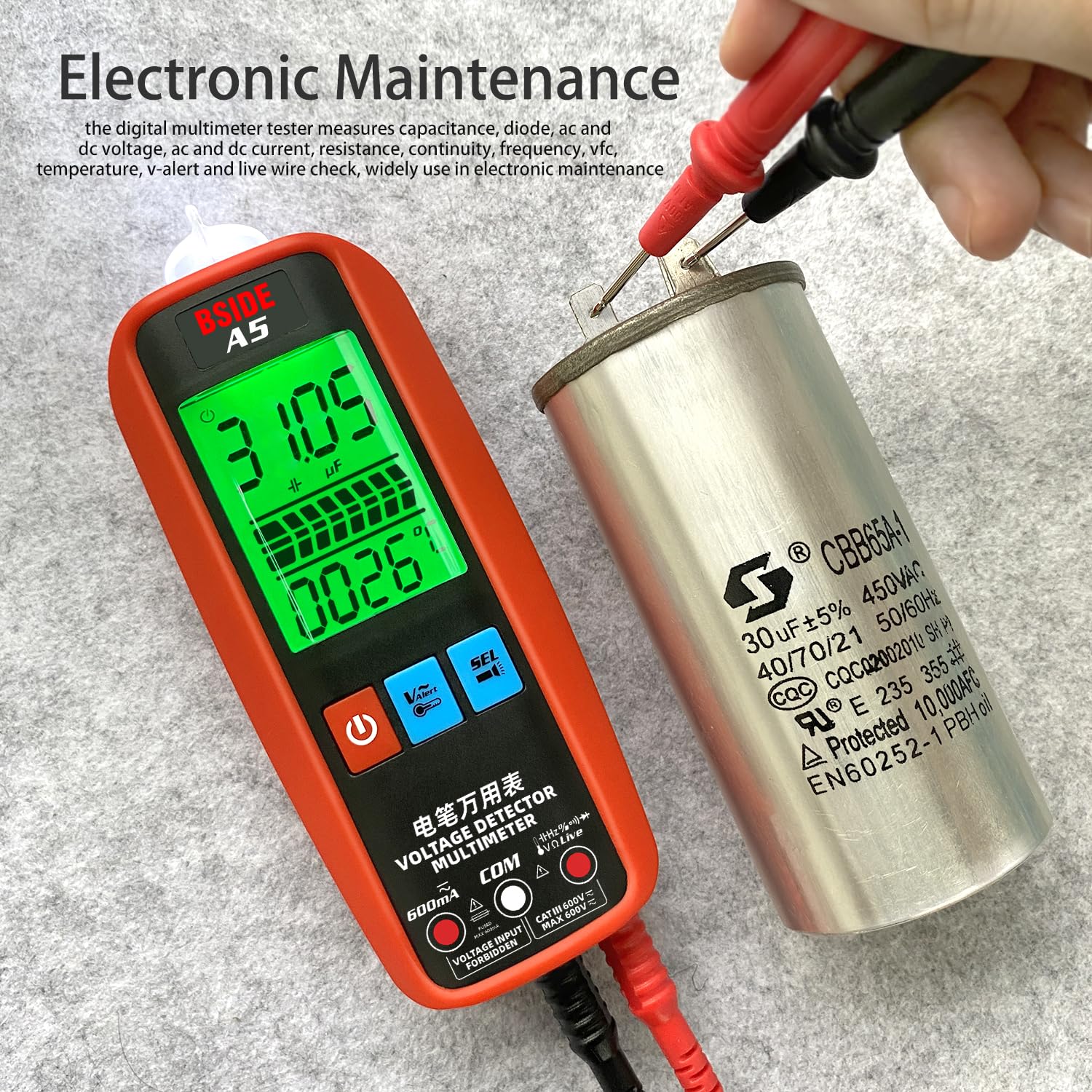

• HANDY AND MULTIFUNCTIONAL - Manual mode is also available via buttons. The smart multimeter can test AC DC voltage, AC DC current, resistance, capacitance, diode, continuity, frequency, temperature, and NCV detection with adjustable sensitivity.

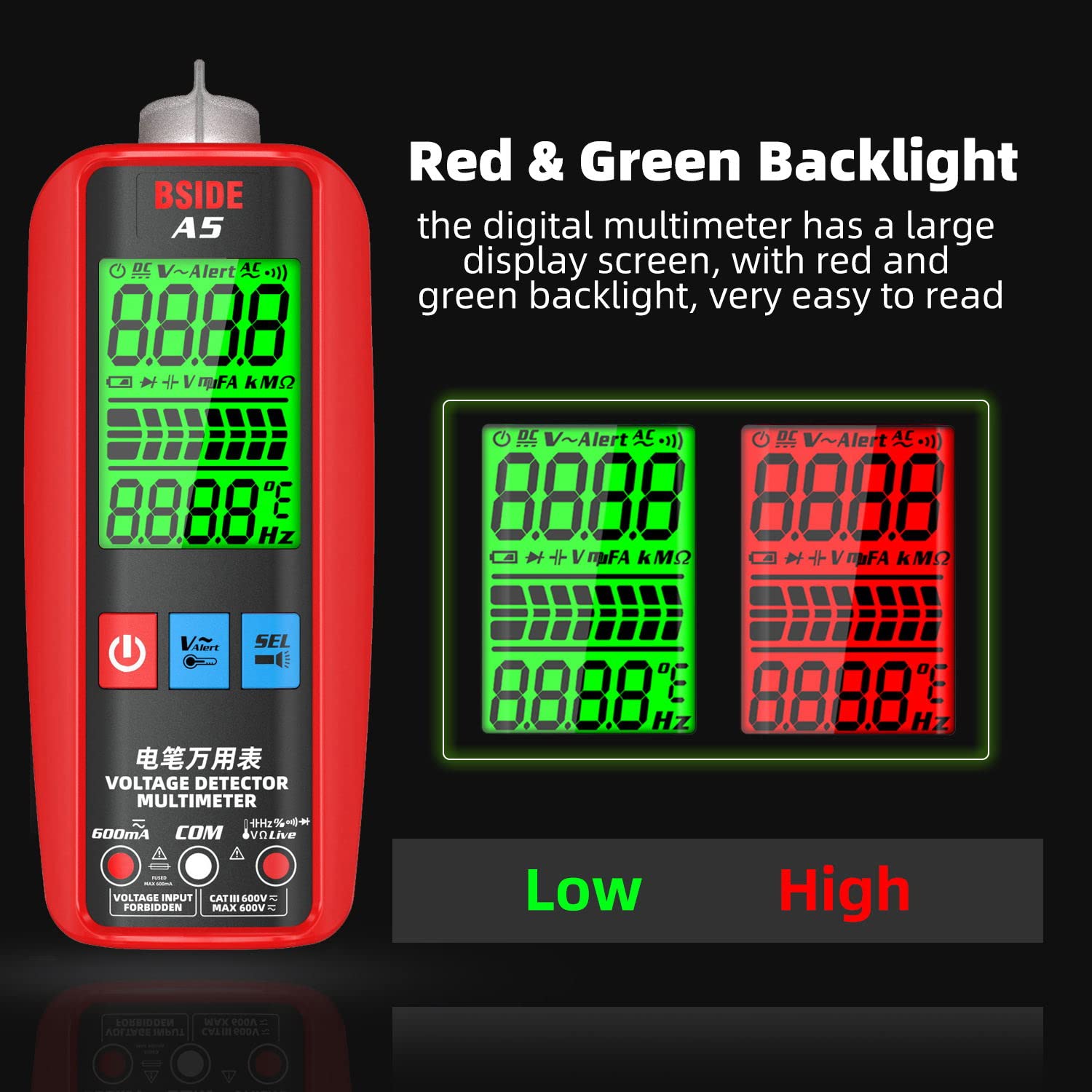

• LARGE DETAILED LCD - Intuitive, easy to read interface with large numbers. 3 test results Display: Test Value, Analog Bars and Hertz/Ambient Temperature. The Screen will turn red when the voltage under test exceeds 90V.

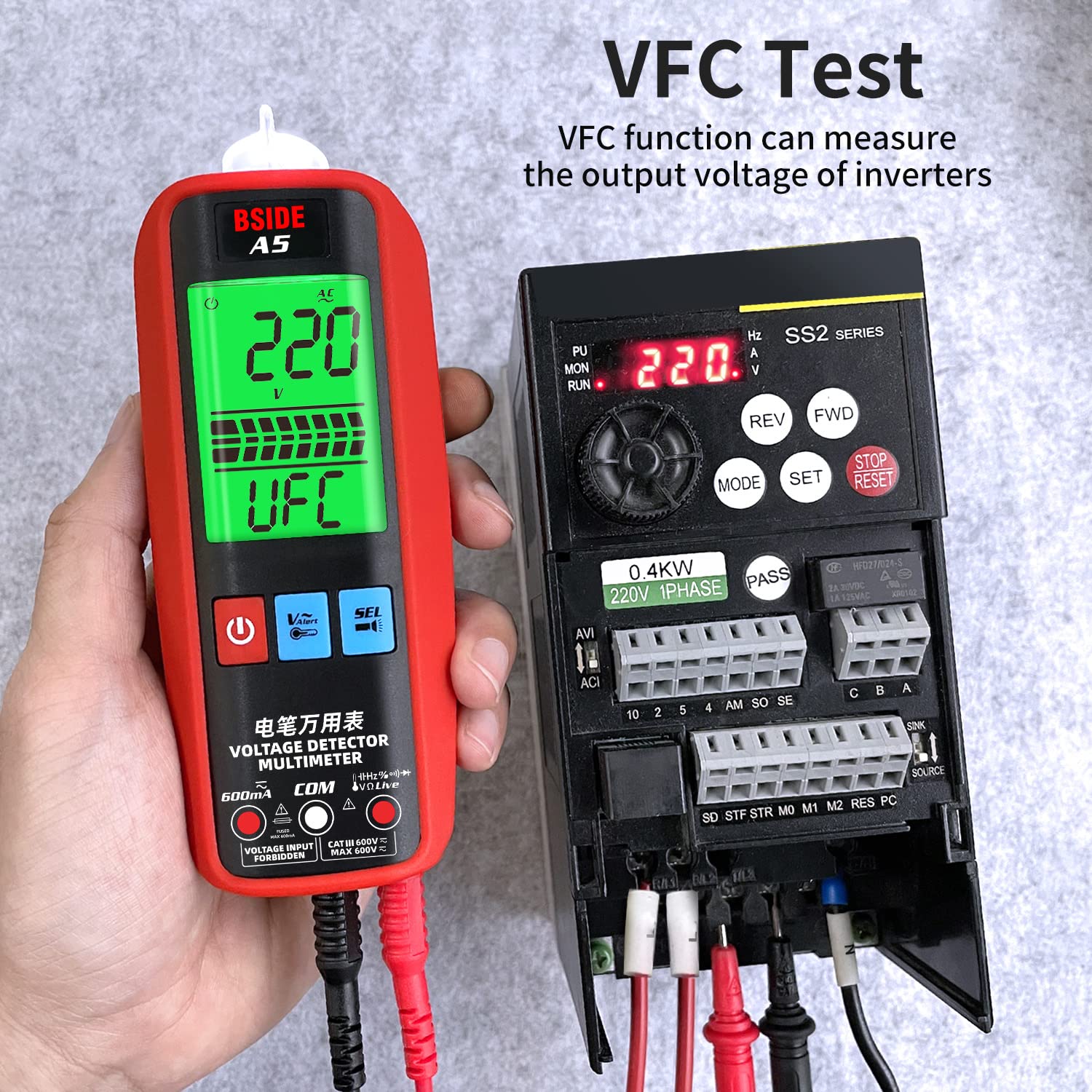

• MEASUREMENT OF INVERTER VOLTAGE - This electrician tester allows you to measure the output voltage of inverters. It helps you better plan the operating speeds of pumps, lifts and air conditioners, compressors, etc.
• POCKET MULTIMETER WITH CASE: Comes with a sturdy zippered bag. Compact, easy to carry for quick checks with flashlight. High impedance, anti- burned and anti-overcharge. All of these make this multi-function tester a difference and a safer enjoyment.

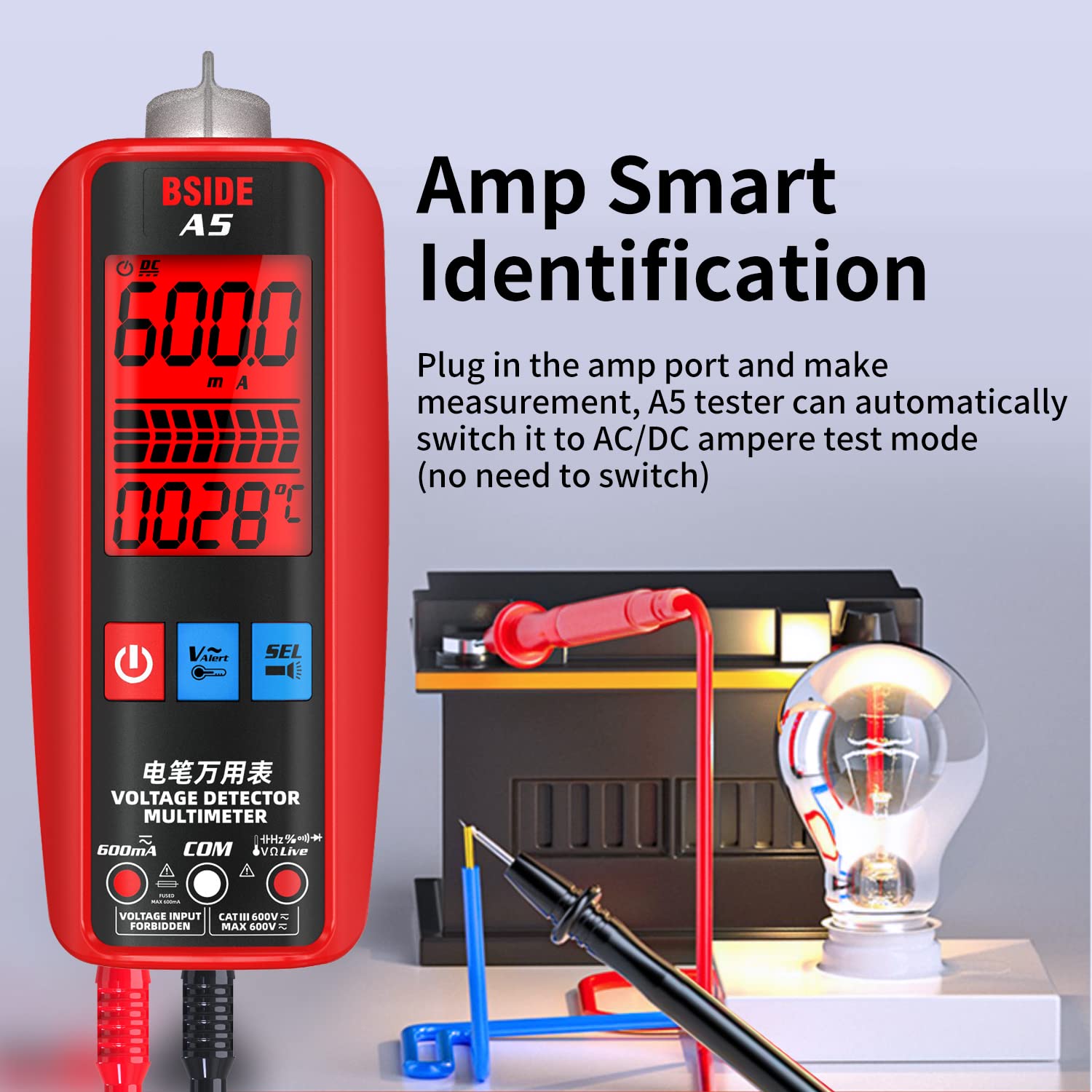

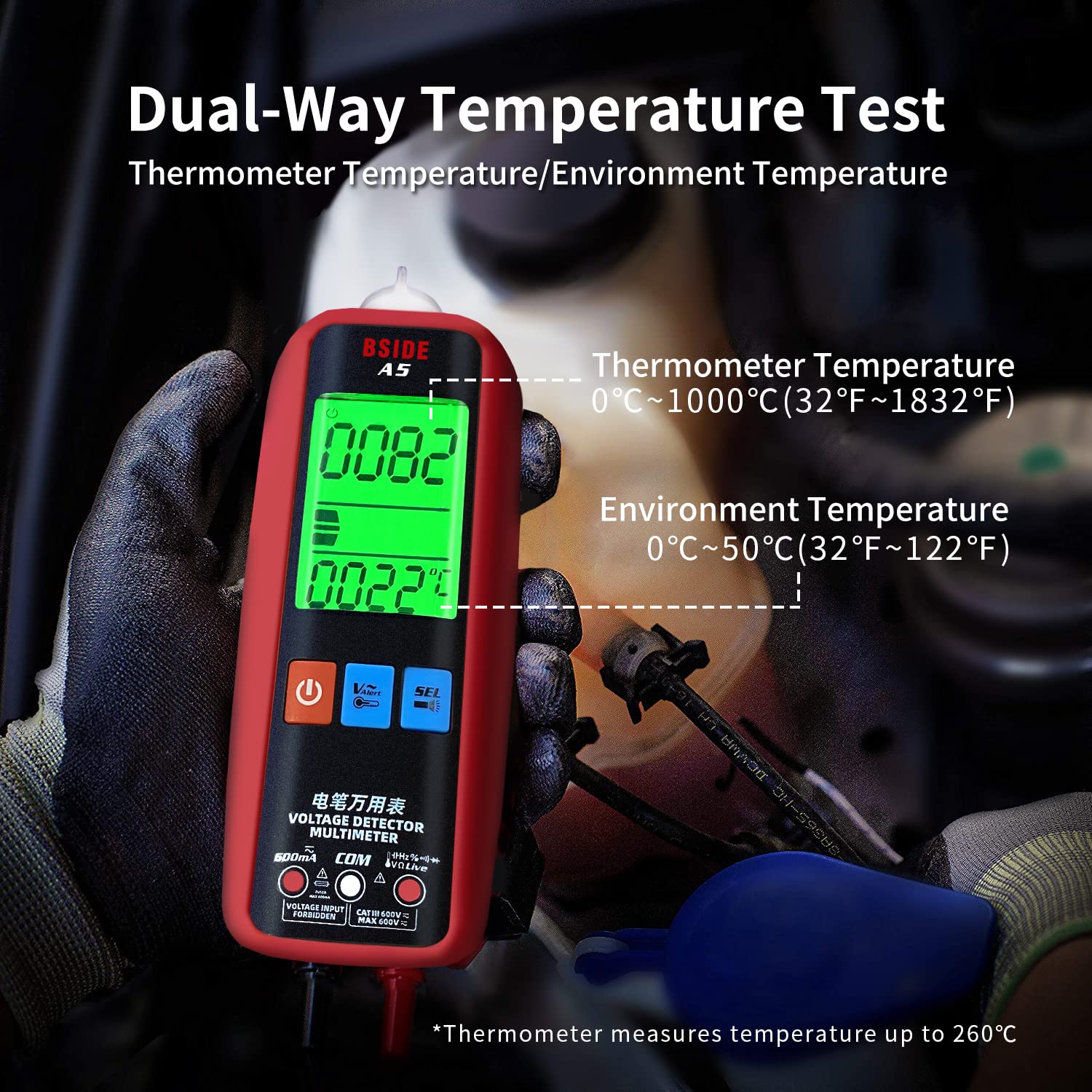

Our new generation electrical multimeter tester BISIDE A5 is designed for electricians and beginners with: Red/green backlight LCD display with 3 test results. Automatic test of AC DC voltage/current, resistance, continuity, and frequency. Measures amperage when red test leads connected to the left port (black in the middle). Capacitance, diode and temperature measurement and VFC function. Live wire check and NCV detection with adjustable sensitivity. Auto range, auto power off, low battery indication. Bright LED Flashlight for rewiring in the dark. EVA case, removable silicone leather cover. Specifications: Display: 6000 counts Screen: 2.2 inch DC Voltage: 0-620V(DC mode)/0.8-620V(Auto mode) 0.01V ±(0.8%+3) AC Voltage: 0-620V(DC mode)/0.8-620V(Auto mode) 0.01V ±(1.2%+5); 10-620V(VFC Mode) 1V (4.0%+3) DC Current: 1.0-610mA 0.1mA ±(1.5%+3) AC Current: 1.0-610mA(40-1000Hz) 0.1mA ±(1.5%+3) Resistance: 0Ω-6MΩ 0.1Ω ±(1.2%+3)；6MΩ-60MΩ 0.1Ω ±(2.0%+10) Capacitance: 0.5µF-6mF 0.001µF ±(3.5%+8); 6mF-60.00mF 0.001µF ±(4.5%+10) Frequency: 0-9999Hz(900mVrms-20Vrms) 0.001Hz ±(2.0%+10) Temperature: 0-50℃(32-122℉) 1℃/1℉ ±(1.5%+2); 50-1000℃(122-1832℉) 1℃/1℉ ±(2.0%+3) V-Alert(Non-contact Voltage Detection): 90V-1000V/6V-1000V AC voltage Diode: Measures diodes less than 3V Continuity: If the resistance is less than 50Ω, the beeper sounds Live Wire Check: Yes Ambient Temperature: 0-50℃ ±2℃ Power: 1.5V (AAA) x 2 Size: 139.7 x 53.7 x 32.8 mm Weight: 92g Package Includes: Multimeter Autoranging Test Leads Thermocouple Carrying Case 2 x AAA Battery Screwdriver English User Manual
