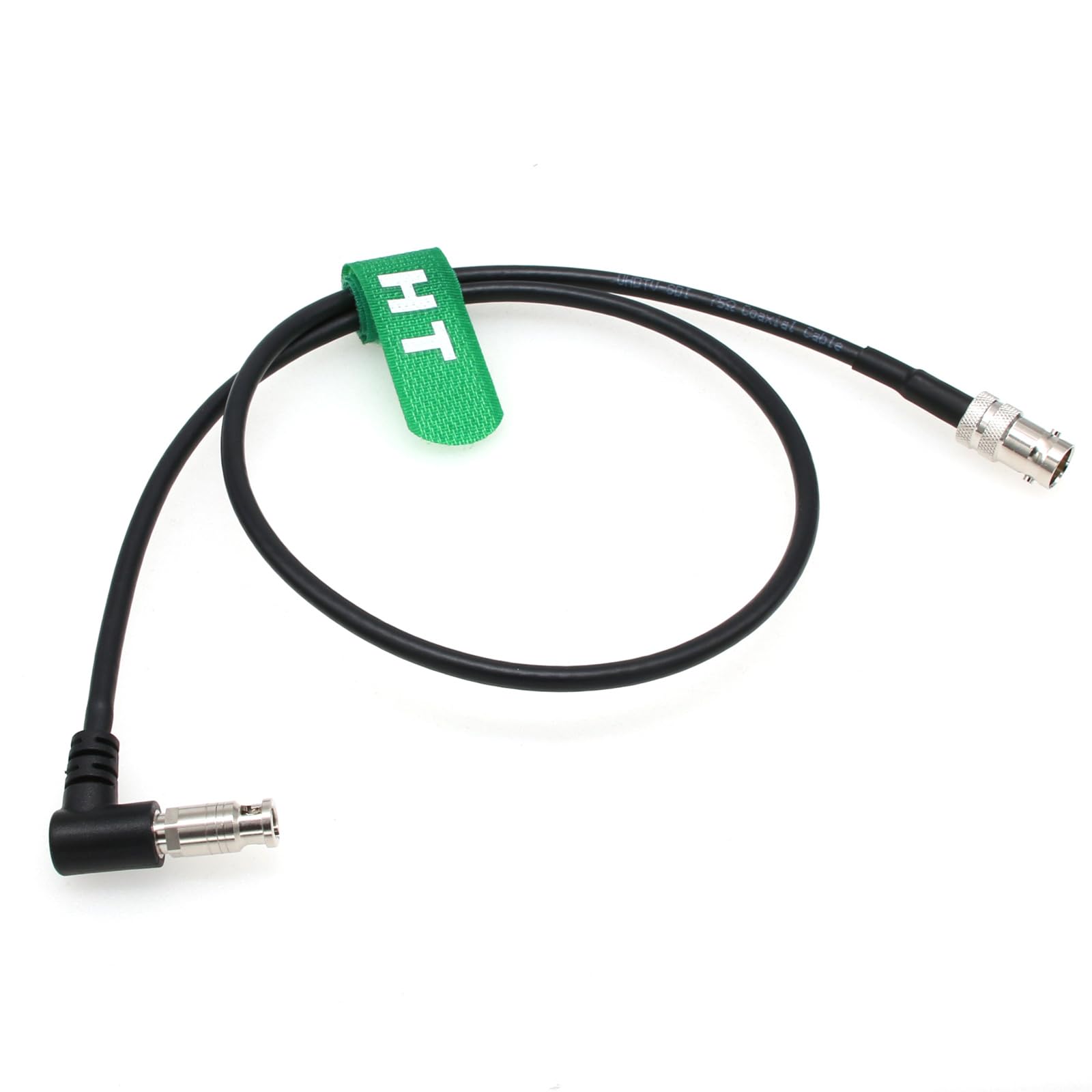

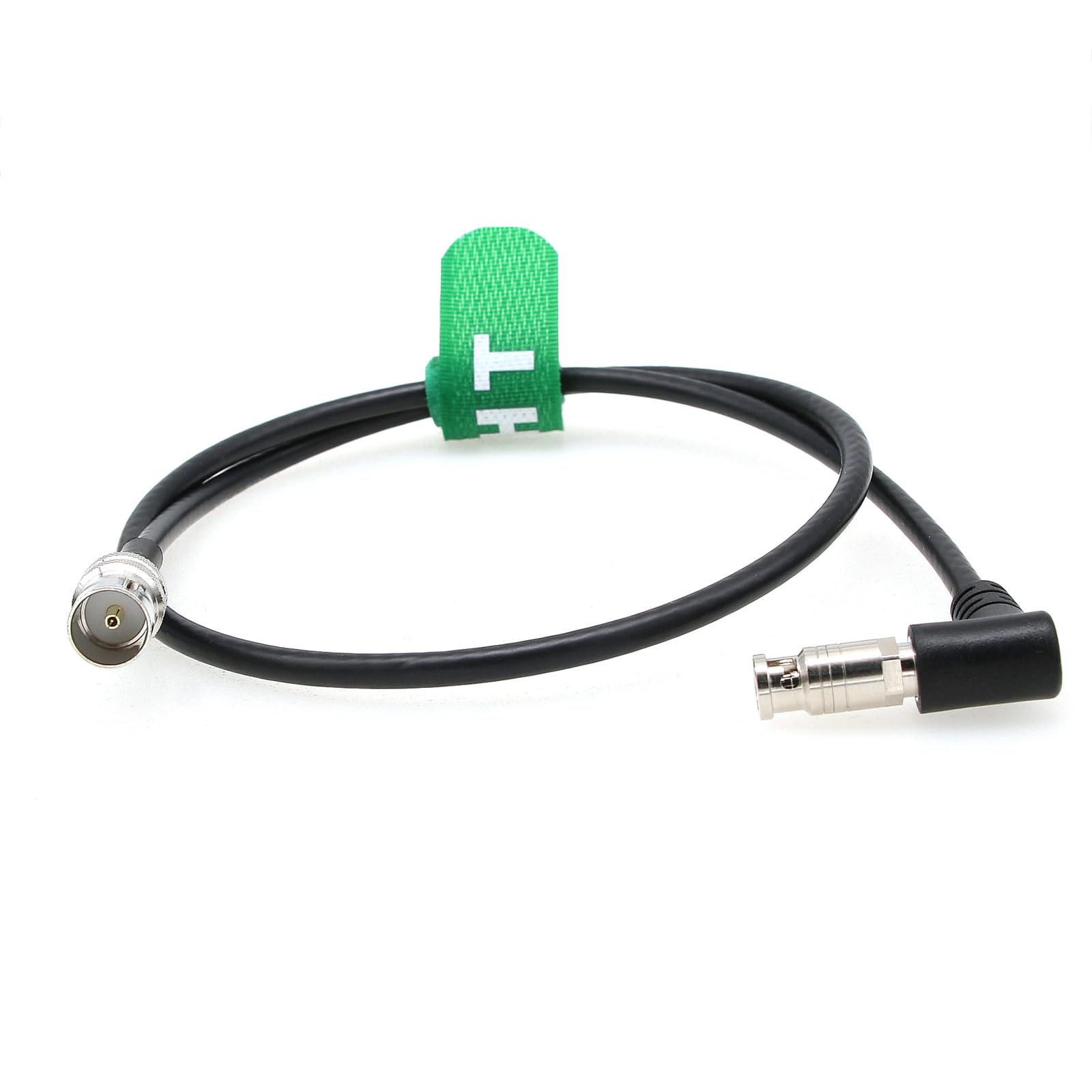

HangTon 6G SDI Video Cable HD Micro BNC to Female BNC Adapter for Blackmagic Video Assist 4K 5" Monitor, Micro Studio Camera 4K G2, Right Angle High Density 2m

• 4K 6G 3G HD SDI video coaxial adapter extension cable for Blackmagic Video Assist 5" 12G / 3G SDI monitor, for Blackmagic Micro Studio Camera 4K G2 and ATEM switcher, for DJI Lightbridge 2

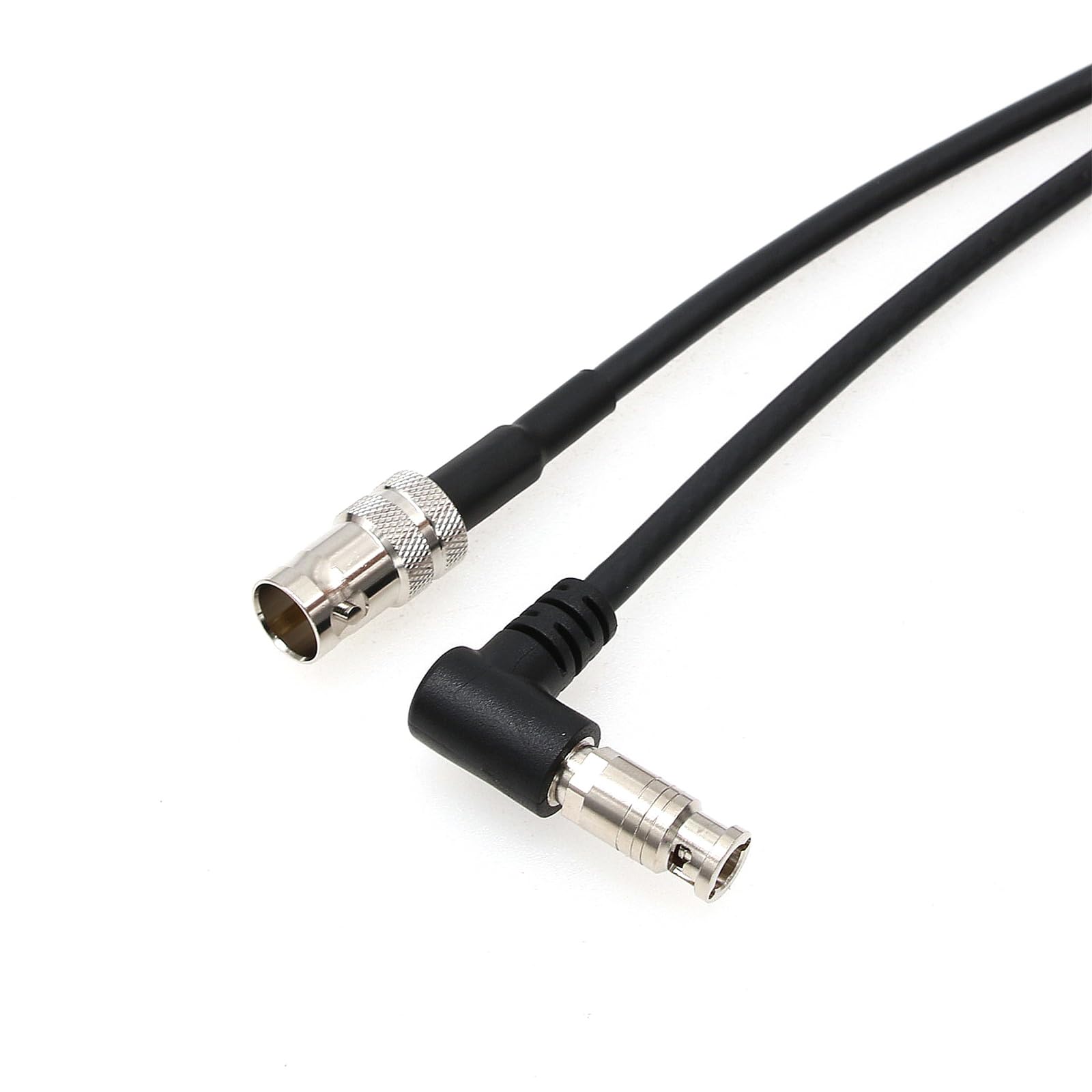

• Connectors right angle male Micro BNC / HD BNC ( high-density ) to standard full-size female BNC. HD BNC is different from DIN 1.0/2.3 connector
• 75Ohm connectors and 75Ohm HD-SDI 6Ghz coaxial shielded cable. Support 4K@30fps, 3840 or 4096 x2160p@30/29.97/25/24/23.98HZ, 1920 or 2048 x 1080p@30/50/60HZ, 720p@30/50/60HZ resolution (not support 2160p50 2160p60 4K60). Meets SMPTE 424M, ST 2081-1 and ST2082-1 Standards
• SDI cable for broadcast camera monitor, mobile broadcast, HD CCTV, digital audio cards and routers offering 4x the density of the standard BNC connector with the same reliable and secure bayonet locking mechanism
• Length 2m / 6.56ft

We make custom cables. 3G 6G SDI Video Adapter Cable HD Micro BNC to Female BNC for Blackmagic Micro Studio Camera 4K G2 and Video Assist 5"12G / 3G Monitor, 1080P60/50/30. The Micro BNC is a small bayonet lock 75 Ohm connector and is also known as the HD BNC. The Micro BNC is approximately 50% smaller than the standard BNC connector and is similar in size to the DIN 1.0/2.3 connector.
