Chibery 20 Pack Frameless Half Overlay Soft Close Concealed European Hinges, Self Closing Satin Nickel, 105 ° Open Angle 4D Adjustment, Speed Control, Clip On, Stainless Steel for Cabinet Door

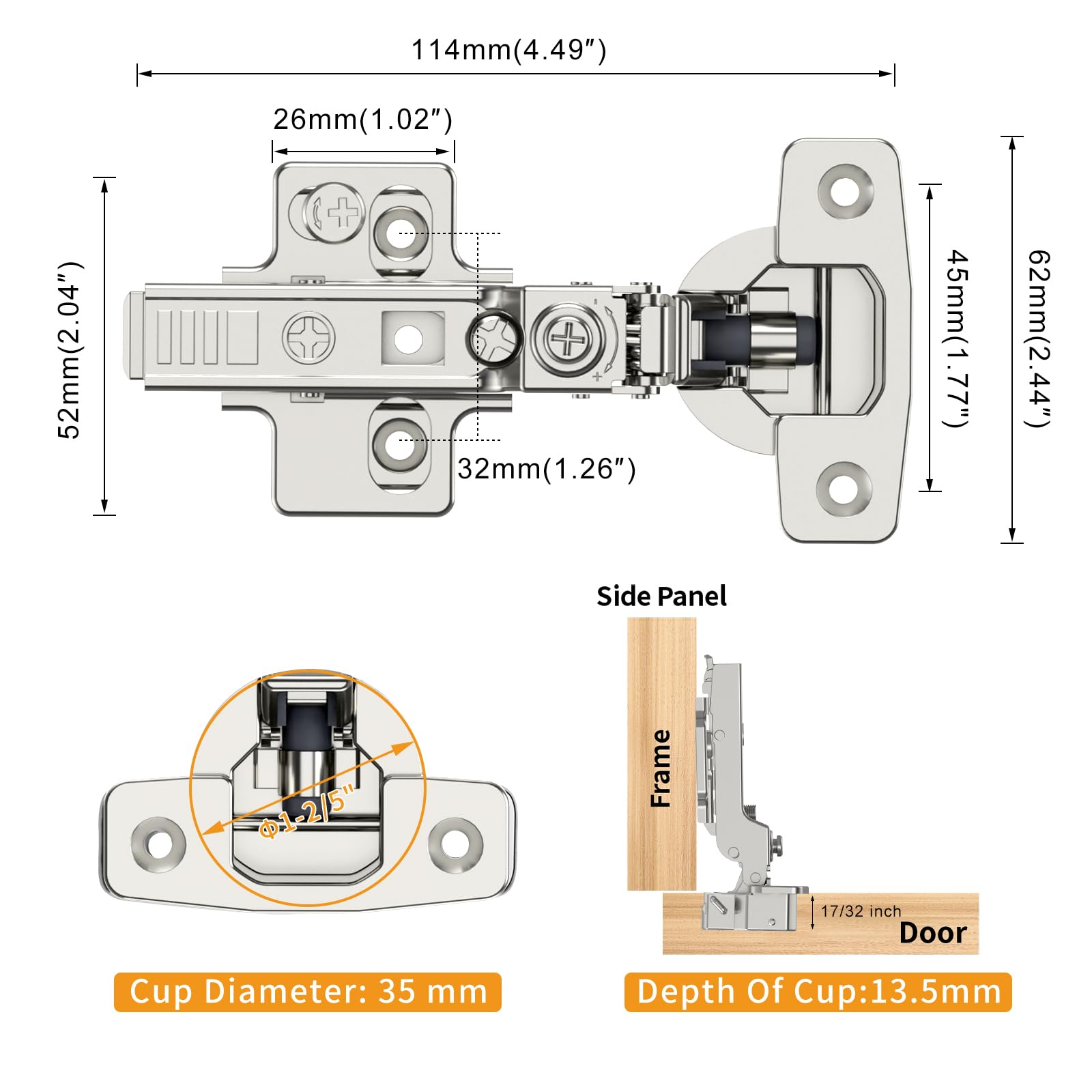

• Installation Specification - Cup depth: 13.5mm; Screw holes distance: 45mm; Opening angle: 105 degrees; The range of door thickness is 14-22mm, suitable for most cabinet door styles. Each hinge comes with 2 easy-on dowels and 4 self-tapping wooden screws to ensure a perfect fit and comes with 2 screw covers to hide the screws. Each euro-style concealed kitchen cabinet hinge is fit for full overlay doors on frameless cabinets.
• SOFT CLOSE CABINET HINGE - Each cabinet hinge includes a built-in POM damper, Reduced closing speed prevents noises from the kitchen and prolongs the life of doors, cabinets, and hinges. In addition, it also supports ★SMALL SOFT CLOSE ANGLE★, which can better protect your finger.
• 4D Adjustable Upgrade - 4D hinges can adjust the cabinet door just by turning a screwdriver (Vertical, Horizontal, Depth, Closing Speed), which will make sure that your new custom-made cabinet doors don't sag, align properly, and will open and close smoothly; Closing speed can be adjusted at will within 3-8s.
• Stop at any angle after 45° - Cabinet hinges can stop at any angle after the cabinet door is opened at an angle greater than 45°. This means that you don't need angle clips when your cabinet door is near the wall, and you can still open it at different angles according to your needs. When the opening angle is less than 45°, the cabinet door self-closing.
• Buy with Confidence - Chibery hinges Conform to the standards and certifications of ISO9001, ISO14001, BHMA, KCMA, and SGS. The product can withstand more than 100,000 times of opening and closing and more than 48 hours of salt spray test. If you encounter any problems in the process of use, please feel free to contact us, we will provide the most intimate service.

Product Details: Chibery Frameless Soft Close Cabinet Hinges------Provide long-lasting durability, 4D Adjustment Structure, soft close and the reinforced strength to outlast even the roughest kitchens or bathrooms. 4D Adjustment Structure The cabinet hinges have 4D adjustments, which superior than 2D/3D adjustment in normal. Then ,it means you could: Adjust Up and Down Adjust Left and Right Adjust Front and Back Adjust Closing Speed They would give countless adjustment chances to you until you are satisfied! Advantage: √ 4D Adjustment, just turn the screw, you can adjust the hinge position √ Self-soft closing design with built-in hydraulic √ Suitable closing speed which could protect your hands √ Silent open and close, provide a comfortable home environment √ Heavy-duty stainless steel surface treatment, more durable √ Two Opening Angles √ Easy installation Specification: Material: Cold-Rolled Steel, Surface Nickel-Plated Opening Angle: 105° Hinge Cup Diameter: 35mm (1-2/5") Hinge Cup Depth: 13.5mm(13/25") Screw Hole Distance: 45mm (1-4/5") Drilling Distance On Door(K): 3-6mm Range Of Door Thickness: 14-26mm Packing include 10 x Cabinet Hinges 20 x Pre-installed Dowels 40 x Screws
