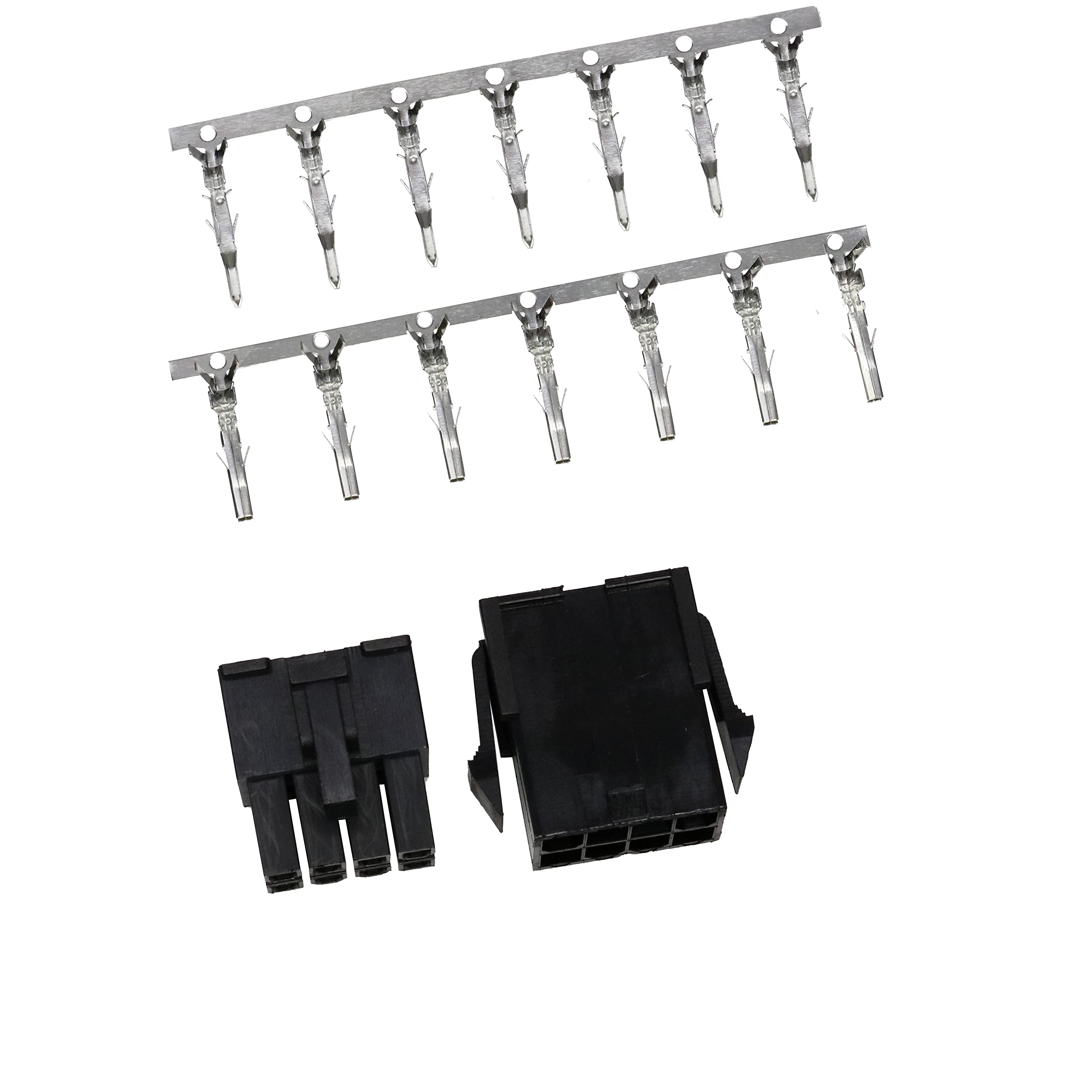

5557/5559 Double Row 4.2mm Black 8-pin Wire-to-Wire Crimp Connector Plug + Wire Socket + Crimps, Pack of 20 Compatible With Molex Mini-Fit Jr.

• 5557 / 5559 Double Row Series Wire-to-Wire Crimp Connectors
• High quality replacement parts, compatible with Molex Mini-Fit Jr. series connectors
• Includes 20 8-pin plug housings, 20 8-pin wire sockets, 160 plug crimps and 160 socket crimps

5557-5559-420 connectors are a series of wire-to-wire crimp connectors. They feature a high current, high density design, positive locking, fully isolated terminals and polarisation.SPECIFICATIONS: Pin Pitch: 4.2mm, Maximum Current: 9A AC/DC, Maximum Voltage: 300V AC/DC, Temperature Range: -25°C - +85°C, Contact Resistance: ≤15mΩ (≤25mΩ after environmental testing), Insulation Resistance: ≥1000MΩ, Withstanding voltage: 1500V AC/minute, Compatible Wire Size: 28AWG - 16AWG, Housing Material: Nylon PA66 (UL94V-0/V-2), Header Material: Nylon PA66 (UL94V-0/V-2), Brass, Tin (plating), Crimp Material: Phosphor bronze, Tin (plating)
