Car Reversing Camera,CVBS Car Reversing Camera Car Rear View Camera with HD Night Vision 170° Wide Angle IP68 Waterproof Car Backup Camera.Universal Parking Camera 600TV Lines for Cars Trucks Caravan

• The rear view camera help you get more vision when driving or parking, effectively avoiding collision with obstacles and scratches. Equipped with 6m video cable and 1.5m power cable, easy installation and stable signal. Suitable for Android MP5 Players and any TFT car monitors.
• HD Rear view Parking Assist Camera has 1280*720P high-definition pixels, day and night are equally clear. 170 Degree fish-eye appearance/F1.4 aperture larger aperture and high transmittance glass can maximum output pixels. can be easily used at night,170 degree field of vision giving you the best view at any time.and more safety.
• The reversing camera fills it with waterproof nano glue and 100% sealing.IP68 waterproof, with its waterproof performance, the camera will be protected against strong water currents from any direction. Effectively resists fog, rain and scorching sun, and is durable.support user to have a live rearview when vehicle is moving ahead.
• this rear view camera not have LED lights. The LED lamps are difficult to seal, which makes the water enter more easily, and the LED light is dazzling for the driver behind. we adopt superb lens and 1/2.7inch Chip,the brightness and color saturation are further enhanced on the basis of sufficient clarity. The increased brightness makes the image more clearly.
• It has a wide range of uses suitable for variety of vehicles: car, track,mini-truck, RV, SUV, van, mini-van etc.By using dark light technology, it can continue to provide drivers with ultra-high-definition images even at night, improving driving safety.support user to have a live rearview when vehicle is moving ahead.If you have any questions, we will help you within 24 hours

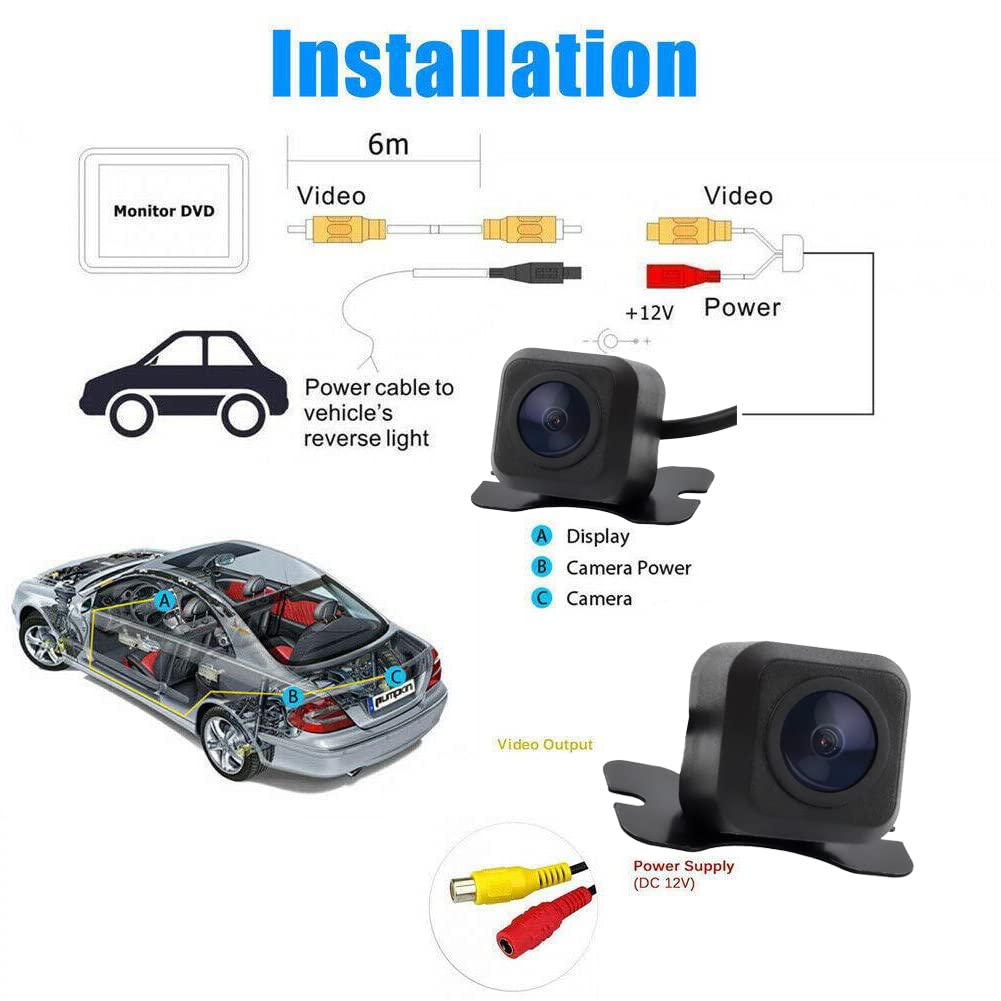

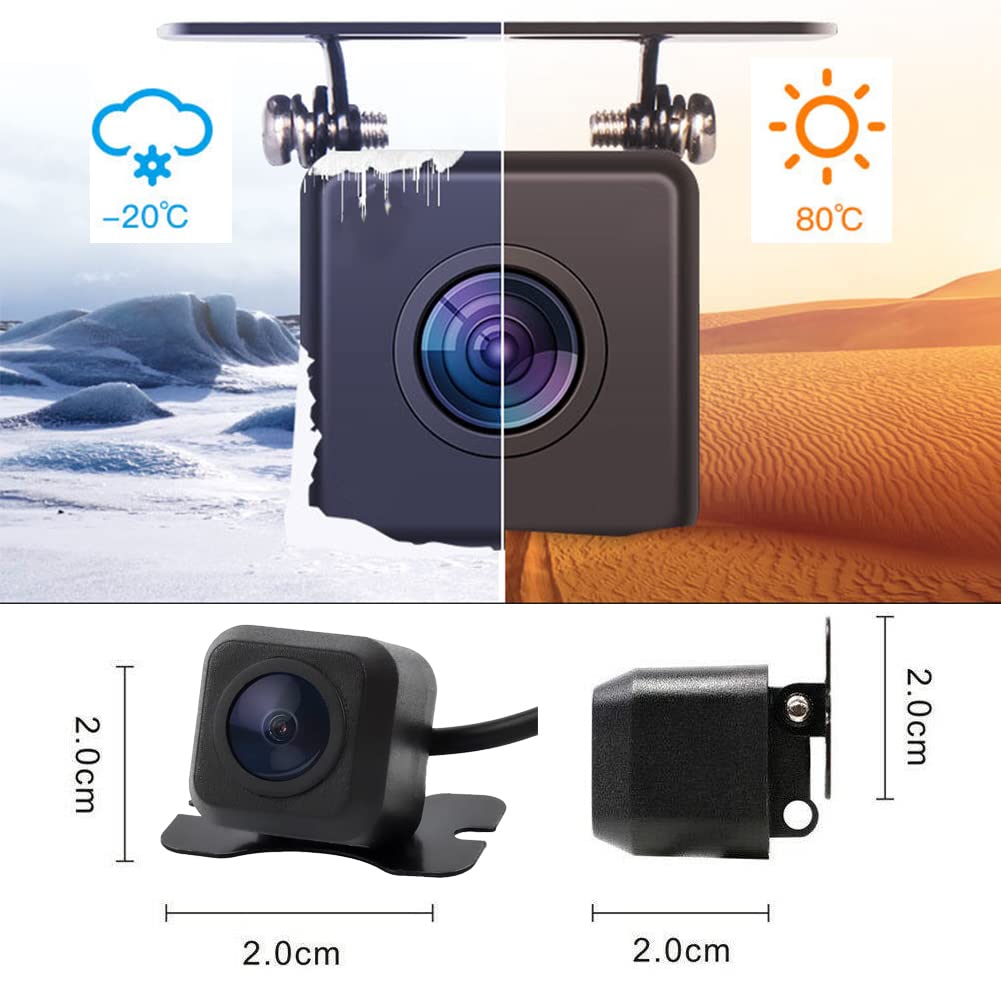

The car backup camera has a 170 degree wide angle view with distance scale line. It is suitable for all vehicles with 12V power supply, such as car, track, RV, SUV, van, minivan, etc. Specifications： Image sensor format: 1/2.9” CMOS Pixels：1280(H)x720(V) Compatible Vehicle Make: Universal Camera Connection Type: Wired Resolution: 1000 TVL Image device:1/3 inch CCD color image sensor. Video Output: RCA connector Video Frame rate: 720P@30FPS Video Signal Out：Analogue HD signal, 1.0 Vp-p / 75Ω White balance: automatic Backlight compensation: Yes Noise reduction: 3D DNR Working Voltage: DC 3.3V～5V Working Current: 130mA～150mA Working Temperature：-30℃～+80℃ (-22°F ～ 176°F) Rear-view guideline: Not built-in, provided by Car stereo system Waterproof Rate: IP67 Night-vision: YES Lens Viewing Angle: 170 Degrees Installation of the reversing camera: 1. Mount the camera on your car's license plate or other convenient location 2. Adjust the camera lens to the optimal position 3. Connect the power cable (red and black) to your vehicle's 12V DC system 4. Connect the video output (yellow wire) of the camera to your vehicle's screen Package Contents 1 x Car Rear view Camera 1 x Power Cable (1.5m/4.9ft) 1 x AV Cable (6m/19ft) 1 x User Manual
