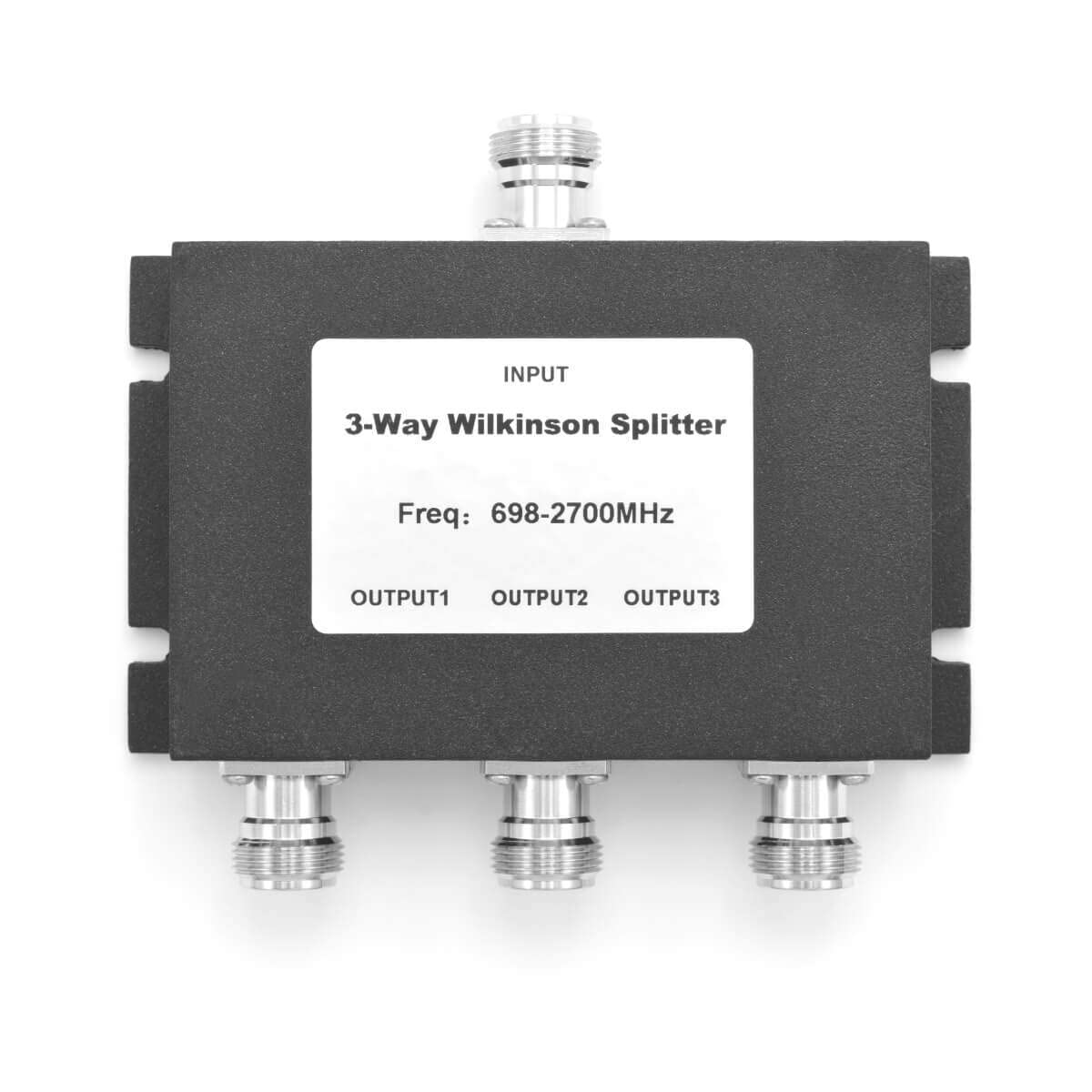

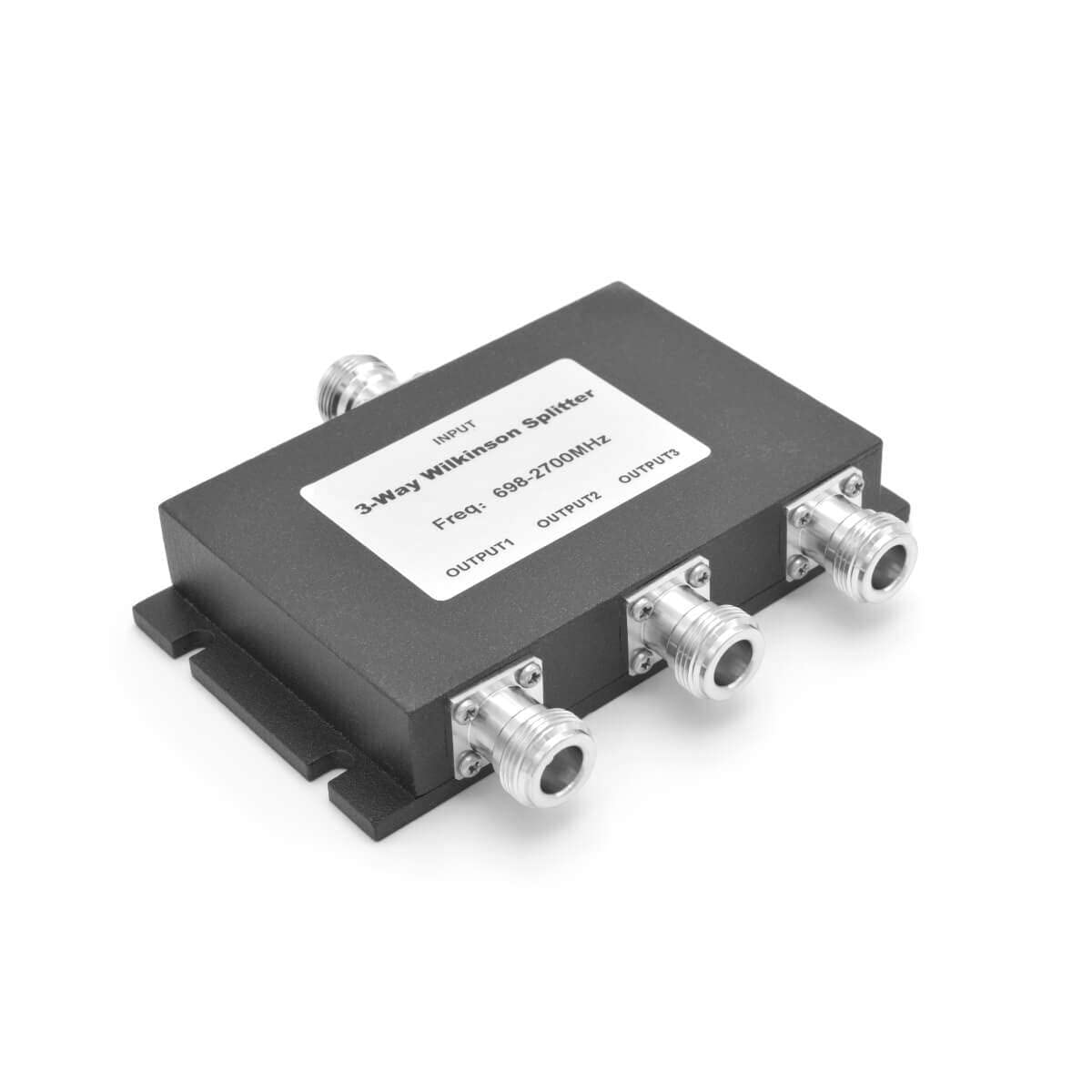

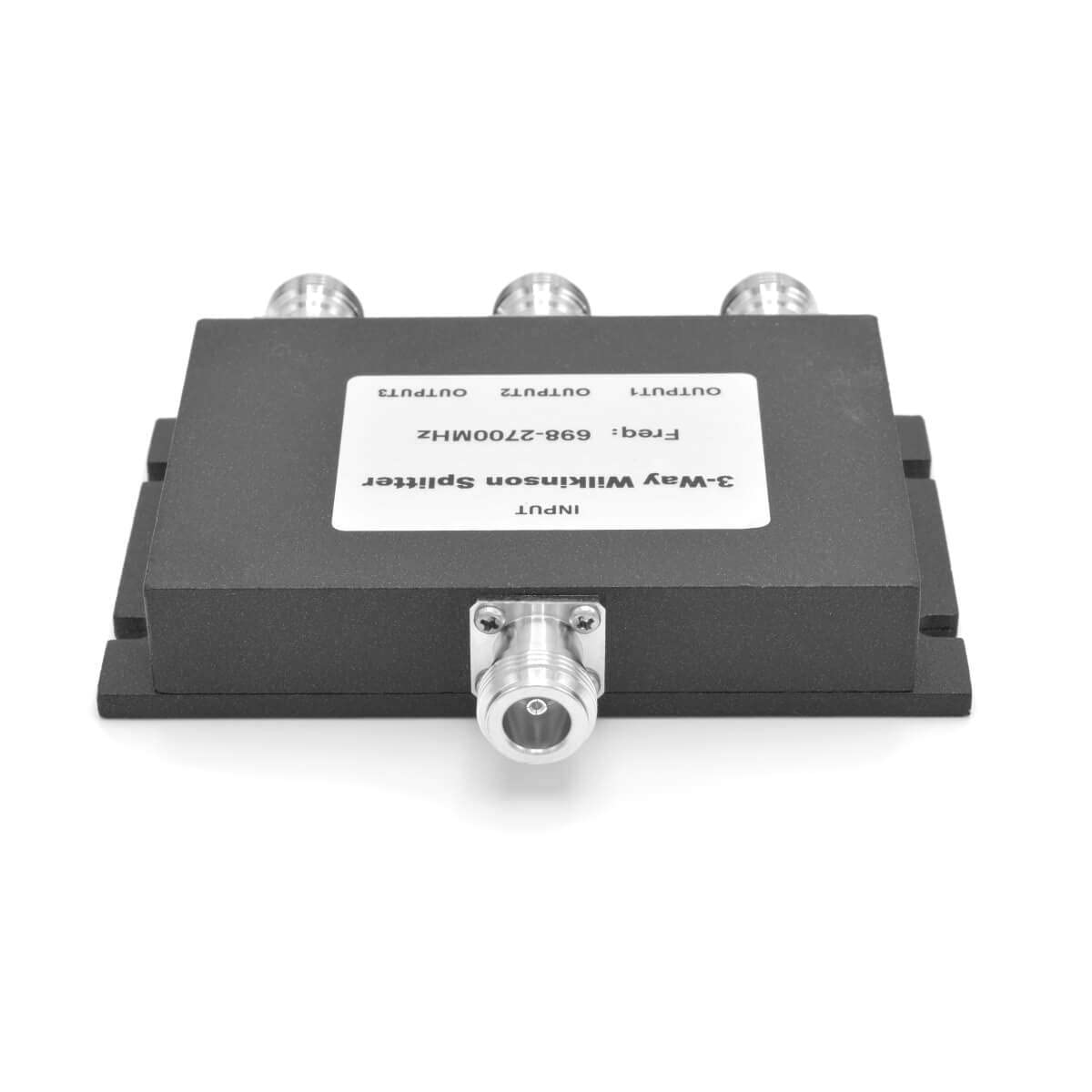

RANGEFUL 3 Way Splitter N Female 50 Ohm WS3W Cellular Signal Splitter for LTE CDMA GSM 3G 4G 5G 698~2700MHz for Mobile Signal

• Required to connect 3 antennas to 1 device. Supports all frequency bands.
• Equal division or combination of signal power. Low losses allow high power operation.
• Small and light aluminum housing
• Convenient attachment to any surface
• High-quality N Female standard connectors

The WS3W 3-Way Splitter (also power divider or power splitter and, when used in reverse, power combiner) is a device for evenly splitting or combining signal power (up to 50 W) in a cellular system. Typically, the Splitter is used to connect additional antennas and/or devices. This signal splitter is necessary, for example, when three indoor antennas are used to supply two rooms with an equally strong mobile radio signal. If less than two antennas are connected, a “dummy load” must be connected to the free outputs of the 3-Way Splitter. WS3W supported frequencies & standards: 800 MHz – LTE800 (4G) 900 MHz – EGSM/GSM-900 (2G), UMTS900 (3G) 1800 MHz – GSM-1800 (2G), LTE1800 (4G) 2100 MHz – UMTS2100 (3G) 2600 MHz – LTE2600 (4G). Main features of the 3-Way Splitter: Small and light aluminum housing, Convenient attachment to any surface High-quality N-Female standard connectors, Support for all frequency bands Low losses allow high power operation.
