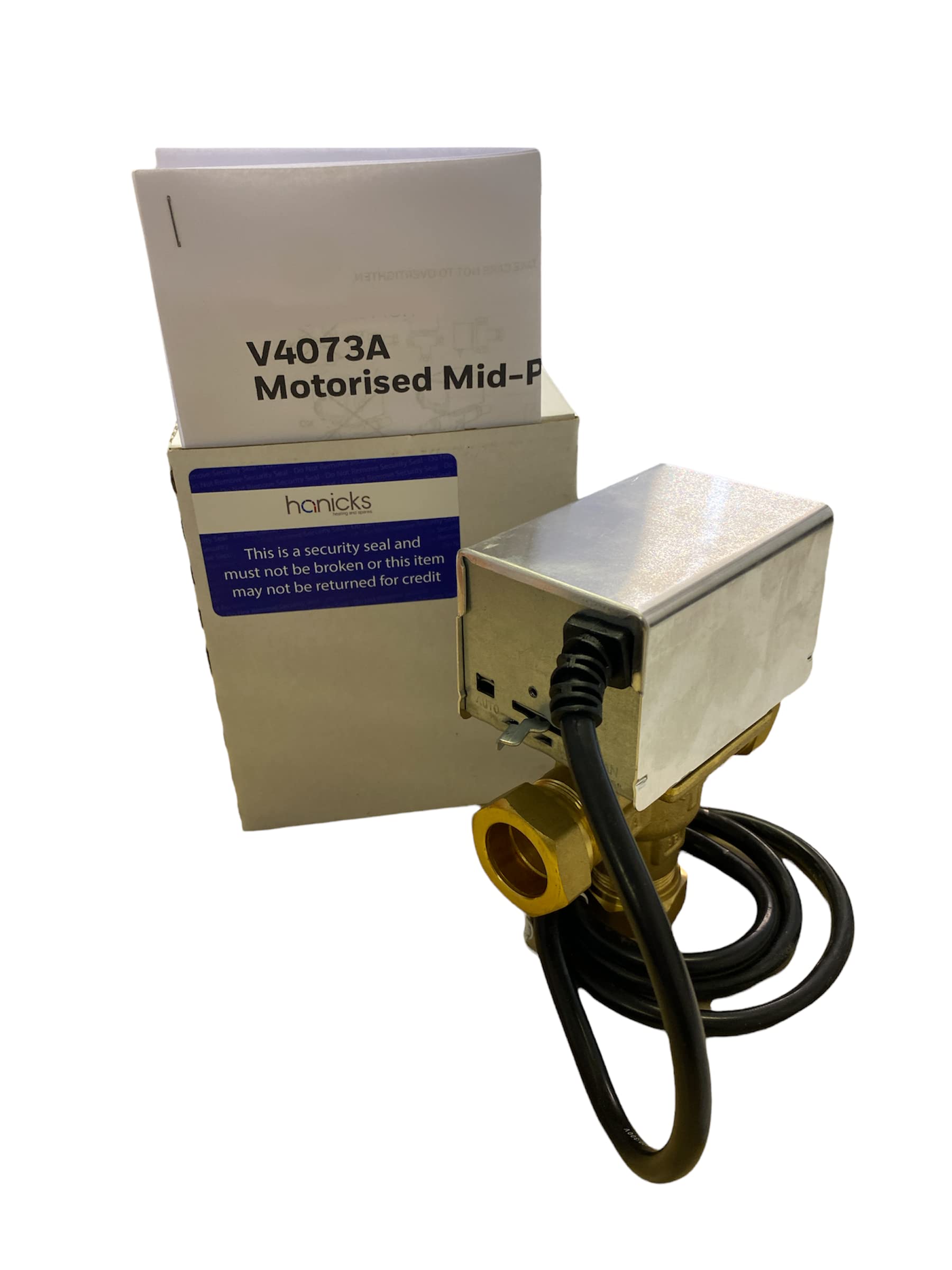

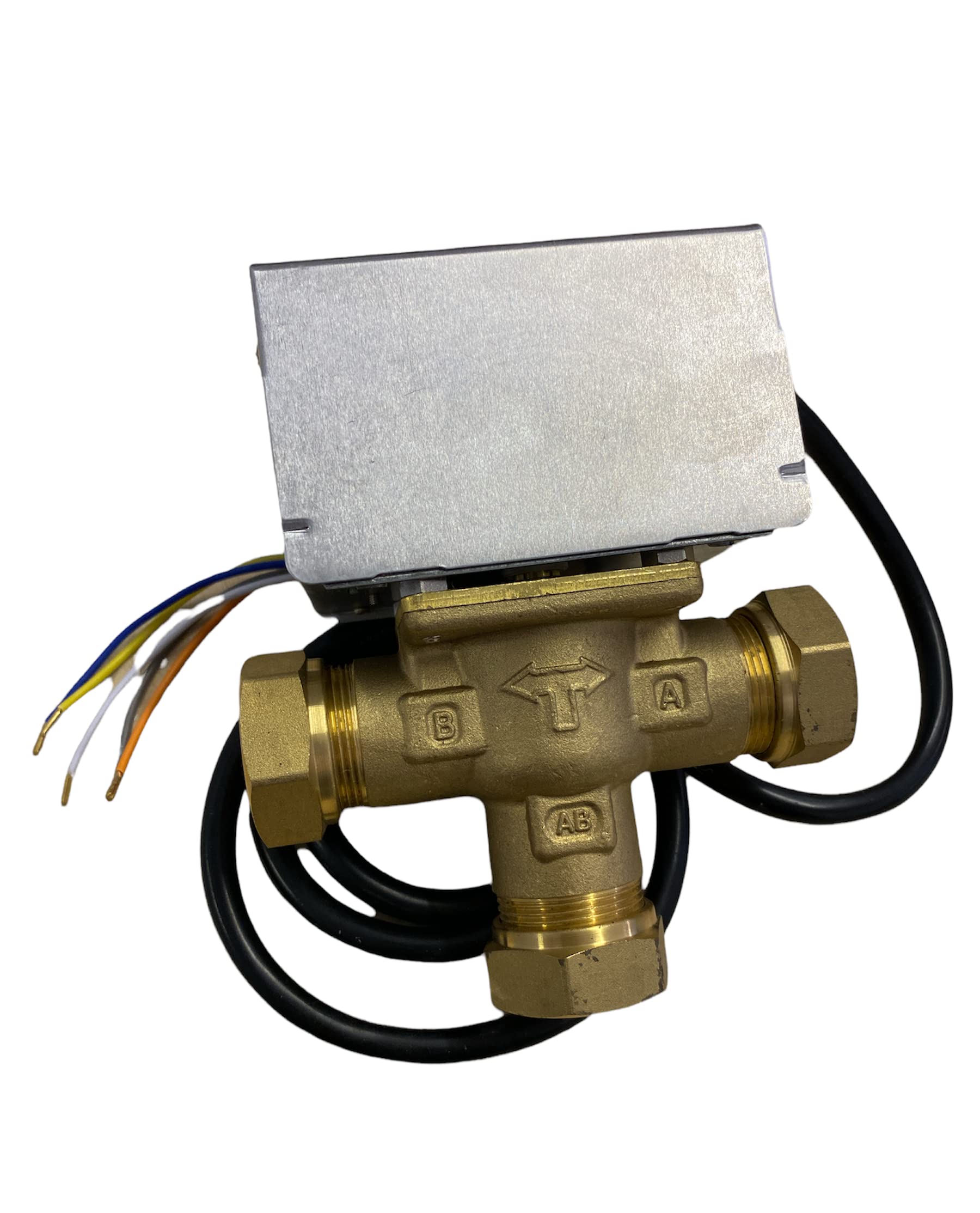

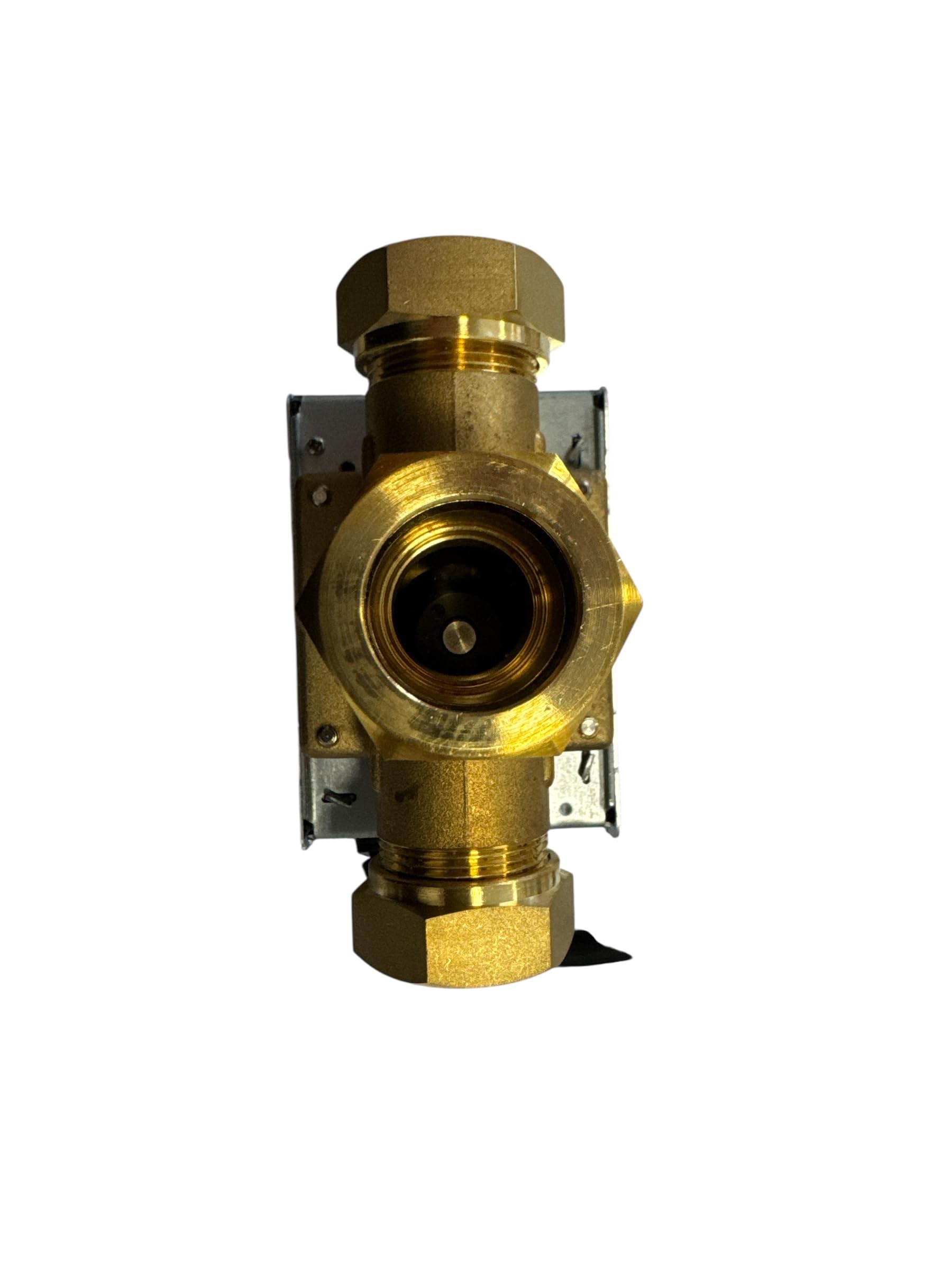

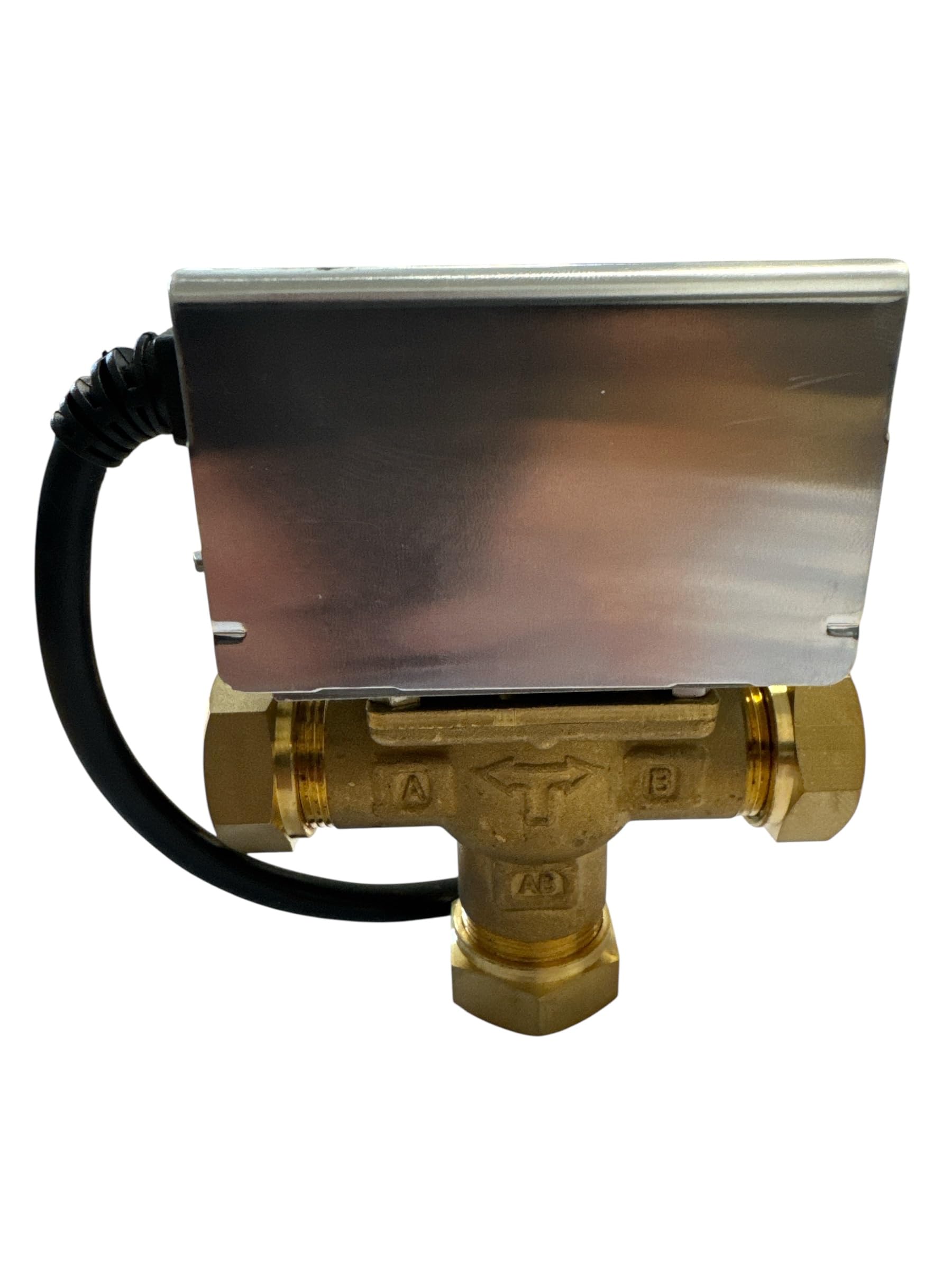

Honeywel/Resideo Compatible 22mm 3 Port Motorised Mid Position Diverter Valve V4073A1039 (V4073A) - Hanicks

• 22mm compression connection. 5-wire installation.
• Cable Length: 1m
• 5 to 88°C Flow Temperature
• Spring-Return Action
• 5-Wire Installation
• 1 Year Guarantee

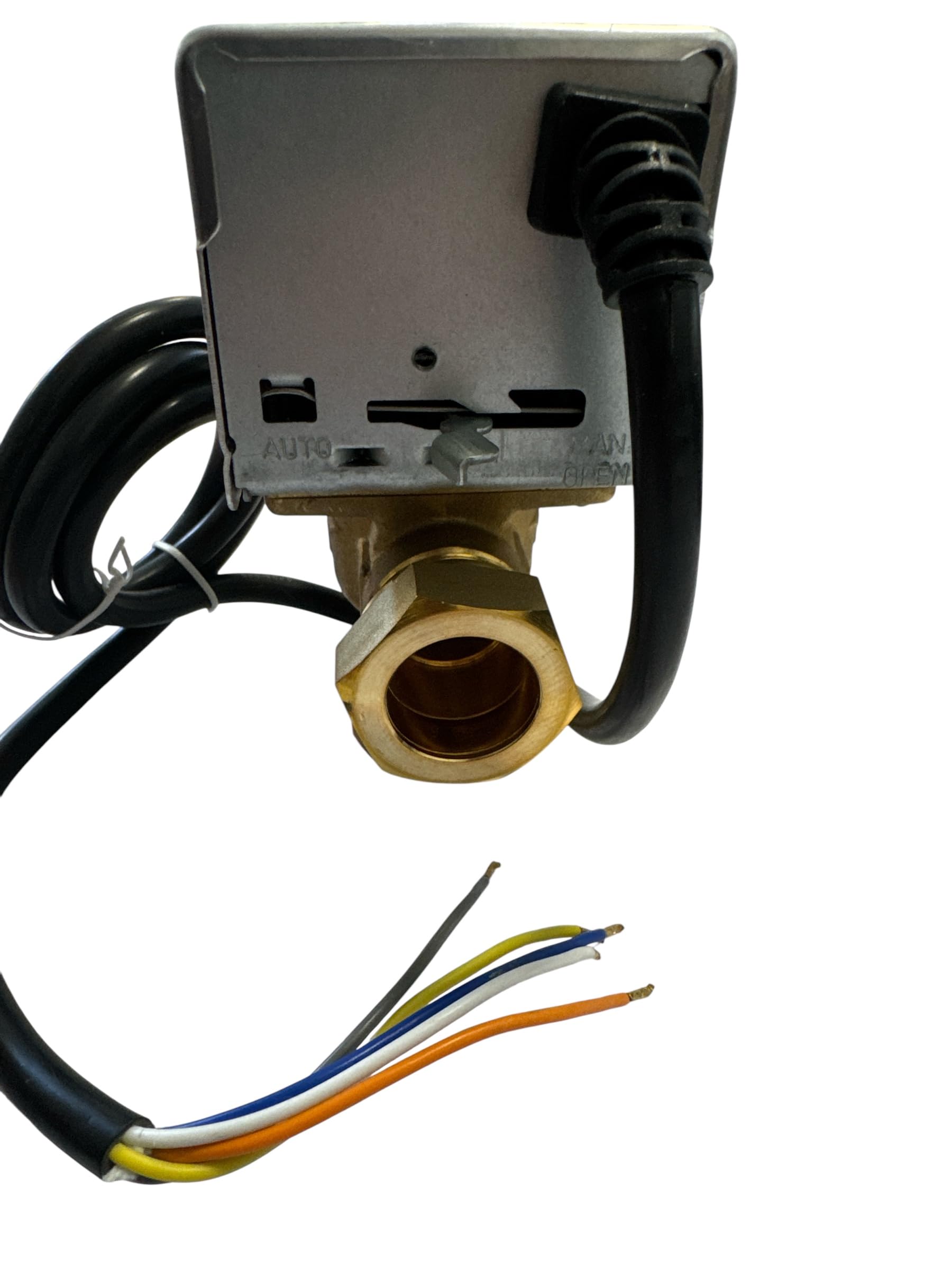

• Manual Lever for Filling & Draining
• Off: 6 Seconds under Spring Return

The V4073A Valve has been designed to control the flow of water in domestic central heating systems, where both radiator and hot water cylinder circuits are pumped. It is typically suited for small to medium sized installations. The V4073A Mid-position Diverter Valve should be used in conjunction with a room thermostat and cylinder thermostat to provide full temperature control of a conventional, fully pumped central heating installation. When used in this way, the control system is known as Sundial Y Plan and the components can be connected together using the Sundial Plan Wiring Centre which has dedicated terminations and there is no need for a wiring diagram. An alternative method of wiring is to use the 10-way Junction Box (42002116-002) together with the Sundial Plans Wiring Booklet. Additionally, the V4073A Mid-position Diverter Valve must be positioned where it cannot block any vent or cold feed when either port A or B are closed.
