illuburg LED Driver Dimmable TRIAC 700mA Constant Current 15W - 30W Flickerfree LED Power Supply Transformer

• LED POWER SUPPLY CS5-30C700-D3: input voltage 220 - 240 V (AC), output current 700mA constant with voltage range 21 - 42 V (DC), dimmable, built-in installation.

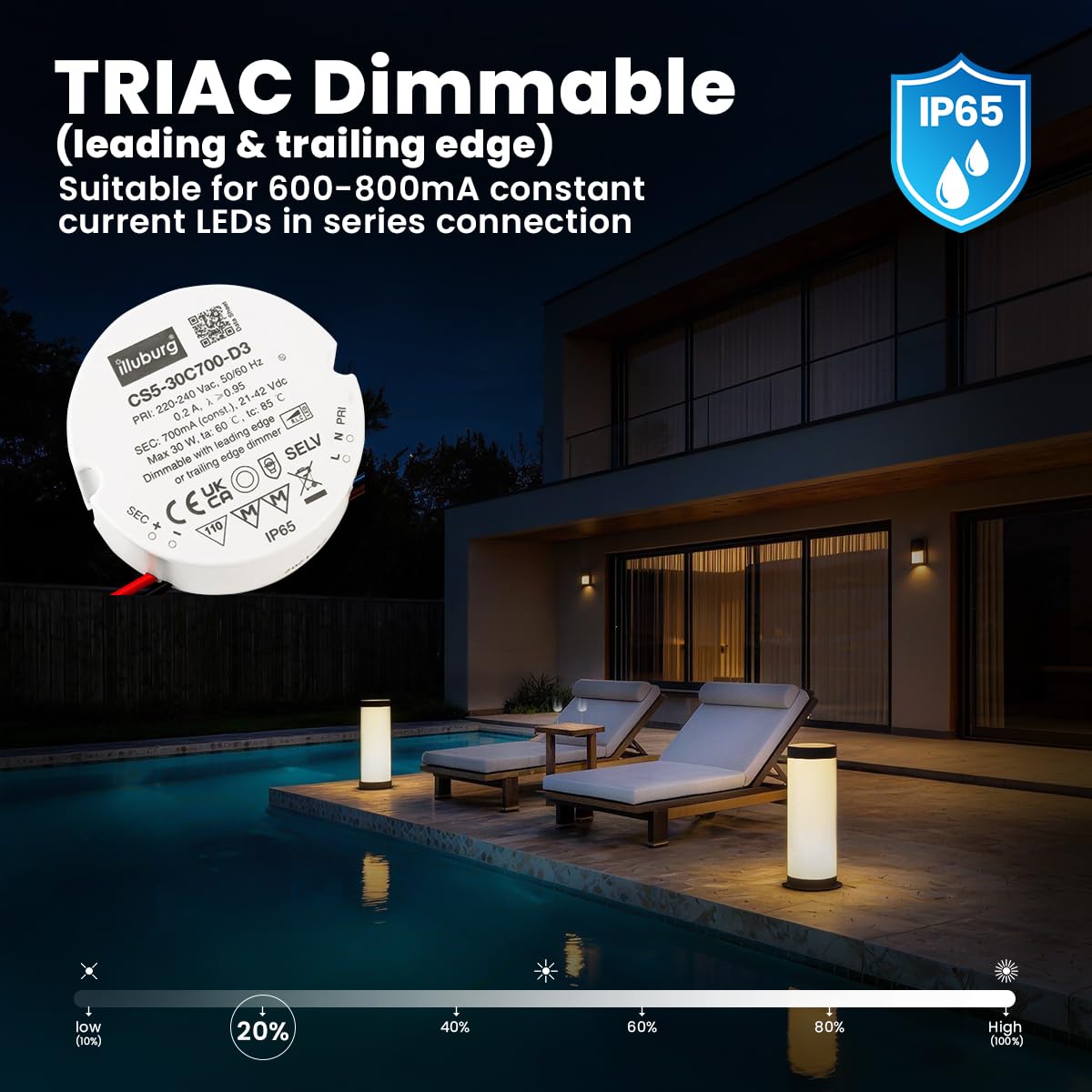

• DIMMABILITY: TRIAC dimmable (leading & trailing edge). Please use a "R,L,C" dimmer and also check the picture "Compatible Dimmer" for more details.
• OUTPUT POWER: ideal for a single LED or multiple LEDs in series with a constant operating current from 600 mA to 800 mA and a total power from 15 W to 30 W.
• FLICKERFREE: flickerfree light source provides better eye protection and ensures high quality video recording.

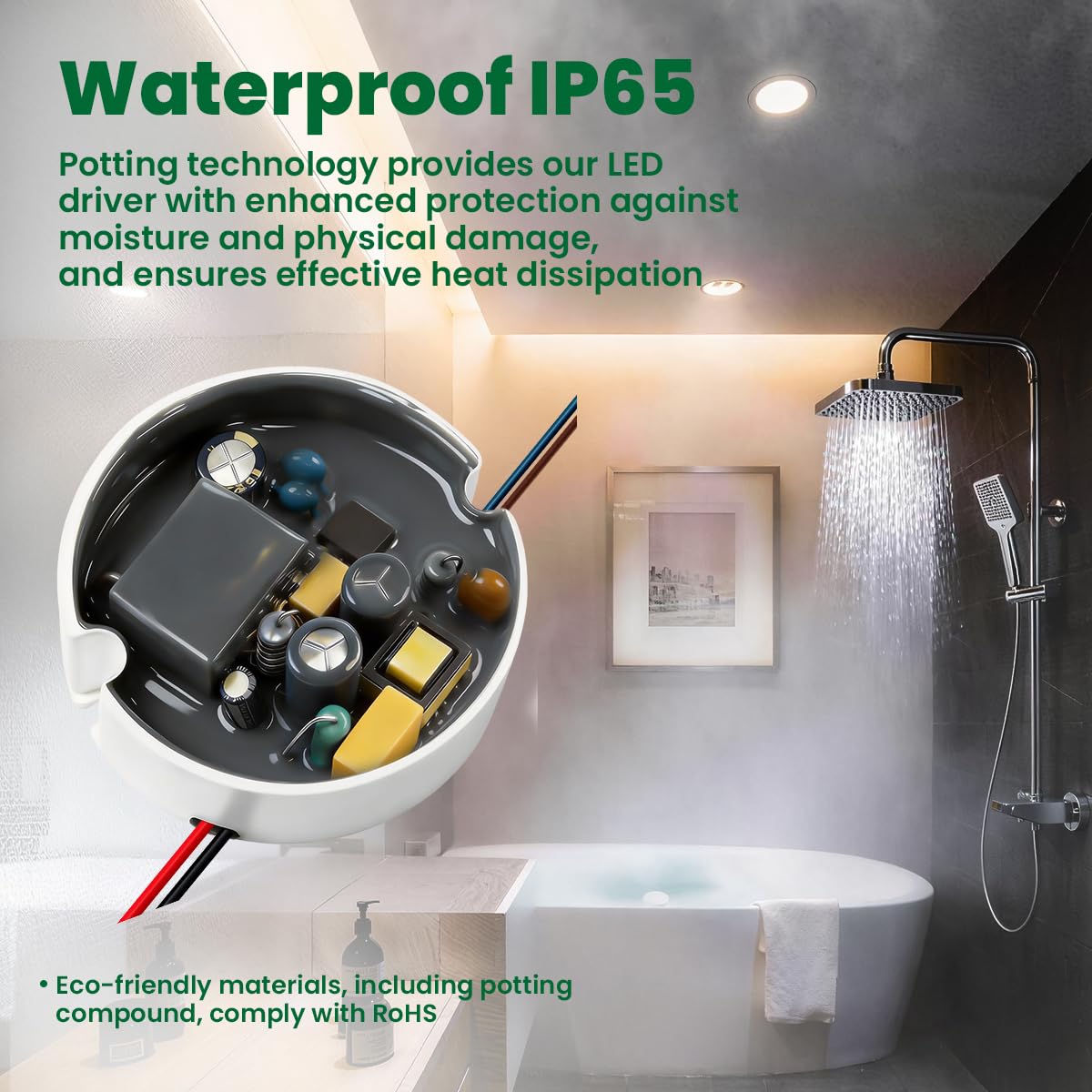

• INSTALLATION: protection type IP65 (waterproof), dimension 65 x 30 mm (D x H), operating temperature (ta) -20 - +60 °C, max. surface temperature (tc) 85 °C.
• SECURITY & QUALITY: equipped with overload protection, short circuit protection, overvoltage protection and overheating protection. Certification CE, UKCA, MM (installation in the furniture, ceiling and wall permitted), durability > 50,000 hours.
• ADVICE: this LED power supply does not deliver 12 V or 24 V constant voltage output. We are happy to recommend a suitable LED power supply for your application if we have the technical data (ideally with a photo of the LEDs or the old LED driver).

LED Power Supply CS5-30C700-D3 Installation Instructions Please note the input "PRI N/L" and the output "SEC +/-" during installation. Reverse connection of the input and output will destroy the product. This dimmable LED power supply can only be dimmed with TRIAC dimmers (leading & trailing edge) and is more suitable for LED strips. For other LED light sources, such as LED bulbs with GU5.3 / MR16 or G4 / MR11 socket, we cannot guarantee the compatibility and the dimming effect. If the LEDs flicker or do not light up (no voltage at the output) after connection, this power supply is then most likely not compatible with your application. In this case, please request a return and contact us so that we can recommend a suitable product.
