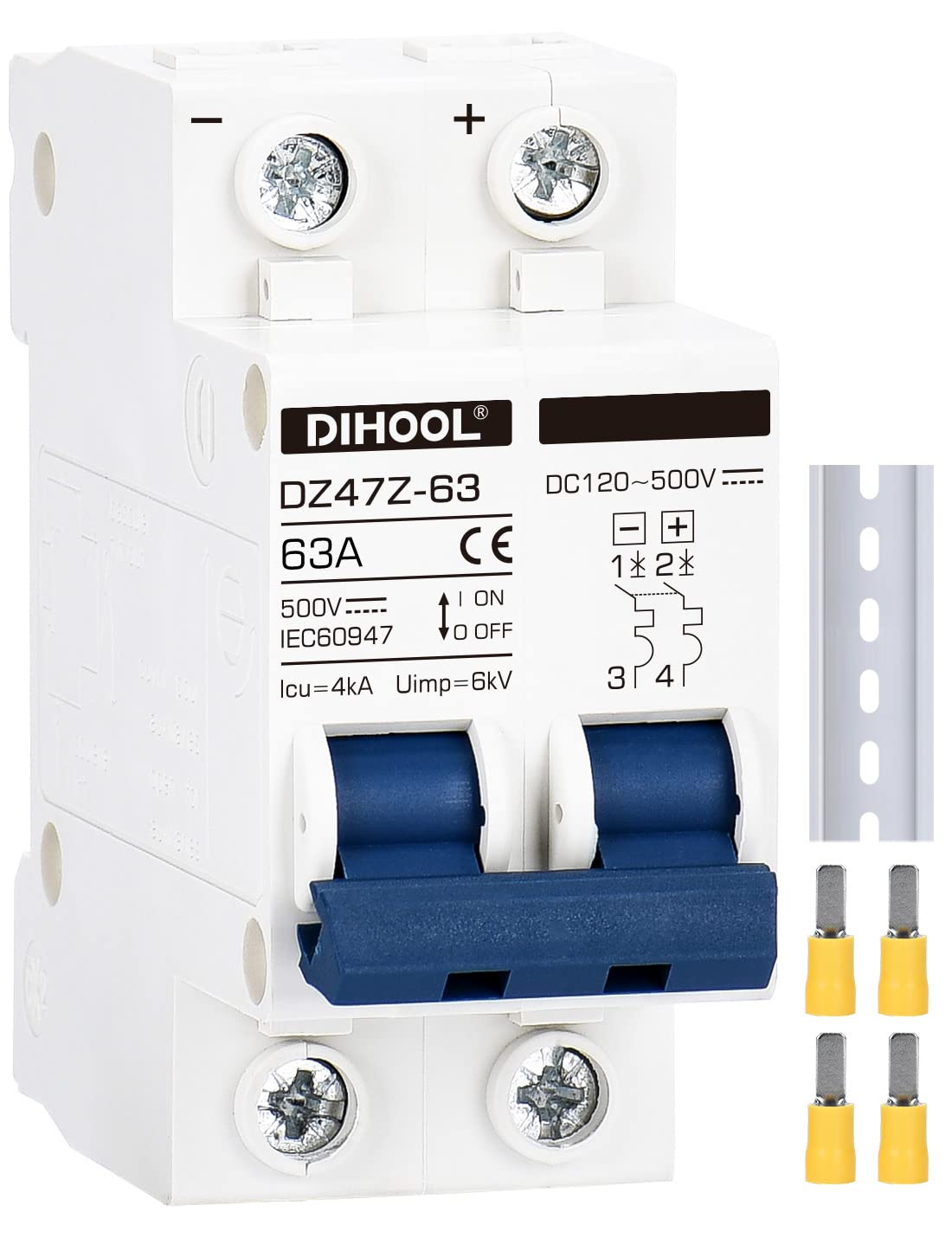

DIHOOL 2P 63 amp Solar DC Isolator Switch DC Miniature Circuit Breaker PV Disconnect Switch Fuse For Solar Energy Photovoltaic

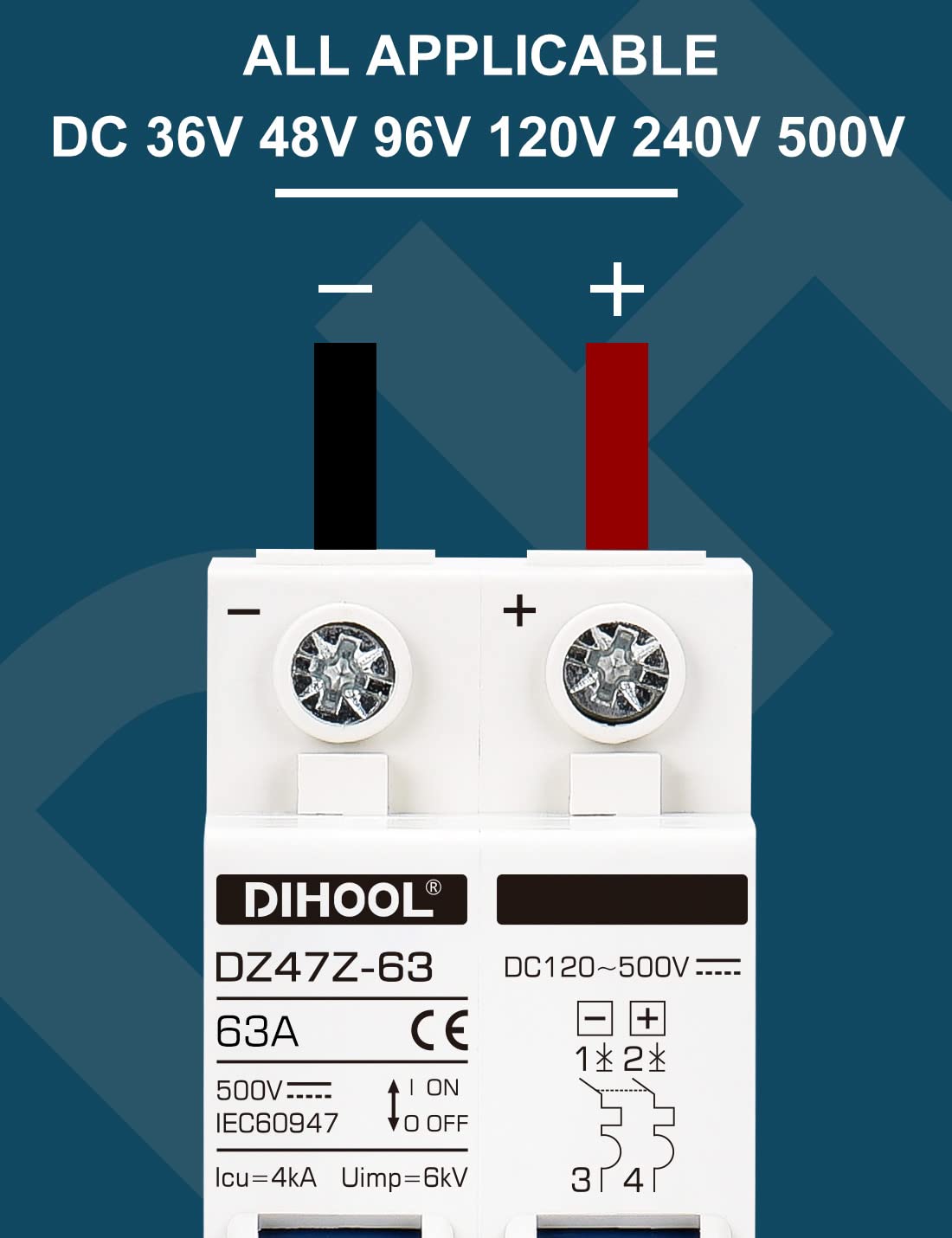

• Model: DZ47Z-63; Rated Current: 63A; Rated Voltage: DC 36-500V; Breaking capacities:4kA; 2 Pole DC breaker:Protect The Postive and Negative Pole
• ARC EXTINGUISHING: DC arc extinguishing is more difficult than AC. This DC mini circuit breaker has a magnetic system to assist arc extinguishing.

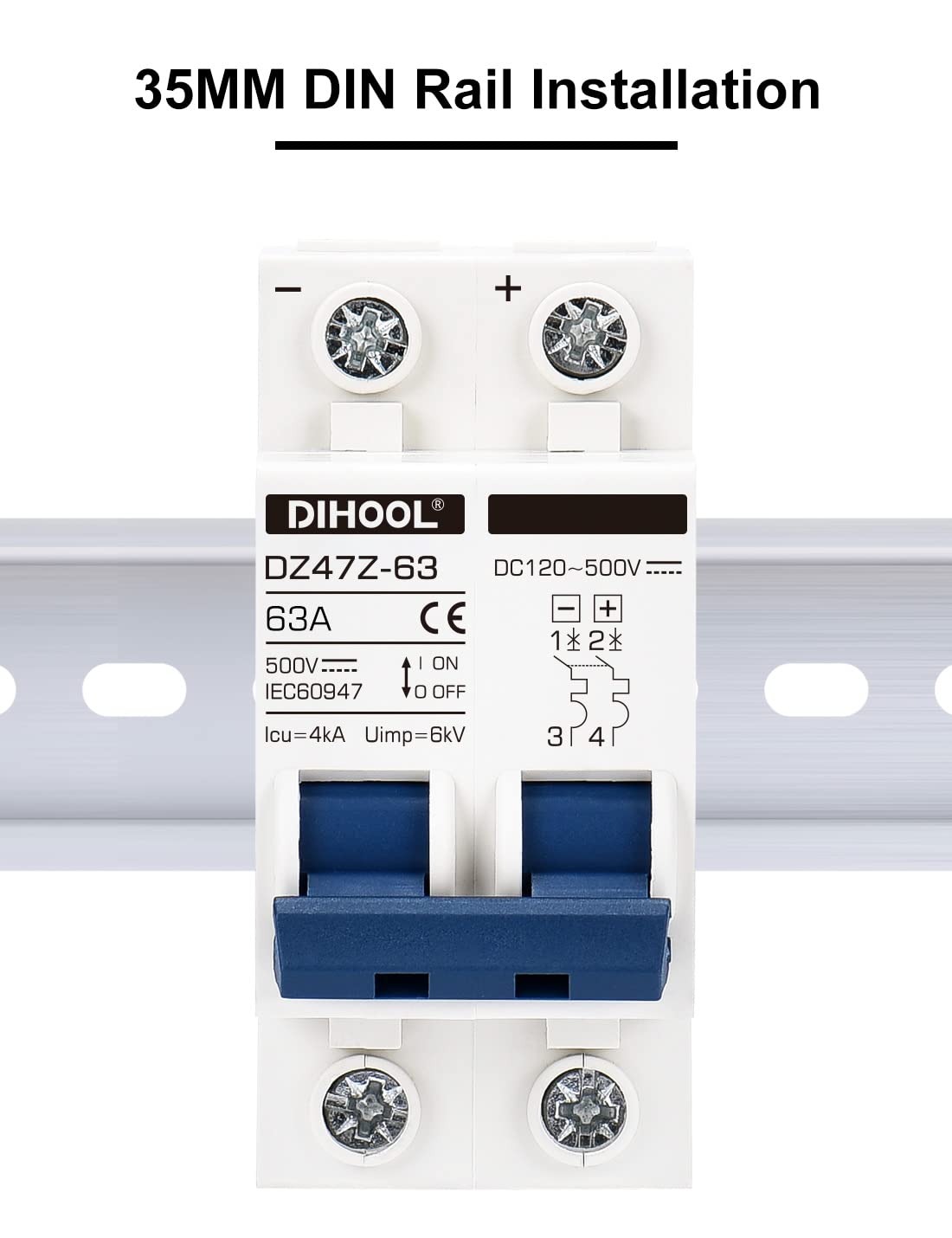

• Easy Installation: Modular sturcture, can be easily installed on the DIN standard guide rail in distribution box, bistable locking clip.

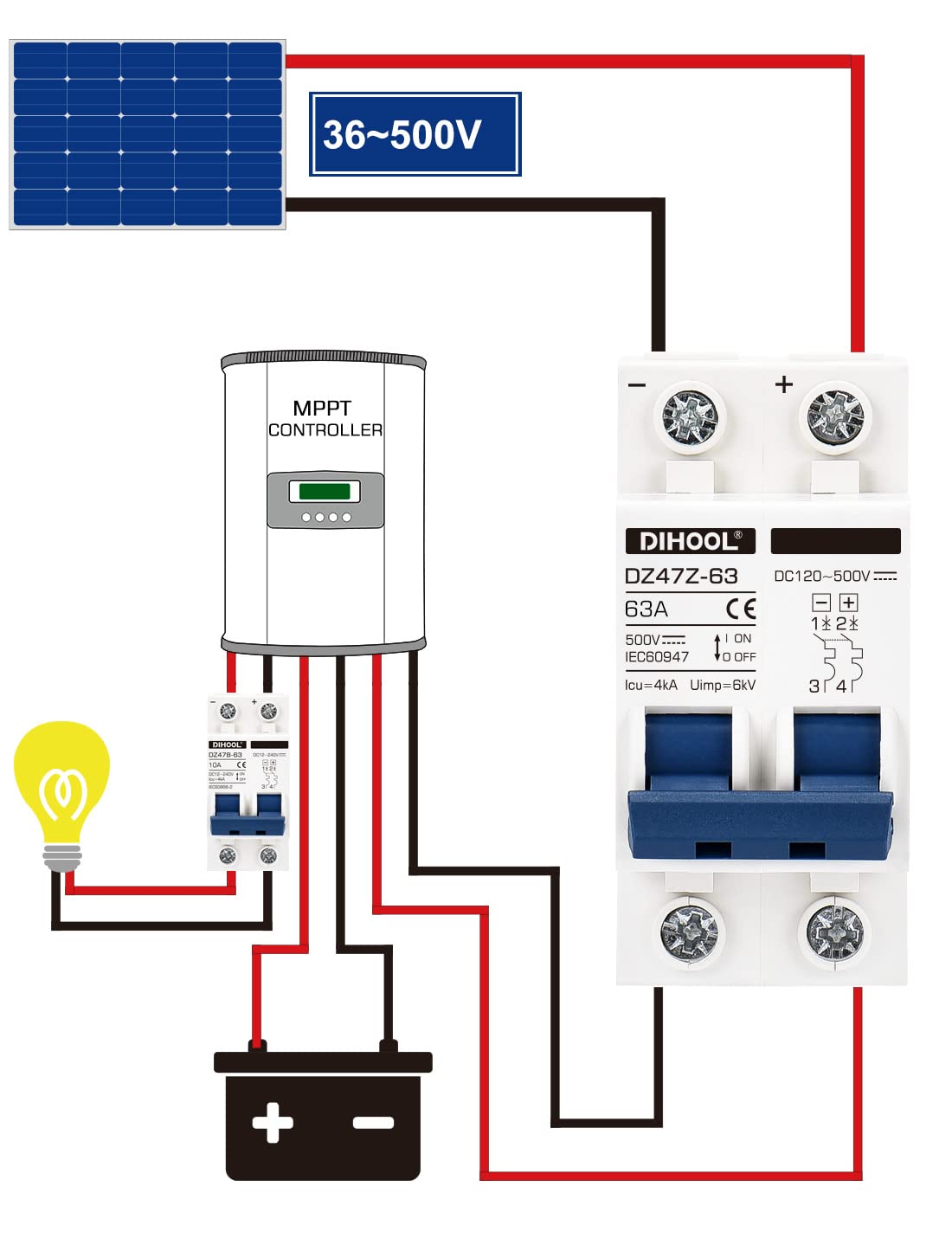

• as solar breaker,battery breaker Widely used for solar panel grid system, wind and solar hybrid system and other DC circuit system from damage caused by excess current resulting from an overload or short circuit. 12V-30V Without Short Circuit Protection, 32-240V With Short Circuit Protection

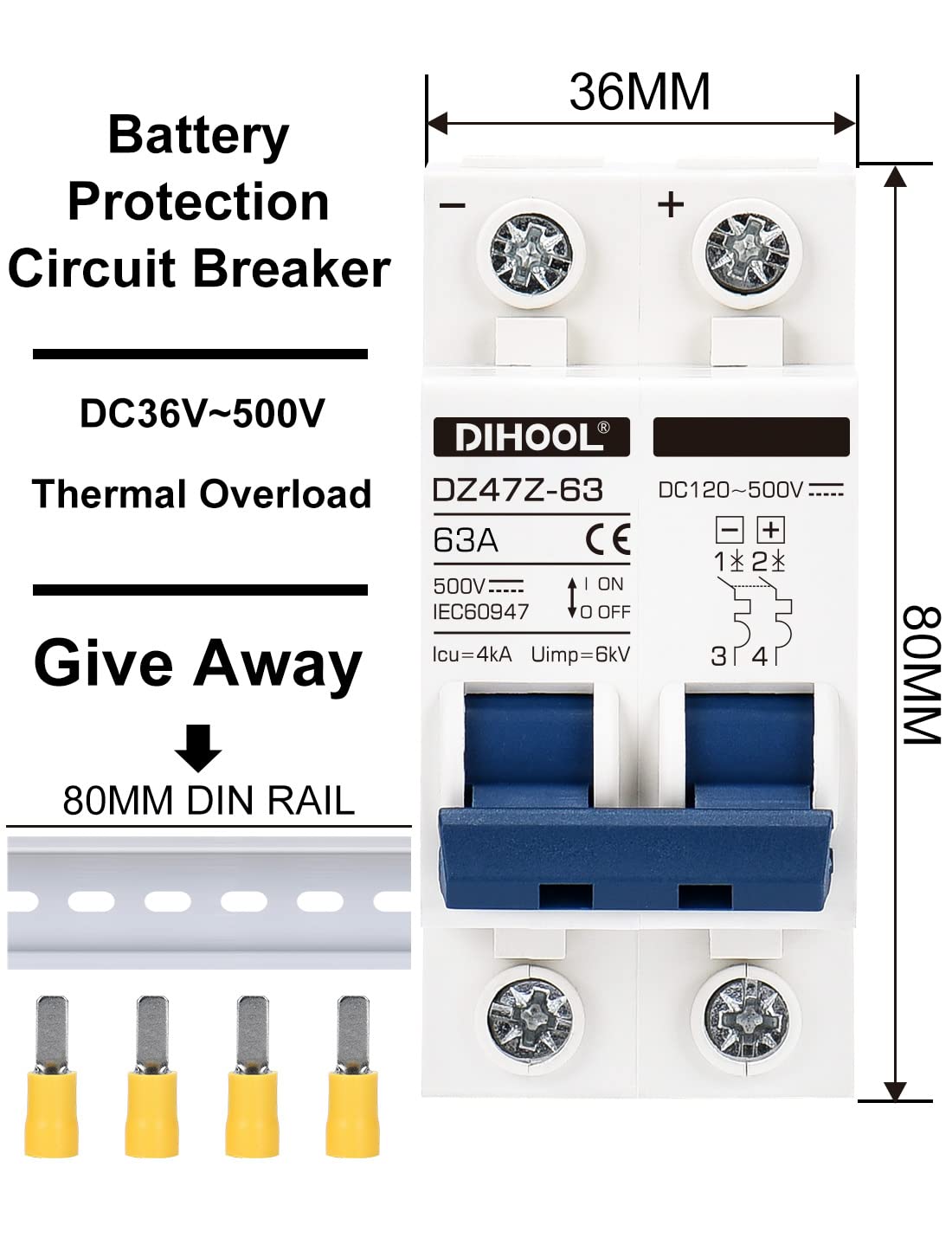

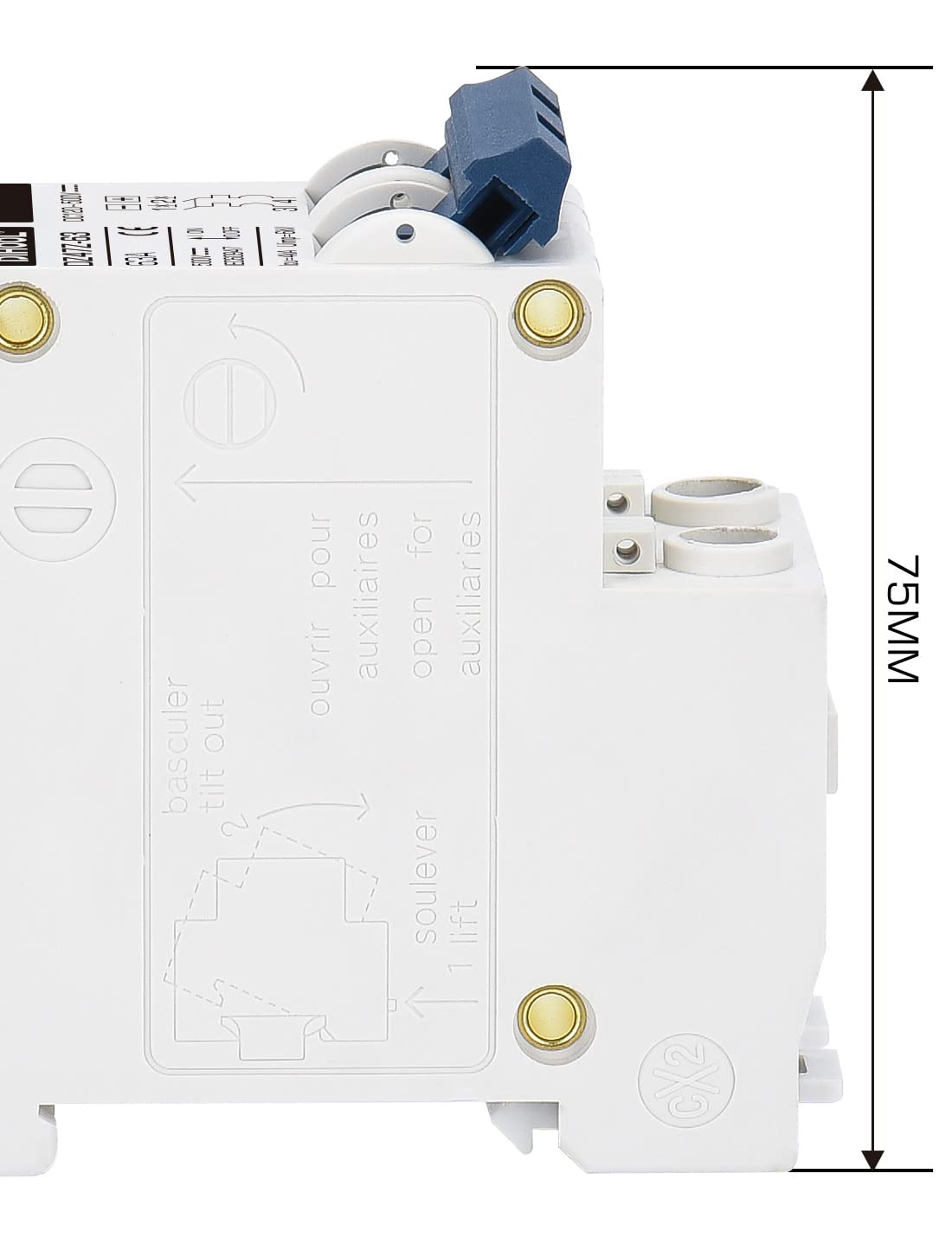

• Size: 36MM x 80MM x 75MM, Fit for 35mm DIN rail.

Model: DZ47Z 2P 63A Rated Operating Voltage : DC36V-500V Poles: 2P Rated Current: 63A breaking capacity: 4 kA Ics=Icu Trip Curve: C Mechanical Life: 10,000 times Electrical Life: 4,000 times Installation Method: 35MM DIN Rail Standard: IEC60898 / GB10936 Operating Temperature: -30℃ to +70℃ Operating Altitude: 2000 Meter Circuit Breaker Purchase Instructions The cause of the circuit breaker fire 1. The current is high and the cable is thin, and the cable heats up and causes a fire 2. Poor contact, the screws of the circuit breaker are not tightened, causing the screw part of the circuit breaker to heat up and catch fire (90% of the fire causes) Note: Be sure to tighten the screws -- important!!! 3. The quality of circuit breakers is poor. Our company selects A-level standard materials and flame-retardant shells for production. Each product is tested, and the quality pass rate reaches 99.5%. 4. Dust enters, humid environment; the circuit breaker is not waterproof and dustproof, try to use it in a waterproof box. Note：If you find that the screw part of the circuit breaker is burned, 99% of it is because the screw is not tightened How to choose the current of the circuit breaker The current of the circuit breaker needs to be 20% larger than the working current. If the working current is 20A, Please choose 25A circuit breaker. If choose 20A, the circuit will trip and power off
