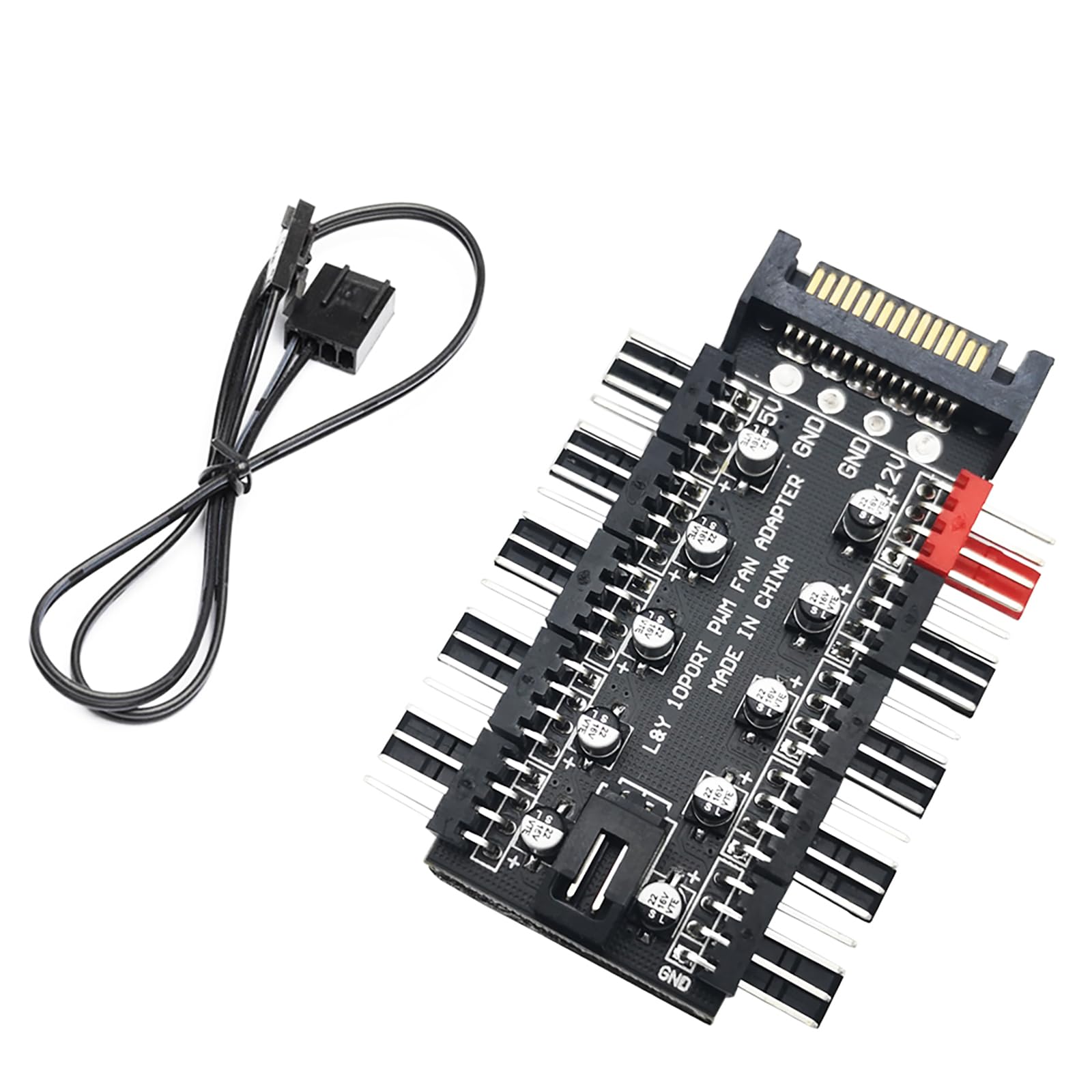

CTRICALVER CPU Cooling HUB 10 Port 12V 4 Pin PWM Hub, with SATA Port

• 1.You will receive 1 pcs hub & 1 pcs connector. expand 10-bit fan 4-pin interface to solve the shortage of mainboard interface and centralize fan wire processing.

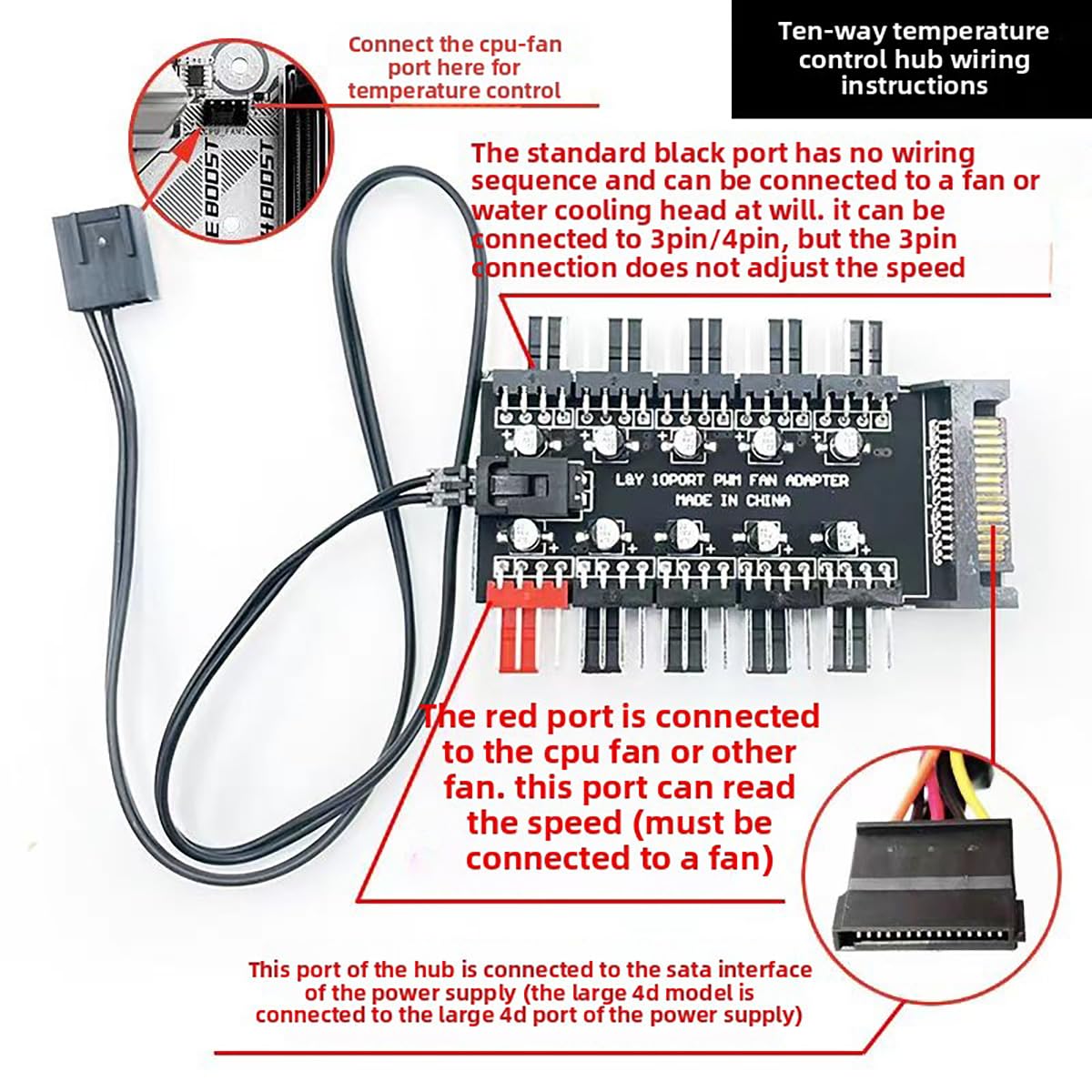

• 2.The PWM interface is connected to CPU fan interface on motherboard by PWM cable & the red interface is dedicated for CPU fan. The black interface is PWM conventional fan interface.
• 3.For both 4-Pin and 3-Pin fans. Please note 4Pin fan speed can be adjusted by temperature control. 3Pin fan can also be used, but because 3Pin has no PWM function, it is at fixed speed after inserting.

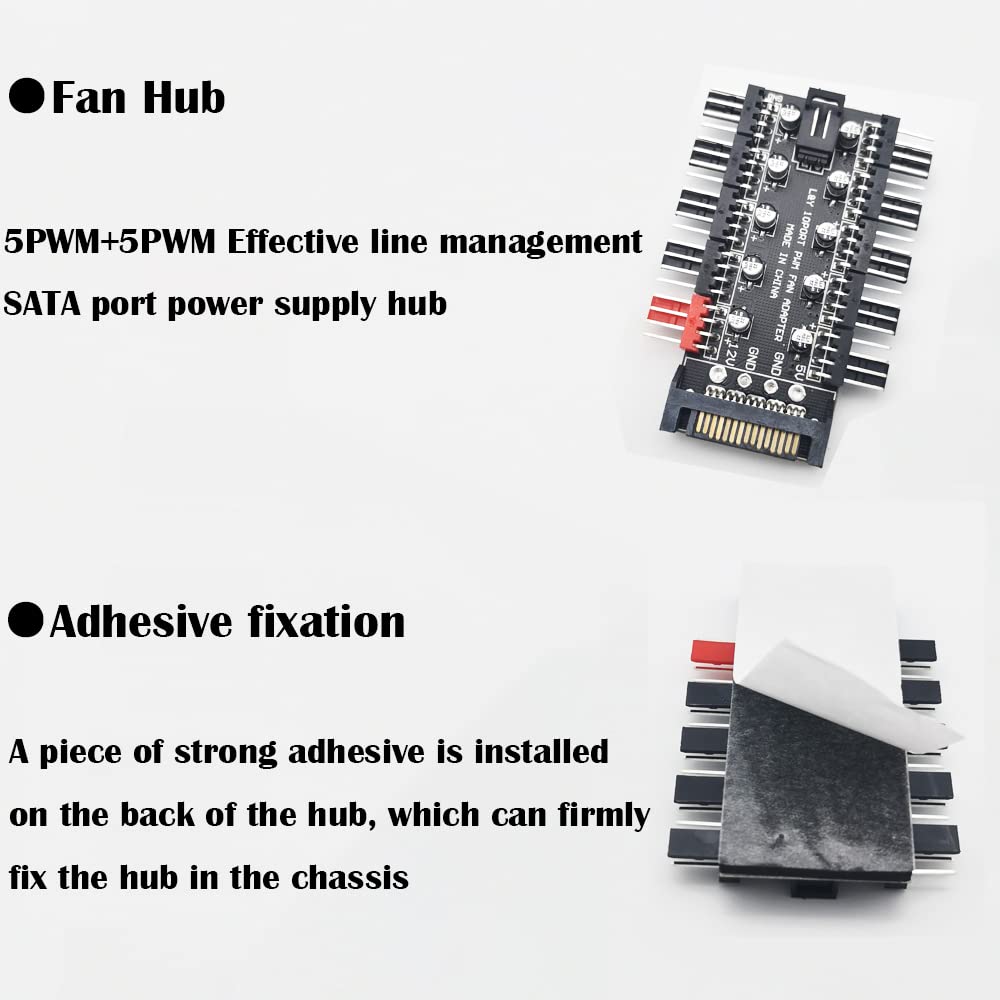

• 4.There is double-sided adhesive at the back of the hub, which can be easily affixed to a flat place. Firm wire connection and clean casing. Be careful to avoid bending pins and capacitors when installing
• 5.Since the main board/fan controller board can only receive one speed signal, the other nine traditional fan interfaces have PWM function but no speed signal.

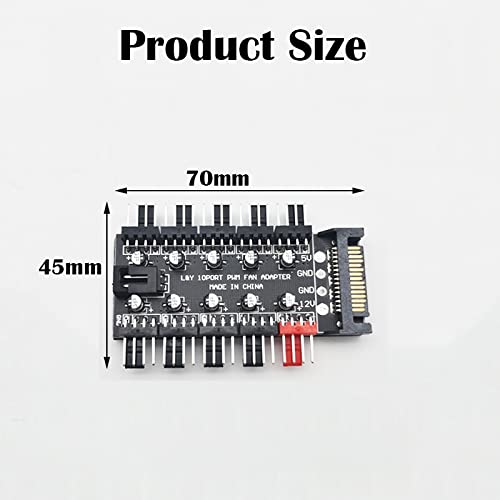

Product Name: PC Fan Hub Specification: Size: 70 x 45 x 7 mm. Power Port: SATA PWM Rated Voltage: 12V Rated voltage: 5 V. Fan interface: 4pin(PWM. Fan interface quantity: 10 Power connector: SATA Note: This product is PWM regulator, the function is to extend the four-pin port of the single motherboard into multiple ports for unified speed adjustment, if your fan is a 3-pin fan, you can also plug it in, but you can't reach PWM control speed! Be careful! Description: 1. For 4 and 3 pin fans. Please note that the speed of the 4-pin fan can be adjusted by temperature control. The 3Pin fan can also be used, but since 3Pin has no PWM function, it is fixed speed after inserting 2. PWM interface is connected to motherboard fan cpu interface. Red is the special CPU fan interface (with speed measurement function). The black interface is a conventional PWM fan interface (no speed signal, but PWM function is not affected). Note: To avoid confusion in speed measurement, computer crash, multi-directional interface to extend the interface, only display one measurement of fan speed! Package: 1 x Parts Hub 1 x Temperature Control Speed Connection Line Customer Service Our professional customer service team is ready to solve your after-sales problems for you. Please buy. If there are any defective products, please contact us first. We will try our best to provide you with a replacement or refund.
