sourcing map Pneumatic Air Cylinder 16mm Bore 300mm Stroke with Y Connector and Quick Fittings, MAL 16x300, for Automatic Equipment

• Model: MAL 16x300, Bore: 16mm / 0.63", Stroke: 300mm / 11.81".

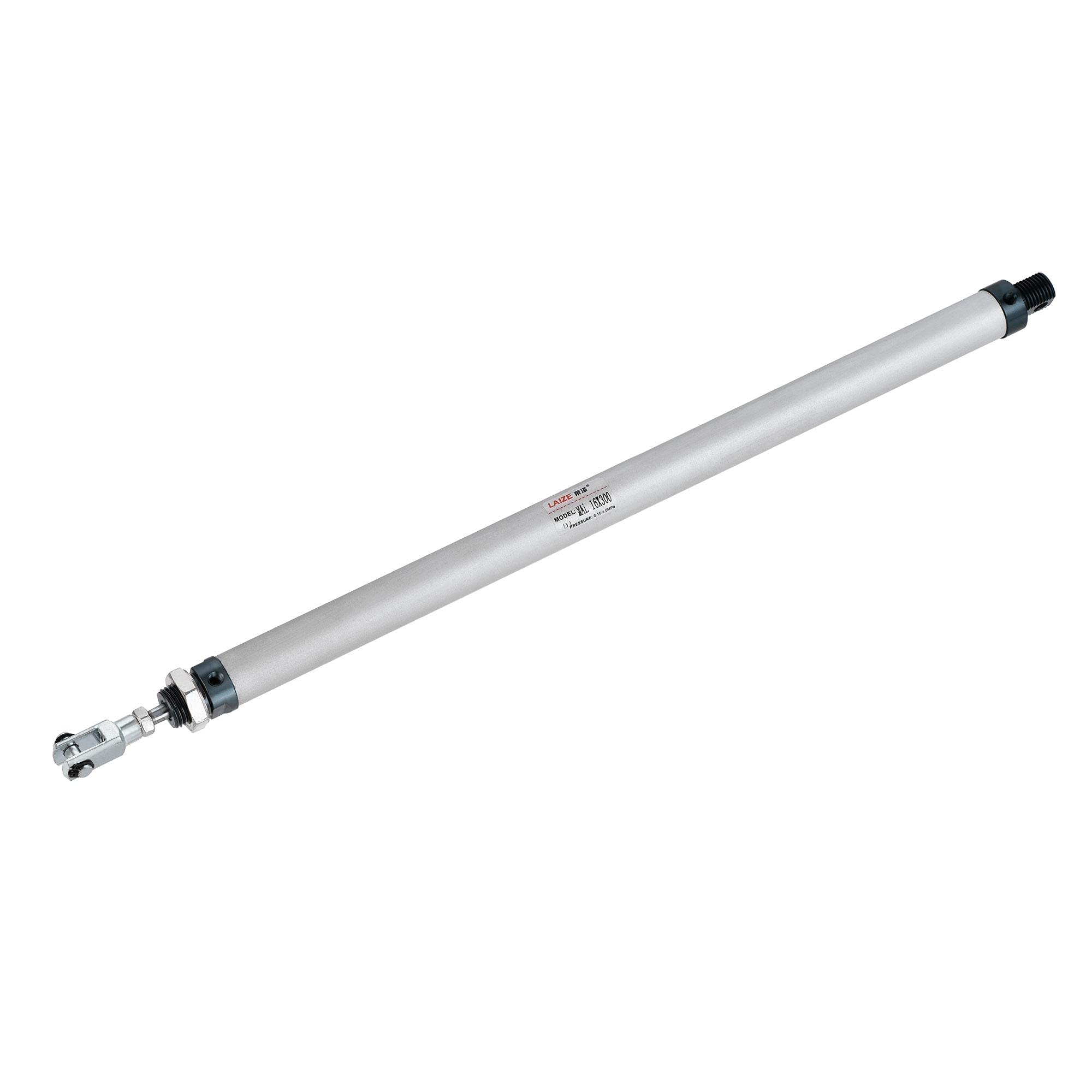

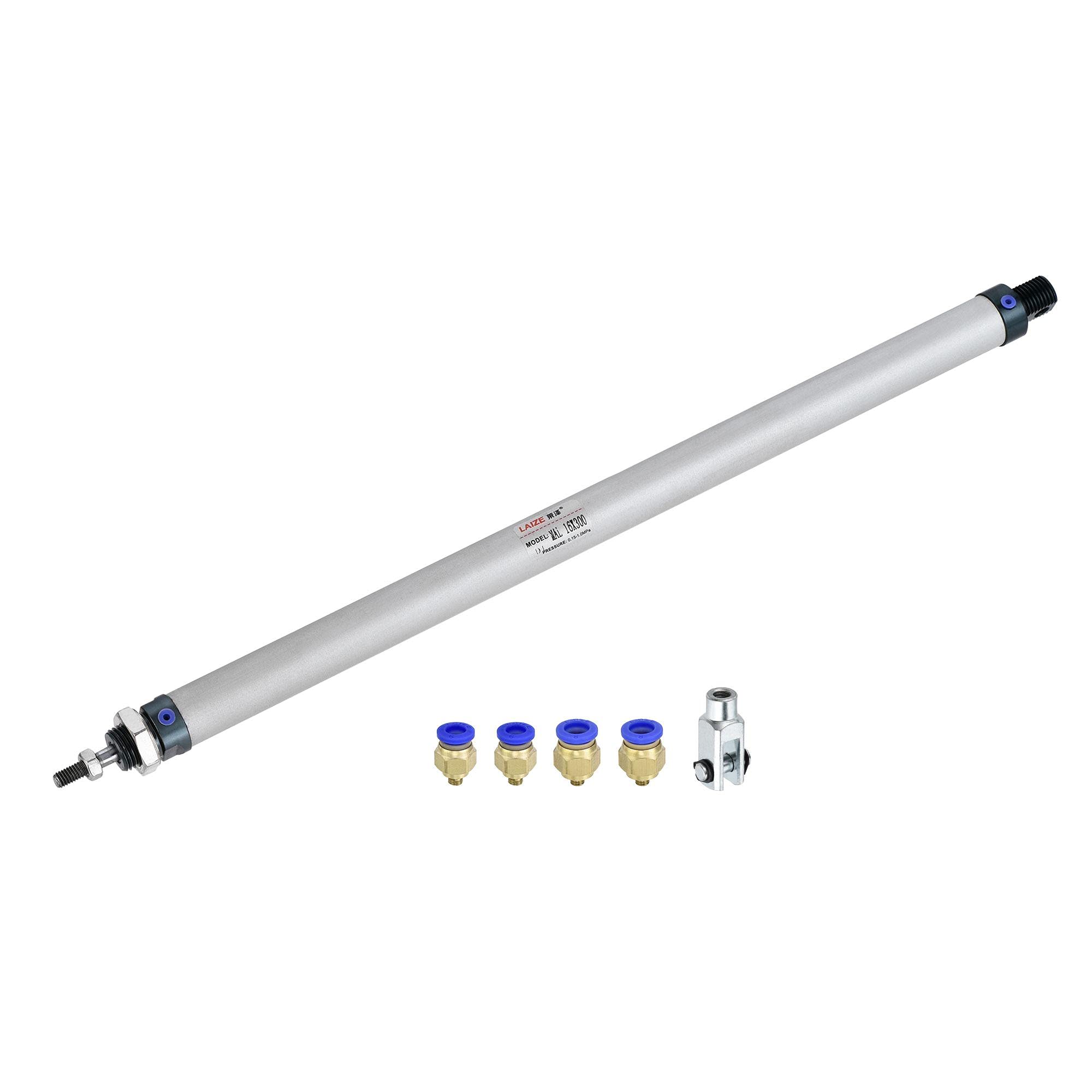

• Single Rod, Double Acting, Includes Y Connector and 4pcs Quick Fittings.
• Made of Aluminum alloy, corrosion, and rust resistance, more durable, and suitable for long-term use.
• Correctly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be driven.
• Widely use for used in pneumatic systems, such as automatic equipment, punching machine, pneumatic system maintenance, etc.

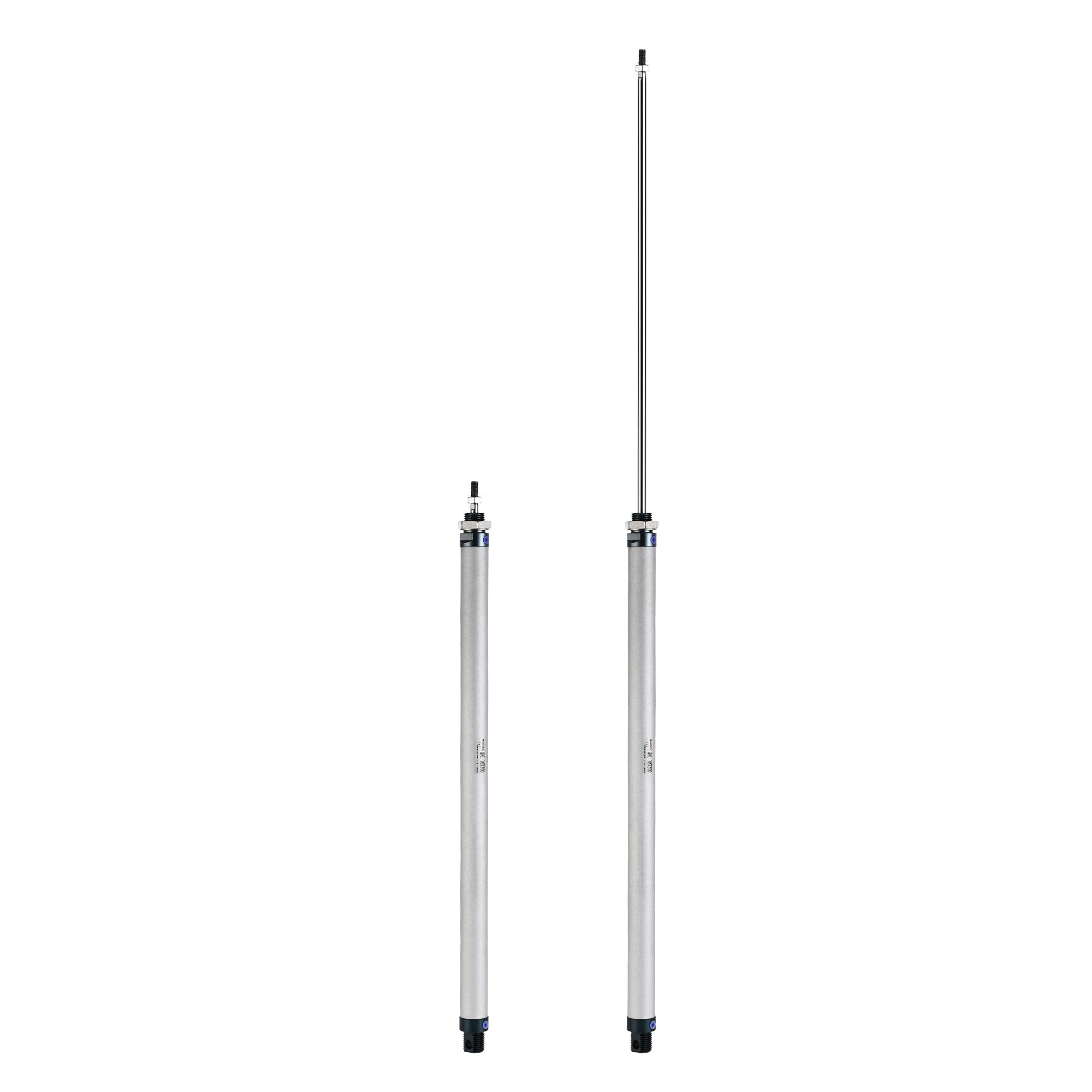

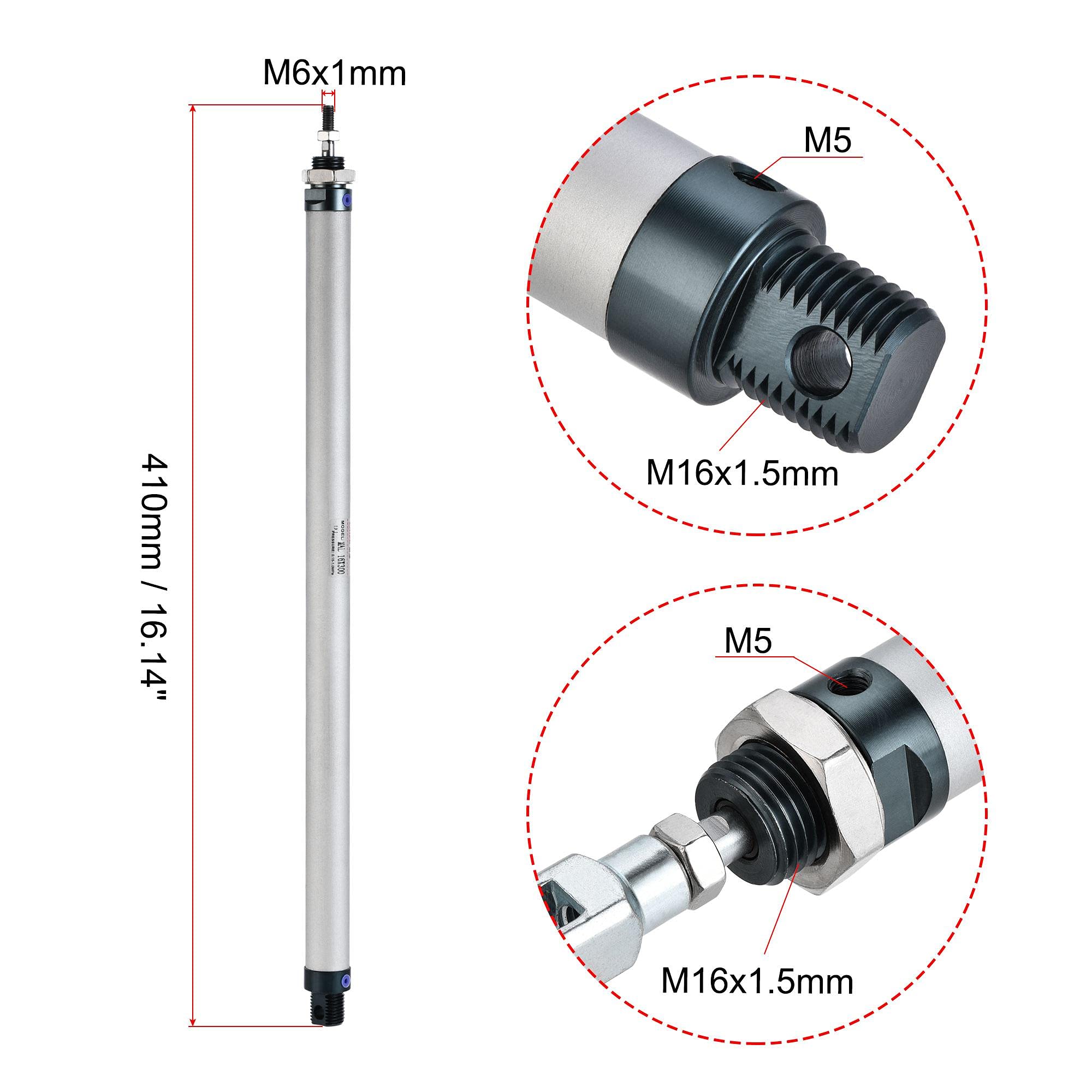

Features: Air cylinders (also called pneumatic cylinders), the most common type of linear actuators, use pressurized air to pull and push piston rods in and out of the cylinder tub. The cylinder block is made of high-strength aluminum alloy, which is non-deformable, impact-resistant and wear-resistant. The surface is hard oxidized, anti-rust, more durable, suitable for long-term use. The sealing piston adopts a special-shaped two-way sealing structure. Improved sealing structure, good sealing, lubrication, and guiding performance. Correctly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be driven. Convenient installation, and stable operation. Widely used in the drive of pneumatic and hydraulic systems, such as automation equipment, punching machines, pneumatic system maintenance, etc. Specifications: Model: MAL 16x300 Action Type: Double Acting Rod Type: Single Rod Material: Aluminum Alloy Bore: 16mm / 0.63" Stroke: 300mm / 11.81" Port Size: M5 Piston Rod Thread: M6x1mm Rod Two End Thread Size: M16x1.5mm Total Length: 410mm / 16.14" Working Pressure: 0.15~1.0 MPa / 22~145 Psi Package Content: 1 x Air Cylinder 1 x Y Connector 2Pcs x M5 to 6mm Quick Fitting 2Pcs x M5 to 8mm Quick Fitting
