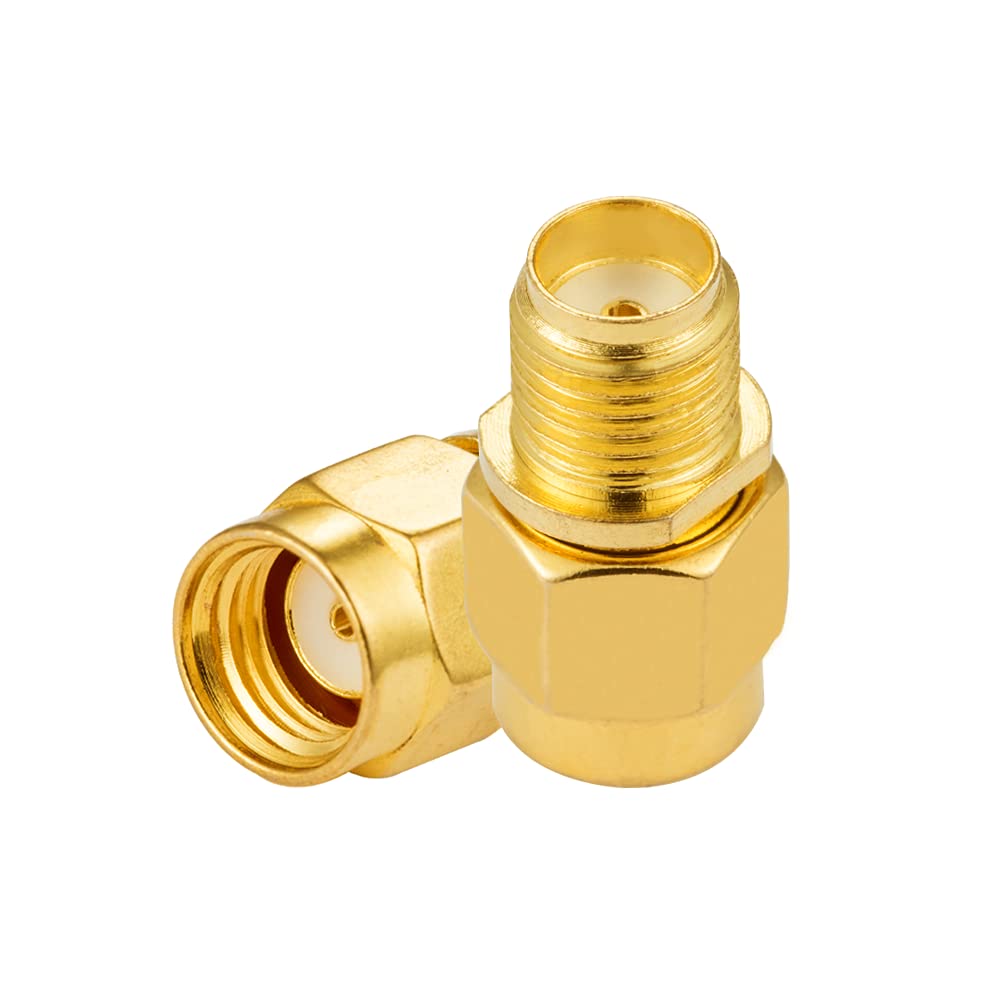

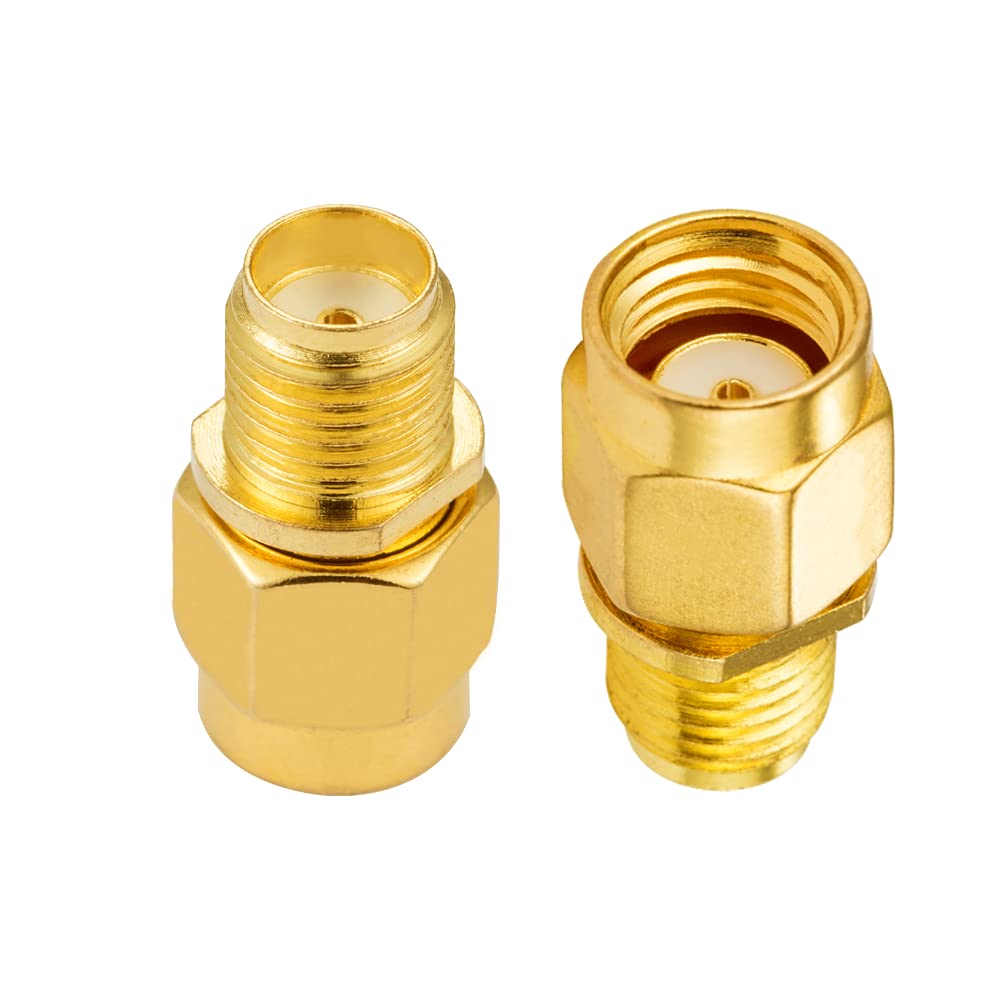

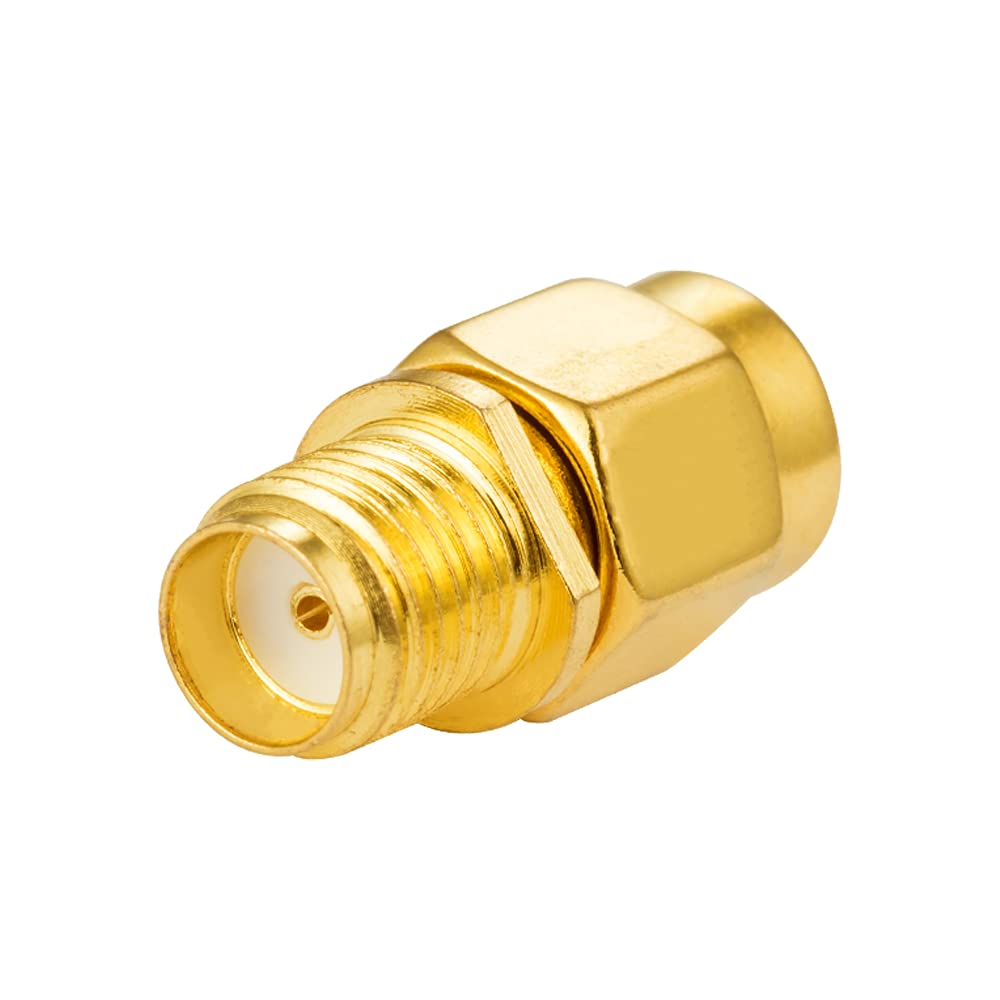

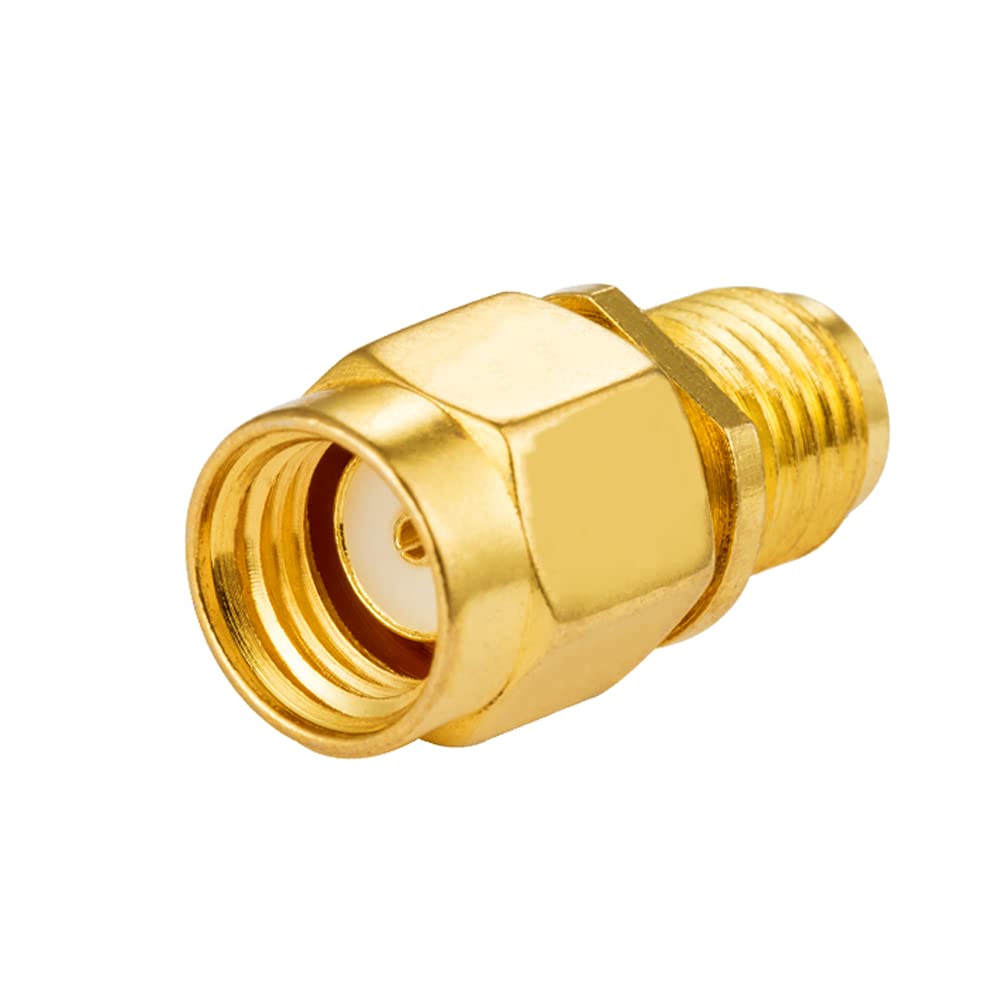

Vecys 2PCS SMA Female to RP-SMA Male Adapter RF Coaxial Coax Straight Adapter Gold Plated for Antenne Router Coax Cable

• Product name: SMA female to RP-SMA male 50 ohm RF coaxial adapter;
• Connector type: Connector 1: SMA female; Connector 2: RP-SMA male | Shell material: Brass | Inner conductor material: Brass gold plated | Body style: Straight;
• Parameters: Impedance: 50 ohm | Insulator: PTFE | VSWR: ≤1.2 | Frequency range: 0~3GHZ | Withstand voltage: 1000V rms | Insulation resistance ≥ 5000 MΩ | Center contact resistance: ≤ 3 mΩ | Outer contact resistance: ≤ 2 mΩ | Temperature range: -45～125°C | Insertion loss ≤0.15 dB/6GHz | Working voltage: ≤ 335V | Vibration MIL-STD-202, method 213 | Durability: ≥500 cycles;
• Applications: Widely used for antenna router coaxial cable and so on;
• Package: 2 x SMA female to RP-SMA male adapter converters | Net: 8.6g.

Product Details： Product name: 50 ohm SMA female to RP-SMA male RF coax adapter Connector 1: SMA female Connector 2: RP-SMA male Shell material: Brass Inner conductor material: Brass, gold plated Body style: Straight Impedance: 50 ohm Insulator: PTFE Frequency range: 0~3GHz Withstand voltage: 1000V rms Working voltage: ≤ 335V Vibration MIL-STD-202, method 213 Insulation resistance: ≥ 5000 MΩ Insertion loss: ≤0.15 dB/6GHz Center contact resistance: ≤ 3 mΩ Outer contact resistance: ≤ 2 mΩ Temperature range: -45～125°C Durability: ≥500 cycles Applications: Widely used for antenna router coaxial cable and so on. Package: 2 x SMA female to RP-SMA male adapter converters Net: 8.6g
