Vecys DAB DAB + Car Antenna Shark Fin FM/AM GPS Car Roof Antenna Signal Amplifier SMB to SMA to DIN Adapter 5m RG174 Extension Cable for Digital Radio Vehicle FM/AM Radio

• AM / FM frequency: 530 ~ 1710 kHz (AM), 87.5-108 MHz (FM) | Gain: 0 ± 3 dB (AM), 12 ± 3 dB (FM) | DIN male (FM / AM) | Cable: 5 m RG174
• DAB frequency: 170 MHz - 240 MHz (band III), 1452 MHz - 1492 MHz (L-band) | Gain: 20 dB ± 2 dB (band III), 12 dB ± 2 dB (L-band) | Plug: SMB socket | Cable: 5 m RG174
• GPS frequency: 1574.397 - 1576.443 MHz | Gain: 30 dB ± 3 dB | Plug: SMA plug adapter | Cable: 5 m RG174
• Compatible with most car radios and cars
• Package: 1x DAB / FM / GPS antenna (power cord 12V) | Roof mounting: | Dimensions (length * width * height)

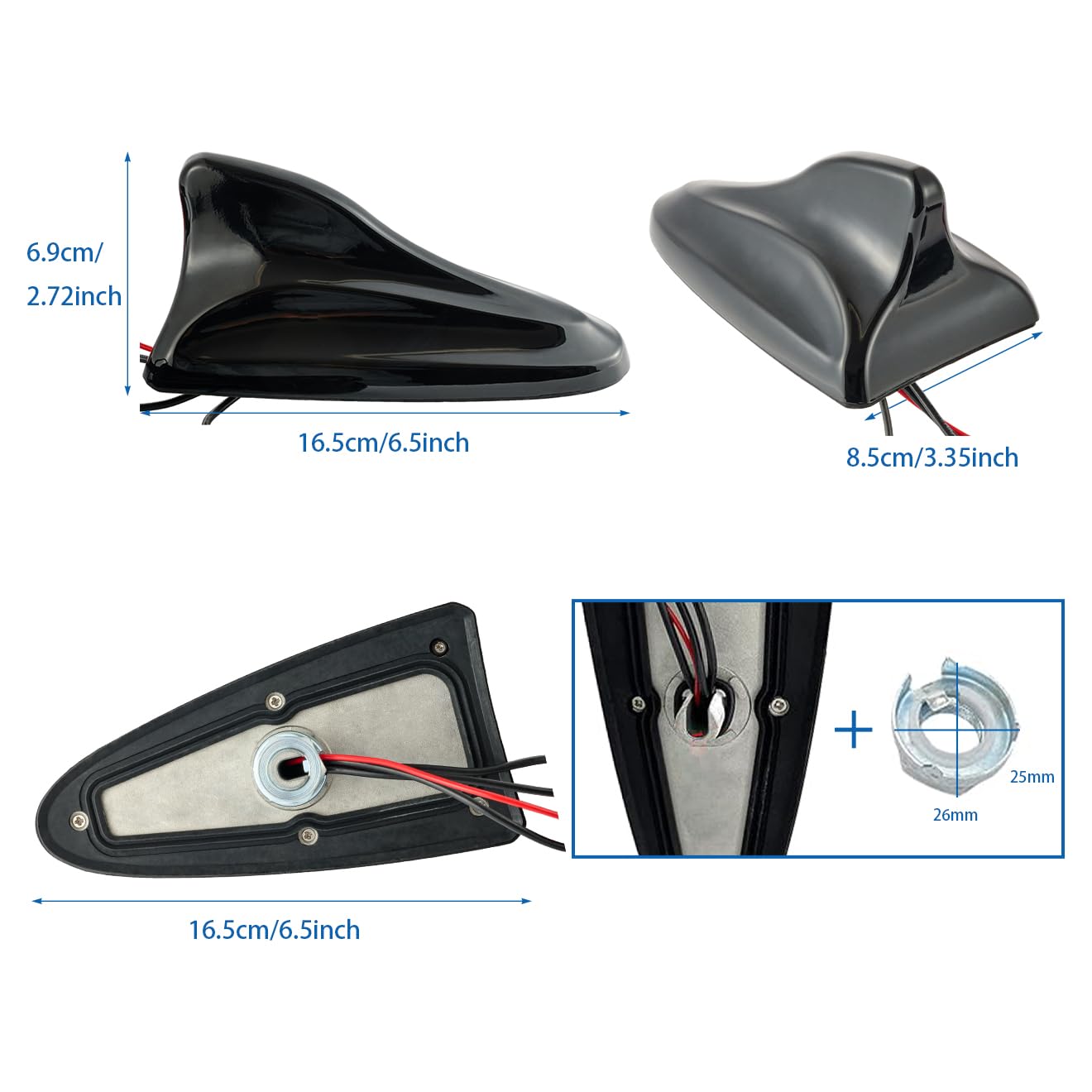

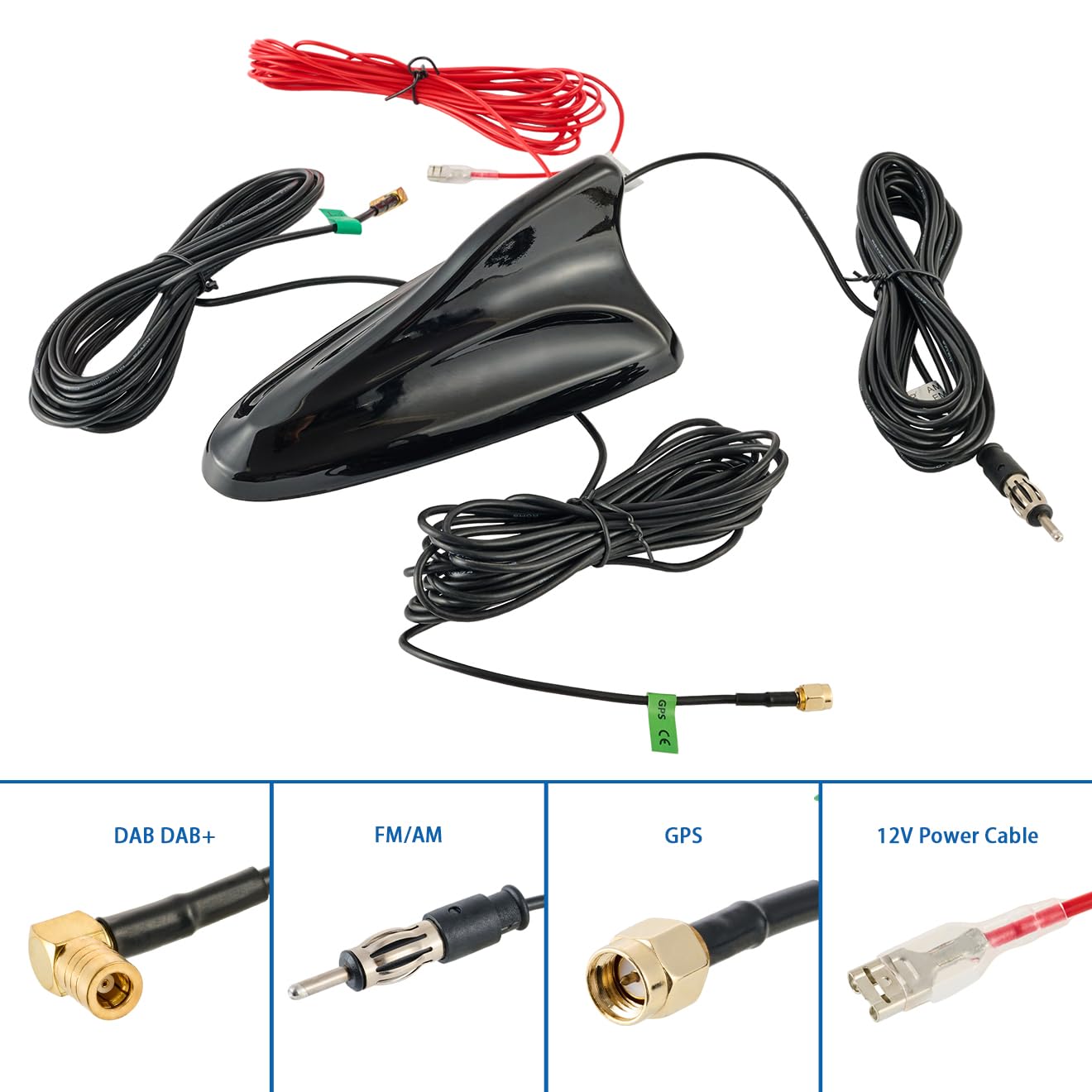

Description: Product net weight: about 500g Connection: SMB (DAB) to SMA (GPS) to DIN (FM/AM) Four lines: three functional lines, one power line Cable length: 5 m Cable Specification: RG174 Function: AM FM GPS DAB AM frequency band: 530 ~ 1710 kHz, gain 0 + -3 dB FM frequency band: 87.5 ~ 108 MHz, gain 12 + -3 dB DAB frequency band: 170 + -240 MHz, gain 20 + -2 dB. 1452 ~ 1492 MHz, gain 12 + -2 dB. GPS frequency band: 1574.397 Hz ~ 1576.443 MHz. Gain 30 + -3 dB. Shark seat size: 170 mm x 85 x 52 mm. Operating temperature: -40° ~ 85° VSWR: GPS ≤ 2.0, DAB ≤ 2.0, FM ≤ 2.5 Voltage: 12 V. Input resistance: 50Ω Colour: black. Material: ABS metal copper parts
