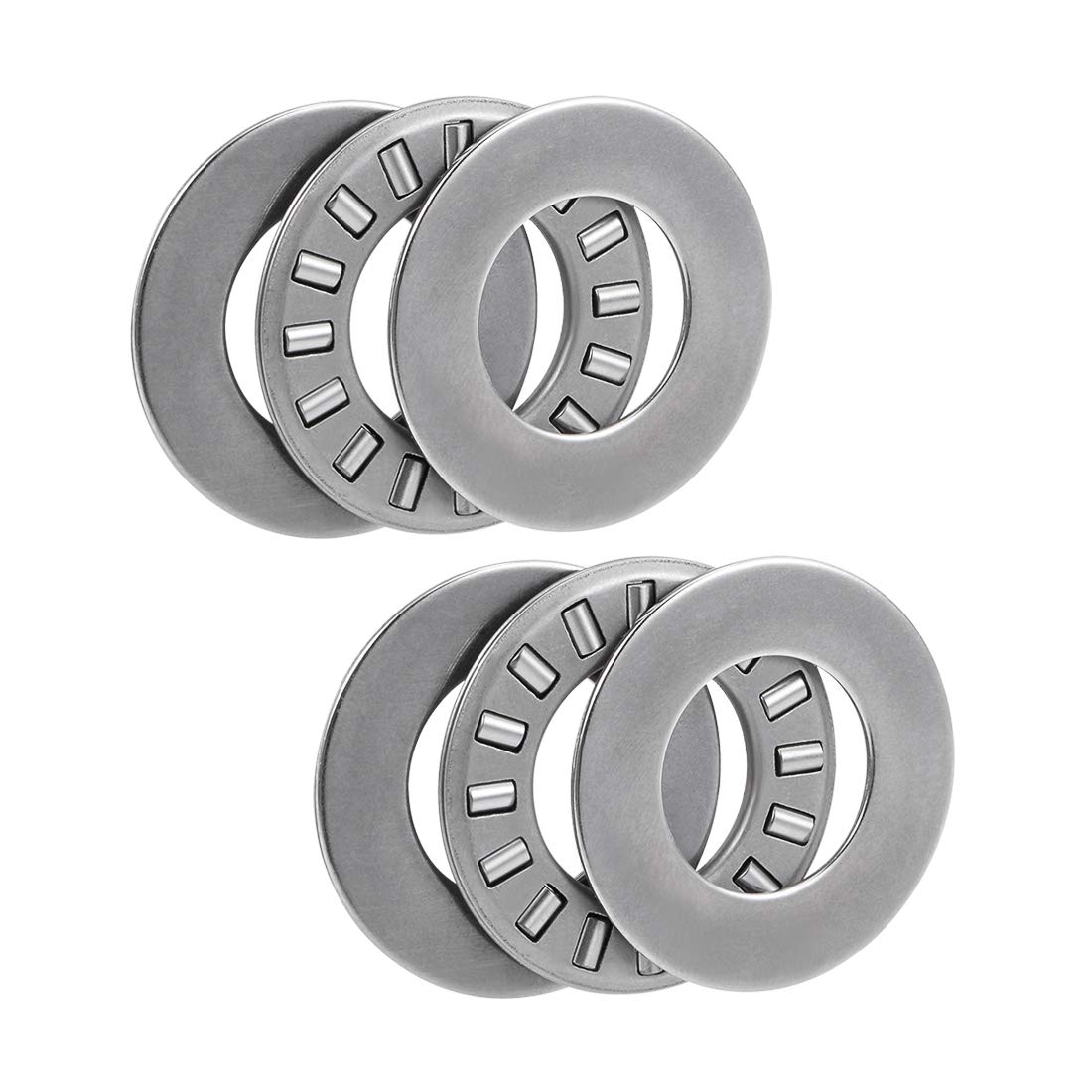

sourcing map NTA613 Thrust Needle Roller Bearings with Washers 3/8" Bore 13/16" OD 5/64" Width 2pcs

• [Model] - Bearing Model: NTA613 (I.D.=3/8", O.D.=13/16", Thickness=5/64"); Washer Model: TRA613

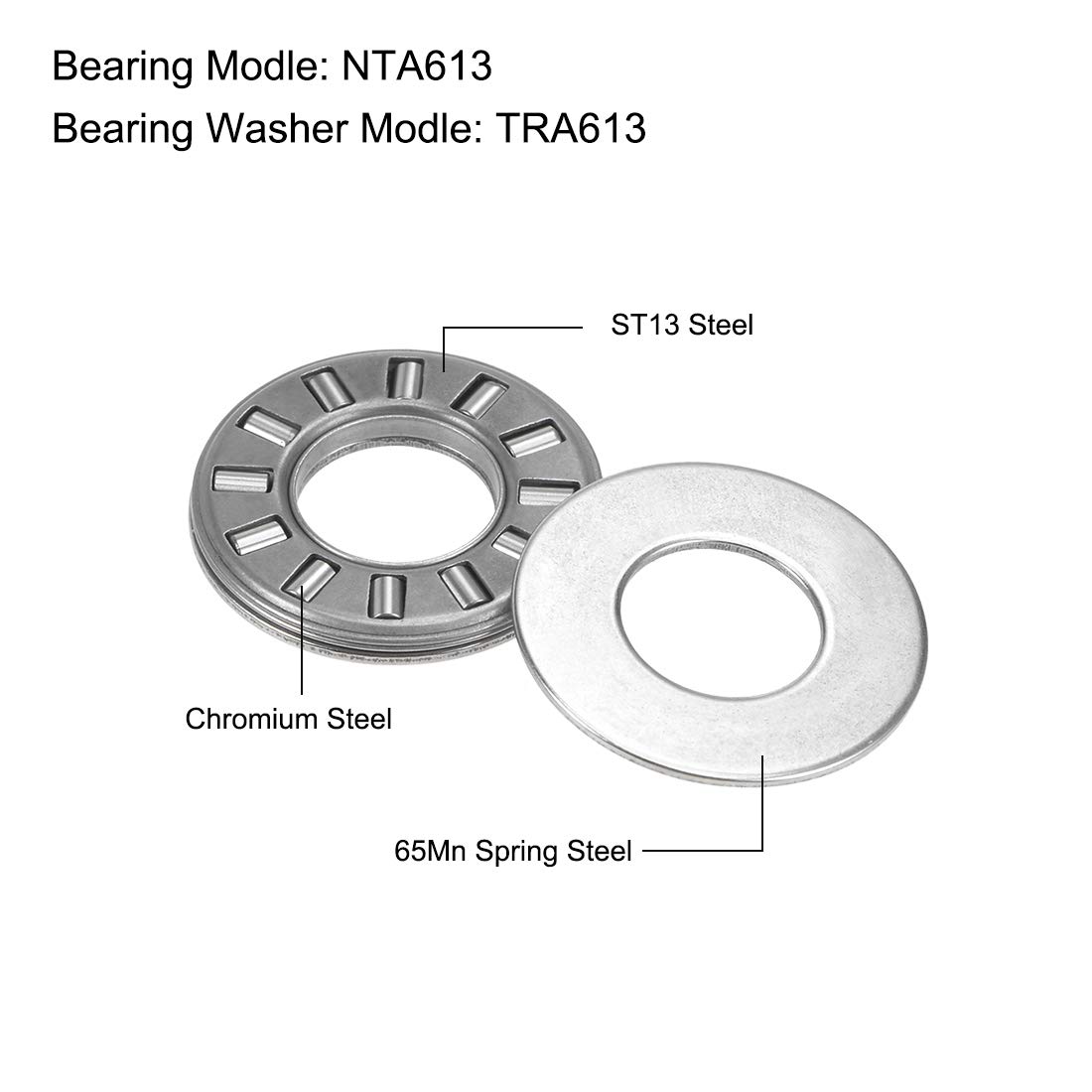

• [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
• [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
• [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
• [CAPABILITY] - 19kN Static Load Capacity, 7.75kN Dynamic Load Capacity, 15000RPM Maximum Rotational Speed

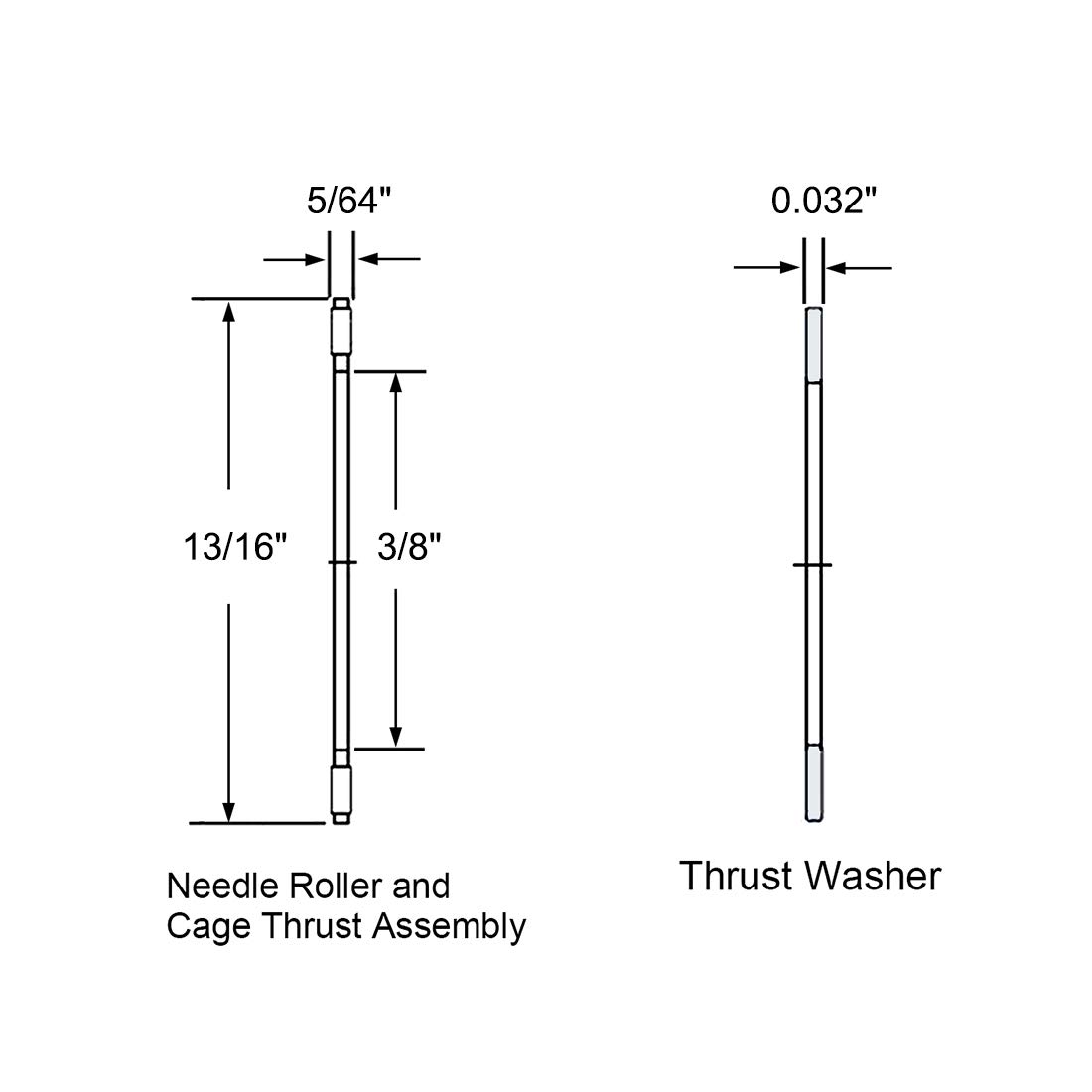

Description:Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.AXK Thrust Bearings can be combined with washers in the TRA series in applications where adjacent components cannot serve as raceways.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.Specification:Bearing Model: NTA613Bearing Washer Model: TRA613Needle Roller Material: Chromium Steel (GCr15)Cage Material: ST13 SteelBearing Washer Material: 65Mn Spring SteelBore Diameter (d): 3/8"Outside Diameter (D): 13/16"Bearing Thickness (T1): 5/64"Washer Thickness (T2): 0.032"(Approx.)Dynamic Load Capacity (Cr): 7.75kNStatic Load Capacity (Cor): 19kNLimiting Speed (Oil): 15000RPMPackage Contents:2 x Bearings4 x Bearing Washers
